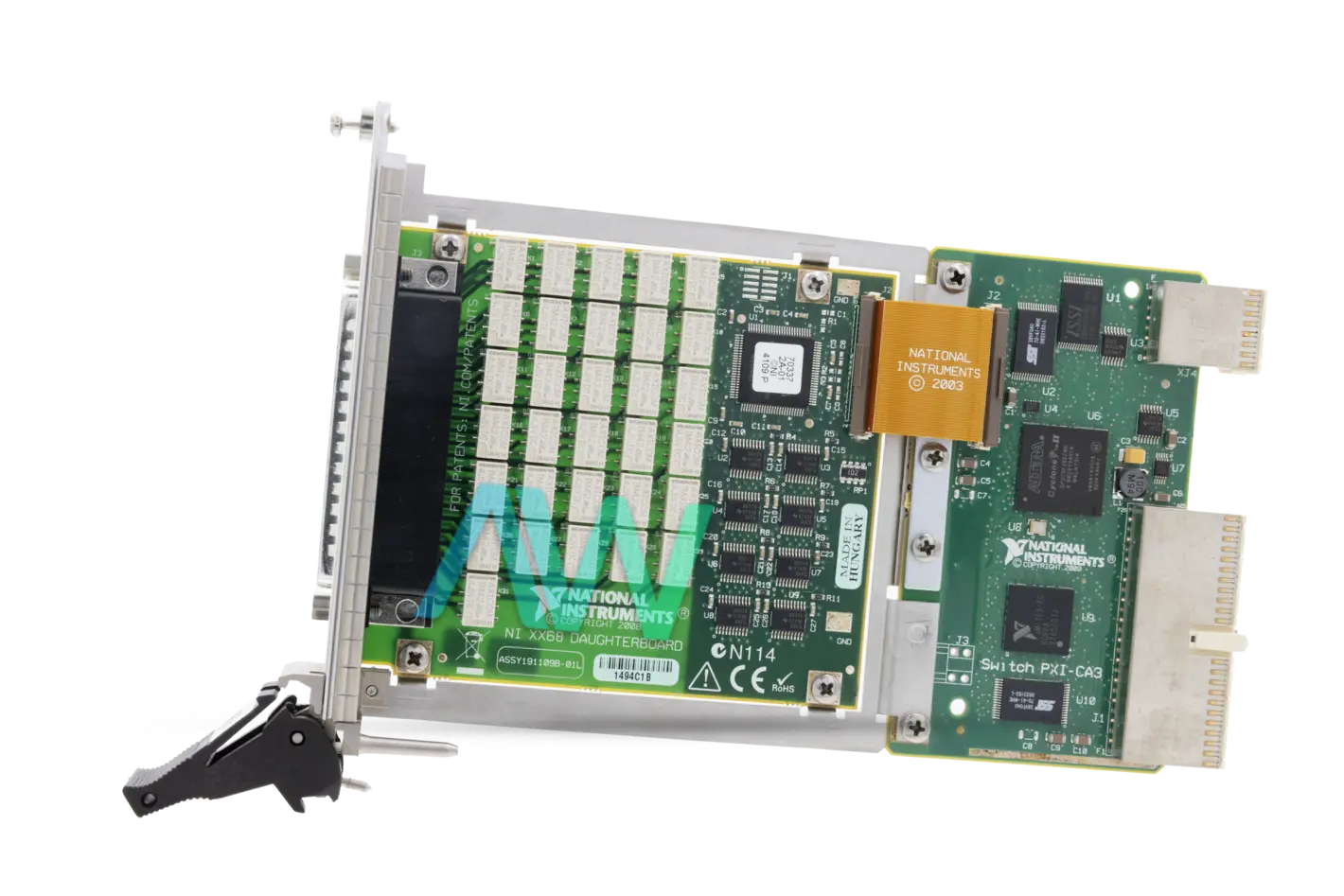

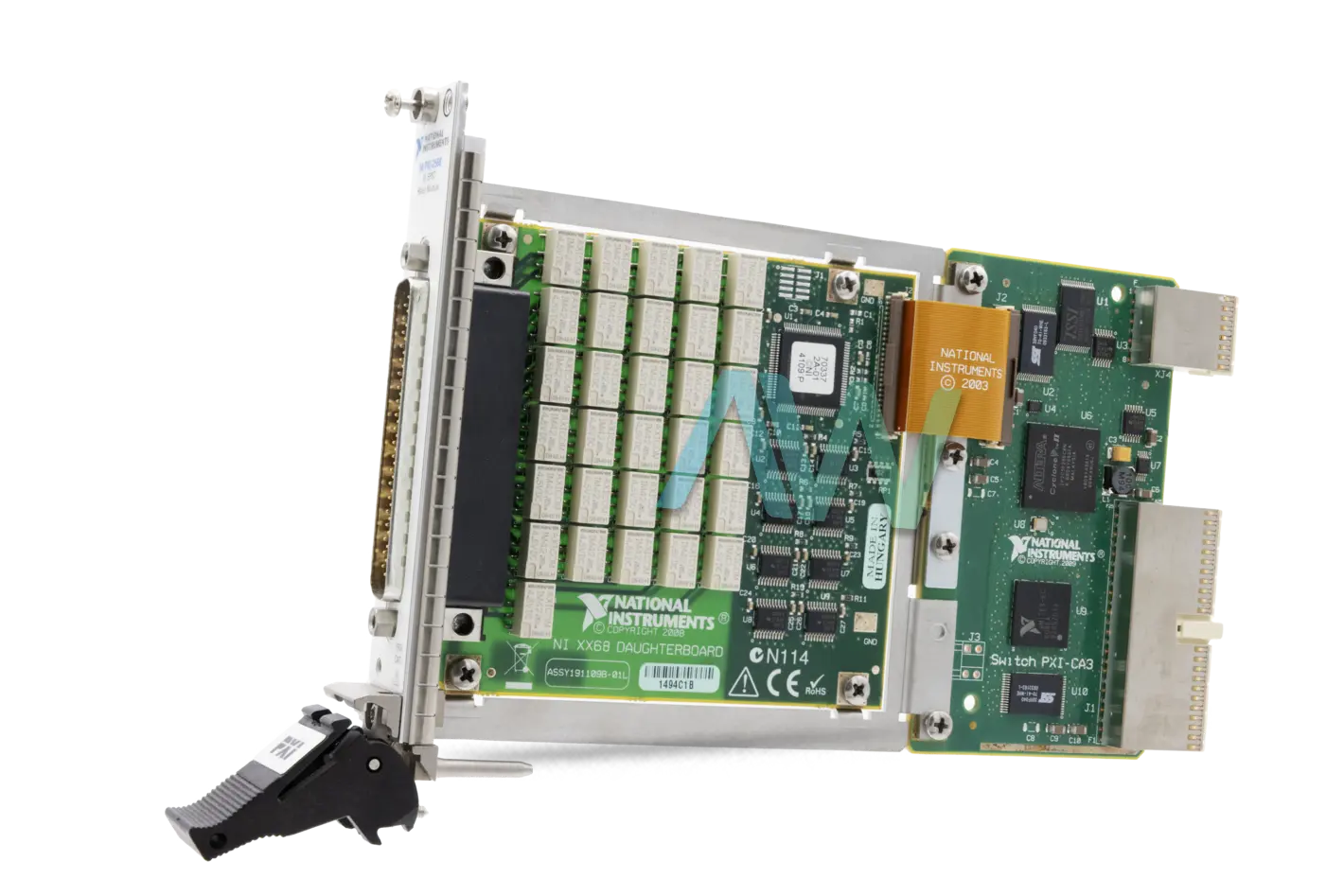

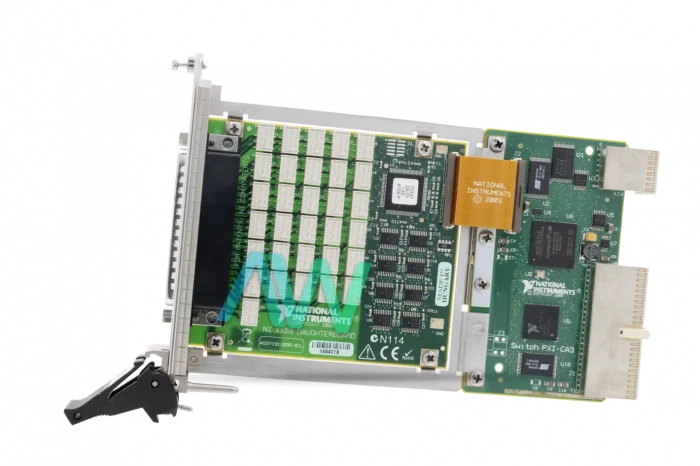

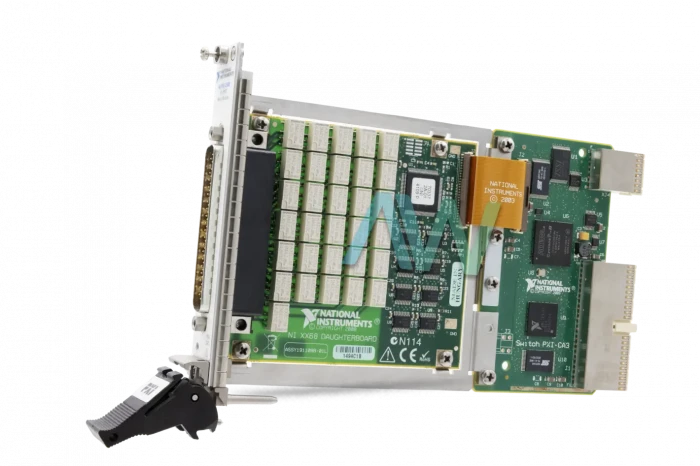

National Instruments PXI-2568 Relay Module

The National Instruments PXI-2568 (Part Number: 778572-68) is a broadly useful 31-channel Relay Module, highlighting free SPST (Form A) armature relays. Each relay is latching with low on-resistance and low thermal offsets. The NI PXI-2568 can switch up to 2 A at 30 VAC/30 VDC. With an effective coupling of voltage/current capacity and relay density, the PXI-2568 is perfect for automated test equipment (ATE) loads or for controlling heaters, lights, and fans. This model can expand throughput in automated test applications by the utilization of scanning. Scanning enhances throughput by downloading a list of up to 32,000 connections with the switch and cycling through the list by utilizing an event (trigger) with no intrusion from the host processor. Scanning is most effectively achieved by mating the PXI-2568 with an instrument, such as the NI PXI-4070 61 ⁄2-digit FlexDMM, which issues a trigger after every estimation.

 All National Instruments PXI switch modules come with NI-SWITCH, an IVI-agreeable driver offering complete usefulness for all switch modules. For extra help with arranging, programming, and overseeing higher-channel-count switching frameworks, NI Switch Executive programming offers a simple-to-utilize smart switch management and visual routing environment.

The NI PXI-2568 Relay Module offers 31 autonomous SPST relays, maximum switch capacity up to 150 VDC, 150 VAC, latching relays, 32,000-step scanlist for deterministic examining, fully programmable software, 145 cycles/s, tight synchronization with instruments through hardware triggers, operating systems, Windows 2000/NT/XP Recommended Software, LabVIEW™, and LabWindows™/CVI™.

 The manual for this model is available on the ApexWaves.com website.

ModelPXI-2568 (778572-68)
ManufacturerNational Instruments
TypePXI Relay Module
Relays31
Switch Bandwidth40 MHz
Scan Rate145 cycles/s
Dimensions8.5 x 0.8 x 5.1 in.
Weight8 oz.
WarrantyOne Year Warranty
PXI-2568 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2568 Frequently Asked Questions



Question: What type of relay configuration does the NI PXI-2568 have?



Answer: The NI PXI-2568 has an SPST (open) relay configuration.



Question: What is the PXI power requirement for the PXI-2568?



Answer: The PXI power requirement for the PXI-2568 is 6 W at 5 V and 2.5 W at 3.3 V.



Question: Which accessories are available for use with the PXI-2568?



Answer: The following accessories can be used with the PXI-2568: the 62-pin female-to-female shielded D-SUB cable (Part number: 779956-01) and the NI TBX-62 62-pin D-SUB screw terminal block (Part number: 779957-01).



Question: What is the topology of the PXI-2568?



Answer: The topology for the PXI-2568 is 31-SPST (form A, latching) or 15-DPST.
