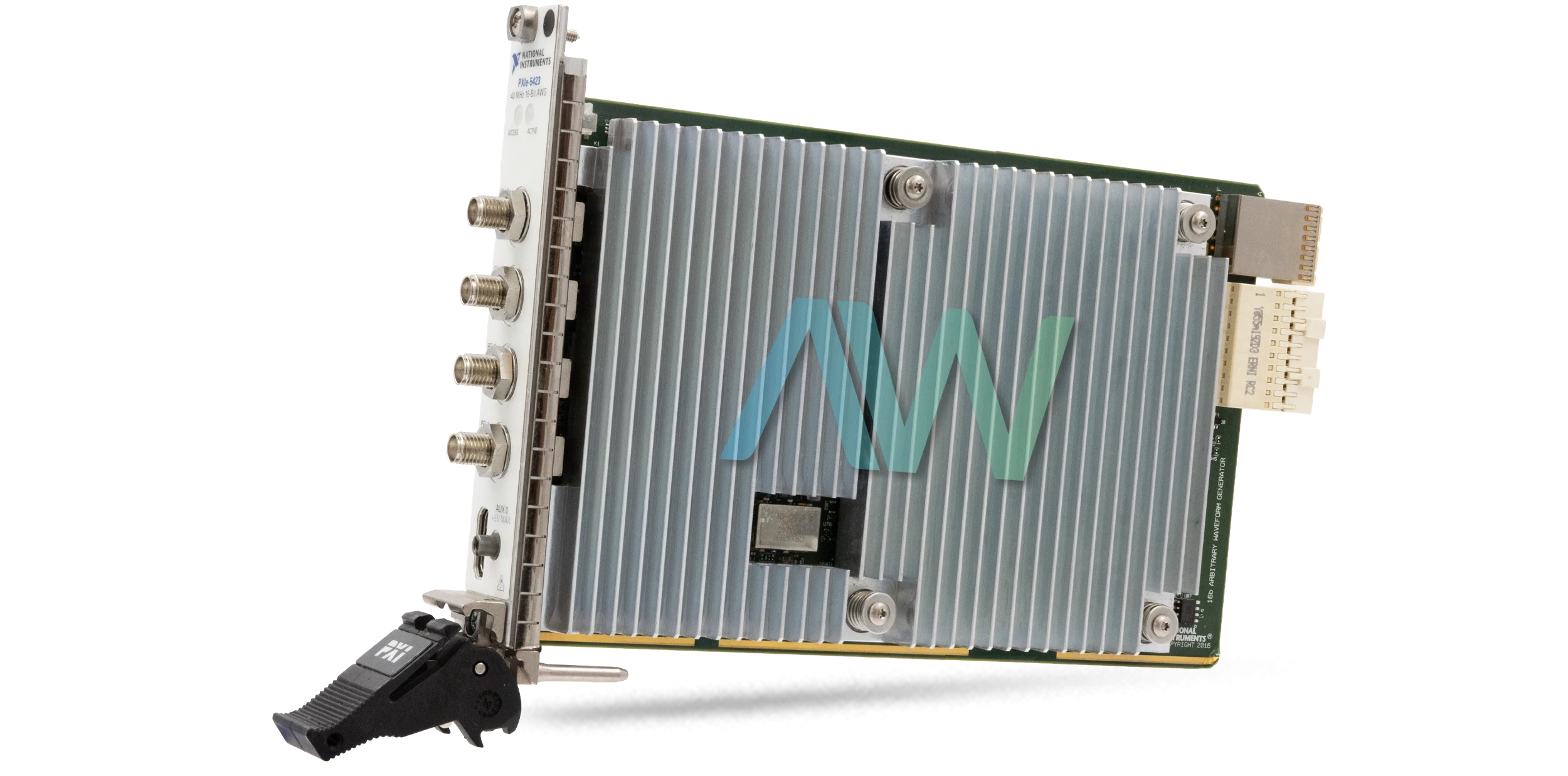

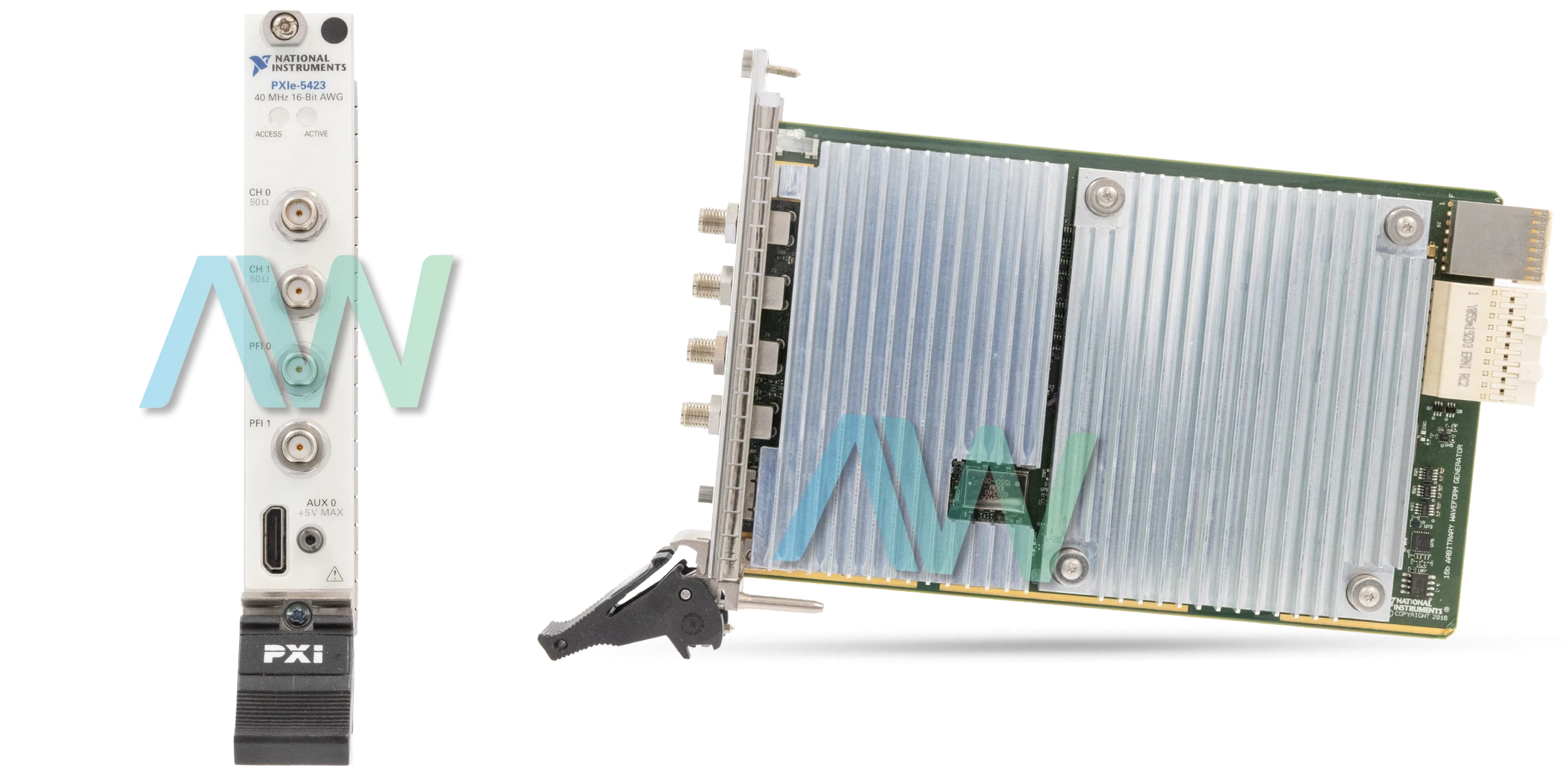

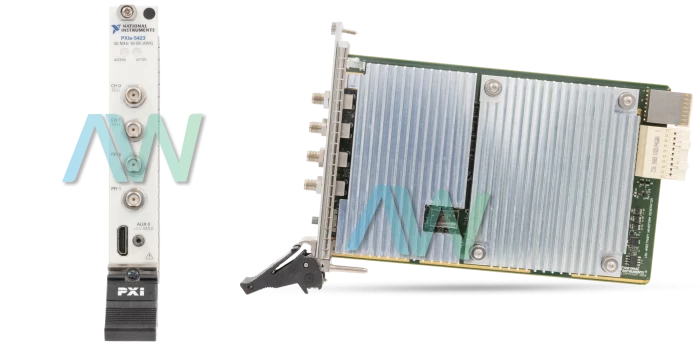

National Instruments PXIe-5423 PXI Waveform Generator
The key features of the PXIe-5423 (Part Numbers: 785115-01 and 785116-01) Waveform Generator are:
· Digital filtering
· Fractional Resampling
· Independent Generation Engines and Sequencing
· Self-calibration
· Frequency List Mode
· Synchronization and Integration
The NI PXIe-5423 from National Instruments is a random Waveform Generator ideal for tightly synchronized, mixed-signal test systems, using a fractional resampling process to achieve accurate waveform generation. This module meets the application testing requirements of engineers in industries, such as scientific research, consumer electronics, automotive, semiconductor devices, and aerospace. This module has a single slot and a backplane connector and can be installed into any PXI Express-compatible slot. This module offers advanced features, such as waveform scripting and streaming options.
The PXIe 5423 supports sine wave generation up to 40 MHz and square wave generation up to 25 MHz. For triangle waveforms and ramp waveforms, the frequency range is from 0 MHz to 5 MHz. For user-defined functions, the frequency range and step size are 0 MHz to 40 MHz and 2.84 µHz respectively. This module also features single, continuous, stepped, and burst trigger modes when configured to frequency list, arbitrary waveform, or arbitrary sequence output modes.
The NI PXIe 5423 PXI Waveform Generator produces 0.00775 Vpk-pk to 12 Vpk-pk output amplitude into a 50 Ω load and has 200 MS/s sampling rate. This model has an input impedance of (DC) >100 kΩ and a pulse width >150 ns. The random vibration for this model while operating is 5 Hz to 500 Hz, 0.3 grms.
| Model | PXIe-5423 |
|---|---|
| Part Numbers | 785115-01 and 785116-01 |
| Manufacturer | National Instruments |
| Type | PXI Waveform Generator |
| Maximum Bandwidth | 40 MHz |
| Maximum Update Rate | 800 Ms/s |
| Analog Output Resolution | 16 bits |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 1 Channel: 13.0 oz; 2 Channels: 13.3 oz. |
| PXIe-5423 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-5423:
National Instruments PXIe-5423 Frequently Asked Questions
Question: What are the differences between the two part numbers for the PXIe-5423?
Answer: The two part numbers for the PXIe-5423 have several different specifications. Part number 785115-01 has 128 MB onboard memory size, 1 channel, and weighs 13 oz. Part number 785116-01 has 256 MB onboard memory size, 2 channels, and weighs 13.3 oz.
Question: Which items are necessary to operate the NI PXIe-5423?
Answer: The following items are needed to operate the NI PXIe-5423: a PXI Chassis and a PXI Controller or PC with a device for PXI remote control system that meets the requirements to run with the PXIe-5423.
Question: Which driver is used with the PXIe-5423?
Answer: The PXIe-5423 driver is NI-FGEN.
Question: What is the analog output voltage range for the NI PXIe-5423?
Answer: The analog output voltage range for the NI PXIe-5423 is -12 V to 12 V.
