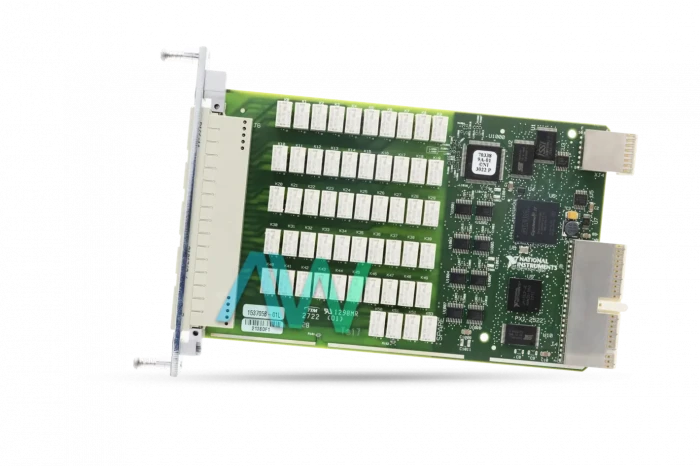

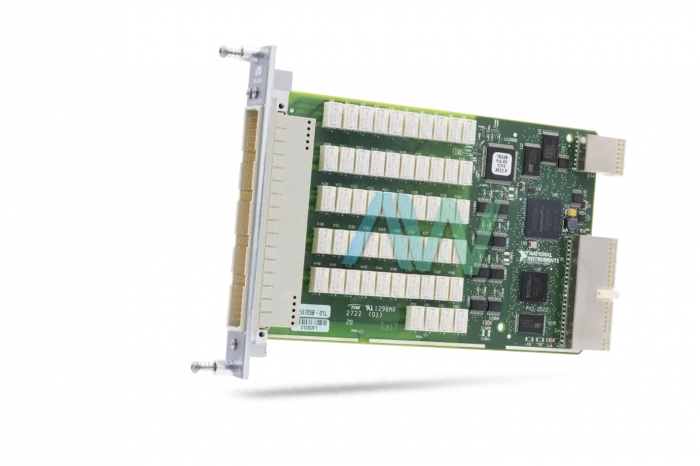

PXI-2522 National Instruments Relay Module | Apex Waves | Image PXI-2522 National Instruments Relay Module | Apex Waves | ImagePXI-2522PXI-2522 | Legacy, Refurbished and New Surplus
PXI-2522 National Instruments Relay Module | Apex Waves | Image
PXI-2522 National Instruments Relay Module | Apex Waves | Image
PXI-2522 New
PXI-2522 | Legacy, Refurbished and New Surplus

PXI-2522

4.8/5 | 17 ratings

Modular Systems > National Instruments > PXI Relay Modules

Part Number PXI-2522
Manufacturer/Brand National Instruments
Description: PXI-2522, 53-Channel, PXI Relay Module
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

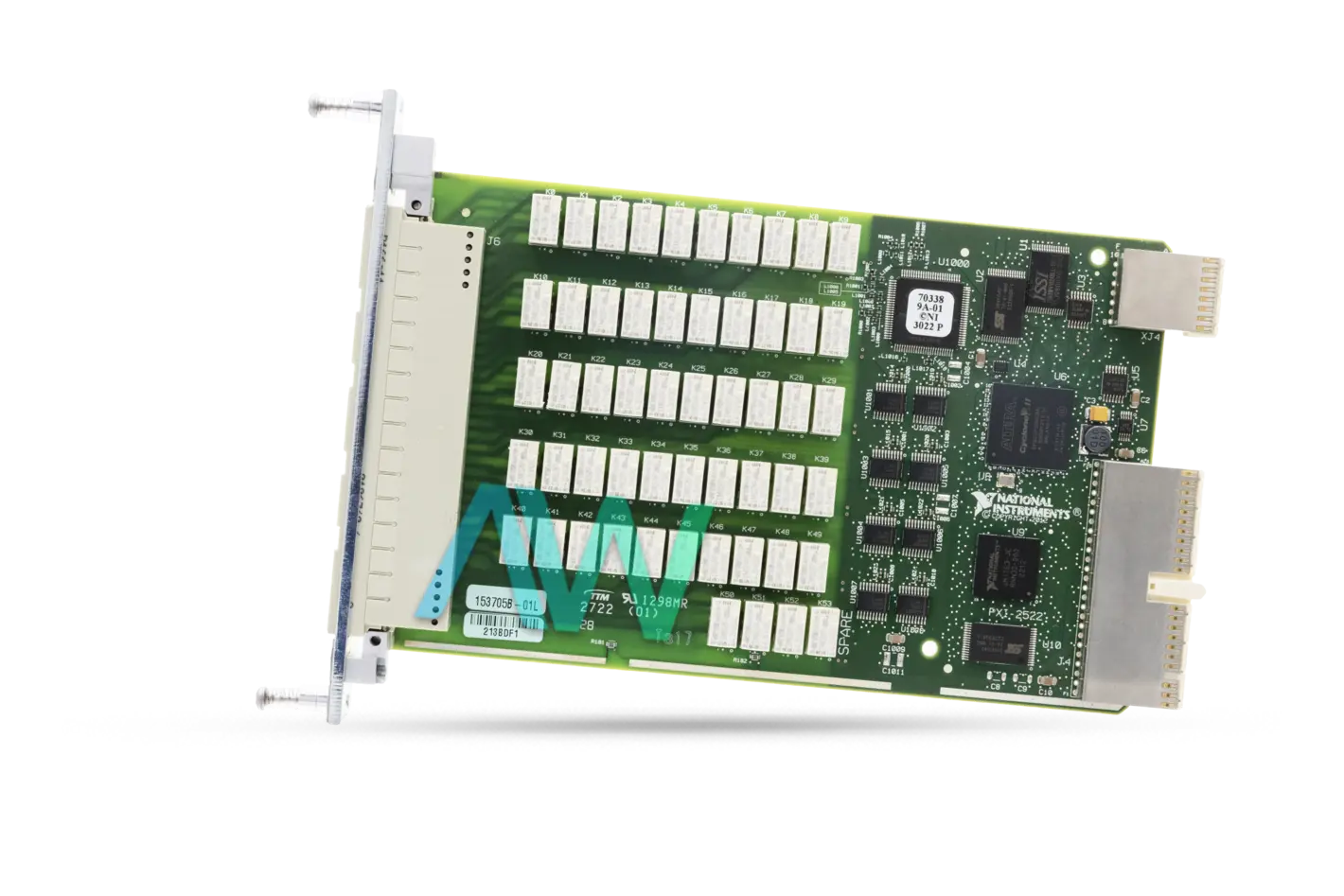

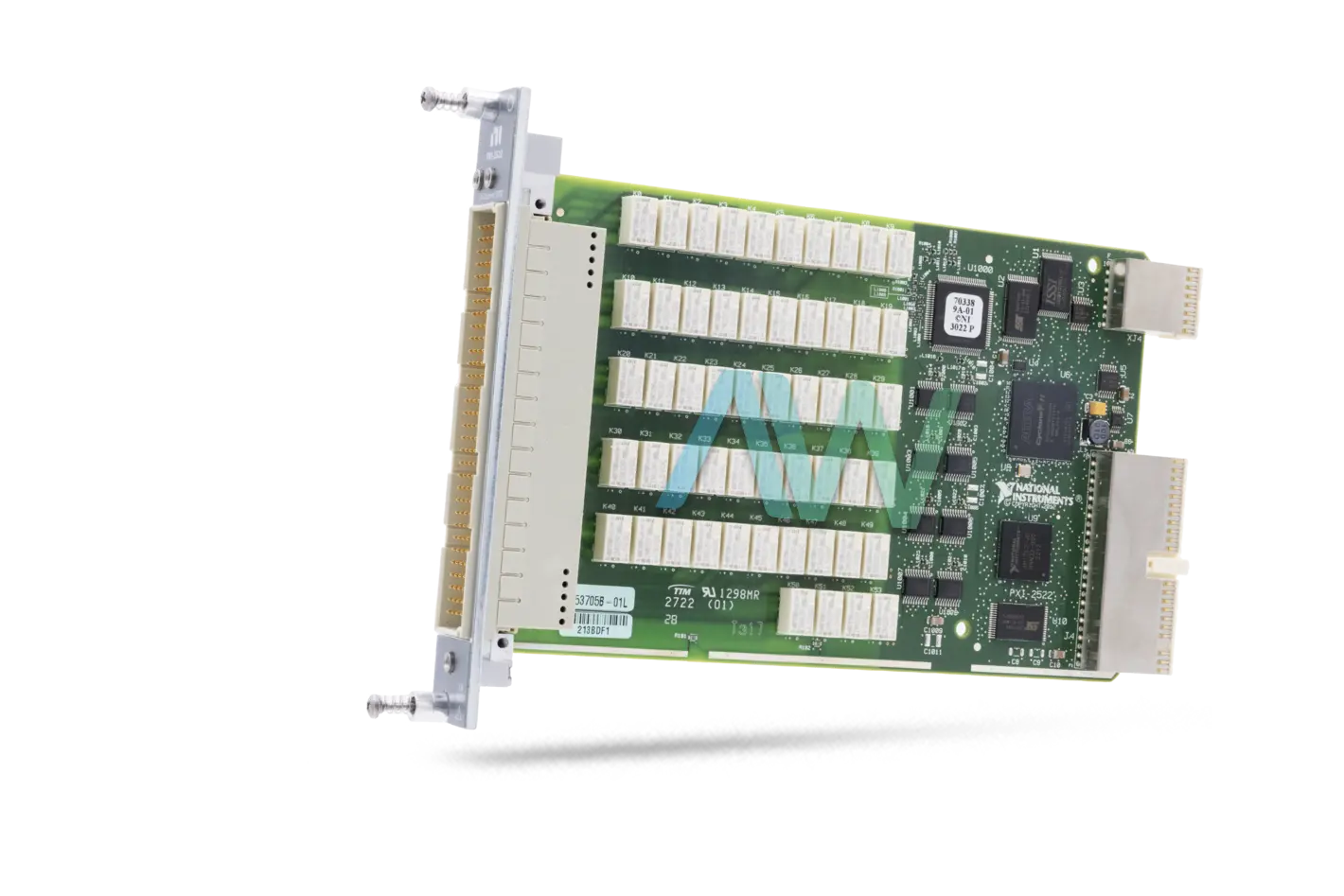

National Instruments PXI-2522 PXI Relay Module

The NI PXI-2522 General-Purpose Switch Module (Part Number: 778572-22) utilizes the inherent timing and synchronization capacities of the PXI platform to communicate with different instruments. The user can store a list of switch associations in memory on board the switch module and afterward utilize the incorporated equipment output and initiation motor to advance the switch sequence and communicate rapidly with any PXI instrument that can send and get advanced triggers, including a DMM or oscilloscope. This advanced strategy of change takes out the software overload and decreases bus latency related with conventional software-controlled switching tasks for a quicker trial with more repeatable times.

The NI PXI-2522 software incorporates an intelligent front board for complete ready-to-utilize functionality. This delicate intuitive front board enables the user to arrange the topology of the switch and change the switch associations with a simple click. Likewise, the user can utilize the Debug Driver session mode to screen and troubleshoot the switch amid automated estimation. For instance, the user can control which signal paths are dynamic, which individual relays are open/shut, and how frequently each relay has been utilized.

This model offers 3 independent SPDT relays, 2 A switching/2 A carry, 100 V maximum voltage, fully programmable software, onboard relay count tracking, multiple termination options for DIN160 connector, and can configure the complete PXI System and includes view support resources.

If you are interested in this model and you want to learn more about its options, special features, and specifications, you can read its manual, which is available on the ApexWaves.com website.

ModelPXI-2522 (778572-22)
ManufacturerNational Instruments
TypePXI Relay Module
Relays53
Switch Bandwidth51 MHz
Scan Rate145 cycles/s
Dimensions8.5 x 0.8 x 5.1 in.
Weight6.77 oz.
WarrantyOne Year Warranty
PXI-2522 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2522 Frequently Asked Questions



Question: What type of relay configuration does the PXI-2522 have?



Answer: The PXI-2522 has an SPDT relay configuration.



Question: Does the PXI-2522 have a relay replacement kit available?



Answer: Yes, the PXI-2522 has a relay replacement kit (Part number: 781089-10).



Question: What is the typical relay operation time for the NI PXI-2522?



Answer: The typical relay operation time for the NI PXI-2522 is 1 ms.



Question: Can the PXI-2522 recognize trigger pulse widths smaller than 150 ns?



Answer: The minimum pulse width for the PXI-2522 is 150 ns, but if the user disables digital filtering the model can recognize smaller trigger pulse widths.



Question: What is the switch bandwidth for the PXI-2522?



Answer: The PXI-2522 has a switch bandwidth of 51 MHz.
