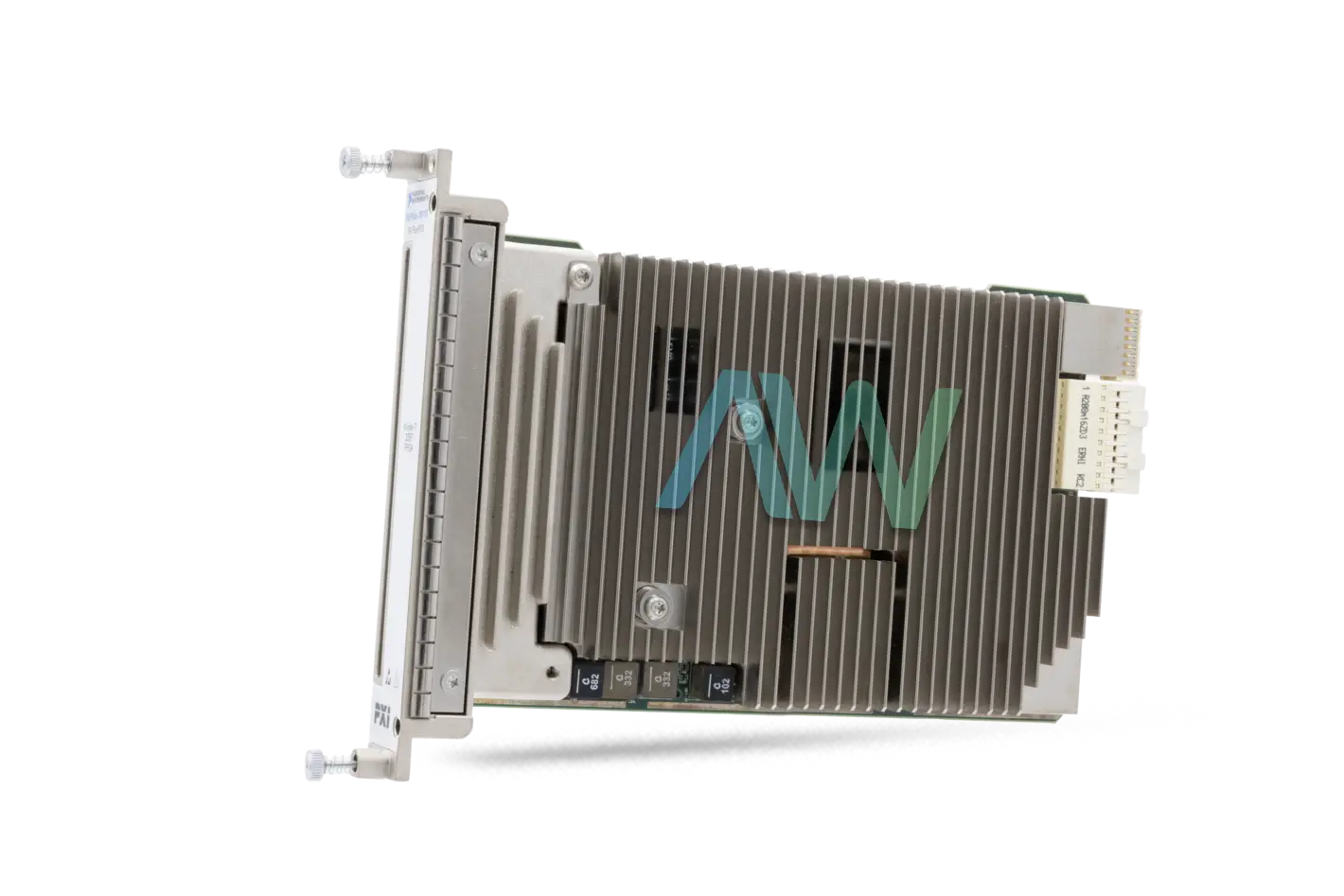

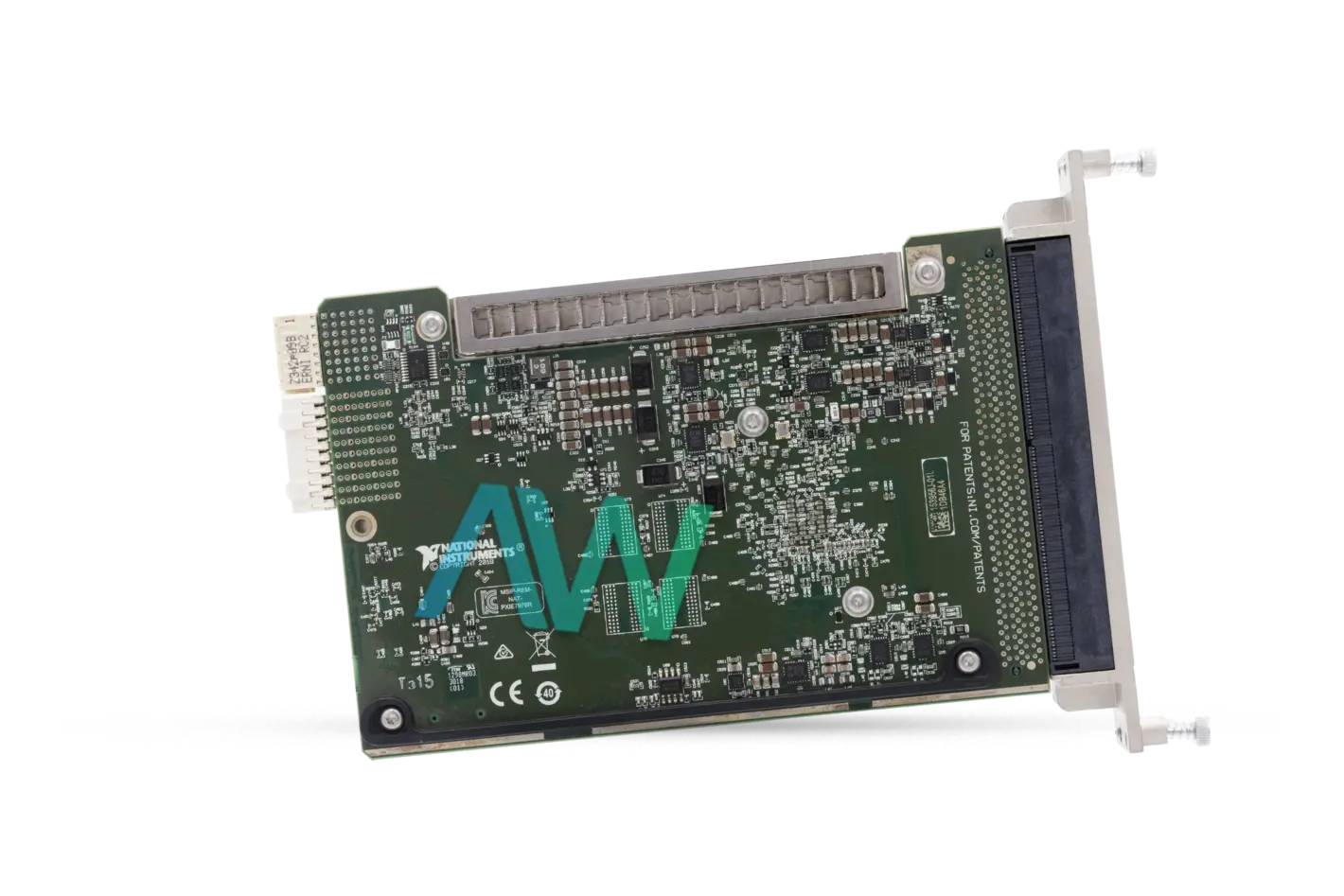

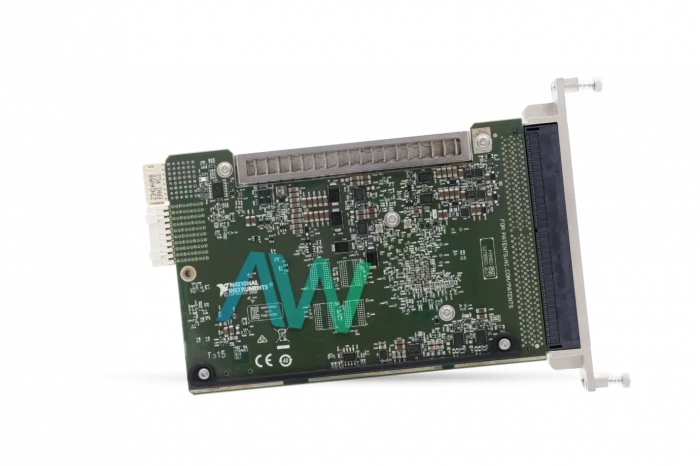

National Instruments PXIe-7971R PXI FPGA Module for FlexRIO

Featured with Kintex-7 XC7K325T FPGA, the NI PXIe-7971R (Part Number: 782953-01) is a FlexRIO Module in PXIe form-factor. This module is designed to operate with the channels configured in either single-ended or differential modes. In single-ended mode, the PXIe-7971R can send/receive signals through the 136 channels at transmission rates up to 400 megabytes per second. The robust FPGA integrated into this module has a BRAM of 16,020 kbits, 203,800 LUTs, and 840 DSP48 slices.

The 40 MHz default timebase in the XC7K325T FPGA offers a maximum timebase accuracy of ±100 ppm. The NI PXIe-7971R is offered in x4 PXIe form-factor and is compliant with the specification version 2.1 and can be deployed in x4 PXIe slot, x8 PXIe slot, x16 PXIe slot or PXIe hybrid slot. This module consumes around 3 amperes of current in standard operating conditions and while operating at +3.3 VDC (±5%).

ModelPXIe-7971R
ManufacturerNational Instruments
Part Number782953-01
TypePXI FPGA Module for FlexRIO
FPGAKintex-7 XC7K325T
General-Purpose Channels136
DRAM0 MB
Embedded Block RAM16,020 kbits
DSP48 Slices840
LUTs/Flip-Flops203,800
Form Factorx4 PXI Express, specification v2.1 compliant
Dimensions7.4 x 5.1 in.
Weight1 lb.
WarrantyOne Year Warranty
PXIe-7971R ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.
