National Instruments PXIe-7972R PXI FPGA Module for FlexRIO

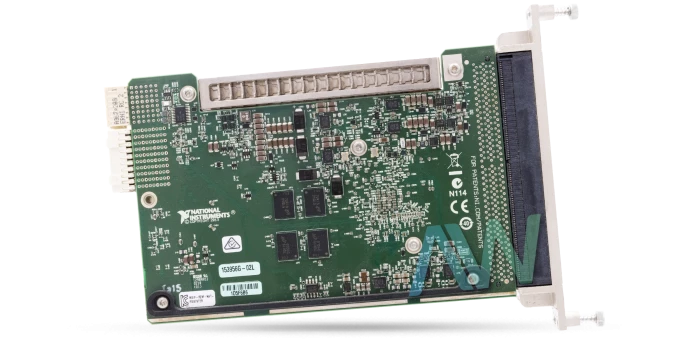

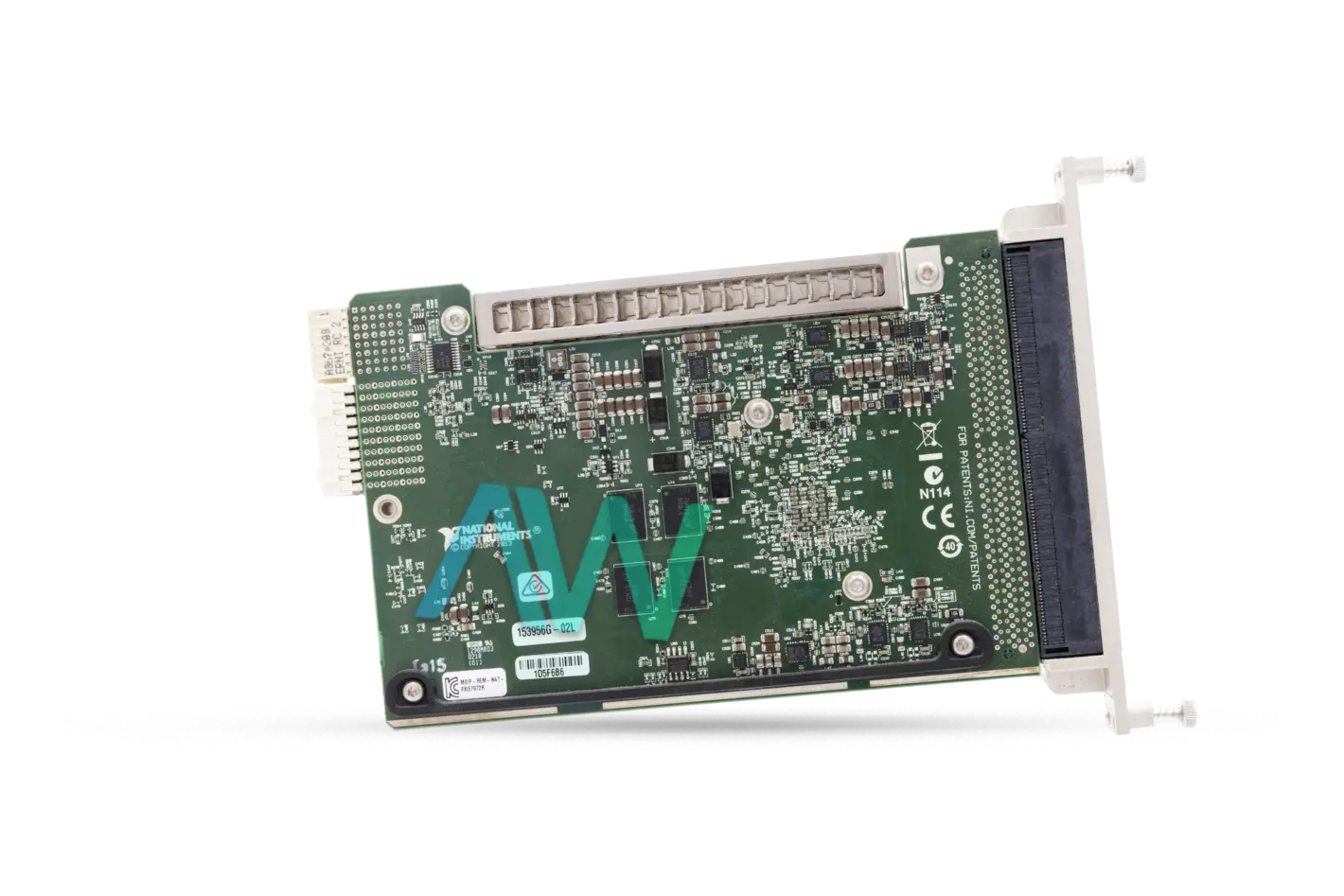

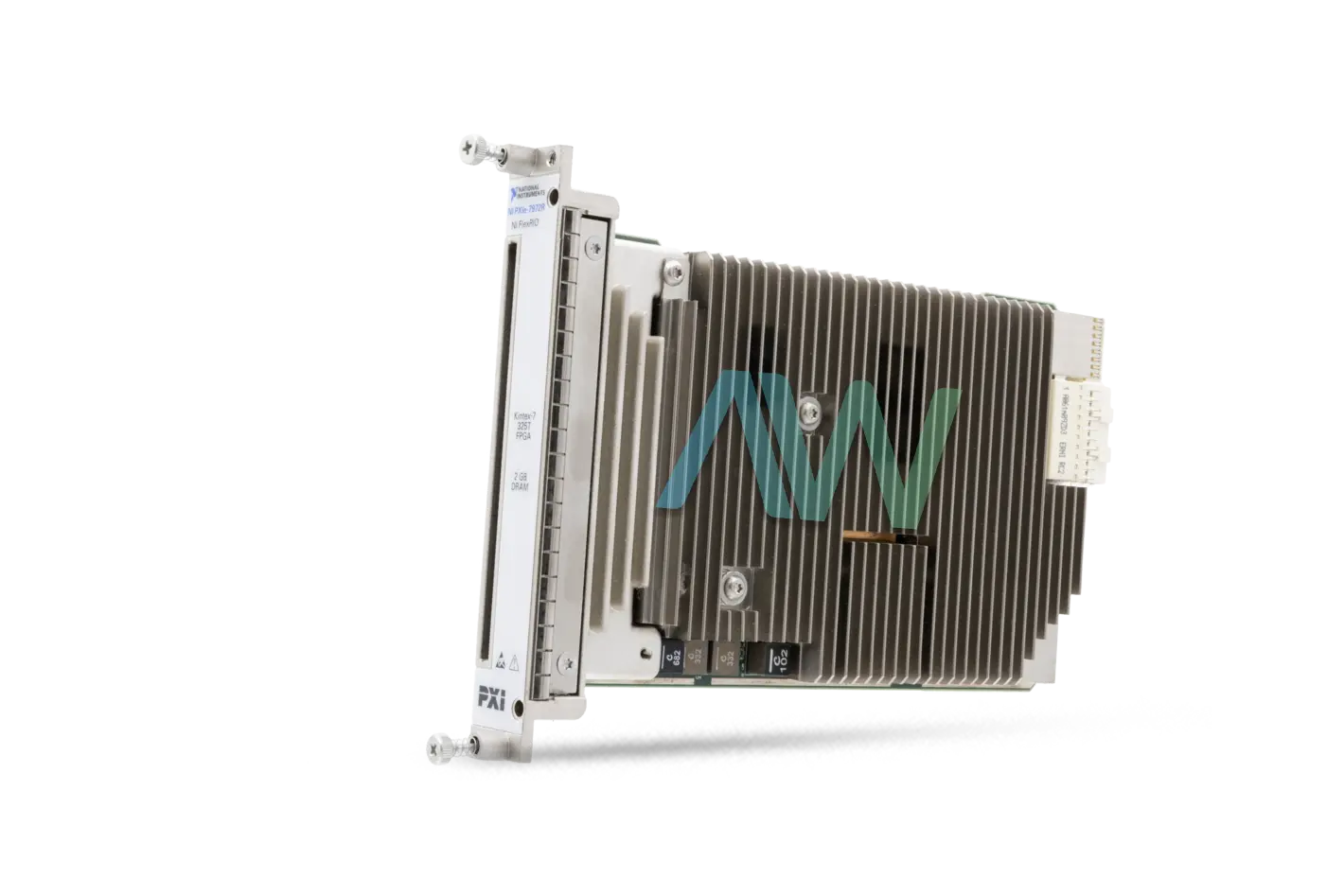

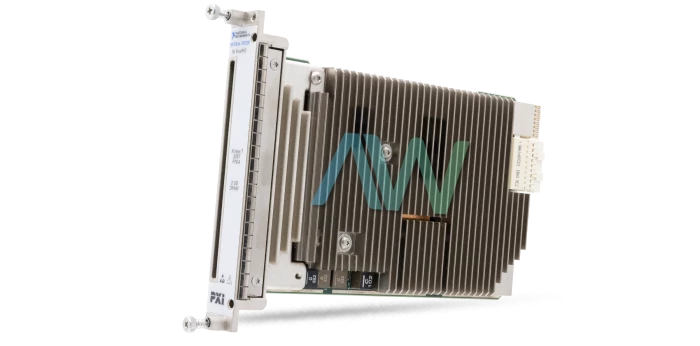

Designed to stream data through P2P streaming, the NI PXIe-7972R (Part Number: 782954-01) is a PXI FPGA Module for FlexRIO. This module is designed to work with an appropriate FlexRIO Adapter Module. The adapter module can easily be mated with the NI PXIe-7972R. As a result, you will end up with a programmable NI FlexRIO device.
The PXIe-7972R module has 2 GB of DRAM and is equipped with 136 General-Purpose Channels. These channels can be configured as either differential or single-ended, and they are divided across three banks. Depending on which adapter module is attached, the PXIe-7972R is compatible with 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V I/O standards.
This versatile FPGA module features an XC7K325T FPGA from the Kintex-7 family. The XC7K325T FPGA has 16,020 kbits of embedded block RAM, 840 DSP48 Slices, and 203,800 LUTs/Flip-Flops. The PXIe-7972R is designed to comply with the x4 PXI Express, specification v2.1. Thus, you can consider deploying the module in any PXI Express hybrid or PXI Express slot (x4, x8, and x16). The dimensional measurements of this module (without connectors) are 7.4 in. × 5.1 in. The PXI FPGA Module for FlexRIO weighs 6.7 oz. The NI PXIe-7972R is a Measurement Category I device. The maximum working voltages remain within the limit of 0 V to 3.3 V.
| Model | PXIe-7972R |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782954-01 |
| Type | PXI FPGA Module for FlexRIO |
| FPGA | Kintex-7 XC7K325T |
| General-Purpose Channels | 136 |
| DRAM | 2 GB |
| Embedded Block RAM | 16,020 kbits |
| DSP Slices | 840 |
| LUTs/Flip-Flops | 203,800 |
| Form Factor | x4 PXI Express, specification v2.1 compliant |
| Dimensions | 7.4 in. x 5.1 in. |
| Weight | 1 lb. |
| PXIe-7972R Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for PXIe-7972R:
National Instruments PXIe-7972R Frequently Asked Questions
Question: What bus interface does the PXIe-7972R have?
Answer: This module has a PXIe Bus Interface. It is compliant with the v2.1 specification of x4 PXI Express, and it has compatibility with x4, x8, and x16 PXIe slots.
Question: What is the operating temperature of the PXIe-7972R?
Answer: The PXIe-7972R should be operated in environments with temperatures ranging from 0 °C to 55 °C with a noncondensing humidity range of 10% to 90%.
Question: What is the theoretical data rate of this FPGA module?
Answer: The maximum theoretical data rate of the PXIe-7972R is 10.5 GB/s.
Question: How much power is required by the PXIe-7972R?
Answer: The power required by the PXIe-7972R is 3 A for both +3.3 VDC and +12 V
