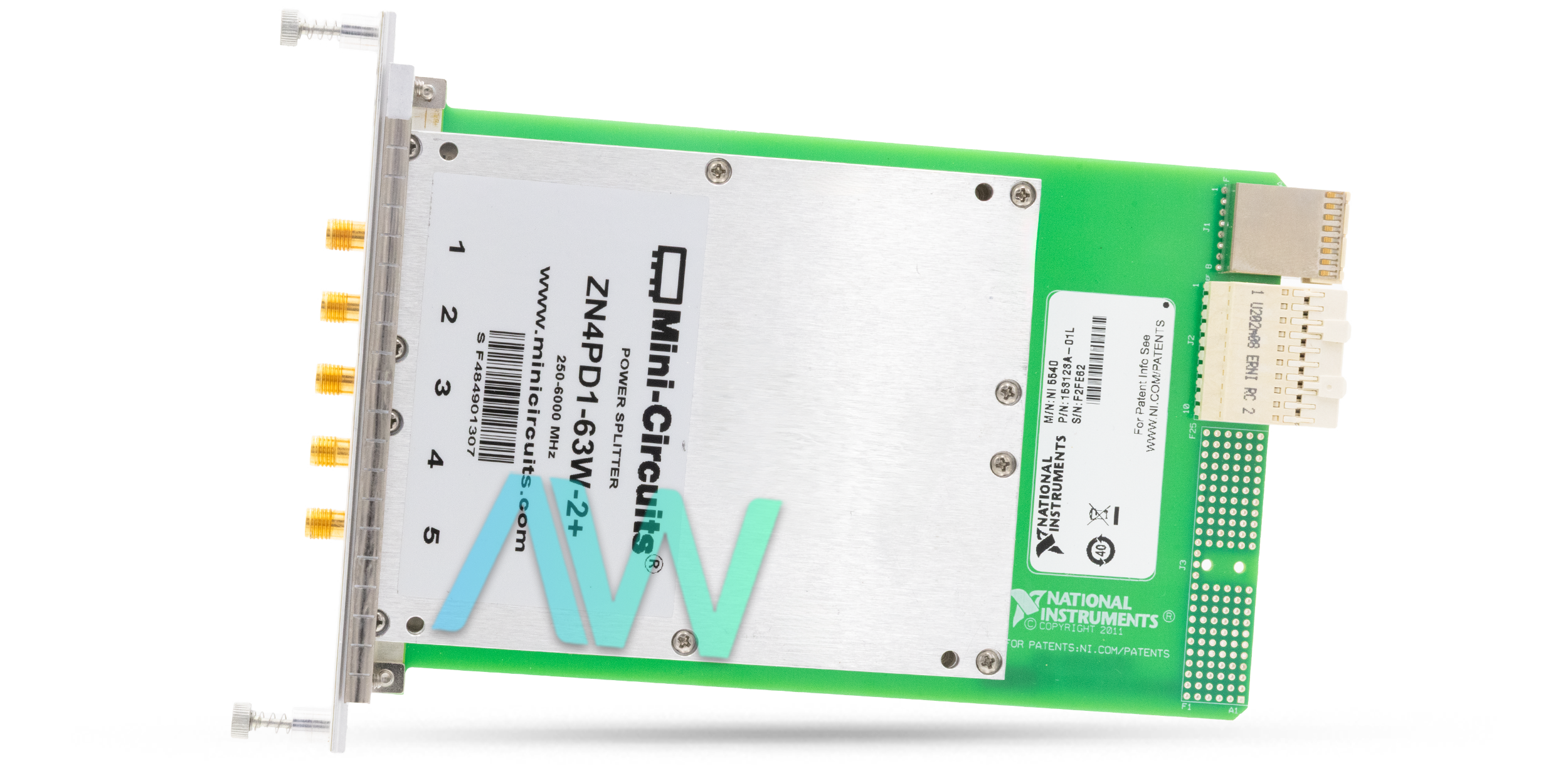

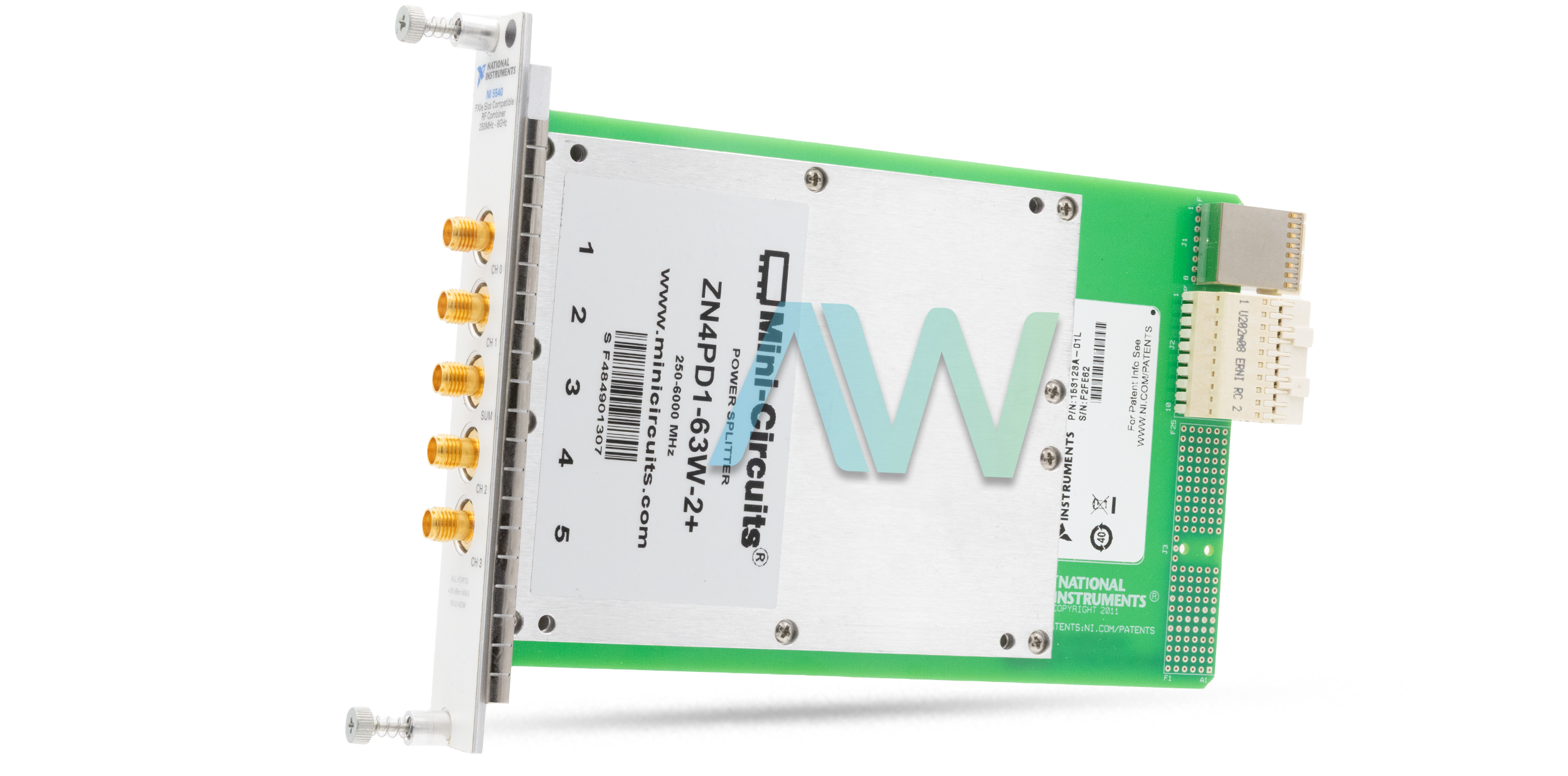

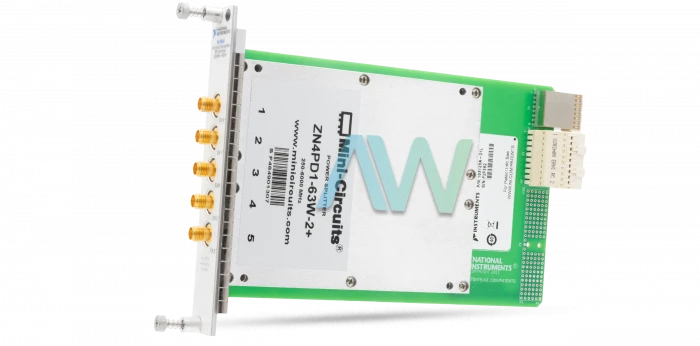

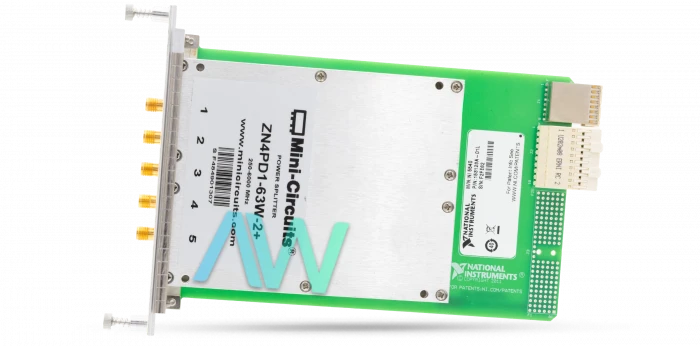

National Instruments PXIe-5540 Slot Compatible RF Combiner
The PXIe-5540 Slot Compatible RF Combiner (Part Number: 153123A-01L) is a compact device by National Instruments specially engineered for use with NI devices and accessories. The PXIe-5540 Slot Compatible RF Combiner measures 4 inches by 6.5 inches.
The PXIe-5540 Slot Compatible RF Combiner offers the following user features: a 40 pin female port, a 60 pin female port, 4 channel ports along the front panel, and a summary port. The PXIe-5540’s back side possesses two types of female pin ports (40 pin and 60 pin). Additionally, the PXIe-5540 boasts easy release spring screws to allow for quick removal during use. To use the PXIe-5540, use a compatible cable and port to connect to the device’s channel ports via the quick-release spring screws and pins located on the sides of the device.
The PXIe-5540 Slot Compatible RF Combiner permits an in-phase 4-way power split via its 4 channel ports. The PXIe-5540 also operates at 50 ohms and within the 250 megahertz to 6 gigahertz range.
The PXIe-5540 Slot Compatible RF Combiner is a suitable power splitting device for the GPS, GSM, DCS, and PCS frequency bands. The PXIe-5540 also finds testing and industrial uses with MMDC, SATCOM, cellular, UHF TV, WiFi, Bluetooth, and 802.11a applications. The PXIe-5540 splitter boasts positive insertion loss, amplitude imbalances, and phase imbalances. The PXIe-5540 Slot Compatible RF Combiner also has SMA connections built in to improve overall usability and functionality for a wide variety of user defined applications.
