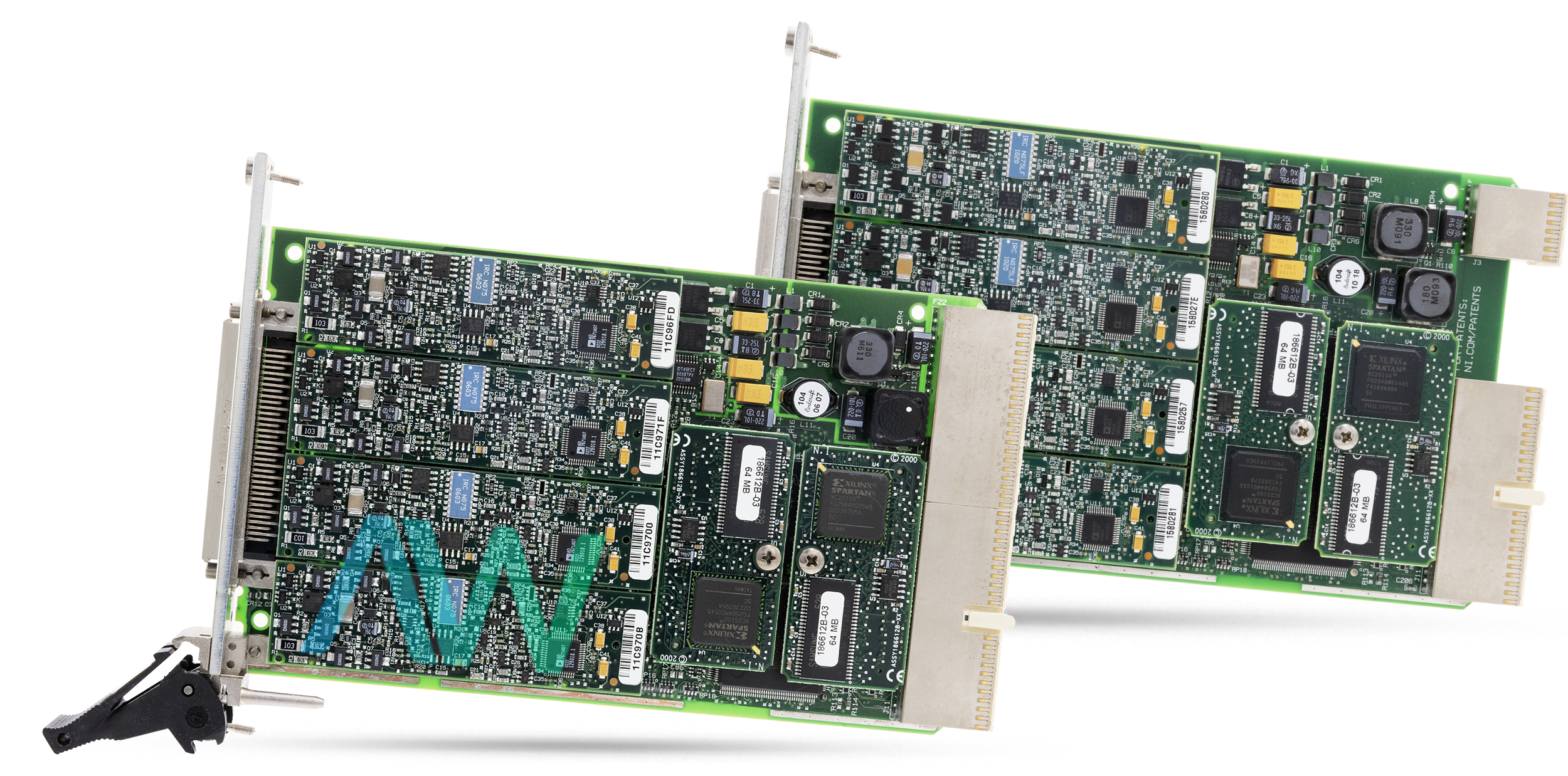

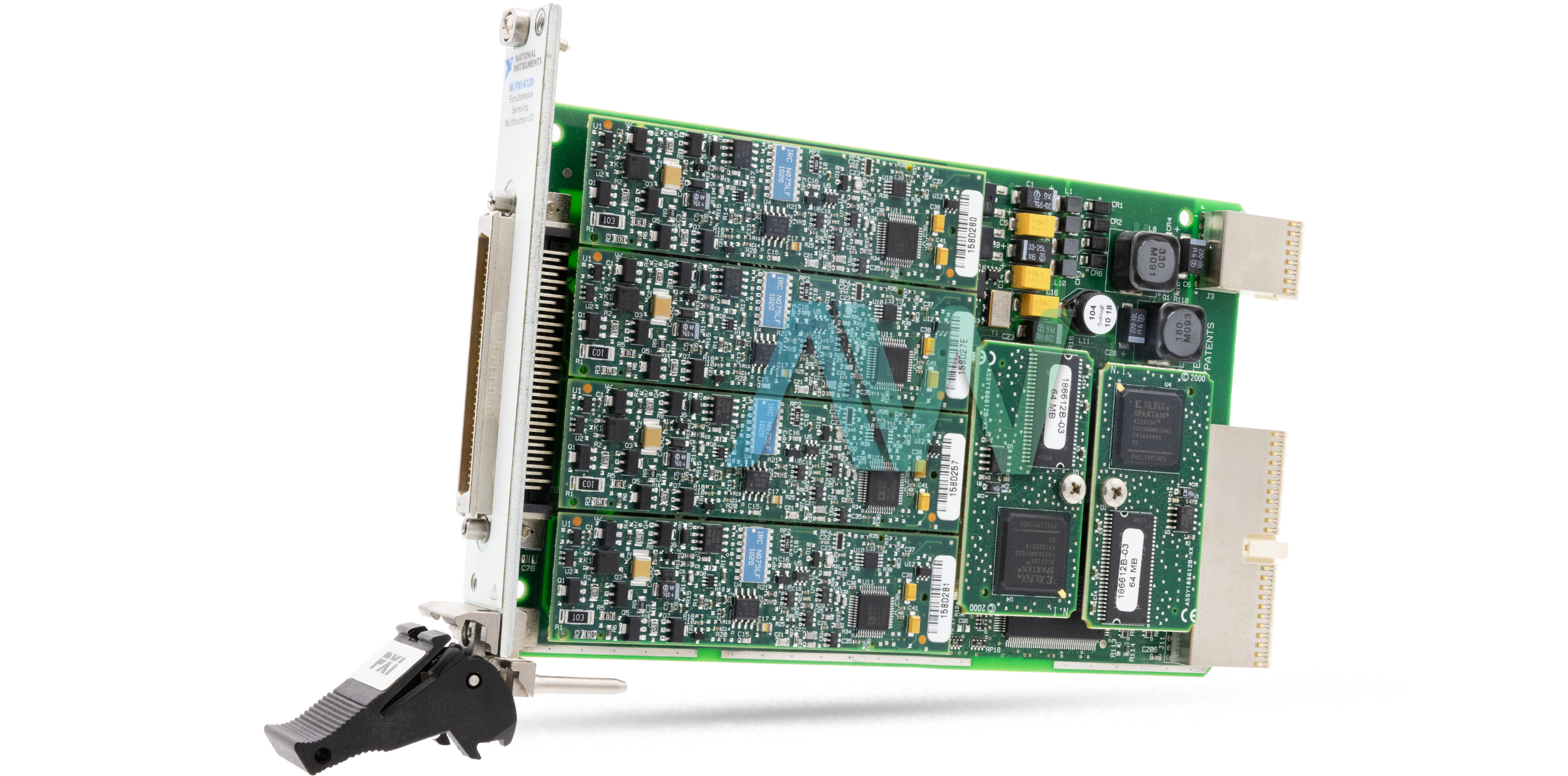

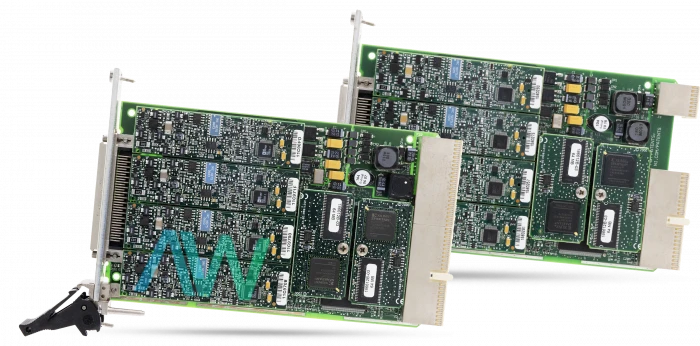

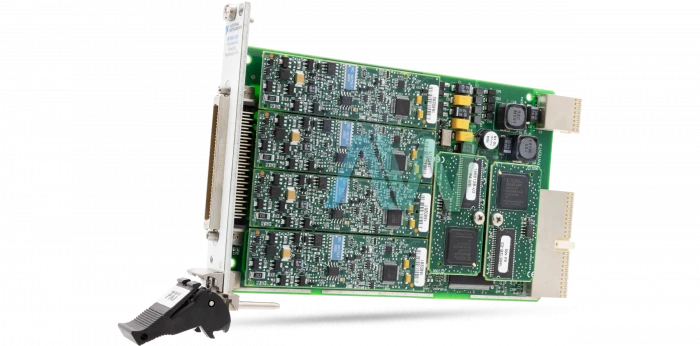

National Instruments PXI-6120 Multifunction I/O Module

The PXI-6120 (Part Number: 778396-01) is a Multifunction I/O Module, which consists of digital I/O, counter/timer functionality, and analog I/O in one module. This Multifunction I/O Module is well-suited for numerous types of industry applications, including research, design confirmation, and laboratory automation. The NI-DAQmx driver on this module permits the user to fully tailor automation and measurement applications from many supported programming languages. API support is also included for LabVIEW and text-based languages, along with shipping samples and informative help documents. The PXI-6120 Multifunction I/O Module has four input channels, two output channels, eight DIO channels, and two counter channels, as well as a sample rate of 1 MS/s and 16-bit resolution.

The National Instruments PXI-6120 comes equipped with analog signal paths that have been carefully created, assessed, and calibrated to guarantee the utmost preciseness for every input channel. The 100 MHz timebase is nearly five times quicker than previous models. Therefore, sampling frequencies are almost five times more exact, allowing analog triggers to react within 10 ns of a trigger setting being met. This Multifunction I/O Module has a phase locking feature, which enables numerous instruments to be synchronized to one PXI backplane clock to preserve the phase between measurements across numerous instruments analog input channels.

NI’s multifunction I/O technology provides separate sample clocks and triggers for every set of I/O on a multifunction instrument. One example is that retriggerable acquisitions consist of waiting for a trigger setting to be met, taking a certain amount of samples, then instantaneously rearming the trigger for the following acquisition. Utilizing driver software function calls to rearm the trigger means the possibility of skipping the following trigger because of software dormancy, so the highest performance demands a hardware-timed method.

PXI-6120 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-6120
ManufacturerNational Instruments
Part Number778396-01
SeriesS Series
TypeMultifunction I/O Module
Analog Input Channels4 differential
Maximum Sample Rate800 kS/s per channel
Dimensions6.3 in. × 3.9 in.
I/O Connector68-pin male SCSI-II type
WarrantyOne Year Warranty
PXI-6120 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6120 Frequently Asked Questions



Question: What is the power available at the I/O connector for the PXI-6120?



Answer: The power available at the I/O connector for the PXI-6120 is +4.65 to +5.25 VDC at 1 A.



Question: What is the analog input absolute accuracy of the NI PXI-6120?



Answer: The analog input absolute accuracy of the NI PXI-6120 is 76 mV.



Question: How long is the calibration interval for the PXI-6120?



Answer: The calibration interval for the PXI-6120 is 1 year.



Question: Which type of output coupling does the NI PXI-6120 have?



Answer: The NI PXI-6120 has DC output coupling.

  PXI-6120 PDF Manuals

  PXI-6120 Diagrams
