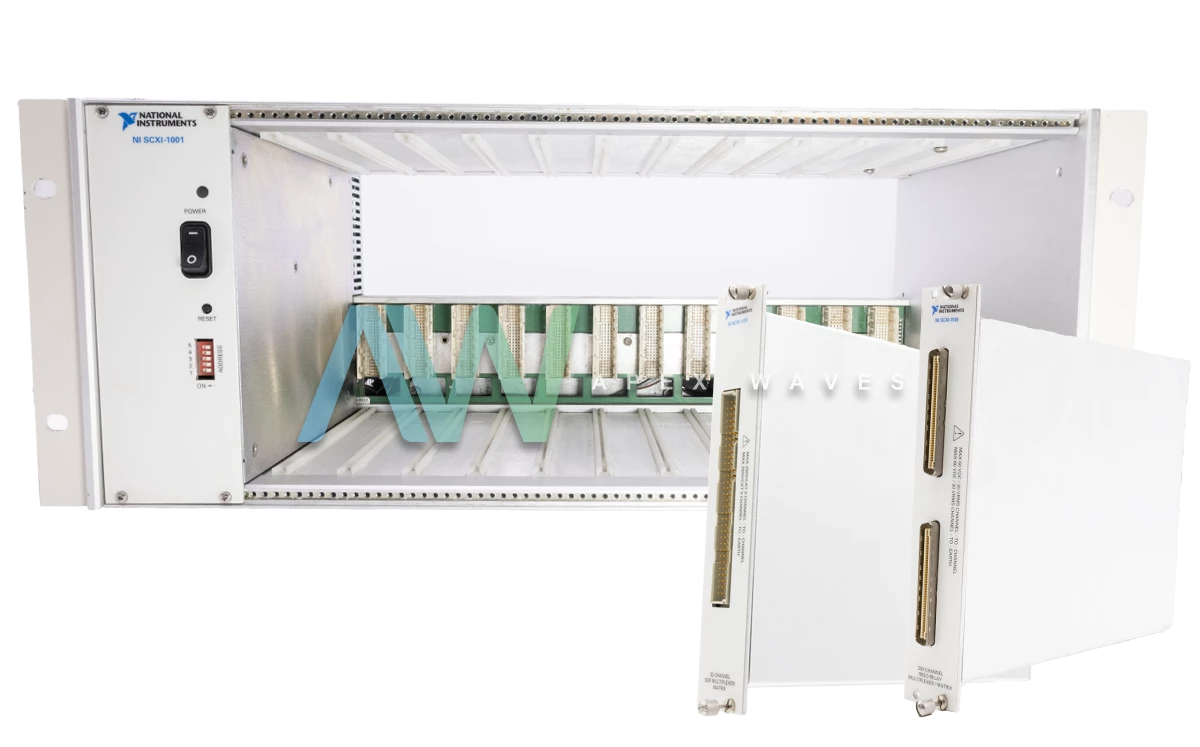

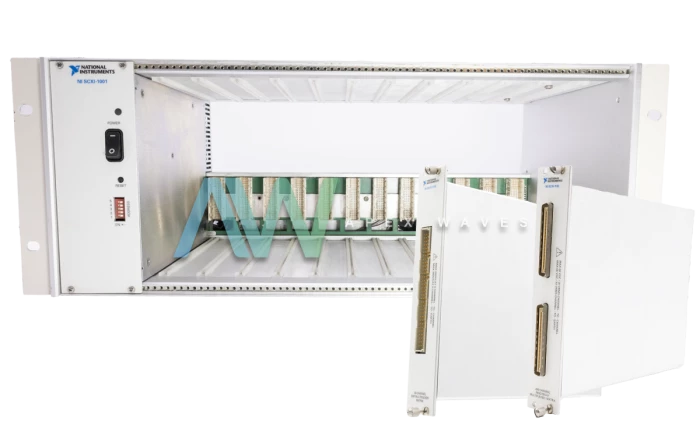

National Instruments 776572-62 Digital Input Module
National Instruments' 776572-62 module is an optically isolated 32-channel digital input module designated as model name SCXI-1162. The 776572-62 was designed for use in environments where there may exist common-mode voltage; therefore, it separates the input signal from the measurement system with optical isolation, ensuring the accuracy of the measurements. It is possible to install multiple 776572-62 modules into a single SCXI chassis, but they will all be controlled by one data acquisition board; this allows engineers to create flexible configurations for laboratory testing or production testing or to monitor various processes in industry.
Part number 776572-62 is compatible with numerous other National Instruments data acquisition boards (i.e., MIO-16, AT-MIO-64F-5, Lab-NB, Lab-PC, Lab-PC+, Lab-LC, PC-LPM-16, DIO-24, DIO-32F, and DIO-96). In addition, the optional SCXI-1326 shielded terminal block simplifies connecting signal wires by allowing organized screw-terminal connections directly to the module. Engineers can also integrate the Digital Input Module into third-party systems if those systems meet the required electrical and physical specifications.
There are several ways to integrate the 776572-62 into an existing software environment. The NI-DAQ software package includes a function library that enables the user to access functions such as digital I/O, analog input/output, buffered acquisition, and SCXI control. A variety of languages are supported by NI-DAQ. They include Microsoft C, Borland C++, Turbo Pascal, Visual Basic, and Professional BASIC. Additionally, on a Windows operating system platform, LabVIEW allows users to write programs graphically utilizing acquisition workflows. Finally, LabWindows for DOS is an additional tool available to users of a Windows operating system and utilizes Microsoft C/QuickBASIC and extends them with acquisition-specific libraries. Users who have acquired a Macintosh computer and are paired with an NB series board for use with their Digital Input Module can take advantage of the same features on their Macintosh computers, including LabVIEW and the Data Acquisition VI Library. Furthermore, direct programming of the 776572-62 is completely detailed so that developers who wish to develop their own application software using their own preferred tools do not need to acquire any other products from National Instruments.
| Model | 776572-62 |
|---|---|
| Model Name | SCXI-1162 |
| Manufacturer | National Instruments |
| Brand | Emerson |
| Part Type | Opto-Isolated Digital Input |
| Channel Count | 32 |
| Input Compatibility | TTL, CMOS, open-collector |
| Vcc Supply Range | +5 VDC to +10 VDC |
| Input Impedance | 360 Ω |
| Current per Channel | 7 mA to 25 mA |
| Isolation Rating | 450 VAC/VDC (working) |
| Max Serial Throughput | 580 reads/sec |
