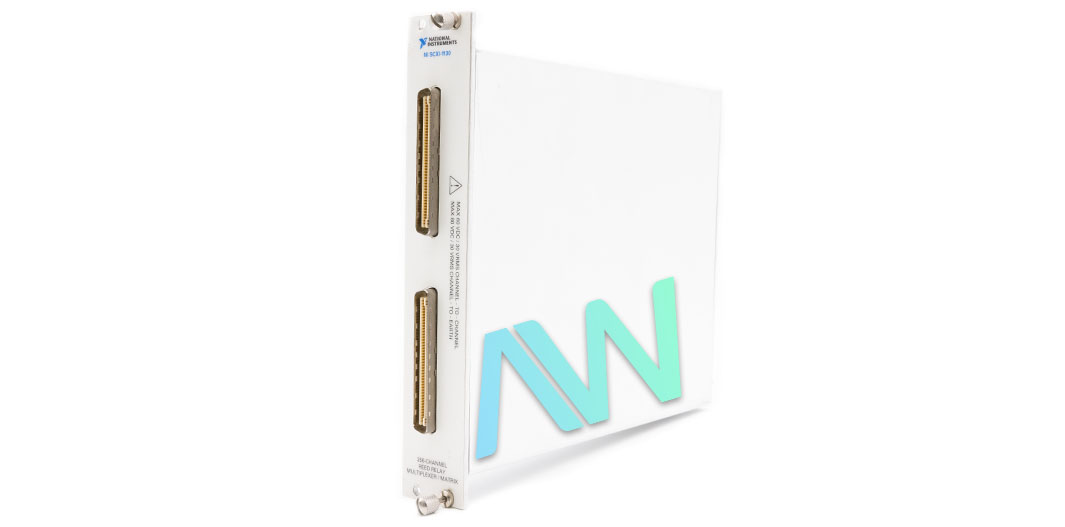

National Instruments SCXI-1130 Matrix/Multiplexer Switch Module

The NI SCXI-1130 (Part Number: 778661-01) is a high-density Matrix/Multiplexer Switch Module with various configurations possible. This module is a great solution for systems with a huge or complicated channel count. The reed relays in this module are built to last for a long time. The SCXI 1130 operates at ten times the speed of standard armature relays, making the module a suitable front-end for high-speed measurement instruments like the PXI-4070 FlexDMM.

The SCXI-1130 module is completely software configurable to function as a multiplexer, matrix, or independent switch bank. This Matrix/Multiplexer Switch Module can be arranged in a few multiplexer configurations. The 1 and 2-wire modes are created for measuring or sourcing voltage or 2-wire resistance measurements. The 4-wire mode is best for the enhanced preciseness of resistance measurements. However, when the NI SCXI-1130 is arranged as a matrix, it turns into a general-purpose signal router. Expansion cables and plugs can be utilized to externally link the rows and columns of the matrix modules. As an example, to result in a 4x128 matrix, the user can link two SCXI-1378 Terminal Blocks with a matrix expansion cable. This doubles the quantity of columns.

When the SCXI 1130 module is configured with software as an independent switch bank, the user has the capability to control the state of all relays on the module. This mode can be employed for custom applications when the banks of 16x1 multiplexers can be joined to create different multiplexer sizes or function by themselves.

SCXI-1130 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1130
ManufacturerNational Instruments
Part Number778661-01
TypeMatrix/Multiplexer Switch Module
Channels256
Relay TypeReed
Maximum Switching Power10 W (per channel, resistive)
I/O Connectors176-pin docking station plug
Dimensions1.2 x 6.9 x 8.0 in.
WarrantyOne Year Warranty
SCXI-1130 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1130 Frequently Asked Questions



Question: Which terminal blocks can be utilized with the SCXI-1130?



Answer: The SCXI-1130 can be utilized with the SCXI-1377, SCXI-1378, and SCXI-1379 Terminal Blocks.



Question: What is the contact material for the NI SCXI-1130 relays?



Answer: The contact material for the relays on the NI SCXI-1130 is rhodium.



Question: How much does the SCXI 1130 module weigh?



Answer: The SCXI 1130 module weighs 2 lb. 4 oz.



Question: What is the minimum pulse width of the SCXI-1130?



Answer: The minimum pulse width of the SCXI-1130 is 150 ns.
