SCXI-1190

4.6/5 | 7 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1190
Manufacturer/Brand National Instruments
Description: SCXI-1190, 1.3 GHz, Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

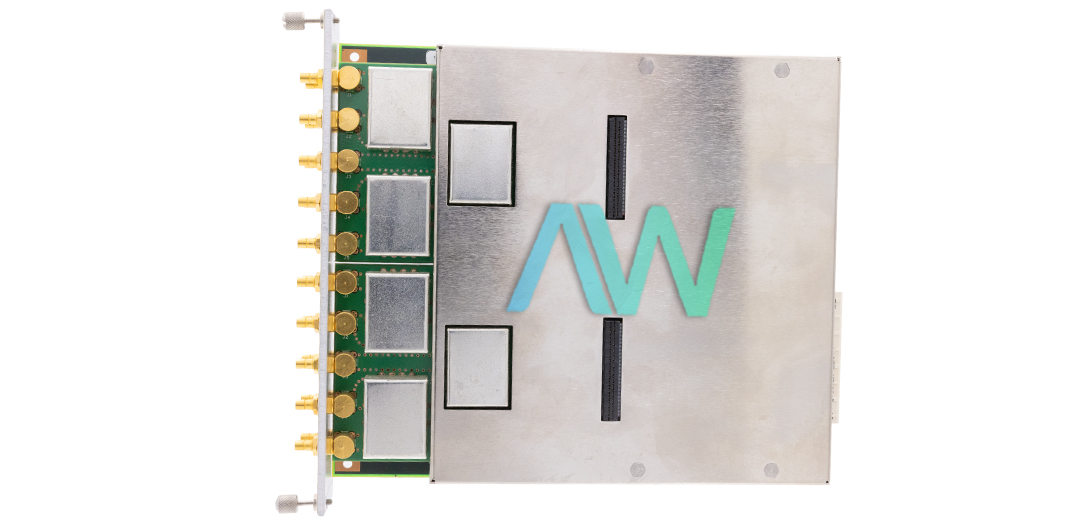

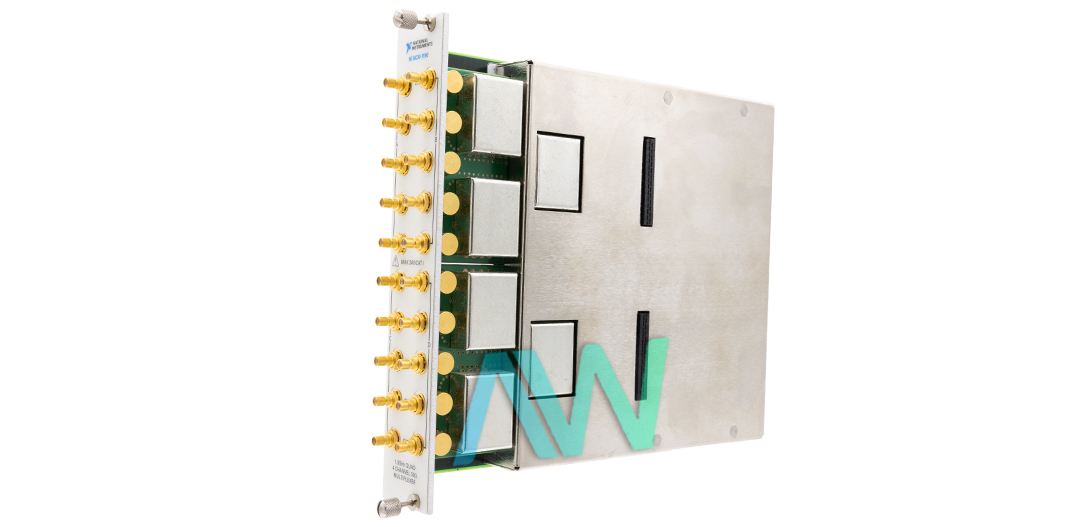

National Instruments SCXI-1190 Multiplexer Module

The SCXI-1190 is a Quad 4-Channel Multiplexing Switch Module. The module can switch signals from DC to 1.3 GHz. The highest rated voltage is 24 V, while the highest rated current is 1 A at 24 V. The NI SCXI-1190 can be controlled in an application development environment with the use of NI-SWITCH. Supported application development environments include C or C++, LabVIEW, Visual Basic, or LabWindows/CVI.

The SCXI 1190 Multiplexer Module is a reflective switch, so channels that are not switched to the common channel are unterminated. Thus, any signal on an unterminated channel is reflected to the source. For the majority of low-power switching applications, reflection is not an issue. Nevertheless, using the NI SCXI-1190 with an unterminated output can harm certain high-power RF sources.

The relay contacts on the SCXI-1190 are rated to last through 5 × 10 to the 6th power mechanical operations if used without a signal or an extremely tiny signal. However, when they are used with a high-power load being switched, arcing can ensue across the relay contacts that will result in the decrease of their beneficial life.

This Multiplexer Module has five SMB male connectors for each of the four banks, 50 Ohms characteristic impedance, gold-clad silver relay contacts, 24 W maximum switching power for each channel, less than 300 ps rise time, less than 3 ns signal delay, 15 ms relay operate and release time, and 10 W maximum RF carry power at 900 MHz for each channel.

SCXI-1190 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1190
ManufacturerNational Instruments
TypeMultiplexer Module
Banks4
Channels Per Bank4
Rise Time<300 ps
Dimensions6.81 by 7.70 by 1.19 in.
I/O Connectors5 SMB male for each bank
Warranty2-3 Year Warranty
SCXI-1190 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1190:

186676B-01, 186676C-01, 186676D-01, 776572-90

National Instruments SCXI-1190 Frequently Asked Questions



Question: What type of connectors does the SCXI 1190 have?



Answer: The SCXI 1190 has push-on SMB connectors to connect signals from RF sources.



Question: What is the maximum switching voltage of the SCXI-1190?



Answer: The maximum switching voltage of the SCXI-1190 is.24 V.



Question: What is the expected relay life of the NI SCXI-1190?



Answer: The expected relay life of the NI SCXI-1190 is 5,000,000 cycles mechanical and 100,000 cycles electrical.

  SCXI-1190 PDF Manuals

Driver Downloads for SCXI-1190






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
