PCI-4021

Modular Systems > National Instruments > PCI Controllers

Part Number PCI-4021
Manufacturer/Brand National Instruments
Description PCI-4021 Switch Controller

Speak to a sales representative for pricing & lead time:


National Instruments PCI-4021 Switch Controller

The PCI-4021 (Part number: 778278-01) is a high-quality Switch Controller from National Instruments. This model implements an advanced switching system, which is based on SCXI technology and does not need any other software. This Switch Controller is less expensive than other models and provides suitable control elucidation for switching modules. It is used to direct signals over a switch, to excite the data acquisition measurement devices, and for switching modules with third-party instruments from a PCI or PXI slot. This model can easily control many switching modules, which includes the following: the SCXI-1102/B/C, SCXI-1124, the SCXI-116X family, the SCXI 1190/1191, and the SCXI-1127/1128. These Controllers are attuned with high-voltage backplane adapters like the SCXI-1357/1358. These Controllers are also compatible with the low-voltage adapters like the SCXI-1362.

The National Instruments PCI-4021 provides all the vital SCXI communication lines. The user can control the modules with the help of these lines. These modules are integrated inside an SCXI chassis. This Switch Controller is particularly valuable in production tests. Furthermore, the PCI 4021 has an SH9MD-9MD cable. Beside this, it requires a computer and NI-SWITCH driver software to operate. The SCXI chassis and module, along with an adapter, can operate in combination. This enables the user to functionalize the instrument.

The NI PCI-4021 Switch Controller comes with high-performance hardware, which helps users with sustaining the performance for years. With the versatile capabilities of this model, National Instruments ensures a low total cost of ownership throughout the system’s life.

ModelPCI-4021
ManufacturerNational Instruments
Part Number778278-01
TypeSwitch Controller
For Use WithSCXI-1357, SCXI-1358, SCXI-1359, SCXI-1362
Slot Requirements1 PCI Slot
Software RequiredNone
DriverNI-SWITCH
WarrantyOne Year Warranty
PCI-4021 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-4021 Frequently Asked Questions



Question: Which types of switch systems can the PCI 4021 be used with?



Answer: The PCI 4021 controls an SCXI-based switching system.



Question: What is the NI PCI 4021 driver software supported?



Answer: The supported NI PCI 4021 driver software is NI-SWITCH.



Question: Does the PCI-4021 require additional software?



Answer: No, the PCI-4021 does not require additional software.

PCI-4021 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-4021
Part Number:778278-01
Type:Switch Controller
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PCI-4021

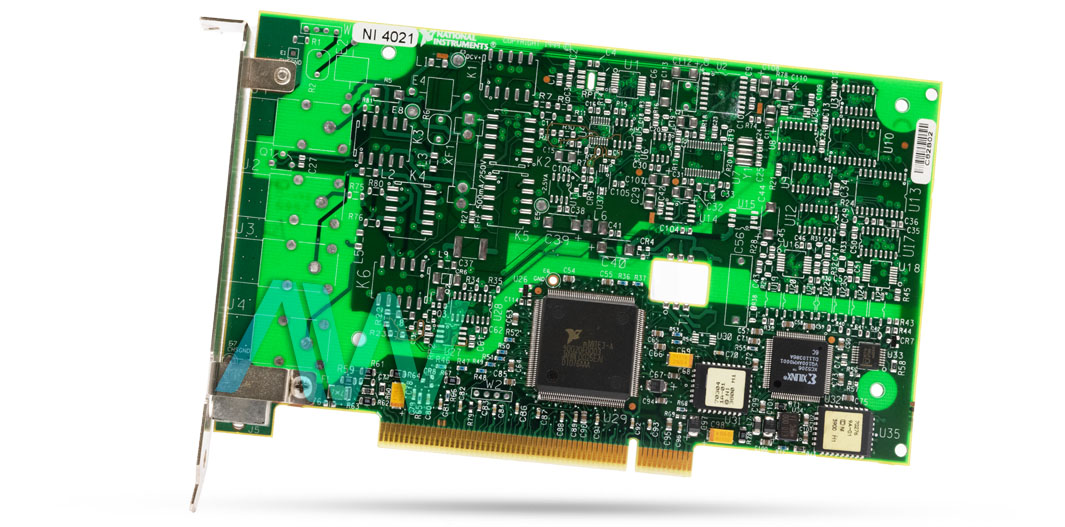

PCI-4021 National Instruments Switch Controller | Apex Waves | Image

Main Image

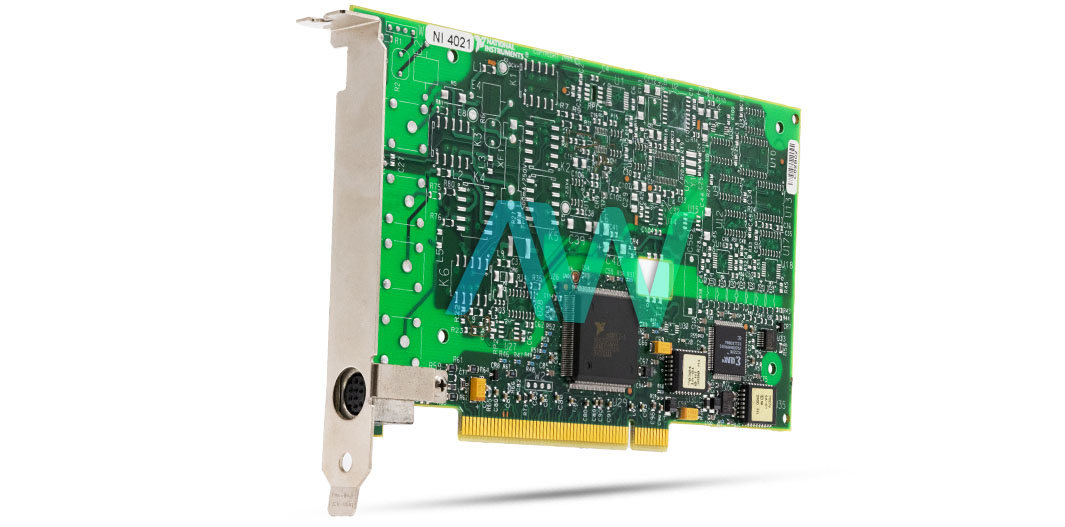

PCI-4021 National Instruments Switch Controller | Apex Waves | Image
