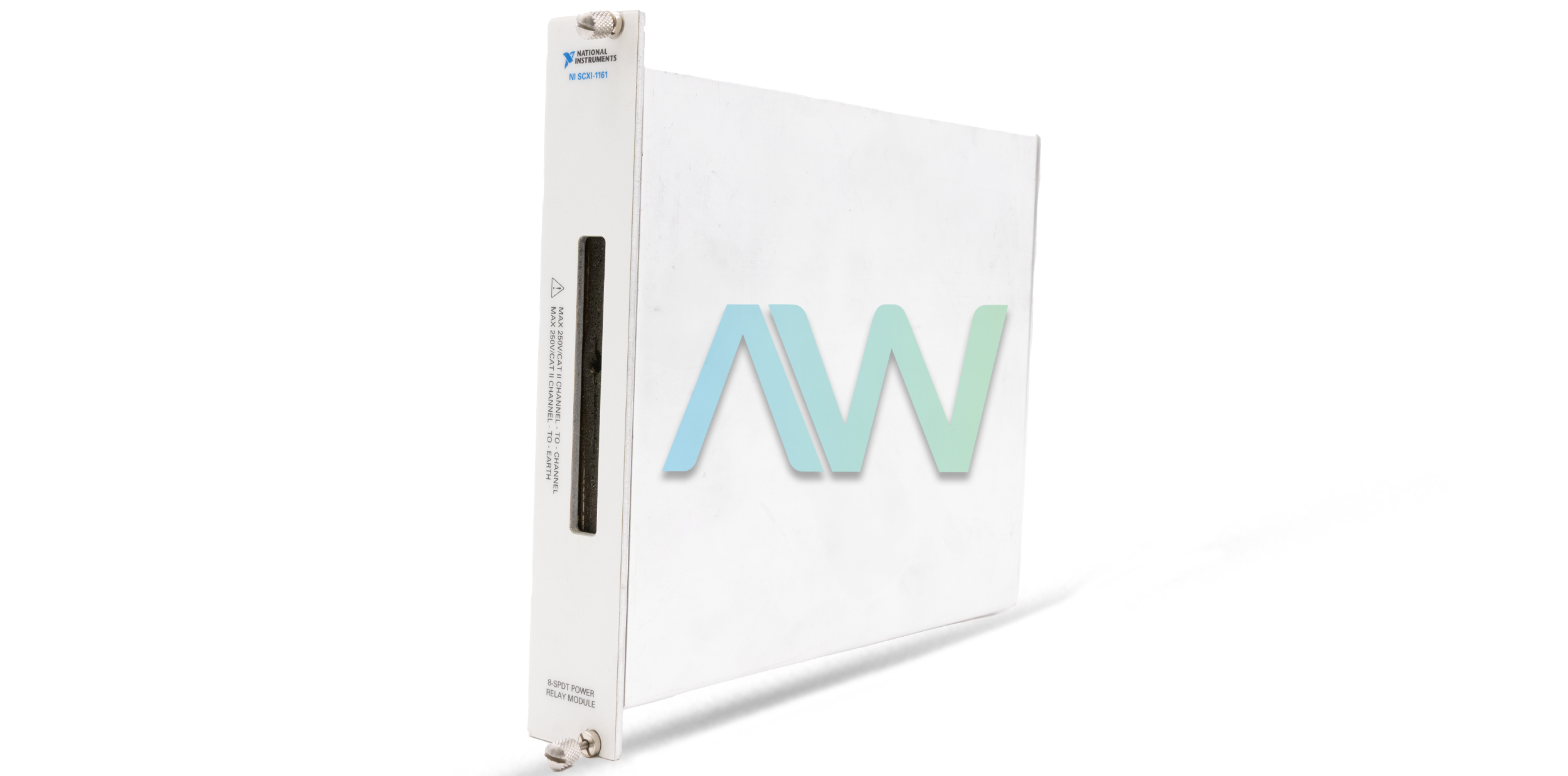

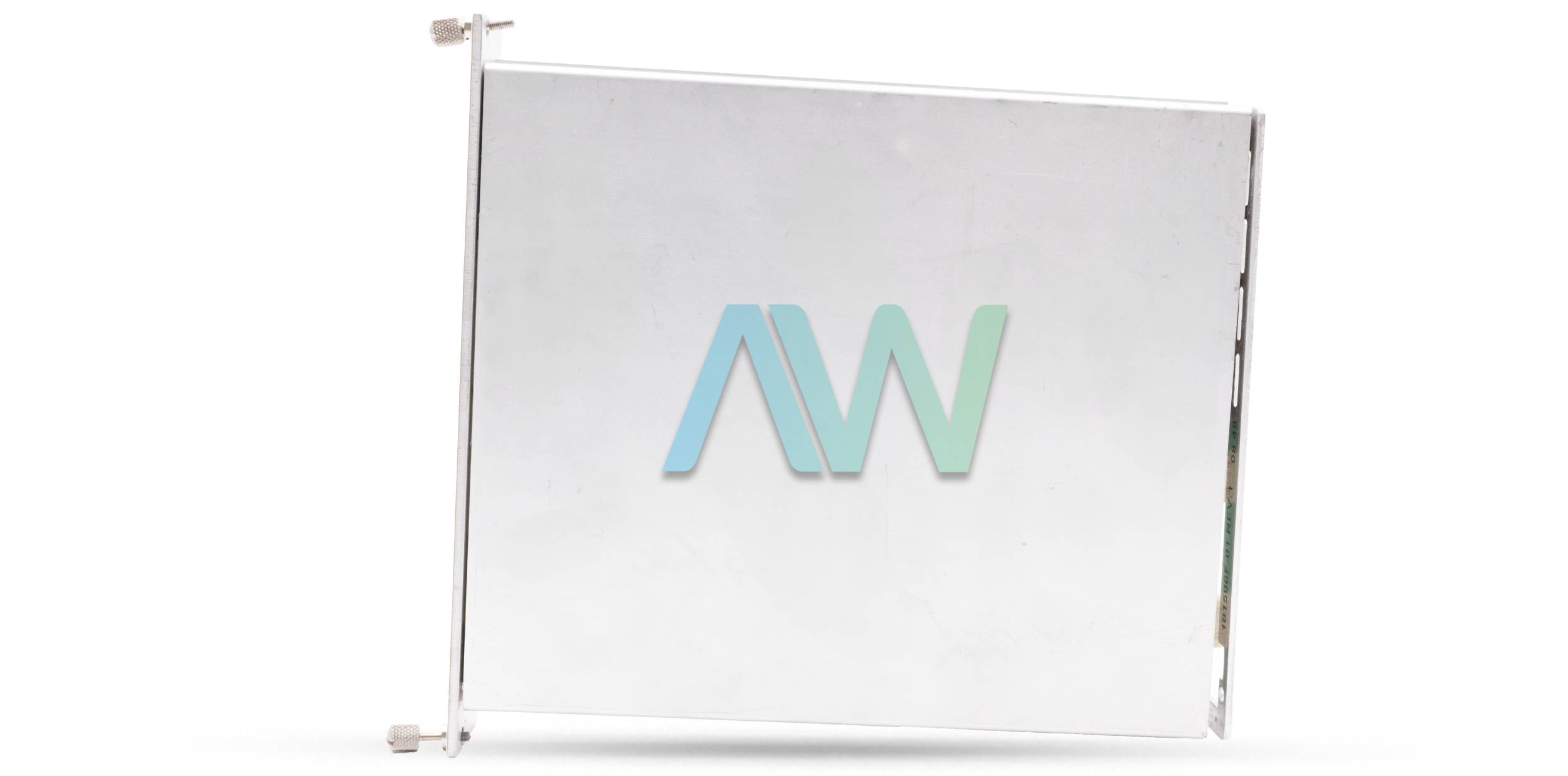

National Instruments SCXI-1161 General-Purpose Switch Module
The SCXI-1161 (Part Number: 776572-61) is an 8-Channel General-Purpose Switch Module with individual single-pole double-throw (SPDT) (Form C), latching relays. These relays are ideal for switching, routing, and controlling medium-level signals. Since this Switch Module’s relays can switch at a maximum of 8 A at 125 Vrms, 6 A at 250 Vrms, or 5 A at 30 VDC, the SCXI 1161 is well-suited for higher power applications. Every channel has a normally closed (NC), normally open (NO), and common (COM) terminal. Two or more NI SCXI-1161 modules can be utilized in one or more chassis to result in the capability of switching and controlling thousands of signals. This module has a maximum switching rate of 3 operations per second and is completely software programmable.
When the SCXI-1161 Switch Module is used with an SCXI chassis, the SCXI chassis can function as a controller or switcher in applications such as industrial-process monitoring, laboratory testing, and production testing. The NI SCXI-1161 functions to its full extent with National Instruments MIO boards; Lab-NB, Lab-PC, Lab-PC+, Lab-LC, and PC-LPM-16/PnP boards; and with the DIO-24, DIO-32F, and DIO-96 boards. There are also several optional accessories that can be used with the SCXI-1161 module. These accessories include: a one-slot cable extender, a multichassis adapter, and cables and cable assemblies. The SCXI-1161 is run using the NI-SWITCH driver software.
The back-signal connector on the SCXI 1161 module is a 50-pin male ribbon-cable header. The mating connector for the back-signal connector is a 50-position polarized ribbon-socket connector with strain relief. Additionally, the module is equipped with a 16 x 2 minicombicon header, and 24 screw terminal I/O connectors. It has a relay operate and release time of 15 ms.
The NI device weighs 12 oz, and measures 6.8 x 8.0 x 1.2 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 50 °C, a storage temperature range of –20 °C to 70 °C, and a non-condensing relative humidity range of 5% to 85%.
SCXI-1161 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | SCXI-1161 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 776572-61 |
| Type | General-Purpose Switch Module |
| Relays | 8 |
| Maximum Switching Rate | 3 operations/second |
| Dimensions | 6.8 by 8.0 by 1.2 in. |
| I/O Connector | 16x2 minicombicon header |
| Relay Operate and Release Time | 15 ms |
| Warranty | Three Year Warranty |
| SCXI-1161 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for SCXI-1161:
18213.8, 182135C-01, 182135D-01L, 182138-01, 182138C-01, 182138D-01, 182138F-01, 182138G-01, 182138H-01L, 776572-61
National Instruments SCXI-1161 Frequently Asked Questions
Question: What is the contact-to-coil isolation on the NI SCXI-1161?
Answer: The contact to coil isolation on the NI SCXI-1161 is 250 Vrms.
Question: Can the SCXI 1161 be used for general purpose switching?
Answer: The SCXI 1161 is a general-purpose switching module.
Question: Does the NI SCXI 1161 have single-pole double-throw (SPDT) latching relays?
Answer: Yes, the NI SCXI 1161 has independent single‑pole double‑throw (SPDT), also called Form C, latching relays.
Question: What terminals are on the channels of the SCXI-1161?
Answer: Each channel on the SCXI-1161 has a NC (normally closed), NO (normally open), and COM (common) terminal.
SCXI-1161 PDF Manuals
ARCHIVED GUIDESCXI 1350 MULTI CHASSIS ADAPTER INSTALLATION.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED LABWINDOWS CVI STANDARD LIBRARIES REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT 3.7 ADDENDUM.PDF
ARCHIVED LOOKOUT OBJECT REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT REFERENCE MANUAL.PDF
ARCHIVED NI DAQ SOFTWARE REFERENCE MANUAL FOR MACINTOSH.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED SCXI 1348 DIO 32F CABLE ASSEMBLY INSTALLATION GUIDE.PDF
ARCHIVED SCXI 1362 ADAPTER KIT INSTALLATION GUIDE.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
NI SCXI 1160 1161 JUMPERS NOTE TO USERS.PDF
NI SCXI-1161 SPECIFICATIONS.PDF
NI SWITCHES GETTING STARTED GUIDE FOR NI SCXI SWITCH MODULES.PDF
Driver Downloads for SCXI-1161
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
SCXI-1161
Modular Systems > National Instruments > SCXI
SCXI-1161, 8-Channel, 15 MS Relay Time, General-Purpose Switch Module for SCXI
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers

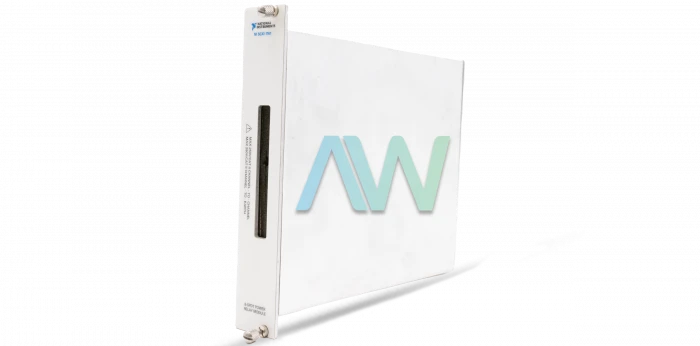

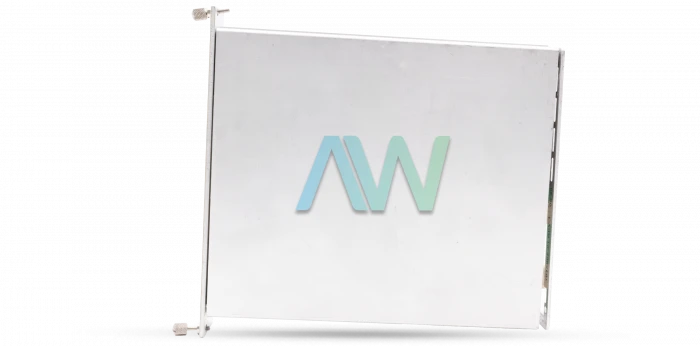

National Instruments SCXI-1161 General-Purpose Switch Module
