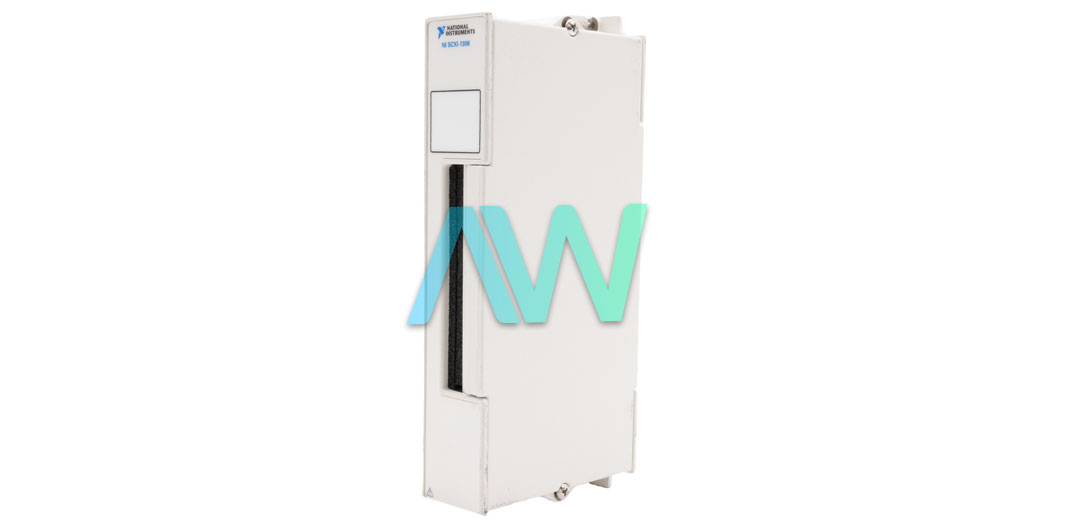

SCXI-1306 National Instruments Terminal Block | Apex Waves | Image SCXI-1306 National Instruments Terminal Block | Apex Waves | ImageSCXI-1306SCXI-1306 | Legacy, Refurbished and New Surplus
SCXI-1306 National Instruments Terminal Block | Apex Waves | Image
SCXI-1306 National Instruments Terminal Block | Apex Waves | Image
SCXI-1306 New
SCXI-1306 | Legacy, Refurbished and New Surplus

SCXI-1306

4.8/5 | 7 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1306
Manufacturer/Brand National Instruments
Description: SCXI-1306, 32 pairs of screw terminals, Front End Terminal Block
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments SCXI-1306 Terminal Block

The NI SCXI-1306 (Part Number: 779698-01) was created to be used with the SCXI-1503 RTD Module. This Terminal Block is shielded to allow swift, simple signal connections and mounts easily to the front of the module. The SCXI 1306 has 16 pairs of screw terminals for differential input signals and 16 additional pairs of screw terminals for current excitation signals.

The National Instruments SCXI-1306 Terminal Block can perform 2-, 3-, and 4-wire resistive measurements of transducers, which includes RTDs and thermistors. Every channel can be configured for voltage or resistive measurements. There are two switches for every channel, which can be utilized to choose the measurement type. In addition, the 16 differential analog channels can be utilized to complete floating and grounded voltage measurements. Thermocouple measurements are characteristic for a floating measurement. For floating or grounded voltage measurements, the user can link the voltage source to the analog input screw terminals. Then, the user can modify the switch positions, based on the type of signal they are measuring. When the user is measuring floating signals, they can link the negative input to the internal ground of the SCXI-1503 RTD Module.

One of the beneficial features of the NI SCXI-1306 Terminal Block is the integrated temperature sensor. This feature can be utilized for thermocouple cold junction compensation. To ensure precise cold-junction compensation, the user must not keep the SCXI chassis near any extreme temperature differential. It is also recommended by NI to average a high quantity of samples for a precise reading.

SCXI-1306 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1306
ManufacturerNational Instruments
Part Number779698-01
TypeTerminal Block
For Use With:SCXI-1503 RTD Module
Screw Terminals32 pairs
CouplingDC
Dimensions6.83 x 3.25 x 1.19 in.
Weight13.8 oz.
WarrantyOne Year Warranty
SCXI-1306 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1306 Frequently Asked Questions



Question: What type of connectivity does the SCXI 1306 have?



Answer: The SCXI 1306 has screw terminal connectivity.



Question: What is the terminal wire size for the SCXI-1306?



Answer: The SCXI-1306 has a terminal wire size of 16 to 26 AWG.



Question: What type of cold-junction sensor is on the NI SCXI-1306?



Answer: The NI SCXI-1306 has an integrated circuit (LM50C) cold-junction sensor.



Question: What is the accuracy of the cold-junction sensor on the SCXI-1306?



Answer: The cold-junction sensor on the SCXI-1306 has an accuracy of ±3.9 °C from 0 to 50 °C.
