Part Number SCXI-1325
Manufacturer/Brand National Instruments
Description: SCXI-1325, 26 Screw Terminals, 250 Vrms Common-Mode Isolation, Terminal Block
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

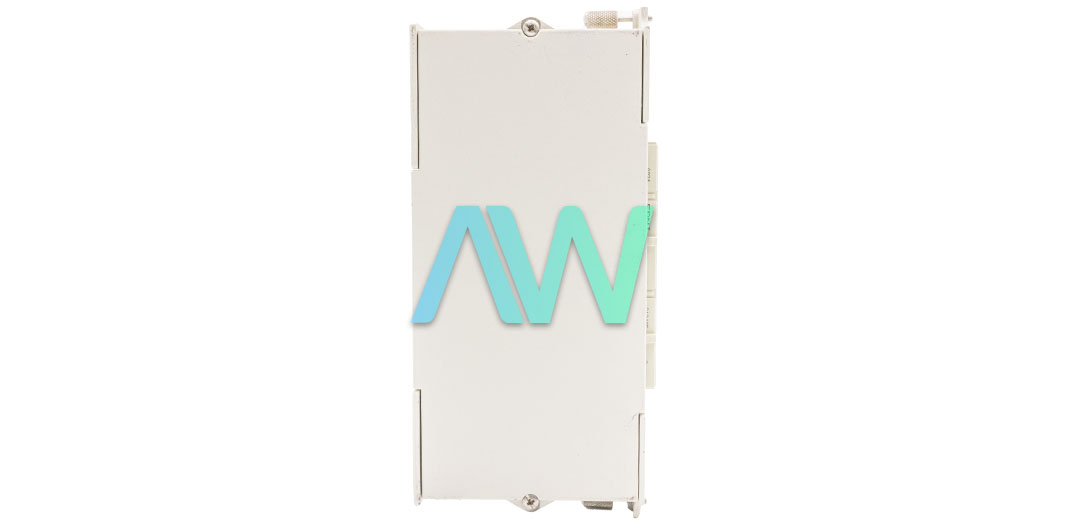

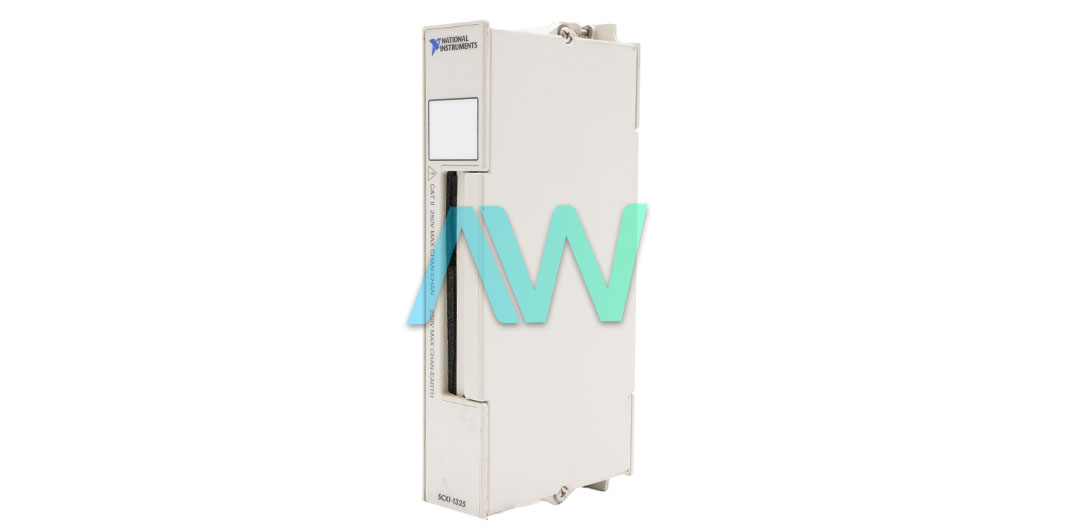

National Instruments SCXI-1325 High-Voltage Terminal Block

Featured with 26 screw terminals, the NI SCXI-1325 (Part Number: 777687-25) is a high-voltage Terminal Block, specifically designed to be used for secure connections to the SCXI-1124 Analog Output Module. The SCXI-1325 has 2 screw terminals that link to the SCXI-1124 chassis ground. The other 24 screw terminals are utilized for signal connections to the six output channels on the SCXI-1124 module.

The National Instruments SCXI-1325 can easily be mounted on the host module’s front panel through mating connectors. The NI SCXI-1325 offers 250 Vrms channel to ground and channel to channel isolation. This High-Voltage SCXI Terminal Block is suitable for a broad range of applications since it provides a comfortable and straightforward system for connecting and disconnecting signals to and from the user’s system. The SCXI-1325 offers direct connections to transducers located at front-mounted BNC connectors or the screw terminals.

While operating in 1 MΩ common mode, the NI SCXI 1325 offers ±50 VDC DC rejection capacity and 0.16 Hz 1-pole RC corner frequency. By using this Terminal Block, the user can connect each output channel of the SCXI-1124 independently for current output or voltage output. In this configuration, each channel can have a CMV up to 250 Vrms between itself and chassis ground or any other channel ground. For ensuring high-accuracy, the National Instruments SCXI-1325 has an isothermal construction. Equipment with accessible live parts should not be used with the device terminals. This model supports 26-14 AWG maximum field wire gauge and is a 250 V, CAT II device.

The NI device has a recommended operating temperature range of 0 to 50 °C, a storage temperature range of –20 to 70 °C, and a non-condensing relative humidity range of 5% to 90%. The SCXI-1325 is designed to comply with the following electrical safety standards: IEC 61010-1, UL 3111-1, and CAN/CSA C22.2 No. 1010.1. Also, the signal wires for the highest input voltage must be insulated when the device is being used with high common-mode voltages.

SCXI-1325 Obsolete Status has been declared by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1325
ManufacturerNational Instruments
Part Number777687-25
SeriesSCXI Series
TypeTerminal Block
Compatible ModelsSCXI-1124
Screw Terminals26
Maximum Field Wire Gauge26-14 AWG
Common-mode Isolation250 Vrms
WarrantyThree Year Warranty
SCXI-1325 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1325:

182417B-01, 182417C-01, 182417D-01, 182425B-01, 182425C-01L, 185699A-01, 185699B-01, 185699C-01L, 776573-25, 777687-25

National Instruments SCXI-1325 Frequently Asked Questions



Question: Which modules can the SCXI-1325 be used with?



Answer: The SCXI-1325 can be used with the SCXI-1124 module.



Question: How many screws does the NI SCXI-1325 have on it?



Answer: The NI SCXI-1325 has 26 screws.



Question: Which applications can the SCXI-1325 Terminal Block be used for?



Answer: The SCXI-1325 Terminal Block is best for isolated analog output applications.
