PCI-8432-4

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCI-8432-4
Manufacturer/Brand National Instruments
Description PCI-8432/4 4-Port Serial Interface Device
In Stock - Ships Today
In Stock | Ships 3-5 Days

Speak to a sales representative for pricing & lead time:

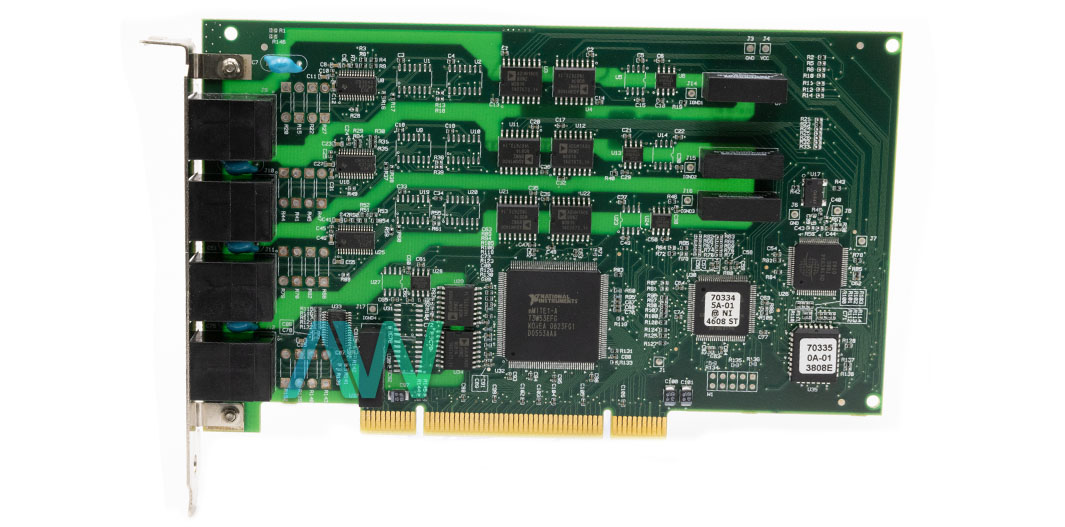

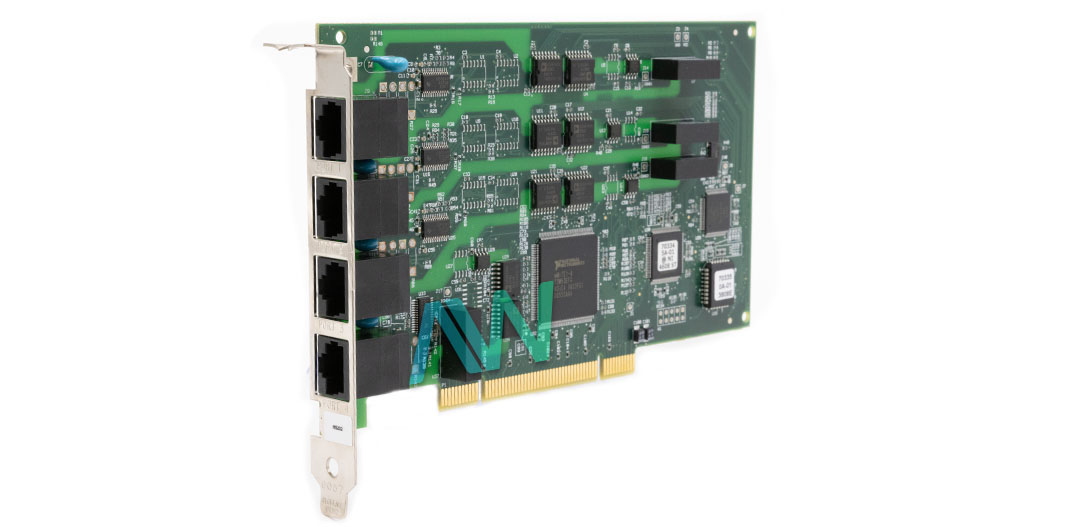

National Instruments PCI-8432/4 Serial Interface Device

The PCI-8432/4 (Part Number: 779145-01) has a mode where the instrument directly allows a transmitter and a collector in a four-wire framework. The client can use this mode to take out the burden of handset control from their application. The equipment consequently allows the transmitter for every byte to be spread. Likewise, the equipment cripples the recipient at whatever point the transmitter is empowered, so the user does not get the bundles sent from their transmitter.

NI-Serial clients on LabVIEW Real-Time have control over whether auxiliary power is empowered. When optional interfere with taking care of is empowered, I/O is prepared at a need lower than time-basic. Utilizing optional intrude on taking care of lessens jitter for time-basic circles on the NI PCI-8432/4 Serial Interface Device and makes serial equipment interfere with more deterministic. In any case, it might also decrease I/O execution and can build the likelihood of flooding the RX FIFO boards. Optional interfere with taking care of is a setting at the framework wide level and is empowered.

The NI PCI-8432/4 device has several LEDs. The PWR/RDY LED changes rapidly amongst yellow and red at the same time the gadget is in organize arrangement mode. At different circumstances, the PWR/RDY LED flickers gradually in an unmistakable example to caution the user of inward blunders. It is possible to utilize the accompanying strides to translate and record the example that the PWR/RDY LED flashes, then contact National Instruments if the problem persists.

PCI-8432/4 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-8432/4
ManufacturerNational Instruments
Part Number779144-01
TypeRS232 Serial Interface Device
Number of Ports4
StandardRS232
IsolatedYes
Maximum Baud Rate1000 kbits/s (1 Mbps)
Connector Type10-Position Modular Jack (10P10C)
FIFO Size128 Bytes
Power Requirements+5 VDC -- 550 mA
Dimensions4.2 in.× 6.9 in.
Weight0.23 lb.
Software DriverNI-Serial
WarrantyOne Year Warranty
PCI-8432/4 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

PCI-8432-4 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-8432/4
Part Number:779145-01
Type:Serial Interface
Repair Evaluation:$150
