PCIe-8430-16

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCIe-8430-16
Manufacturer/Brand National Instruments
Description PCIe-8430/16 16-Port Serial Interface Device

Speak to a sales representative for pricing & lead time:

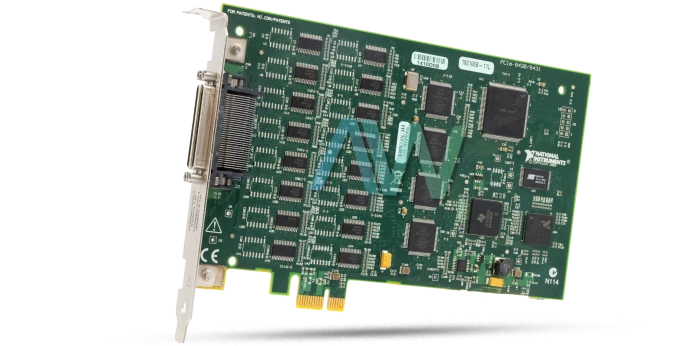

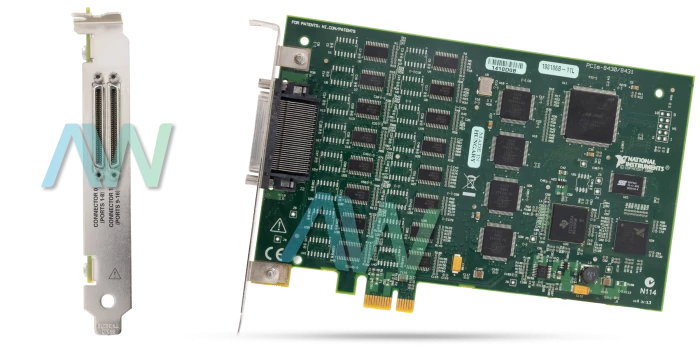

National Instruments PCIe-8430/16 Serial Interface Device

The National Instruments PCIe-8430/16 (Part Number: 780591-02) is a 16-Port, PCI Express based, RS232 Serial Interface Device. This model offers high-speed communication with various RS232 devices. The NI PCIe-8430/16 comes with multiprocessor support, DMA transfers, and multithreading. For compatibility with software that incorporates serial communications, this device can also appear as a standard COM port. Unlike other devices that are used for interfacing, the user can utilize this Serial Interface Device to communicate with dozens of ports at an unmatched speed, while staying on a single system and with negligible load on the host machine’s CPU.

The NI PCIe-8430/16 offers up to 1000 kbps data transfer rate and between 2 to 1,000,000 baud rates for data transmission, with around 0.01% and 1% accuracy for standard and nonstandard baud rates respectively. This model comes with NI-VISA API that simplifies serial programming and keeps the user’s code valid on various VISA-compatible interfaces. For RS-232 connectivity, the PCIe-8430/16 comes equipped with one 68-pin VHDCI I/O connector. Two cables are necessary for connectivity between 68-pin VHDCI ports and eight DSUB 9-pin male ports.

While operating in typical conditions, this Serial Interface Device draws 200 mA at +3.3 VDC and 190 mA at +12 VDC from the PCI Express channel. However, in some cases and modes of operations, this device can draw up to 750 mA at +3.3 VDC and 220 mA at +12 VDC. The device weighs around 88 g and has dimensions of 11× 17.53 cm (approximately).

ModelPCIe-8430/16
ManufacturerNational Instruments
Part Number780591-02
TypeSerial Interface Device
StandardRS232
Ports16
IsolatedNo
Maximum Baud Rate1000 kbits/s (1 Mbps)
Connector Type2 × 68-pin VHDCI
FIFO Size128 Bytes
Power Requirements+3.3 VDC, +12 VDC - 400 mA, 210 mA
Dimensions4.38 × 6.9 in.
Weight0.22 lb.
Software DriverNI-Serial
WarrantyOne Year Warranty
PCIe-8430/16 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCIe-8430/16 Frequently Asked Questions



Question: What is the maximum length of the cables that can be used with the PCIe-8430/16 card at 115200 bps?



Answer: With the PCIe-8430/16, you can reach a maximum of 50 feet if the cable is properly shielded.



Question: How can you connect the NI PCIe-8430/16 to serial hardware?



Answer: You can connect the NI PCIe-8430/16 to serial hardware via Ethernet, USB, PCI, PCIe, or ExpressCard interfaces to add up to 16 serial ports to your system.



Question: Which serial protocols are compatible with the PCIe-8430/16?



Answer: The PCIe-8430/16 supports the RS232, RS422, and RS485 serial protocols.

PCIe-8430-16 Technical Specifications:


Manufacturer:National Instruments
Model:PCIe-8430/16
Part Number:780591-02
Type:Serial Interface Device
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
