USB-6009, 14-Bit, 48 kS/s, 150 Hz, Multifunction I/O Device

Rated 4.67/5 | 6 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

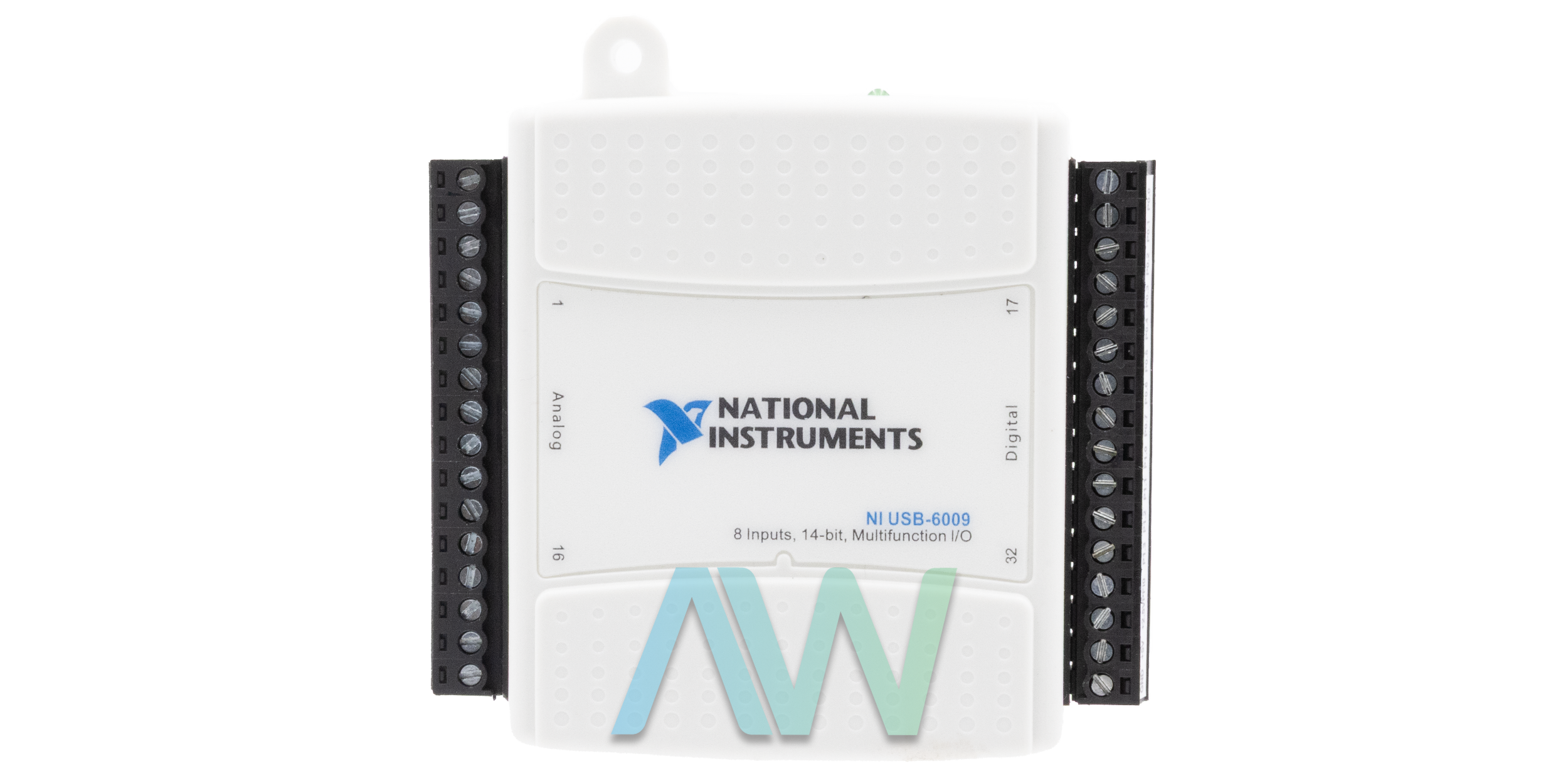

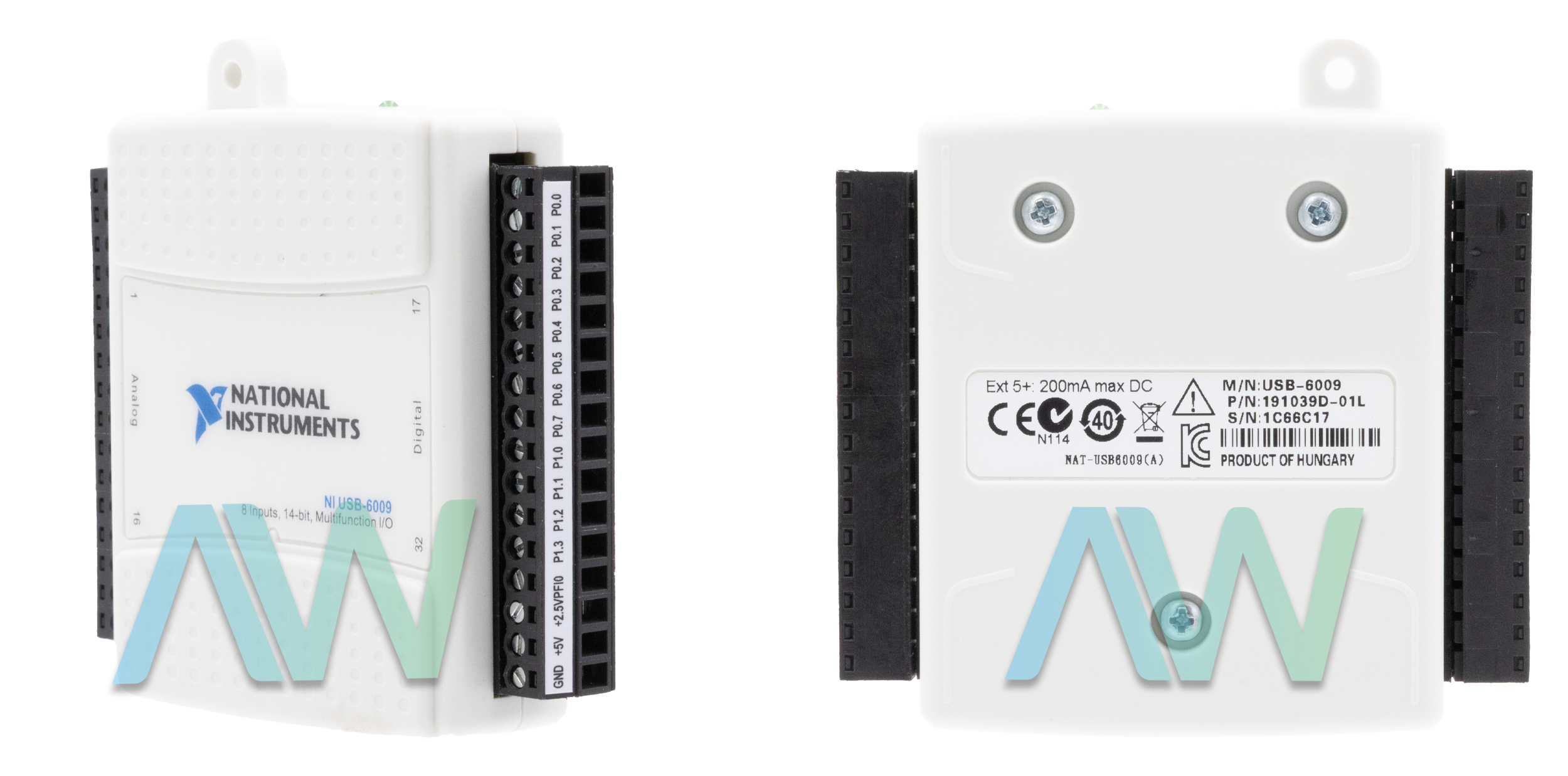

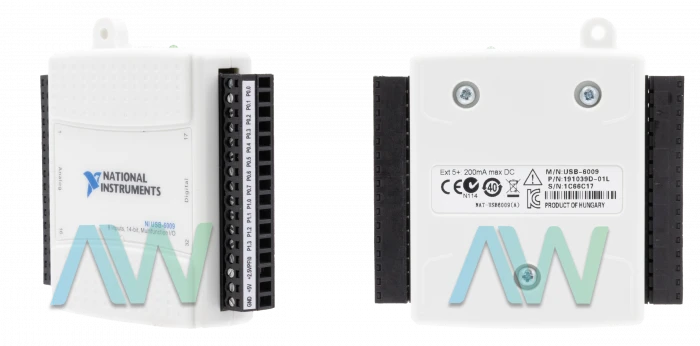

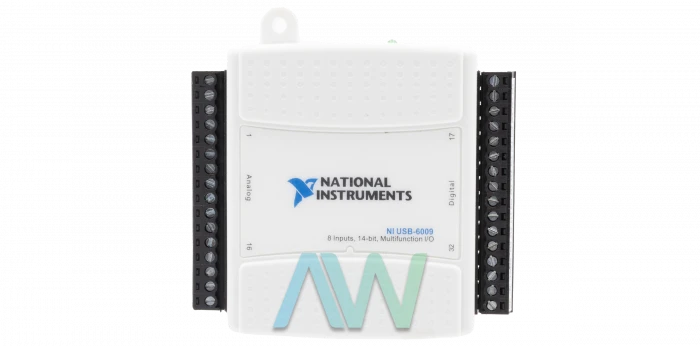

National Instruments USB-6009 Multifunction I/O Device

The NI USB-6009 (Part Number: 779026-01, 191039D-01L) is an affordable Multifunction I/O Device. This device has digital I/O, analog I/O, and a 32-bit counter. The USB-6009 is an ideal solution for applications, such as portable measurements, simple data logging, and academic lab experiments. For easy portability, the device features a lightweight mechanical enclosure and operates on bus power. Moreover, the screw-terminal connectivity offers a secure connection to signals and sensors.

The USB-6009 Multifunction I/O Device can be used with the NI-DAQmx driver software and a simple to set up configuration utility to keep the process of configuration and measurements straightforward. The USB-6009 NI offers a sample rate of 48 kS/s through the 8 single-ended or 4 differential analog input channels. The analog input resolution is 13 bits for single-ended and 14 bits for differential measurement types. There are also 2 analog output channels and 12 digital input/output channels. The analog outputs are designed to offer 12 bits output resolution and an update rate that is software-timed. The analog output range is 0 V to +5 V. Each of the 12 digital I/O channels provided on the NI USB 6009 Multifunction I/O Device can individually be programmed as either input or output. Moreover, the digital I/O channels are CMOS, LVTTL, and TTL compatible. The device is run using the NI-DAQmx driver software.

The NI USB 6009 does not need an additional power source since it draws power from the host USB port. In typical operating conditions, the National Instruments USB 6009 Multifunction I/O Device consumes 80 mA. This device has a USB series B receptacle and is designed to operate with a full speed USB 2.0 bus interface. The event counter incorporated in this device supports edge counting with 100 ns minimum high pulse width and 100 ns minimum low pulse width. The NI device weighs 3 oz and measures 3.22 x 3.55 x 0.91 in. (81.8 mm × 85.1 mm × 23.2 mm) in physical dimensions when the connectors are included. Without connectors, the device weighs 1.9 oz and measures dimensions of 2.50 in. × 3.35 in. × 0.91 in. (63.5 mm × 85.1 mm × 23.2 mm). The USB-6009 has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of -40 °C to 85 °C.

While the USB-6009 Multifunction I/O Device has been declared Obsolete by National Instruments, it will continue to be available for purchase from Apex Waves.

ModelUSB-6009
ManufacturerNational Instruments
Part Number779026-01, 191039D-01L
TypeMultifunction I/O Device
Analog Input Channels8 single-ended or 4 differential
Analog Output Channels2
Input Resolution14 bits
Dimensions3.22 in. × 3.35 in. × 0.91 in.
Weight3 oz.
WarrantyThree Year Warranty
USB-6009 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for USB-6009:

National Instruments USB-6009 Frequently Asked Questions



Question: What is the USB 6009 sample rate?

Answer: The USB 6009 sample rate is 48 kS/s.



Question: What are the power requirements for the NI USB 6009?

Answer: The power requirements for the NI USB 6009 are 80 mA typical, 500 mA maximum for 4.10 to 5.25 VDC and 300 μA typical, 500 μA maximum for USB suspend.



Question: What is the NI USB 6009 voltage?

Answer: The NI USB 6009 working voltage is ±10 V.



Question: What is the USB-6009 software compatibility?

Answer: The USB-6009 software compatibility is with LabVIEW, Measurement Studio, LabVIEW SignalExpress, LabWindows/CVI, ANSI C/C++, C#, and Visual Basic .NET.
