TB-2633
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-2633, 1-wire, 4 x 64 matrix, Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

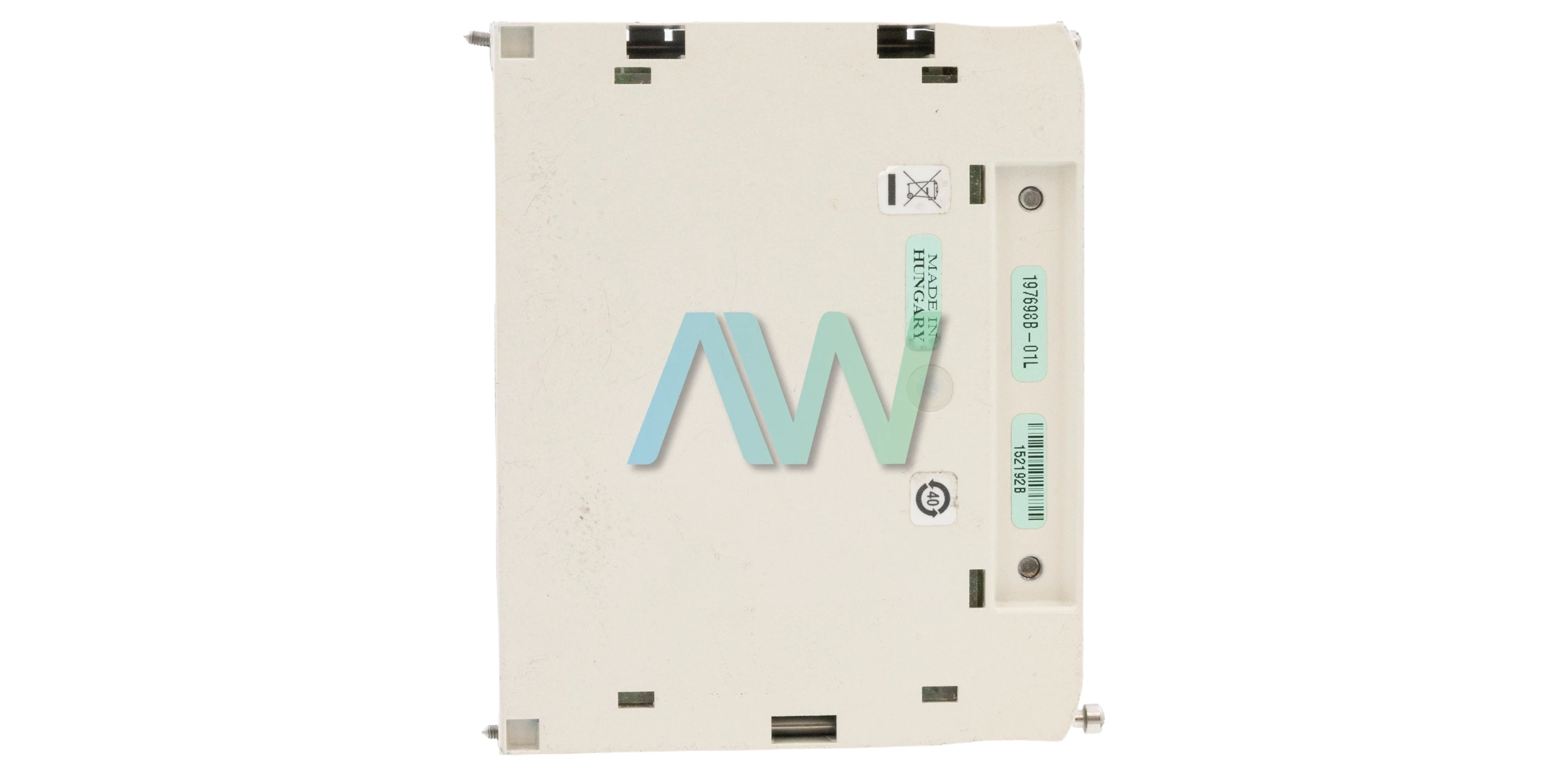

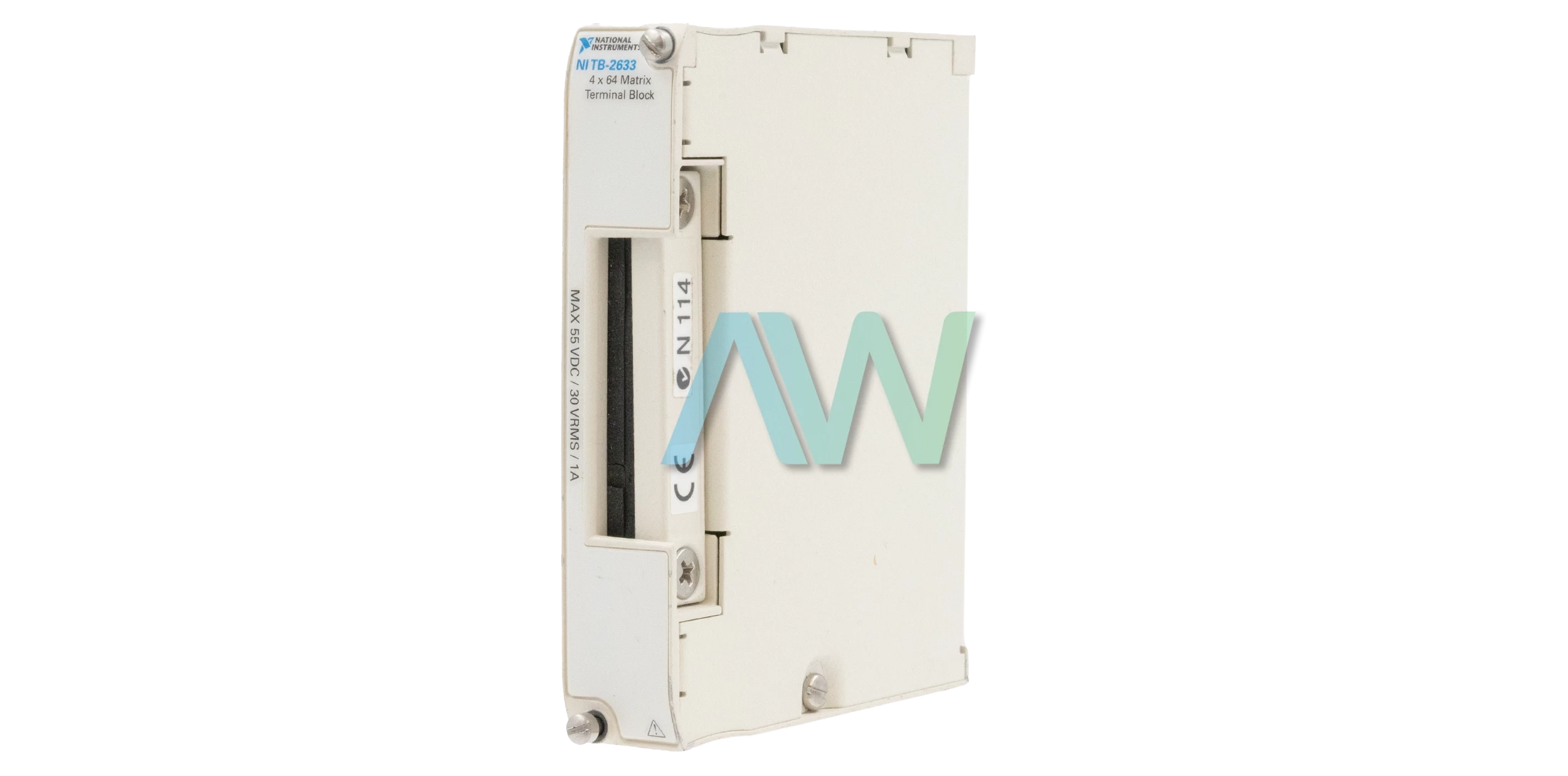

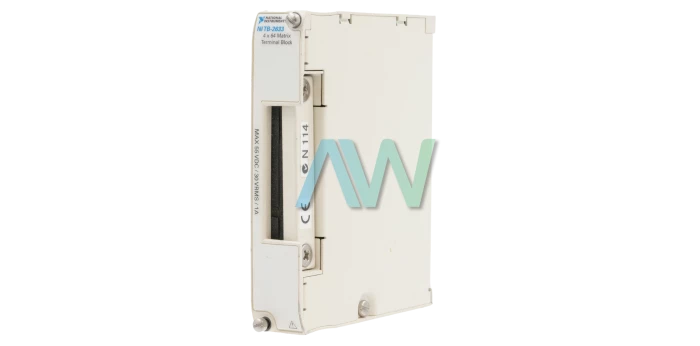

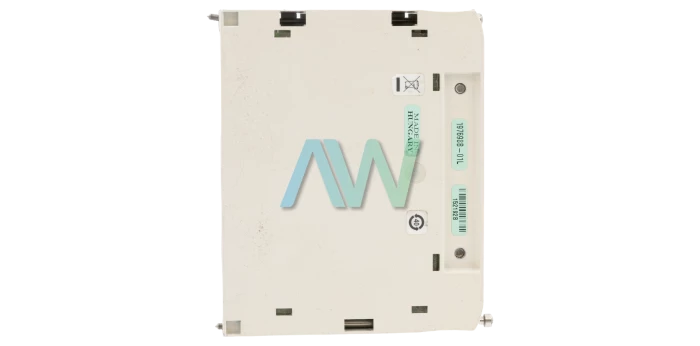

NI TB-2633 Terminal Block
The TB-2633 (Part Number: 780270-01) is a 1-Wire, 4 x 64 Terminal Block for the National Instruments PXI-2533 Switch Module. The design of this Terminal Block enables it to be deployed in front of the PXI-2533 Switch Module. The NI TB-2633 comes with screw terminals for direct access to the columns and rows of the matrix. The connector on the rear of this accessory can easily be mated with the front-end connector of the PXI-2533. Thus, the two devices can be connected without additional cables.
This matrix block has a 60-position I/O connector and 8 screw terminals. The internal screw terminals of the TB-2633 Terminal Block can be accessed by removing the top cover. You can easily remove the top cover of this accessory by unfastening its screw. This Terminal Block has a cartridge construction and can easily be deployed/removed. A set of jackscrews is also provided that ensures the firm positioning of the Terminal Block.
| Model | TB-2633 |
|---|---|
| Manufacturer | NI |
| Part Number | 780270-01 |
| Type | Terminal Block |
| Configuration | 1-wire, 4 x 64 matrix |
| Compatible Models | PXI-2533 Switch Module |
| Connection | Screw terminals |
| Mounting Type | Front Mounted |
| Warranty | 2-3 Year Warranty |
| TB-2633 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for TB-2633:
197698A-01, 197698B-01L, 197698C-01L, 780270-01
