TB-4302
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-4302, 10 V, 82-Pin Female Screw Terminal, Front Mounting, Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

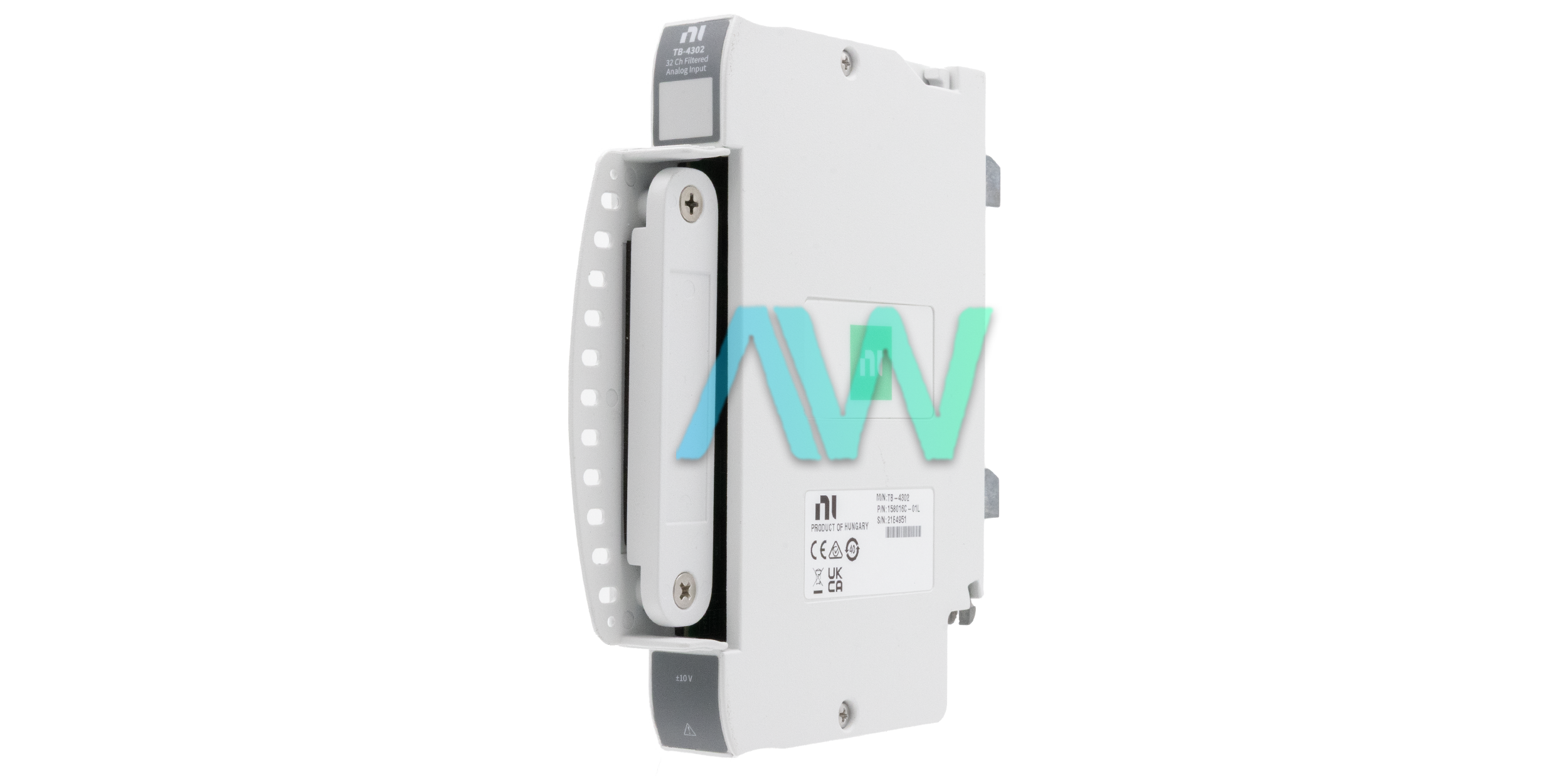

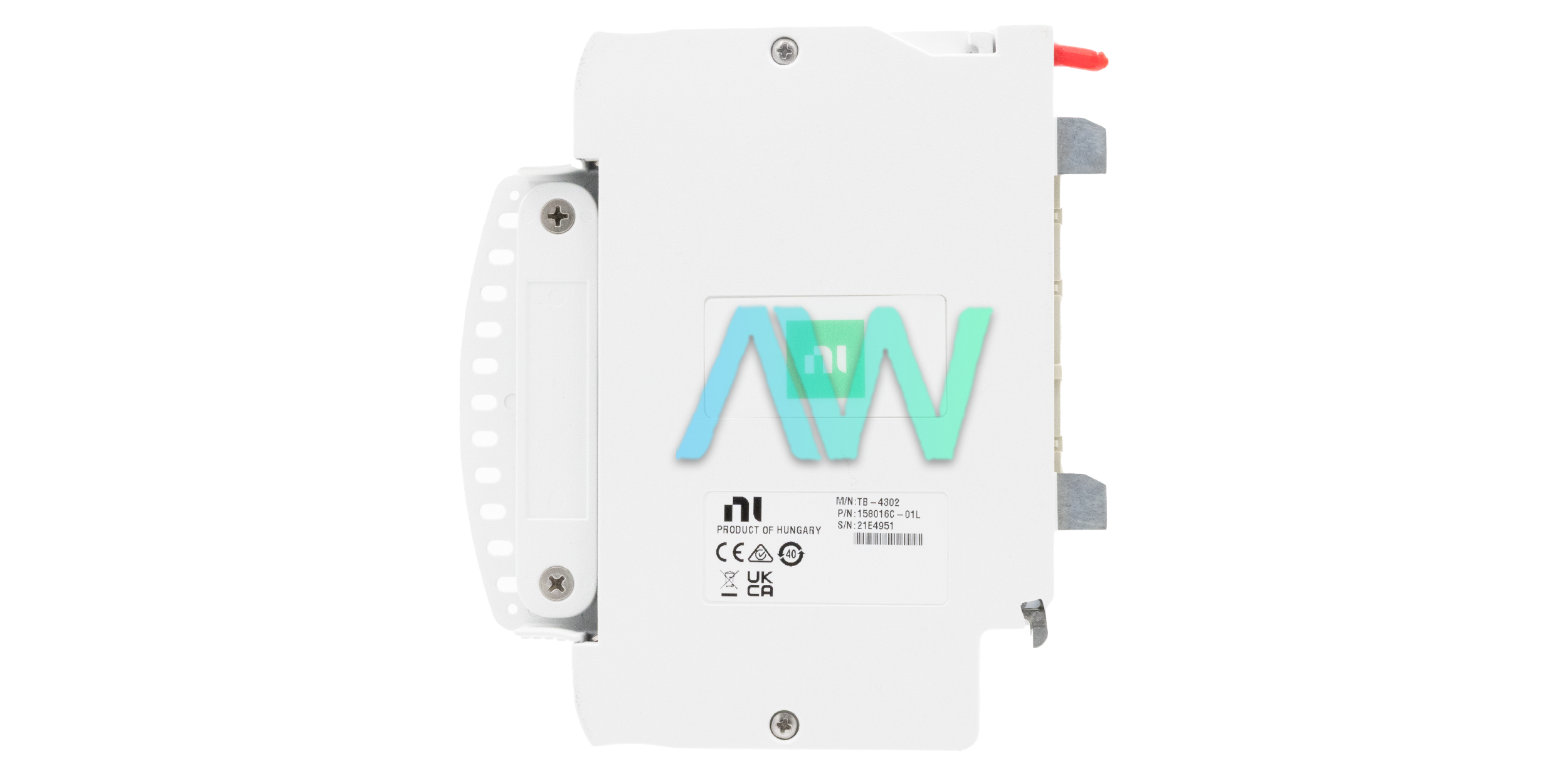

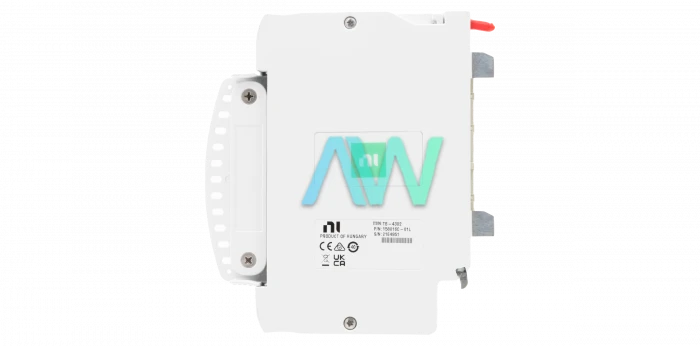

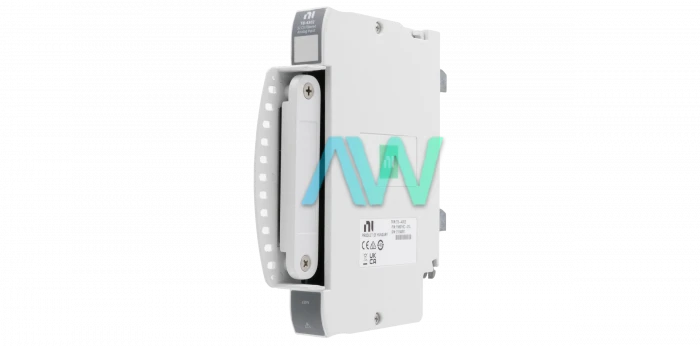

NI TB-4302 Terminal Block
Featured with cold-junction compensation, the TB-4302 (Part Number: 783869-01) is a Terminal Block. This Terminal Block is designed to be coupled with the simultaneously filtered PXIe-4302/4303 Data Acquisition Modules by National Instruments. These modules have 32 channels and can be connected to the NI TB-4302. You can connect a single channel, multiple channels, or all the channels of the host PXIe module through the TB-4302. This Terminal Block does not require an external power supply to operate.
The National Instruments PXIe-4302/4303 Data Acquisition Modules are offered with the application software called NI-MAX. NI-MAX can recognize the simultaneous filtered terminal blocks. The NI TB-4302 weighs around 1 lb. and comes with a CJC accuracy of up to 1.5 °C. It has an analog voltage of 10 V maximum. The NI-TB-4302 has a 96-Pin Female DIN that connects to a 82-Pin Female Screw Terminal,
This Terminal Block does not need to be calibrated. The NI TB-4302 Terminal Block offers an easy means of routing signals from various external sensors or devices to a Data Acquisition Module.
| Model | TB-4302 |
|---|---|
| Manufacturer | NI |
| Part Number | 783869-01 |
| Type | Terminal Block |
| Compatible Models | PXIe-4302 and PXIe-4303 |
| Calibration Interval | N/A |
| Analog Voltage | 10 V max |
| CJC Accuracy | 1.5 degrees C |
| Measurement Category | I |
| Weight | 1 lb. |
| Warranty | Three Year Warranty |
| TB-4302 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TB-4302:
158016A-01L, 158016B-01L, 158016C-01L, 158141A-01L, 158141B-01L, 783869-01, 783871-01
NI TB-4302 Frequently Asked Questions
Question: What makes the TB-4302 unique?
Answer: The TB-4302 includes a temperature sensor that measures the terminal block's temperature in order to conduct cold-junction compensation when calculating thermocouple temperature measurement.
Question: Does the TB-4302 need to be calibrated?
Answer: No, the TB-4302 does not need to be calibrated, though the TB-4302C should be calibrated annually.
Question: What is the size of the screw terminal wire gauge of the TB-4302?
Answer: The screw terminal wire gauge is 1.5 mm2 maximum (16 AWG)
TB-4302 PDF Manuals
PXI 4302_CALIBRATION_PROCEDURE.PDF
TB-4302 4304_LETTER_OF_VOLATILITY.PDF
TB-4302_DIMENSIONAL_DRAWINGS.PDF
TB-4302_USER_GUIDE_AND_TERMINAL_BLOCK_SPECIFICATIONS.PDF
Driver Downloads for TB-4302
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
