TB-4322
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-4322, 300 Vrms, Feedthrough Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

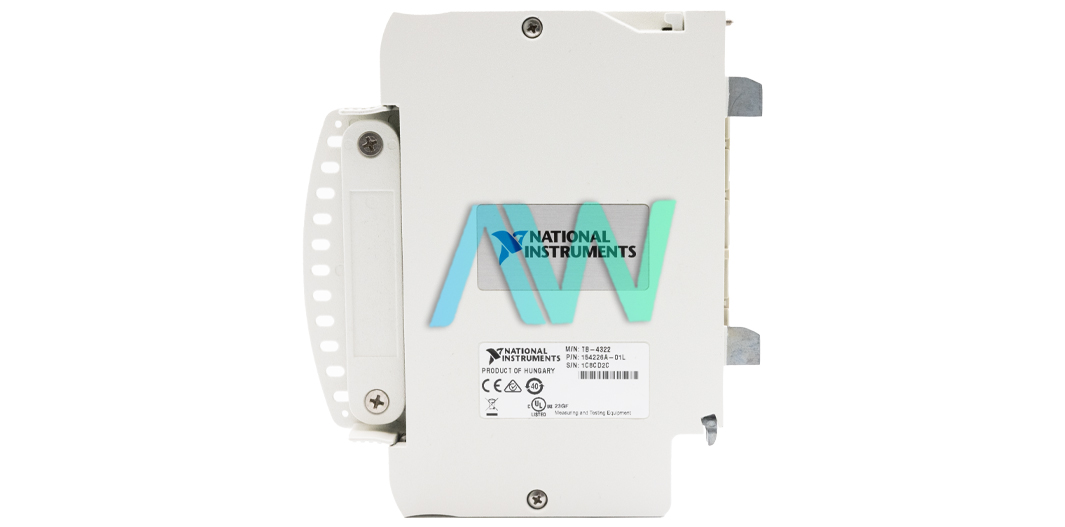

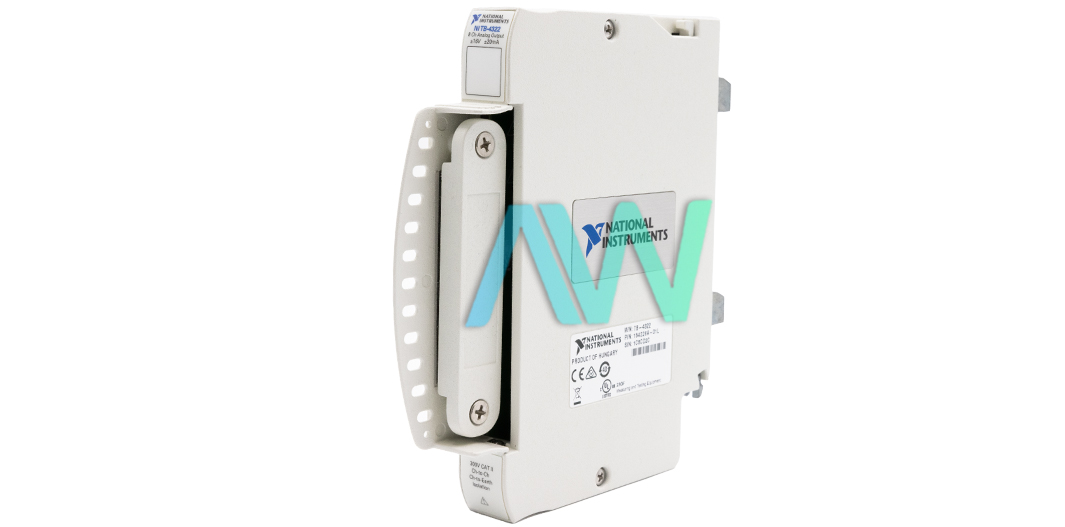

NI TB-4322 Terminal Block
The National Instruments TB-4322 (Part Number: 154226-01L) is an 8-channel Terminal Block specifically designed for the PXIe-4322 Analog Output Module. This Terminal Block comes with a keying feature that prevents accidental latching with incompatible modules. The NI TB-4322 is a feedthrough Terminal Block and does not require calibration. The screw terminals incorporated in this Terminal Block are designed for 16 AWG cables. The channel-to-channel rated isolation voltage for the TB-4322 is 300 Vrms. This Terminal Block can withstand up to 1500 V surge or transient voltages as well.
The maximum voltages between any two positive and negative analog output pairs should not exceed ±120 VDC. The front of the NI TB-4322 has access to signal cables; whereas the connector is provided on the back and can easily be mated with the front connector of the PXIe-4322. Since it is a hot-swappable device, the TB-4322 Terminal Block can easily be installed or uninstalled from a live and operating measurement system.
| Model | TB-4322 |
|---|---|
| Manufacturer | NI |
| Part Number | 154226-01L |
| Type | Terminal Block |
| Compatible Model | PXIe-4322 |
| Calibration Interval | N/A |
| Screw Terminal Wire Gauge | 16 AWG, max |
| Isolated Voltage | 300 Vrms |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TB-4322 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TB-4322:
154226A-01L, 154226B-01L, 200195A-01, 200440A-01, 200672A-01, 782882-01
