NI Thermocouple Modules

NI thermocouple modules provide dedicated measurement channels for monitoring temperatures across components, test fixtures, and industrial processes. Rather than treating a thermocouple as an ordinary voltage source, these modules combine sensitive input circuitry with features designed for temperature measurements. National Instruments C Series models integrate with compatible CompactDAQ and CompactRIO systems, allowing temperature data to accompany measurements such as voltage, strain, and vibration. Applications include environmental chamber testing, electronics thermal validation, appliance evaluation, and battery testing.

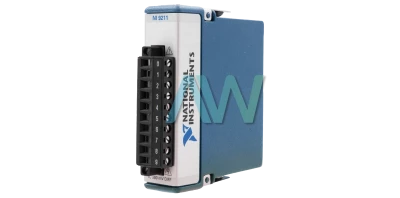

The C Series family includes options for different channel counts and connection requirements. The NI-9210, including spring-terminal part number 785043-01, and the NI-9211, part number 779001-01, each provide four thermocouple inputs with 24-bit conversion. For larger installations, the NI-9213, including part number 785185-01, accommodates 16 thermocouples in one chassis slot. Its integrated cold-junction compensation, anti-aliasing filters, and open-thermocouple detection support temperature acquisition without assembling a separate conditioning circuit for every sensor.

Isolation is another important selection criterion. The eight-channel NI-9212 supports simultaneous sampling at up to 95 samples per second per channel. The screw-terminal configuration, part number 782975-01, provides 250 Vrms channel-to-channel isolation with its matching TB-9212 terminal block. This architecture is useful when sensors connect to points with different electrical potentials, provided the complete installation stays within specified safety limits.

The NI-9214, part number 781510-01, offers 16 thermocouple channels and uses the dedicated TB-9214 isothermal terminal block. Cold-junction sensors and a layout designed to reduce thermal gradients help limit connection-related measurement errors, while an autozero channel compensates for offset. The terminal block is part of the measurement system, not simply a wiring accessory, so its condition and correct installation matter when evaluating replacement hardware.

Models such as the NI-9213 and NI-9214 support J, K, T, E, N, B, R, and S thermocouples. Configure the correct type for each channel; incorrect settings can produce inaccurate temperatures even when the sensor and module operate normally.

Choosing the correct module involves more than comparing resolution. Thermocouple type, sensor tolerance, measurement temperature, ambient conditions, wiring, and cold-junction accuracy all influence results. A module's operating temperature range describes its environmental limits, not the temperatures its connected probe can measure. Correct polarity, suitable thermocouple extension wire, and appropriate grounding also matter. Review the selected model's accuracy specifications under the actual test conditions rather than assuming that 24-bit conversion guarantees a particular temperature accuracy.

For CompactDAQ applications, NI-DAQmx provides the measurement interface, with programming options including LabVIEW and Python. CompactRIO compatibility and programming modes depend on the controller, module, and software versions. Before replacing hardware in an established system, confirm the complete part number, terminal block, chassis support, and driver requirements. Contact Apex Waves with these details to discuss replacement thermocouple modules, availability, and calibration documentation for your application.
