PXIe-1085
PXI Chassis
- NI PXIe-1085 Chassis with 16 Hybrid Peripheral Slots
In Stock | Ships Today
National Instruments PXIe
Chassis - Controllers - SMUs - RF - FlexRIO
Tested HardwareProfessionally tested PXIe hardware
Warranty AvailableOptions up to 2 years
Fast ShippingQuick turnaround from our U.S. facility
Expert SupportNI hardware experts here to help
100+
Available PXIe models
Models
15 Min
Fast quote turnaround
Quotes
100%
Fully tested
Tested
PXIe
High-bandwidth system support
Support
Filter PXIe Parts
Filter PXIe Parts
Choose models to quote
Updating results
PXIe Parts Ready for Quote
Browse active National Instruments PXIe model and catalog-number pages, then request a quote for the exact hardware you need.
699 results
PXIe-8135
Industrial Controllers
- NI PXIe-8135 Controller with 2 Ethernet Ports
In Stock | Ships Today
PXIe-1082
PXI Chassis
- NI PXIe-1082 PXI Chassis with 8 Slots
In Stock | Ships Today

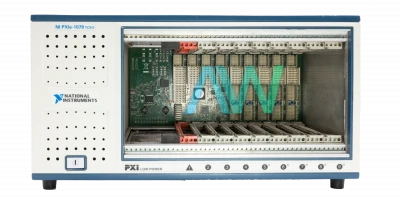

PXIe-1078
PXI Chassis
- NI PXIe-1078 PXI Chassis that is Hybrid Compatible
In Stock | Ships Today

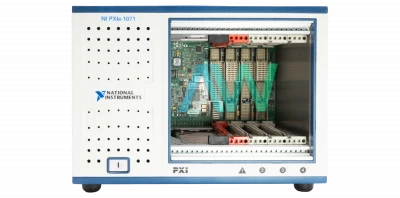

PXIe-1071
PXI Chassis
- NI PXIe-1071 Chassis with an AC Power Supply
In Stock | Ships Today

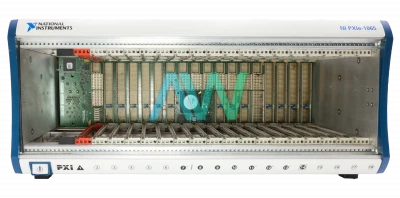

PXIe-1065
PXI Chassis
- NI PXIe-1065 PXI Chassis with 18 Slots
In Stock | Ships Today

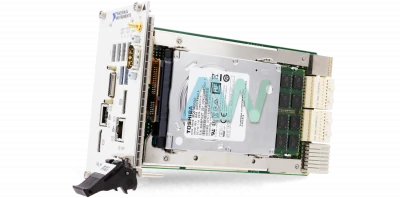

PXIe-8840
PXI Controllers
- NI PXIe-8840 PXI Controller with Intel Core i5 Processor Core
In Stock | Ships Today

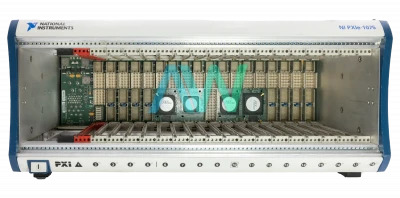

PXIe-1075
PXI Chassis
- NI PXIe-1075 PXI Chassis with AC Power Supply
In Stock | Ships Today
No PXIe parts match those filters. Clear filters or search all PXIe inventory.
National Instruments PXIe Products at Apex Waves
PXIe, short for PXI Express, brings high-speed PCI Express communication to modular test and measurement systems. National Instruments PXIe hardware combines instrument modules, shared timing resources, and centralized computer control within a compact chassis. The family supports applications ranging from production testing and semiconductor characterization to aerospace validation and synchronized data acquisition. Engineers can configure each system around specific measurements, channel counts, and signal types instead of assembling separate benchtop instruments.
A typical system includes a chassis, an embedded controller or compatible remote control interface, and measurement modules. The eight-slot PXIe-1082, available under part number 780321-01, provides four hybrid peripheral slots, two PXIe peripheral slots, and one system timing slot, alongside its controller slot. Larger configurations can use the eighteen-slot PXIe-1085. An embedded controller such as the PXIe-8840 runs applications inside the chassis, while MXI-Express configurations connect suitable systems to an external computer.
The PXIe family encompasses multiple NI product series. X Series multifunction modules combine analog acquisition, analog output, digital I/O, and counters. For example, the PXIe-6363, part number 781056-01, provides 32 single-ended or 16 differential analog inputs with 16-bit resolution, four analog outputs, and 48 digital I/O lines. SC Express modules integrate sensor-specific signal conditioning; the PXIe-4353 supports 32 thermocouple channels with 24-bit conversion. FlexRIO hardware, including the PXIe-7975R paired with a compatible adapter module, enables custom FPGA-based measurement and processing.
Specialized instruments broaden the platform beyond data acquisition. The PXIe-5162 captures high-frequency waveforms, while the PXIe-4081, part number 783130-01, provides 7½-digit digital multimeter measurements. RF instruments such as the PXIe-5840 vector signal transceiver support signal generation and analysis. The PXIe-6674T adds precision clock generation and trigger routing for coordinated measurements.
Compatibility requires more than matching the PXIe prefix. Hybrid slots accept PXIe modules and hybrid-compatible PXI modules, but PXIe modules cannot operate in conventional PXI-only peripheral slots. Available bandwidth depends on the controller, chassis topology, PCI Express generation, and module connections. Power, cooling, occupied slot width, and trigger routing also influence system design. Shared reference clocks support synchronization, but applications must configure compatible timing and triggering rather than assume automatic alignment.
Software is selected by instrument function, not simply by the PXIe interface. NI-DAQmx supports compatible acquisition modules, NI-SCOPE controls supported oscilloscopes, and NI-DMM serves digital multimeters. LabVIEW enables measurement programming, while TestStand organizes automated test sequences. Match driver releases to the hardware, operating system, and development environment before deploying applications.
Apex Waves helps customers source NI PXIe hardware for expanding test systems and maintaining established installations. When requesting a quote, identify the model, ordering part number, required accessories, and calibration needs. Checking operating system and driver compatibility before replacement helps preserve existing software investments and avoid unnecessary changes to validated test procedures.
Key Features
- Modular architecture combines chassis, controllers, and configurable measurement instruments.
- Representative series include X Series, SC Express, and FlexRIO.
- PXIe-1082 and PXIe-1085 chassis support different system sizes and slot configurations.
- PXIe-6363, PXIe-4353, and PXIe-4081 address multifunction, temperature, and precision electrical measurements.
- Confirm hybrid-slot compatibility, bandwidth, cooling, software support, and required cables before selecting replacement hardware.
Explore National Instruments PXIe Resource Pages
Browse related buying pages and hardware groups for National Instruments PXIe.
NI CAN Bus Interfaces
Buy NI CAN bus interfaces and National Instruments CAN hardware for automotive, embedded, industrial, and diagnostic applications.
Browse NI CAN Bus InterfacesNI DAQ Hardware
Shop NI DAQ hardware and National Instruments data acquisition devices, including USB, PCI, PXI, PXIe, and CompactDAQ systems.
Browse NI DAQ HardwareNI Data Acquisition Systems
Shop NI data acquisition systems and National Instruments DAQ systems, including USB DAQ, PCIe DAQ, PXI DAQ, and CompactDAQ hardware.
Browse NI Data Acquisition SystemsNI Digitizers
Shop NI digitizers and National Instruments high-speed digitizer hardware for PXI, PXIe, waveform capture, and automated test systems.
Browse NI DigitizersNI FPGA & RIO Hardware
Shop NI FPGA and RIO hardware, including National Instruments CompactRIO, Single-Board RIO, R Series, and FPGA modules.
Browse NI FPGA & RIO HardwareNI FPGA Hardware
Shop NI FPGA hardware and National Instruments FPGA modules, including R Series, PXI FPGA, PXIe FPGA, and reconfigurable I/O hardware.
Browse NI FPGA HardwareNI Modules & Cards
Browse NI modules and cards from National Instruments, including DAQ cards, PXI modules, CompactDAQ modules, CAN interfaces, and digital I/O hardware.
Browse NI Modules & CardsNI PXIe Chassis
Buy NI PXIe chassis and National Instruments PXIe chassis hardware for high-bandwidth modular test and RF systems.
Browse NI PXIe ChassisNI PXIe Controllers
Buy NI PXIe controllers and National Instruments PXIe embedded controllers for high-performance modular test systems.
Browse NI PXIe ControllersNI PXIe Digitizers
Buy NI PXIe digitizers and National Instruments PXIe high-speed digitizer hardware for waveform capture and advanced test systems.
Browse NI PXIe DigitizersNI PXIe Modules
Buy NI PXIe modules and National Instruments PXIe cards for RF, digitizer, DAQ, SMU, switching, and high-speed test applications.
Browse NI PXIe ModulesNI PXIe Oscilloscopes
Buy NI PXIe oscilloscopes and National Instruments PXIe scope hardware for high-speed waveform capture and automated test systems.
Browse NI PXIe OscilloscopesNI PXIe Power Supplies
Buy NI PXIe power supplies and National Instruments PXIe power hardware for modular test systems and PXIe chassis support.
Browse NI PXIe Power SuppliesNI PXIe Systems
Shop NI PXIe systems, chassis, controllers, and modules. Apex Waves offers tested National Instruments PXIe hardware for high-performance test systems.
Browse NI PXIe SystemsNI PXIe Vector Signal Transceivers
Shop NI PXIe vector signal transceivers and National Instruments VST hardware for RF generation, analysis, and wireless testing.
Browse NI PXIe Vector Signal TransceiversNI RF & SDR Systems
Buy NI RF and SDR systems, including National Instruments USRP devices, RF analyzers, VST modules, and software defined radio hardware.
Browse NI RF & SDR SystemsNI RF Signal Analyzers
Buy NI RF signal analyzers and National Instruments RF analyzer hardware for spectrum analysis, wireless testing, and PXI RF systems.
Browse NI RF Signal AnalyzersNI Strain Gauge Modules
Buy NI strain gauge modules and National Instruments bridge input modules for load cell, force, torque, and structural testing applications.
Browse NI Strain Gauge ModulesNI Test & Measurement Equipment
Browse NI test and measurement equipment from National Instruments, including DAQ systems, PXI hardware, oscilloscopes, digitizers, and RF modules.
Browse NI Test & Measurement EquipmentNI Vector Signal Transceivers
Shop NI vector signal transceivers and National Instruments VST hardware for RF generation, analysis, prototyping, and wireless test systems.
Browse NI Vector Signal TransceiversUsed National Instruments Equipment
Shop used National Instruments equipment and refurbished NI hardware, including DAQ, PXI, PXIe, CompactDAQ, and CompactRIO systems.
Browse Used National Instruments EquipmentBrowse NI PXIe Categories
Explore PXI Express chassis, controllers, high-speed instruments, RF modules, SMUs, DAQ, DSA, and FlexRIO hardware.
PXI Express chassis provide high-bandwidth backplanes, timing, and synchronization for modular test systems.
Embedded and remote controllers help operate PXIe systems in production, lab, and validation environments.
SMU modules combine precision sourcing and measurement for semiconductor, component, and device test.
PXIe RF analyzers, generators, and waveform modules support high-performance automated signal test.
PXIe DAQ and dynamic signal acquisition modules cover analog, digital, vibration, and high-speed measurements.
FlexRIO devices support FPGA-based custom I/O, high-speed streaming, and specialized instrumentation workflows.
Why Buy NI PXIe From Apex Waves?
ISO 9001 Certified
Quality processes backed by documented inspection, testing, and fulfillment standards.
PXI Systems Alliance Member
Connected to the standards group supporting PXI and PXIe platform compatibility and growth.
Professionally Tested
Every chassis, controller, and module is inspected and tested for reliable operation.
Fully Tested Inventory
Quality NI hardware tested before it ships.
Quote Support
Our team helps match the right PXIe chassis, module, controller, or accessory to your system.
Legacy Hardware Specialists
We stock hard-to-find NI PXIe hardware to keep long-running systems online.
Frequently Asked Questions
PXIe stands for PXI Express. It extends the PXI instrumentation platform with PCI Express communication, higher-bandwidth data paths, and additional timing resources. Conventional PXI uses PCI signaling. Both are modular test platforms, but module connectors, controller compatibility, and supported chassis slots must be checked separately.
Yes, when the chassis provides appropriate slots. Hybrid slots support PXIe modules and PXI modules specifically designated hybrid-compatible. Other PXI modules may require dedicated PXI slots. A PXIe module cannot operate in a PXI-only peripheral slot. Check the module and chassis documentation before mixing hardware.
A working system needs a PXIe chassis, an embedded controller or supported external-computer connection, measurement modules, and compatible drivers and application software. Include the necessary signal cables, terminal blocks, and sensors. Some chassis integrate remote control hardware, so confirm the configuration before ordering a separate controller.
X Series includes multifunction analog and digital I/O devices, SC Express provides sensor-specific measurement modules, and FlexRIO supports custom FPGA-based instruments. Examples include the PXIe-6363 for general data acquisition, PXIe-4353 for thermocouples, and PXIe-7975R with a compatible adapter for custom I/O and processing. Specialized instruments such as the PXIe-4081 handle precision electrical measurements.
No. NI-DAQmx supports compatible data acquisition modules, but other instruments use different software. Examples include NI-SCOPE for supported oscilloscopes, NI-DMM for digital multimeters, and LabVIEW FPGA for custom FlexRIO programming. Check each device's documentation for required software, supported driver releases, application compatibility, and operating system requirements.
Yes. Contact Apex Waves to request availability, pricing, and service options for the NI PXIe model your system requires. Provide the complete ordering part number, chassis and controller models, installed software versions, and any accessory or calibration requirements. Availability and suitable replacement options depend on the specific hardware and configuration.
