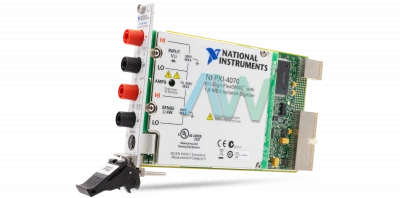

PXI-4070
NI-407x Series
- NI PXI-4070 PXI Digital Multimeter with -300 V to 300 V DC Voltage Range
Calibration4 options
In Stock | Ships Today
National Instruments PXI
Modules - Power Supplies - Multimeters - Source Measure
Tested HardwareProfessionally tested for reliable performance
Warranty AvailableOptions up to 2 years
Fast ShippingQuick turnaround from our U.S. facility
Expert SupportFamily hardware experts here to help
1000+
In-stock PXI models
Models
15 Min
Fast quote turnaround
Quotes
100%
Fully tested
Tested
PXI
Controller compatibility support
Support
Filter PXI Parts
Filter PXI Parts
Choose models to quote
Updating results
PXI Parts Ready for Quote
Browse active PXI and PXIe part pages across available brands, then request a quote for the exact model you need.
1,122 results

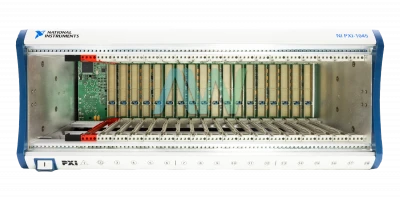

PXI-1045
PXI Chassis
- NI PXI-1045 PXI Chassis with AC Power Supply
In Stock | Ships Today

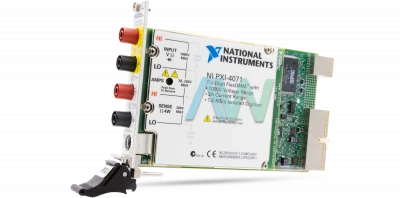

PXI-4071
NI-407x Series
- NI PXI-4071 PXI Digital Multimeter with 1.8 MS/s Maximum Sample Rate
Calibration4 options
In Stock | Ships Today

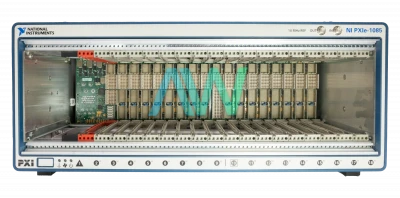

PXIe-1085
PXI Chassis
- NI PXIe-1085 Chassis with 16 Hybrid Peripheral Slots
In Stock | Ships Today

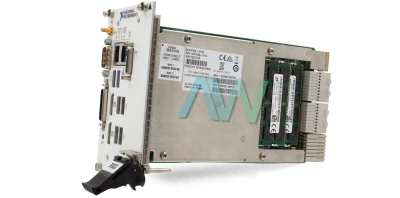

PXIe-8135
Industrial Controllers
- NI PXIe-8135 Controller with 2 Ethernet Ports
In Stock | Ships Today

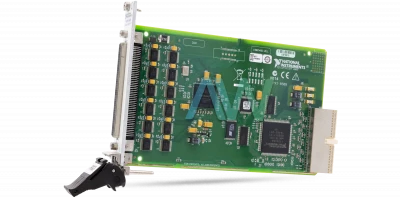

PXI-6509
DIO Series
- NI PXI-6509 PXI Digital I/O Module with -0.5 V to 5.5 V Digital Input Voltage Range
In Stock | Ships Today

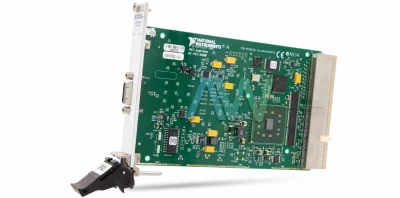

PXI-8360
MXI-Express x1 Series
- NI PXI-8360 PXI Remote Control Module with Copper Cable Support
In Stock | Ships Today

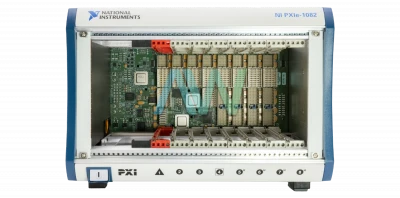

PXIe-1082
PXI Chassis
- NI PXIe-1082 PXI Chassis with 8 Slots
In Stock | Ships Today
No PXI parts match those filters. Clear filters or search all PXI inventory.
PXI Products at Apex Waves
National Instruments PXI hardware brings data acquisition, signal generation, switching, and precision measurement into one modular test platform. PXI stands for PCI eXtensions for Instrumentation and combines the PCI bus with CompactPCI mechanical packaging and dedicated timing resources. Rather than requiring separate benchtop instruments for every function, a PXI system shares a chassis, controller, and software environment. This approach supports automated production testing, laboratory research, aerospace validation, and maintenance of established defense test systems.
A typical configuration includes a chassis such as the eight-slot PXI-1042Q, an embedded controller such as the PXI-8108, and application-specific peripheral modules. The chassis supplies power, cooling, and backplane connections. An embedded controller operates as the system computer, while a compatible MXI remote-control interface allows an external computer to manage the instruments. Available peripheral capacity depends on the chassis layout and controller width.
The family spans several established NI product lines. M Series devices, including the PXI-6251, combine analog acquisition, analog output, digital I/O, and counter functions. One PXI-6251 ordering number is 779117-01; connector variants make exact part-number matching important. S Series devices such as the PXI-6133 provide simultaneous sampling for applications that need multiple signals captured together rather than scanned sequentially.
Dedicated instruments extend the platform beyond general-purpose DAQ. The PXI-4071 FlexDMM provides up to 7½-digit resolution for precision electrical measurements. The two-channel PXI-5114 oscilloscope offers 125 MHz analog bandwidth, sampling up to 250 MS/s, and 8-bit resolution; ordering numbers include 779466-01, 779466-02, and 779466-03. Relay modules such as the PXI-2569 automate signal routing, helping connect instruments to different test points without repeated manual rewiring.
Synchronization is another defining feature. Conventional PXI provides a 10 MHz reference clock, an eight-line trigger bus, and star-trigger resources. These connections support coordinated measurements across compatible instruments, although the required clock routing and synchronization behavior depend on the modules and application.
Software selection should follow the installed hardware. Typical drivers include NI-DAQmx, NI-DMM, NI-SCOPE, and NI-SWITCH. LabVIEW can provide application development, while TestStand can organize automated test sequences. Confirm operating-system, driver, and development-environment compatibility before replacing a controller or updating an existing installation.
PXI and PXI Express are related but not interchangeable. PXIe modules cannot operate in conventional PXI slots. Some PXI modules can operate in designated PXI peripheral slots or compatible hybrid slots within PXIe chassis, but the module connector and chassis documentation must be checked.
Before selecting a replacement, compare channel count, measurement ranges, sampling requirements, connector pinouts, and available chassis power. Also confirm that existing terminal blocks and cables suit the exact module configuration being installed.
Apex Waves supports established PXI installations with replacement hardware, repair services, and calibration options. Matching the model, ordering number, accessories, and software requirements helps preserve validated test configurations while reducing the disruption associated with a complete platform redesign.
Key Features
- Modular chassis, controller, and instrument architecture.
- M Series multifunction DAQ and S Series simultaneous sampling.
- Precision multimeters, oscilloscopes, and programmable relay modules.
- Shared reference clocks and hardware triggering.
- Embedded or external computer control.
- Legacy replacement, repair, and calibration options through Apex Waves.
Explore National Instruments PXI Resource Pages
Browse related buying pages and hardware groups for National Instruments PXI.
NI CAN Bus Interfaces
Buy NI CAN bus interfaces and National Instruments CAN hardware for automotive, embedded, industrial, and diagnostic applications.
Browse NI CAN Bus InterfacesNI DAQ Hardware
Shop NI DAQ hardware and National Instruments data acquisition devices, including USB, PCI, PXI, PXIe, and CompactDAQ systems.
Browse NI DAQ HardwareNI Data Acquisition Systems
Shop NI data acquisition systems and National Instruments DAQ systems, including USB DAQ, PCIe DAQ, PXI DAQ, and CompactDAQ hardware.
Browse NI Data Acquisition SystemsNI Digitizers
Shop NI digitizers and National Instruments high-speed digitizer hardware for PXI, PXIe, waveform capture, and automated test systems.
Browse NI DigitizersNI FPGA & RIO Hardware
Shop NI FPGA and RIO hardware, including National Instruments CompactRIO, Single-Board RIO, R Series, and FPGA modules.
Browse NI FPGA & RIO HardwareNI FPGA Hardware
Shop NI FPGA hardware and National Instruments FPGA modules, including R Series, PXI FPGA, PXIe FPGA, and reconfigurable I/O hardware.
Browse NI FPGA HardwareNI Modules & Cards
Browse NI modules and cards from National Instruments, including DAQ cards, PXI modules, CompactDAQ modules, CAN interfaces, and digital I/O hardware.
Browse NI Modules & CardsNI PXI CAN Interfaces
Buy NI PXI CAN interfaces and National Instruments PXI CAN hardware for automotive, embedded, and industrial communication systems.
Browse NI PXI CAN InterfacesNI PXI Digitizers
Shop NI PXI digitizers and National Instruments PXI digitizer hardware for waveform capture and high-speed measurement systems.
Browse NI PXI DigitizersNI PXI Ethernet Interface Modules
Shop NI PXI Ethernet interface modules and National Instruments PXI communication hardware for modular test systems.
Browse NI PXI Ethernet Interface ModulesNI PXI Modules
Shop NI PXI modules and National Instruments PXI cards for DAQ, switching, RF, waveform, communication, and automated test systems.
Browse NI PXI ModulesNI PXI Oscilloscopes
Shop NI PXI oscilloscopes and National Instruments PXI scope hardware for waveform capture and signal analysis.
Browse NI PXI OscilloscopesNI PXI Systems
Buy NI PXI systems, chassis, controllers, and modules from Apex Waves. Shop tested National Instruments PXI hardware with quote support.
Browse NI PXI SystemsNI RF Signal Analyzers
Buy NI RF signal analyzers and National Instruments RF analyzer hardware for spectrum analysis, wireless testing, and PXI RF systems.
Browse NI RF Signal AnalyzersNI Strain Gauge Modules
Buy NI strain gauge modules and National Instruments bridge input modules for load cell, force, torque, and structural testing applications.
Browse NI Strain Gauge ModulesNI Test & Measurement Equipment
Browse NI test and measurement equipment from National Instruments, including DAQ systems, PXI hardware, oscilloscopes, digitizers, and RF modules.
Browse NI Test & Measurement EquipmentUsed National Instruments Equipment
Shop used National Instruments equipment and refurbished NI hardware, including DAQ, PXI, PXIe, CompactDAQ, and CompactRIO systems.
Browse Used National Instruments EquipmentBrowse PXI Categories
The PXI series in our diverse inventory includes PXI chassis, controllers, multifunction I/O modules, analyzers, digital multimeters, relay modules, interface modules, and accessories.
Why Buy PXI From Apex Waves?
ISO 9001 Certified
Quality processes backed by documented inspection, testing, and fulfillment standards.
PXI Systems Alliance Member
Connected to the standards group supporting PXI platform compatibility and growth.
Professionally Tested
Every chassis and module is inspected and tested for reliable performance and compatibility.
Fully Tested Inventory
Quality hardware tested for reliable operation before it ships.
Quote Support
Our team helps match the right chassis, module, controller, or accessory to your system.
Legacy Hardware Specialists
We stock hard-to-find PXI hardware to keep long-running systems online.
Frequently Asked Questions
PXI stands for PCI eXtensions for Instrumentation. It is an open modular platform that combines computer-based control with measurement, signal generation, switching, and timing hardware. Typical applications include automated manufacturing test, laboratory measurements, aerospace validation, and maintenance of long-running test systems.
A PXI system generally needs a chassis, an embedded controller or compatible remote-control interface, application-specific modules, and supporting software. An eight-slot PXI-1042Q chassis and PXI-8108 embedded controller are examples of conventional PXI hardware. Cables, terminal blocks, signal conditioning, and calibration requirements depend on the selected instruments and signals.
They can share certain PXIe chassis when the installed slot types support each module. Conventional PXI modules require an appropriate PXI slot or a hybrid slot that accepts their connector configuration. PXIe modules cannot be installed in conventional PXI slots, and PXI and PXIe embedded controllers are not interchangeable. Check both chassis and module documentation.
M Series modules such as the PXI-6251 combine analog I/O, digital I/O, and counters. S Series modules such as the PXI-6133 provide simultaneous sampling. The PXI-4071 serves precision multimeter applications, the PXI-5114 captures waveforms, and the PXI-2569 provides relay switching. Select modules by the required signal type, ranges, channel count, and timing.
Software depends on the instruments installed. Common drivers include NI-DAQmx for supported DAQ modules, NI-DMM for multimeters, NI-SCOPE for oscilloscopes, and NI-SWITCH for switch modules. PXI Platform Services supports chassis identification and trigger routing. LabVIEW and TestStand are application-development and test-management options, respectively. Verify compatible hardware, operating-system, and software versions before installation.
Provide the exact model and ordering number, plus the chassis, controller, driver version, and any required cables or terminal blocks. Models can have different connector or memory configurations, so similar names do not guarantee identical replacements. For example, PXI-5114 ordering numbers include 779466-01, 779466-02, and 779466-03. Confirm availability, condition, calibration needs, and repair options when requesting a quote.
