PCI-6517 National Instruments Digital I/O Device | Apex Waves | Image PCI-6517 National Instruments Digital I/O Device | Apex Waves | ImagePCI-6517
PCI-6517 National Instruments Digital I/O Device | Apex Waves | Image
PCI-6517 National Instruments Digital I/O Device | Apex Waves | Image
PCI-6517 New

PCI-6517

4.8/5 | 11 ratings

Modular Systems > National Instruments > DIO Series

Part Number PCI-6517
Manufacturer/Brand National Instruments
Description: PCI-6517, 32-Channel, Sink Outputs, Digital I/O Device
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

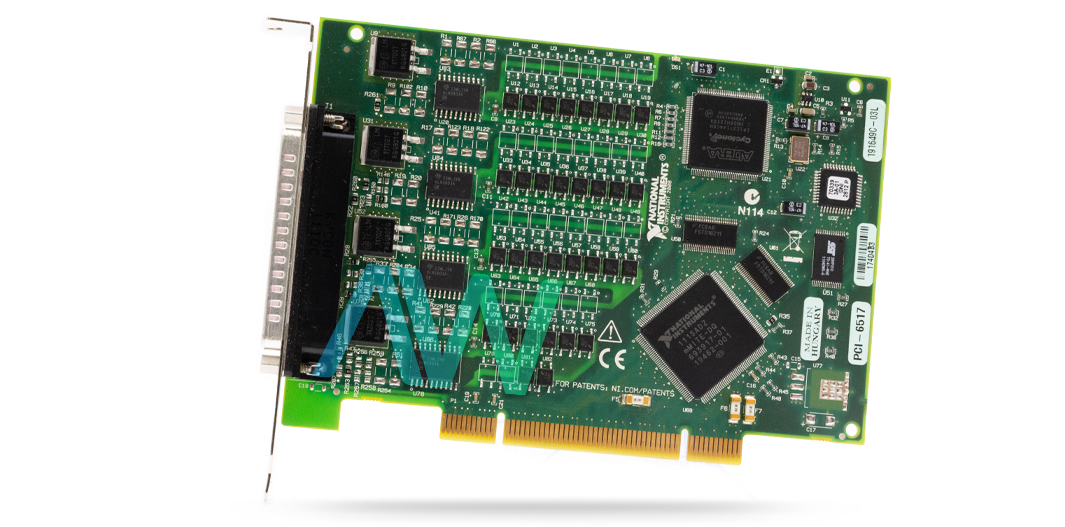

National Instruments PCI-6517 Digital I/O Device

The NI PCI-6517 (Part Number: 779083-01) Digital I/O Device has 32 sink output lines, bank isolation, and ±30 VDC maximum switching voltage. This device is suitable for general-purpose data acquisition applications, automated manufacturing test, and industrial control. The PCI 6517 can be linked to a variety of actuators, sensors, and 24 V electronic instruments. This Digital I/O Device can be used with NI-DAQmx software, which comes with the technology to make application development go more quickly. Several of the useful features in NI-DAQmx are high-performance multithreaded streaming technology, automatic code generation, and the DAQ Assistant.

When this device is at a temperature of 25 °C and the user is utilizing all 8 lines in a port, 75 mA maximum can be output from each line. Subsequently, the port can have an aggregate most extreme current output of 600 mA (75 mA x 8 = 600 mA). If each of the 8 lines are not being utilized, the port can yield 600 mA, yet no line can output more than 350 mA.

The NI PCI 6517 Digital I/O Device is equipped with digital I/O watchdogs, which have the capability to notice application and computer errors. The National Instruments digital I/O watchdogs help safeguard against the following: PCI bus failure, computer crashes, driver crashes, and application crashes. The digital outputs go into a safe recovery setting when a fault is noticed by the watchdogs. The digital I/O watchdogs additionally guarantee safe recovery. Another beneficial feature of the PCI-6517 is the change detection feature. This feature triggers the user’s application and brings back I/O information after a digital incident with low processor usage. This device also has programmable input filters, which eradicate glitches/spikes and get rid of noise.

ModelPCI-6517
ManufacturerNational Instruments
Part Number779083-01
TypeDigital I/O Device
Digital Output Channels32
I/O Connector37-pin male D-SUB
DriverNI-DAQmx
Dimensions5.54 in. × 4.47 in.
Weight2.5 oz.
WarrantyOne Year Warranty
PCI-6517 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6517 Frequently Asked Questions



Question: What is the single-ended digital I/O channel current drive of the PCI-6517?



Answer: The single-ended digital I/O channel current drive of the PCI-6517 is 125 mA.



Question: Which accessories are required for the NI PCI 6517?



Answer: The NI PCI 6517 does not require any accessories, but it can be used with a USB 2.0 cable, 1 meter, Type A to Type B.



Question: What is the output voltage range of the PCI 6517?



Answer: The output voltage range of the PCI 6517 is 0 V to 30 V.



Question: Which types of data transfers does the NI PCI-6517 have?



Answer: The NI PCI-6517 has programmed I/O and interrupts data transfers.


PCI-6517 Technical Specifications:

Manufacturer:National Instruments
Model:PCI-6517
Part Number:779083-01
Type:Digital I/O Device
Repair Evaluation:$150
