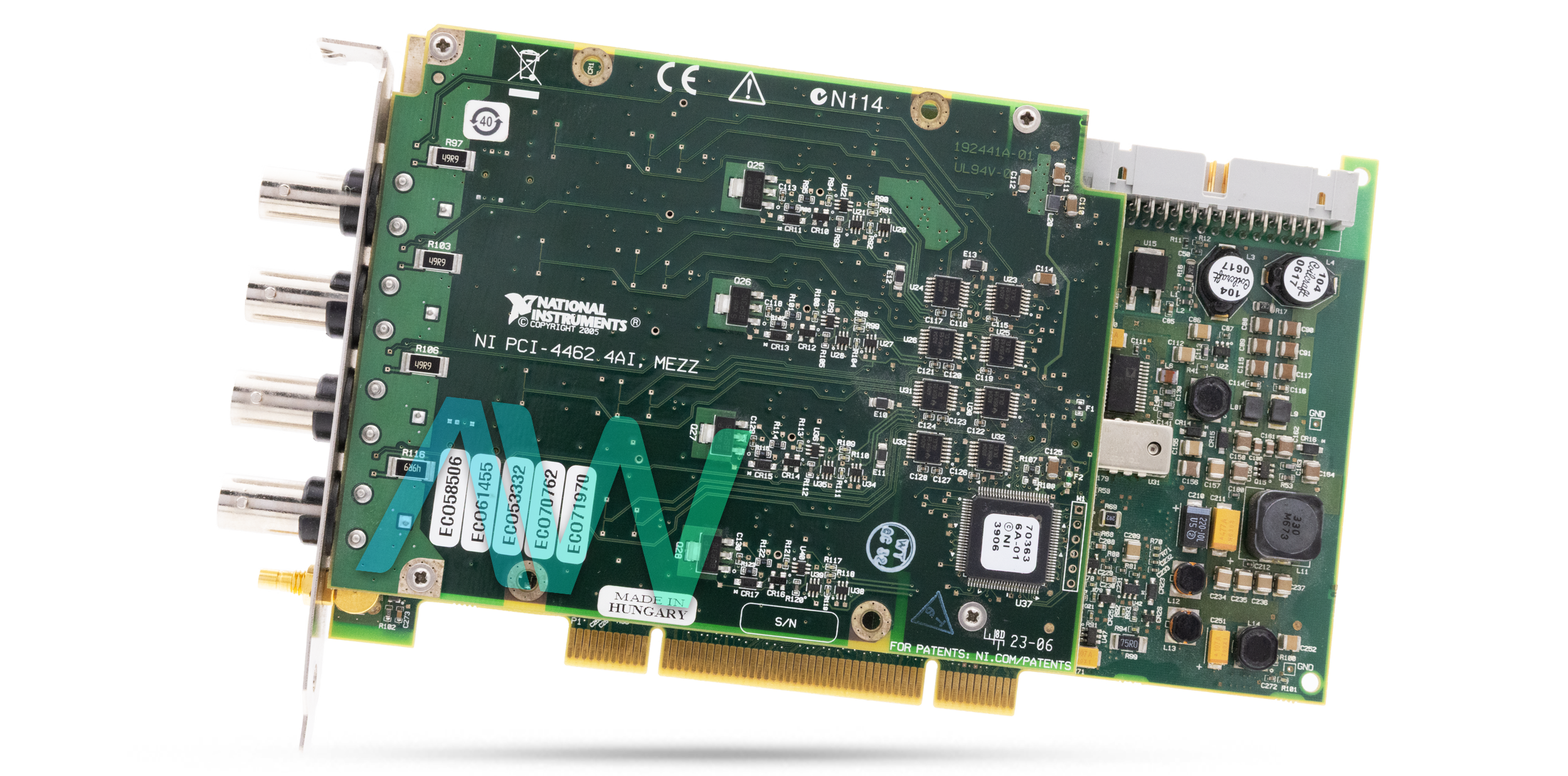

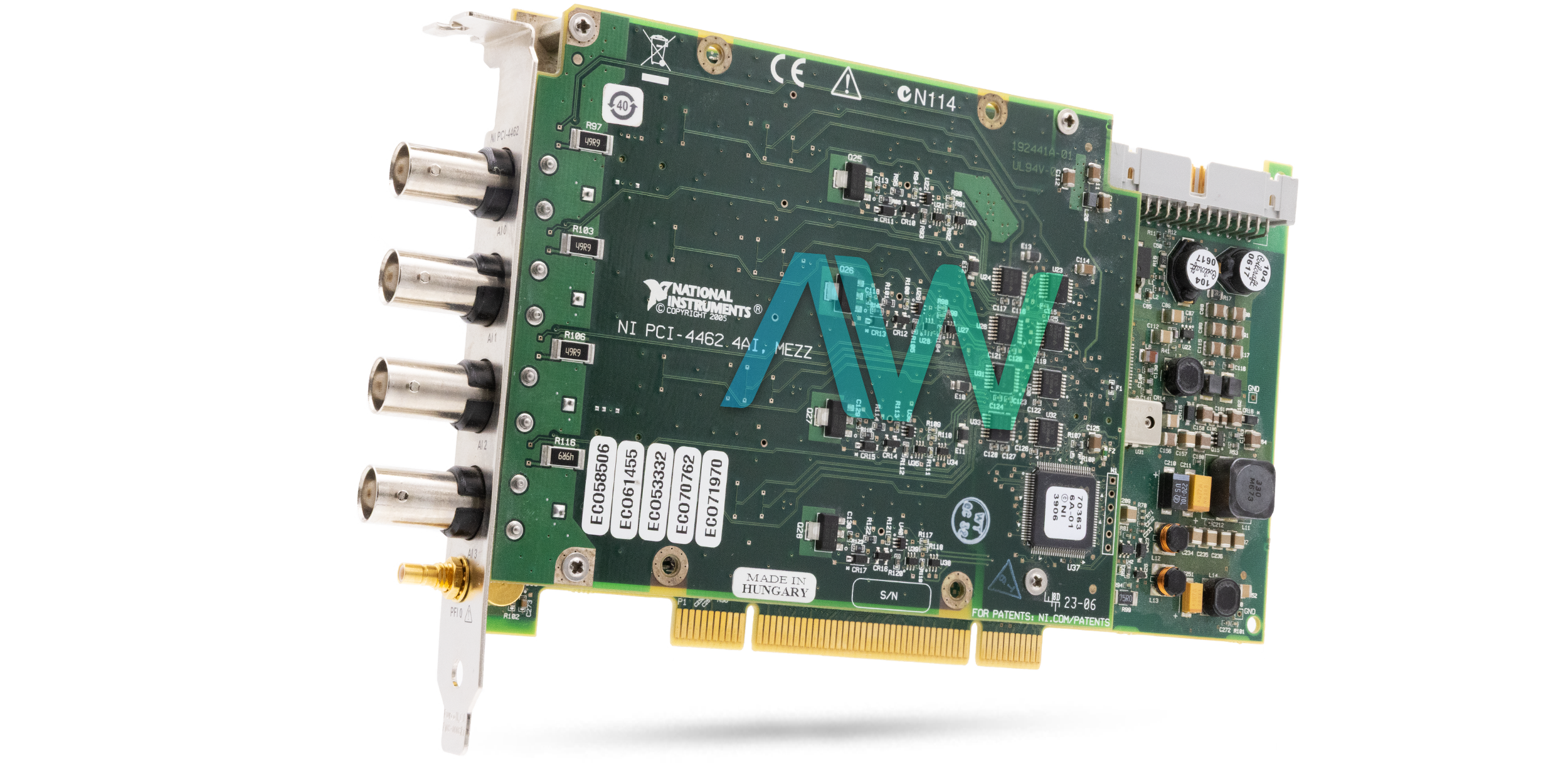

PCI-4462, 4-Input, 204.8 kS/s, Sound and Vibration DSA Device
Need an Official Quote?
National Instruments PCI-4462 Sound and Vibration Device
The National Instruments PCI‑4462 (Part Number: 779309-01) comes with information sources that have both simple and advanced channels actualized in equipment to anticipate associating. Information signals initially go through a settled simple channel to evacuate any signs with frequency segments past the range of the ADCs. It has 4 differential analog input channels with a 24-bit ADC resolution.
The PCI 4462 NI Device has two channels of 24-bit determination, high-constancy simple output. A typical use of the simple output is to empower a framework under test while estimating the frequency reaction with the simple information sources. The output changes happen at the same time at programmable rates up to 204.8 kS/s. This instrument has a simple output hardware that works with eight times more oversampling interpolators and 64-times more oversampling delta-sigma modulators. Due to these rates, the NI PCI-4462 can give outstanding virtue. This model also offers 0, 20, or 40 dB of software-programmable constriction, which is accessible on the output channels. The NI PCI 4462 Sound and Vibration Device has brilliant evenness of ±0.1 dB. While refreshing the output channels, the user can simultaneously gain information on the data channels. The device is equipped with a BNC female analog I/O connectors, and a SMB male digital trigger connector. It has a 3.3 V or 5 V PCI bus interface with 1 analog input DMA channel. The NI device has a warm-up time of 15 minutes, and is self-calibrated–it can also be externally calibrated, with a recommended calibrationinterval of 1 year.
This Sound and Vibration Device’s output channels have both simple and computerized anti-imaging filters. These channels expel the undesirable out-of-band segments created when a simple signal is delivered from digital information. The digital channels, by dismissing images caused by the mentioned 8-times oversampling process, will constrain the data transmission of the output signal to a large portion of the first change rate. The AC/DC coupled device weighs 8.0 oz., and measures 6.9 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, and a storage temperature of -20 to 70 °C.
Model | PCI-4462 |
---|---|
Manufacturer | National Instruments |
Part Number | 779309-01 |
Type | Sound and Vibration Device |
Differential Analog Input Channels | 4 |
Maximum Sample Rate | 204.8 kS/s |
Analog Input Coupling | AC/DC |
Dimensions | 6.9 x 3.9 in. |
Weight | 8.0 oz. |
Warranty | Three Year Warranty |
PCI-4462 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-4462:
192346B-01, 192346C-01, 192346D-01, 192346E-01L, 192346F-01L, 192439A-01, 192439B-01, 192439C-01L, 192439D-01L, 778514-01, 779309-01, 779310-01, 192346A-01
Associated NSNs for the PCI-4462:
5998015943224
National Instruments PCI-4462 Frequently Asked Questions
Question: Which type of front connection does the PCI 4462 have?
Answer: The PCI 4462 has a BNC, SMB front connection type.
Question: What is the FIFO buffer size of the NI PCI 4462?
Answer: The FIFO buffer size of the NI PCI 4462 is 1,023 samples.
Question: Does the PCI-4462 have short circuit protection?
Answer: Yes, the PCI-4462 has indefinite protection between positive and negative.
Question: What is the minimum pulse width of the PCI 4462?
Answer: The minimum pulse width of the PCI 4462 is 10 ns.
PCI-4462 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI 4461 4462 CALIBRATION PROCEDURE.PDF
NI 4461 4462 SPECIFICATIONS.PDF
NI 4462 LETTER OF VOLATILITY.PDF
NI DYNAMIC SIGNAL ACQUISITION USER MANUAL.PDF
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PCI-4462
Modular Systems > National Instruments > DSA Devices

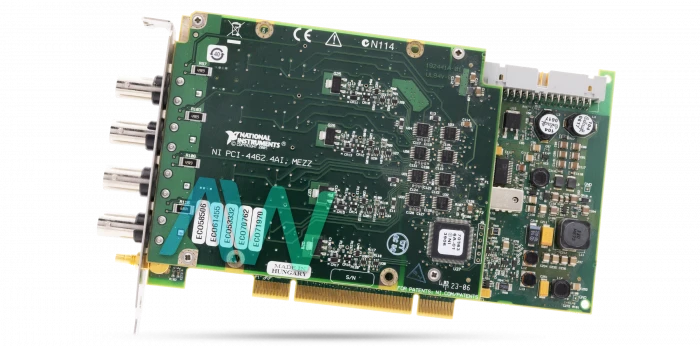

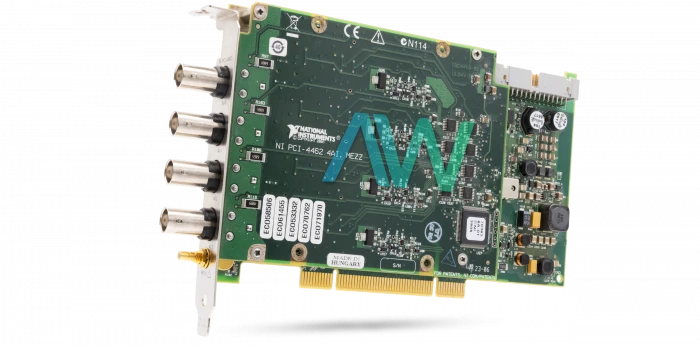

PCI-4462, 4-Input, 204.8 kS/s, Sound and Vibration DSA Device
