DAQCard-AI-16XE-50

4.6/5 | 15 ratings

Modular Systems > National Instruments > E Series

Part Number DAQCard-AI-16XE-50
Manufacturer/Brand National Instruments
Description: DAQCard-AI-16XE-50, 16 SE/8 DI, 16 bits, Multifunction I/O Card
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

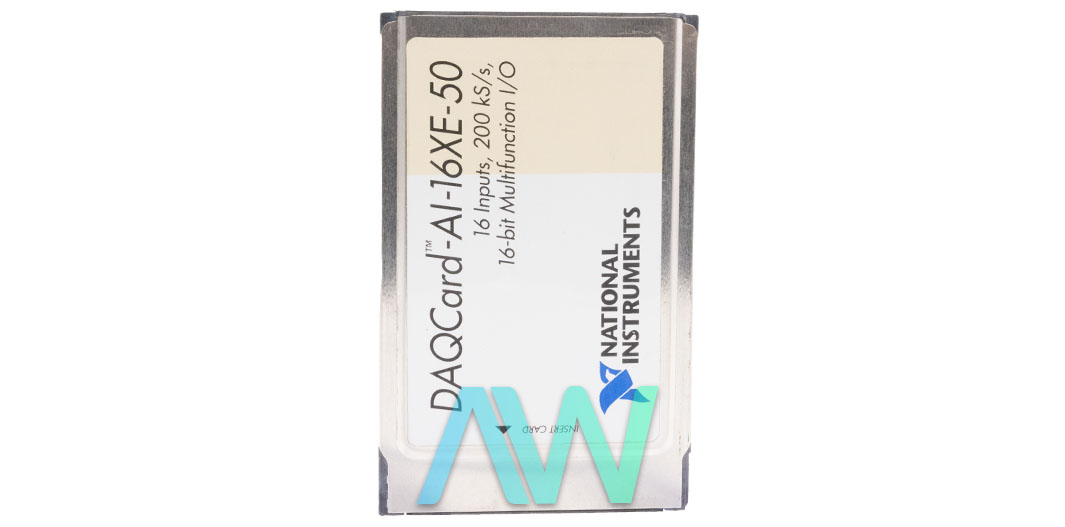

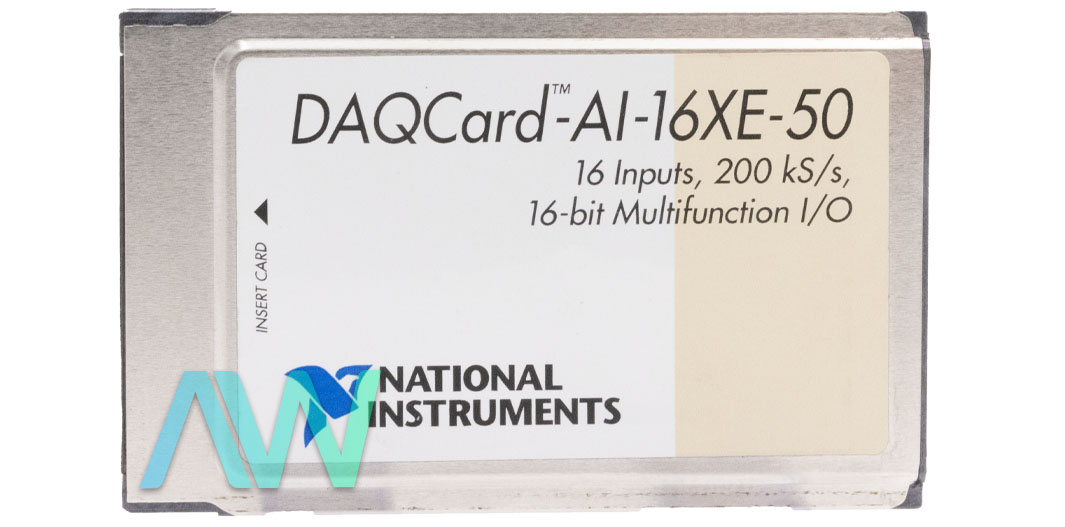

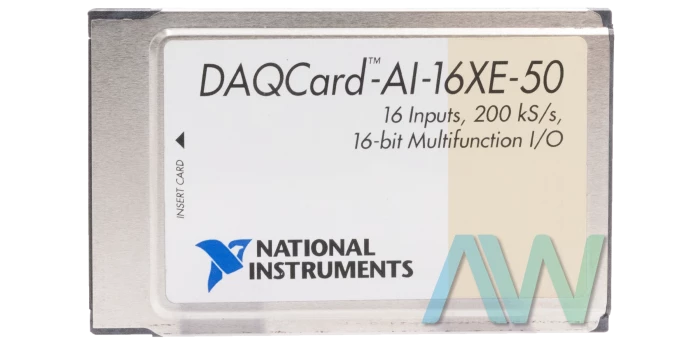

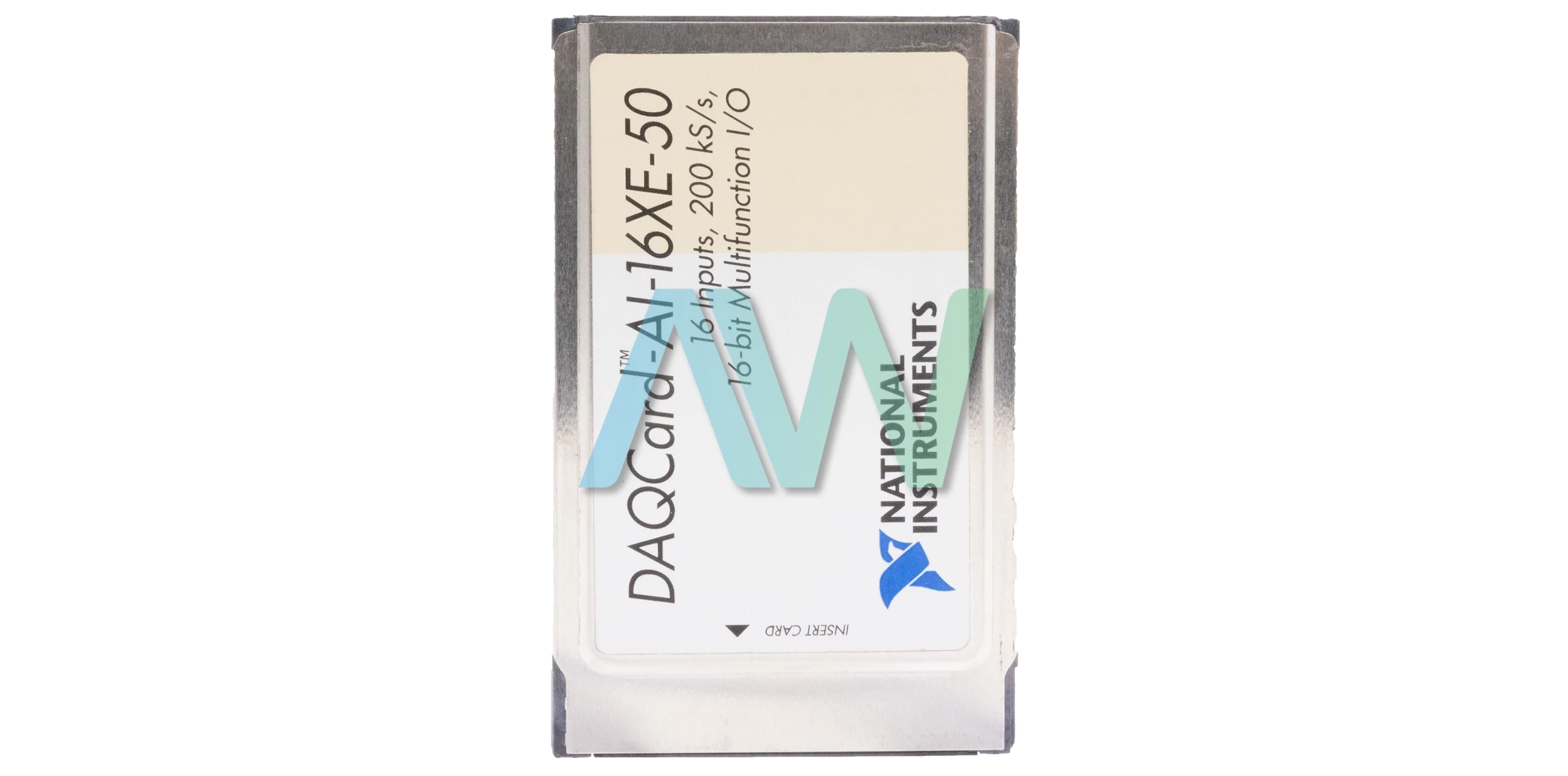

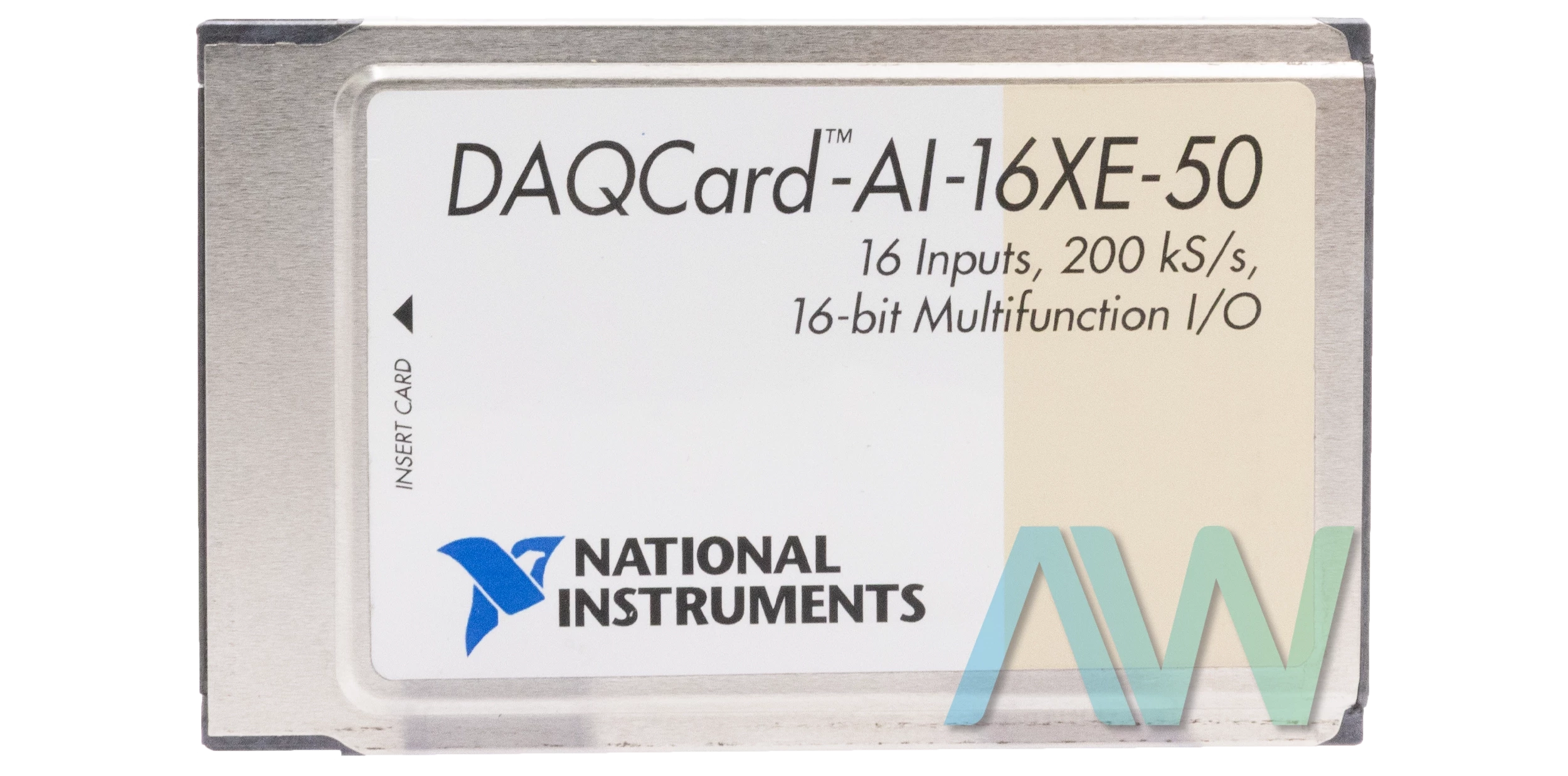

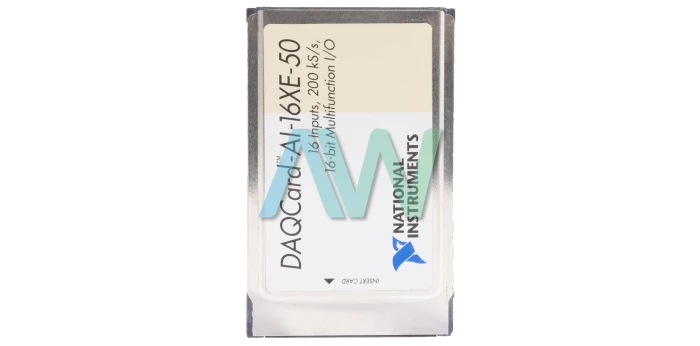

National Instruments DAQCard-AI-16XE-50 Multifunction I/O Card

The DAQCard-AI-16XE-50 (Part Number: 777231-01) is a high-performance Multifunction I/O Card manufactured by National Instruments. The NI DAQCard-AI-16XE-50 belongs to the NI-6012E DAQCard E Series. The DAQCard-AI-16XE-50 has a unipolar input range of 10 V (0 to 10 V) and a bipolar input range of 20 V (±10 V). The input channels of the DAQCard-AI-16XE-50 can be programmed independently for polarity and voltage range. This feature allows the user to have unique settings on each individual channel.

This Multifunction I/O Card has gains of 1, 2, 10, and 100 and is suited for a wide variety of signal levels. This feature enables users to take advantage of the ADC full resolution. The gain of the DAQCard-AI-16XE-50 can be programmed through software, which gives the user more flexibility. The input signal ranges can be synchronized with the ADC range. The DAQCard-AI-16XE-50 is equipped with a sampling rate up to 200 kS/s and a variety of input signal rages from (±0.1 V - ±10 V) for bipolar and unipolar ranges.

The NI DAQCard-AI-16XE-50 features voltage protection for both the powered on as well as powered off condition. This Multifunction I/O Card comes with excellent transfer characteristics with guaranteed 16 bits resolution and multiple bandwidth user specific options (39 kHz – 69 kHz) to ensure reliable communication.

This Multifunction I/O Card can be used with several accessories. The recommended configuration by National Instruments involves using this card with the SCB-68 (Part Number: 776844-01) accessory and the PSHR68-68 (Part Number: 777293-01) cable.

ModelDAQCard-AI-16XE-50
ManufacturerNational Instruments
Part Number777231-01
SeriesDAQCard E Series
TypeMultifunction I/O Card
Analog Input Channels16 SE/8 DI
BusPCMCIA
Resolution16 bits
Sampling Rate20 kS/s
Input Range±0.1 to ±10 V
Digital I/O8
I/O Connector68-pin female PCMCIA
SizeType II PC Card
Warranty2-3 Year Warranty
DAQCard-AI-16XE-50 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the DAQCard-AI-16XE-50:

18338.1, 183381-01, 183381C-01, 183381D-01, 183384-01, 183384B-01, 777231-01, 777231-02, 777231-03
