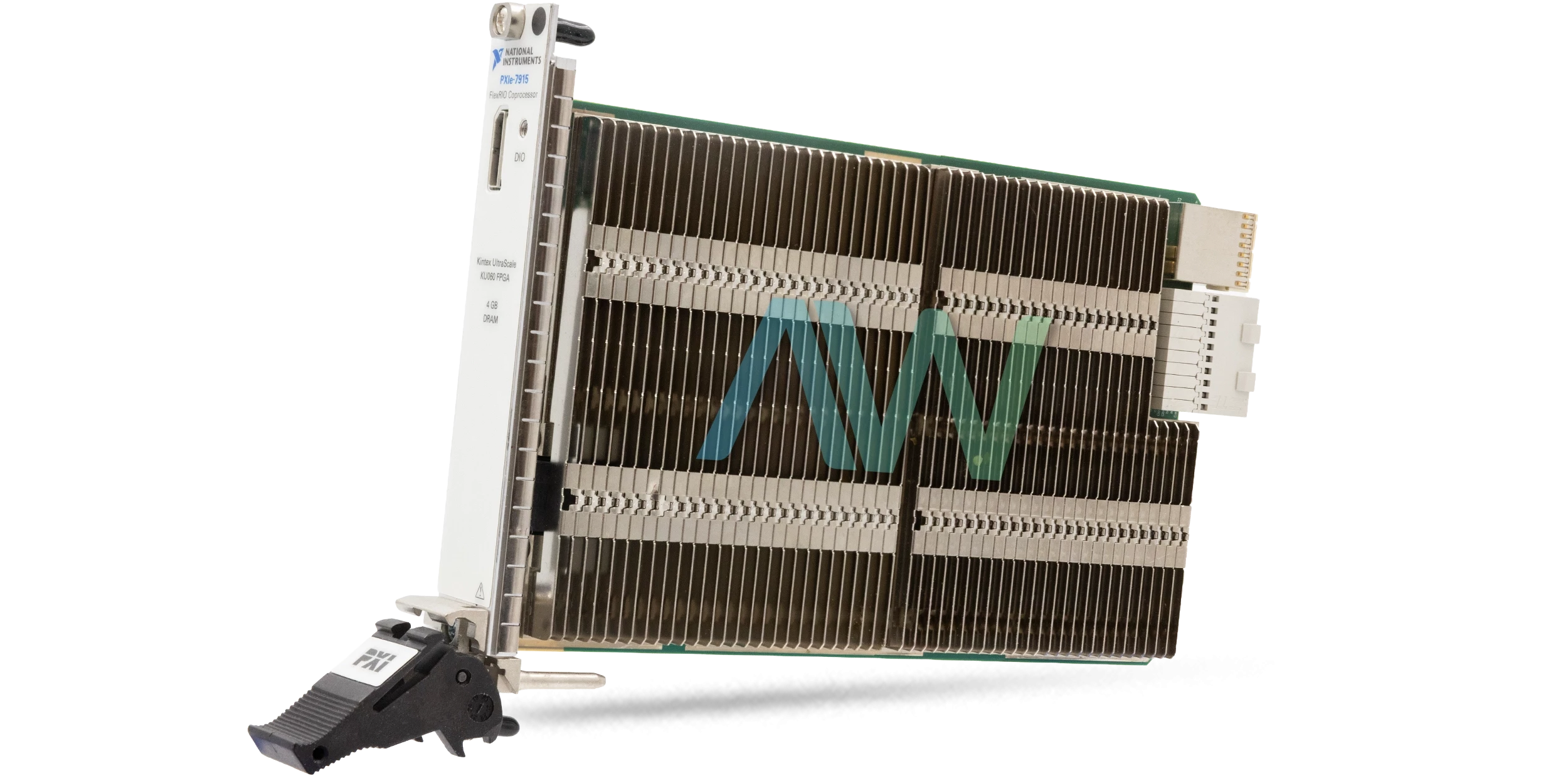

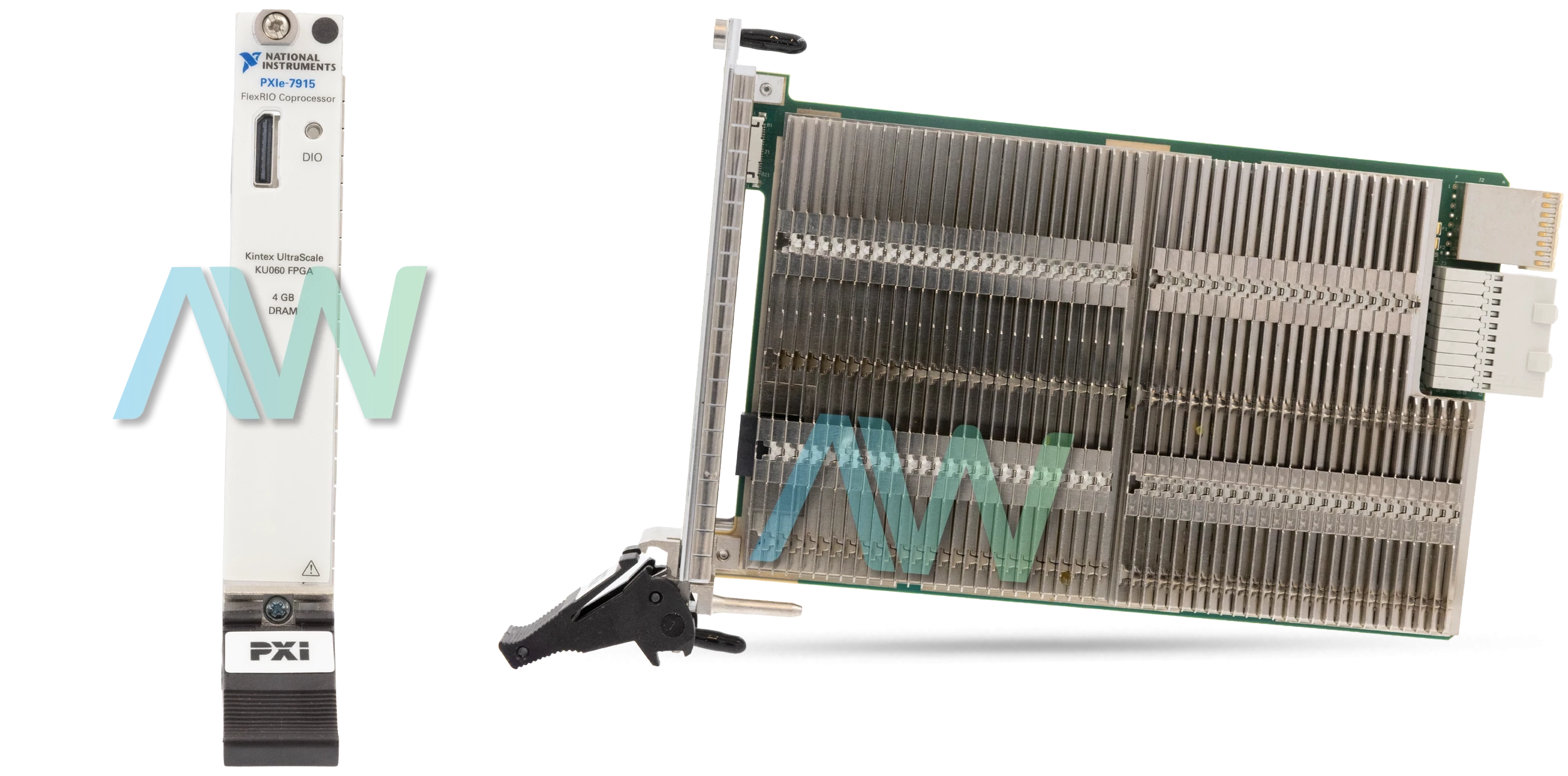

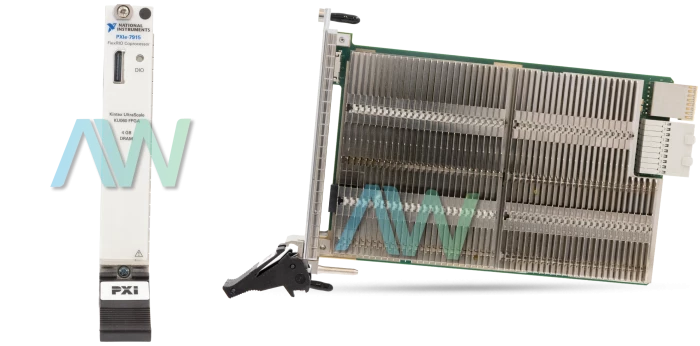

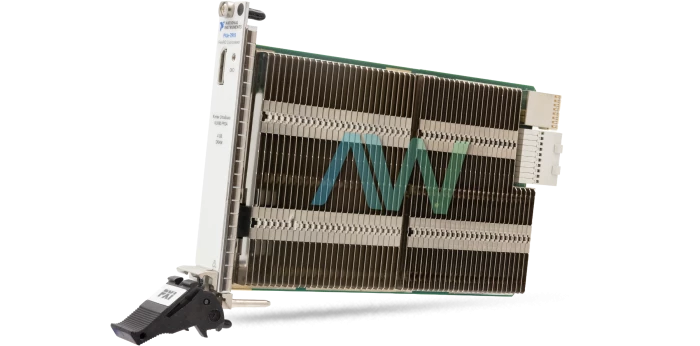

National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module

The PXIe-7915 is a PXI FlexRIO Coprocessor Module. The PXIe-7915 module is manufactured by National Instruments. The part number 785174-01 is assigned to the NI PXIe-7915. The PXIe-7915 module is a part of the FlexRIO modules by National Instruments. The NI PXIe-7915 is programmed with Xilinx Vivado for signal-processing functions. The PXIe-7915 module has a Kintex UltraScale KU060 FPGA with 82920 FPGA slices and 2760 DSP slices. The default timebase of the reconfigurable FPGA is 80 MHz. The NI PXIe-7915 module utilizes LabVIEW software for programming as well.

The National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module is offered with 60 DMA channels and transfers data in the MGT form. The PXIe-7915 module is prepared with a DRAM memory of 4 GB and BRAM of 38 Mbit. The NI PXIe-7915 PXI FlexRIO Coprocessor Module has a physical bus width of 32 bit for the onboard DRAM. The onboard clock rate is 1064 MHz. The PXIe-7915 module can be operated with 3 A current for both 3.3 V and 12 V voltages.

The NI PXIe-7915 FlexRIO Coprocessor Module is introduced with eight channels. Four channels are reserved for the transmitter, while the other four are reserved for the receiver. The PXIe-7915 module can function within the data rate between 500 Mbps to 16.375 Gbps. The NI PXIe-7915 module has DC coupling for the receiver and AC coupling for the transmitter. The National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module has a differential nominal input resistance of 100 Ω.
