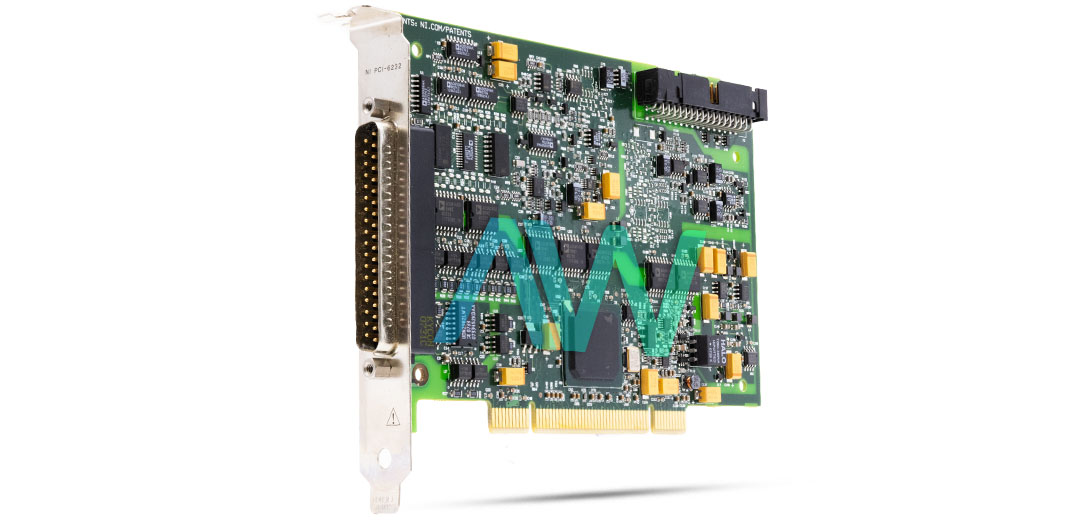

PCI-6232 National Instruments Multifunction DAQ | Apex Waves | Image PCI-6232 National Instruments Multifunction DAQ | Apex Waves | ImagePCI-6232PCI-6232 | Legacy, Refurbished and New Surplus

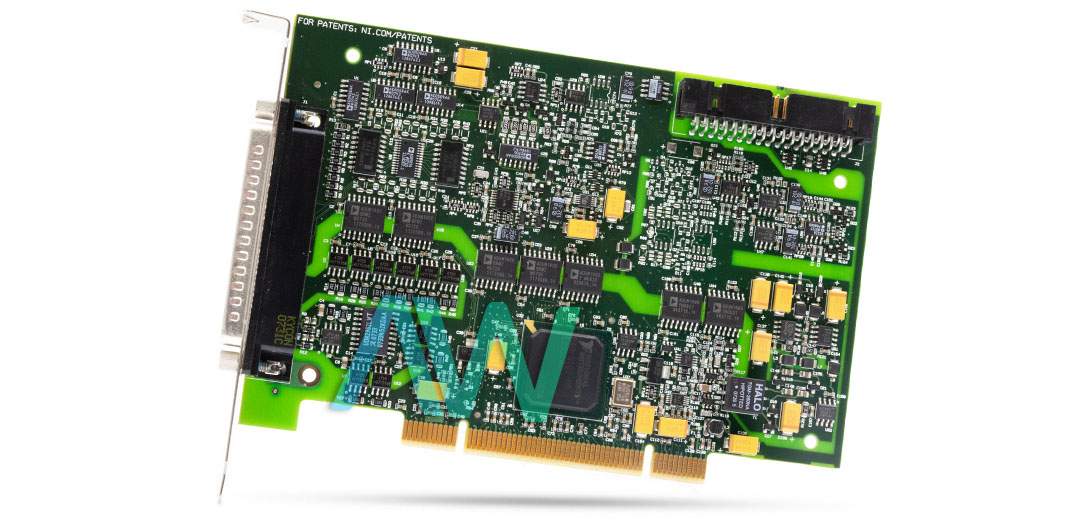

PCI-6232 National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6232 National Instruments Multifunction DAQ | Apex Waves | Image
PCI-6232 New
PCI-6232 | Legacy, Refurbished and New Surplus

PCI-6232

4.7/5 | 17 ratings

Modular Systems > National Instruments > M Series

Part Number PCI-6232
Manufacturer/Brand National Instruments
Description: PCI-6232, 16 AI, 24 V DIO Sourcing, Multifunction DAQ
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PCI-6232 Multifunction DAQ

Featured with 60 VDC Bank Isolation (continuous), the National Instruments PCI-6232 (Part Number: 779617-01) is a 16-Bit Multifunction DAQ board or data acquisition device. This model comes with 16 Analog Inputs and 24 Volt Digital I/O, including 6 digital inputs, as well as 4 sourcing digital outputs. The NI PCI-6232 has an output range of ±10 V and offers 2 DC coupled analog outputs at 500 kS/s maximum update rate (with 1 channel) and 450 kS/s per channel (with two channels).

For digital input channels, this device has a dedicated input Port 0. This port can operate over an input voltage range of 0 V to 30 V. Port 1 in this module facilitates its four digital output channels. The NI PCI 6232 comes with an incorporated frequency generator with 1 to 16 divisors, 10 MHz, and 100 kHz base clocks. The output from this frequency generator can be routed to any RTSI or PFI terminal. For the device to device triggering and various other synchronization functions, this DAQ device comes with an integrated RTSI bus.

The PCI-6232 Multifunction DAQ has 1 D-SUB type 37-pin I/O connector. This model is a 9.7 cm × 15.5 cm printed circuit board. This DAQ device can be deployed in any 3.5 or 5 Volt signal environment and draws 0.7 A of current from +5 V bus and 20 mA from +12 V bus during no load conditions. While operating in AO waveform modes, the PCI-6232 can generate various kinds of waveforms also.

PCI-6232 Legacy Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-6232
ManufacturerNational Instruments
Part Number779617-01
SeriesM Series
TypeMultifunction DAQ
Analog Input Channels16 (16-Bit, 250 kS/s) or 08 differential
Analog Output Channels2 (16-Bit, 500 kS/s)
Digital Inputs6
Digital Outputs4
Timing I/O2 Counter/Timer I/O (32 bits, 80 MHz)
Frequency Generator Channels1
I/O Connector37-pin D-SUB
Power Requirements+5 V, +12 V -- 0.5 A, 20 mA
Dimensions3.8 in. × 6.1 in
Weight0.23 lb.
WarrantyOne Year Warranty
PCI-6232 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-6232 Frequently Asked Questions



Question: Which AO waveform modes are available on the PCI 6232?



Answer: The PCI 6232 has the following AO waveform modes: periodic waveform regeneration from host buffer including dynamic update, non-periodic waveform, and periodic waveform regeneration mode from onboard FIFO.



Question: How often should the NI PCI 6232 be calibrated?



Answer: The NI PCI 6232 should be calibrated every year.



Question: What is the input FIFO size of the PCI-6232?



Answer: The input FIFO size of the PCI-6232 is 4,095 samples.



Question: What is the calibration interval for the NI PCI-6232?



Answer: The calibration interval for the NI PCI-6232 is 1 year.
