National Instruments PXI-PCI8331 MXI-4 Interface Kit

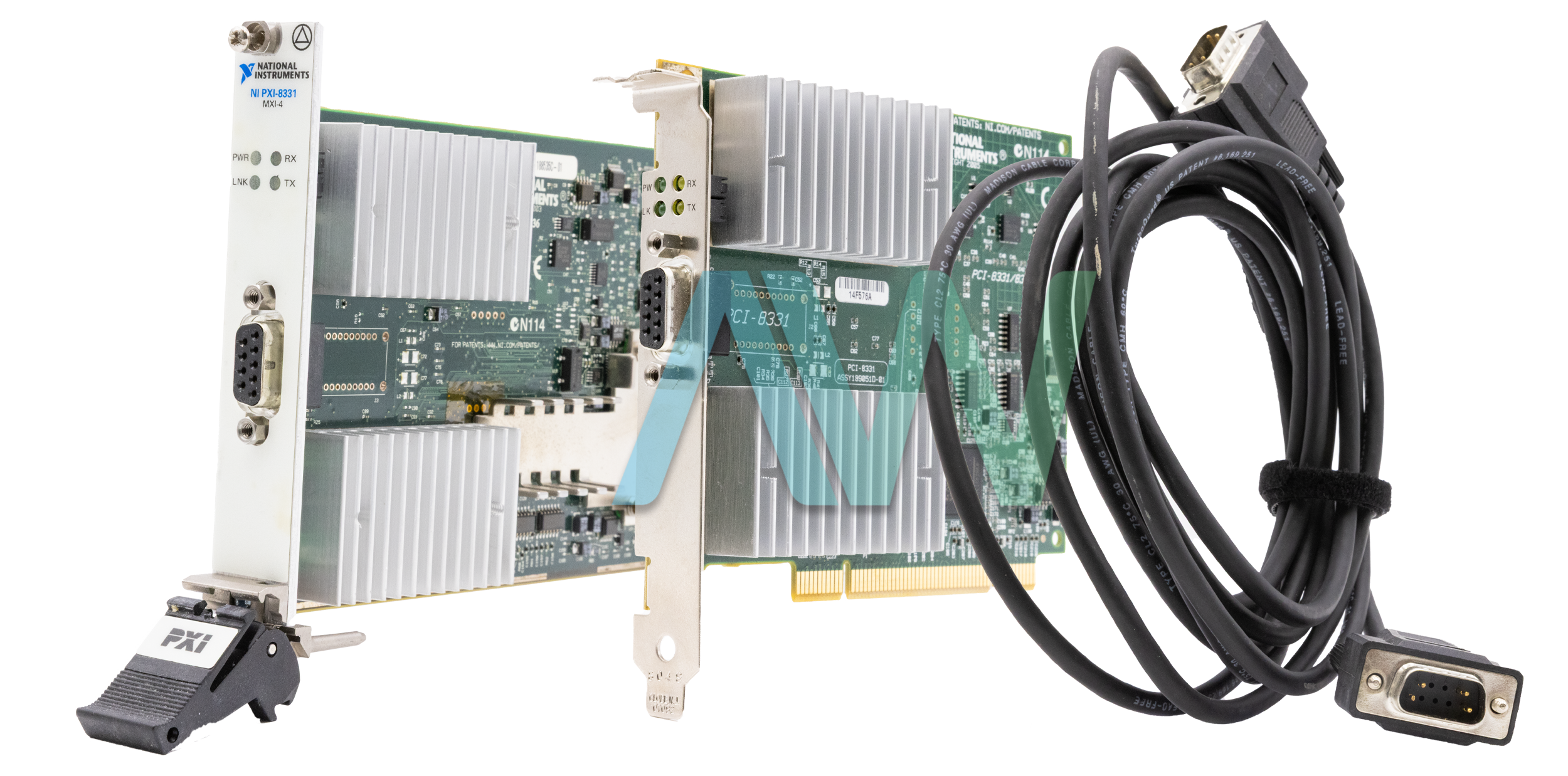

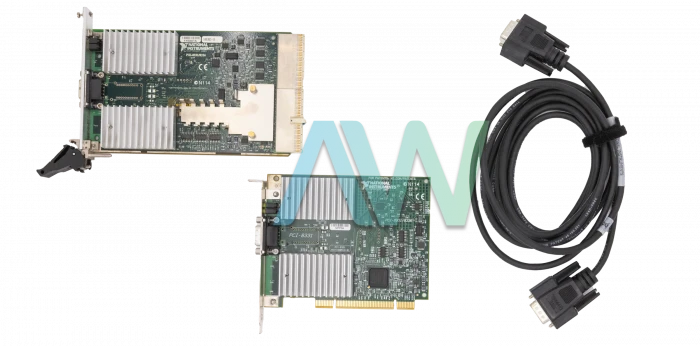

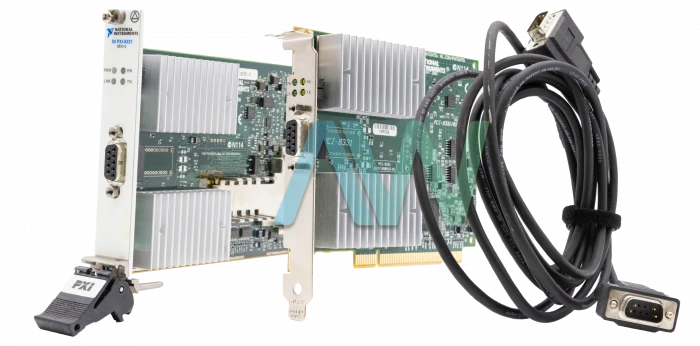

The National Instruments PXI-PCI8331 (Part Number: 778640-03) is an MXI-4 Interface Kit that includes a PCI board, a PXI board, and an MXI-4 copper cable. This kit is a copper variant of the NI PXI-PCI8336 in which a fiber-optic cable is used. The NI PXI-PCI8331 is a popular solution for remote control of a PXI system through desktop computers. MXI-4 technology brings several great advantages, including high-speed connectivity and transparency. With MXI-4 links, your PXI interface system becomes transparent to software and drivers.
The PXI-PCI8331 is widely used in applications where the synchronized operation of multiple chassis is required. With this MXI-4 Interface Kit, your PXI modules will appear as if they are PCI boards installed in your computer. The NI PXI-PCI8331 is one of the finest solutions available to those who want to access their PXI modules through their regular desktop computers.
This kit is provided with an appropriate MXI-4 cable (3 m). However, users can acquire additional MXI-4 cables in different size variations. This MXI-4 Interface Kit is designed to support a maximum link distance up to 10 meters. The National Instruments PXI-PCI8331 MXI-4 Interface Kit is designed in accordance with the PCI and PXI specifications.
This kit is designed to work with both 3.3 V and 5 V PCI environments and requires no additional power supply. With this low-cost solution, you will be able to achieve sustained data rates up to 78 Mbytes/s. the NI PXI-PCI8331 is known for its rugged connectivity and other features, such as error checking and retransmission and rugged connectivity.
PXI-PCI8331 Obsolete Status has been announced by National Instruments, but the kit will still be available for purchase and repairs by Apex Waves.
| Model | PXI-PCI8331 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778640-03 |
| Type | MXI-4 Interface Kit |
| Cable Type | Copper |
| Maximum Cable Length | 10 m |
| Slot Requirements | One 3U PXI system controller slot or peripheral slot |
| Compatibility | Fully compatible with PXI Hardware Specification 2.1 and the PCI Specification 2.2 |
| Warranty | 2-3 Year Warranty |
| PXI-PCI8331 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-PCI8331 Frequently Asked Questions
Question: What is the National Instruments PXI-PCI8331?
Answer: The National Instruments PXI-PCI8331 is a remote control interface module. Its design allows a host PC to interface with a PXI chassis and control the PXI system just as if it were physically attached.
Question: What are some of the National instruments PXI-PCI8331 specs?
Answer:The PXI-PCI8331 is a high-speed remote control interface module that uses a PCI interface to link a host PC to a PXI chassis. This allows for smooth and transparent operation of the PXI system. It is perfect for uses like automated test equipment, data capture systems, and R&D labs because of its high-speed data transmission rates and compatibility with ordinary PCI slots.
Question: What is the difference between PXI and PXIe?
Answer: Based on the PCI interface, PXI (PCI eXtensions for Instrumentation) devices are modular electronic test and measurement systems that provide reliable performance for a range of applications. By adding PCI Express technology, PXIe (PXI Express) improves PXI and makes it appropriate for more demanding and high-speed applications. It offers larger bandwidth, faster data transfer rates, and improved system synchronization.
Question: What applications are best suited for the National Instruments PXI-PCI8331?
Answer: The PXI-PCI8331 is best suited for high-speed data acquisition systems, automated test equipment (ATE), and research and development labs. It excels in applications requiring fast and reliable communication between a PC and PXI system, ensuring seamless integration and enhanced performance.
