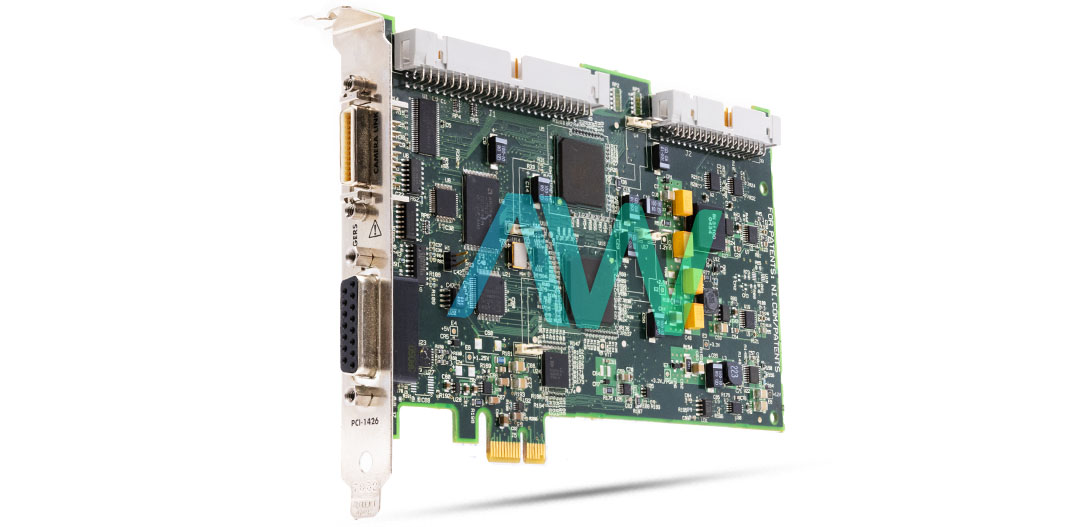

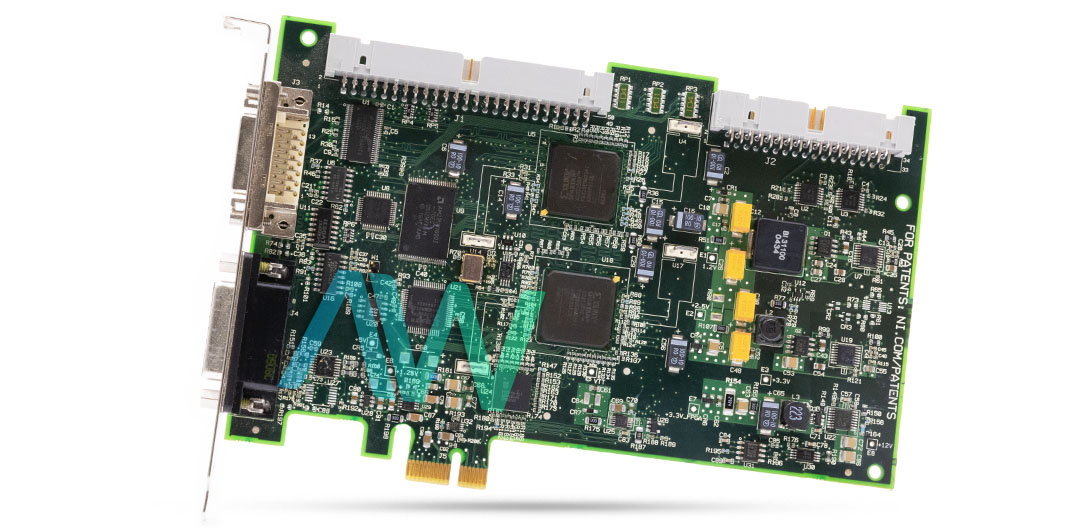

National Instruments 779706-01 Camera Link Image Acquisition Device
The part number 779706-01 from National Instruments is the identifying part number for the PCIe-1427 Camera Link Image Acquisition Device. This module is designed to acquire real-time digital images and transfer them directly onto the system memory for processing. Due to its architecture supporting High-speed data processing and formatting, the 779706-01 camera DAQ module is suitable for scientific and industrial applications. The Base configuration of the tool's camera DAQ module supports 24 parallel data bits which are used to transfer pixel data from the camera to the image acquisition device allowing for high-resolution image data to be transmitted quickly and efficiently.
The module has 4 Enable Signals, the Frame Valid (FVAL) which indicates the start and end of a frame, the Line Valid (LVAL) which indicates the start and end of a line within a frame, the Data Valid (DVAL) which indicates when the data on the data lines is valid, and the Spare, reserved for future use or additional custom signals. The 779706-01 camera DAQ module supports baud rates of up to 115200 bits per second allowing for a faster and more flexible serial communication interface.
The 779706-01 camera DAQ module generates precise control signals in real time. This is crucial for synchronizing the operations of cameras and other equipment in image acquisition systems. The control signals generated in real-time help with clock synchronization when being used in high-speed applications and can also be used for managing exposure time, frame rate of the camera, and other applications requiring clock synchronizing control signals.
The 779706-01 camera DAQ module features DMA (Direct Memory Access) Controllers that allow the data to transfer efficiently between the device and the host system's memory without affecting the CPU performance by allowing the DMA controller to dynamically allocate memory blocks as needed instead of transferring the data to a single contiguous block of memory, the scatter-gather DMA can transfer data to multiple non-contiguous blocks improving memory utilization and allowing for more efficient data handling, especially important for large image files or continuous image streams.
| Model | 779706-01 |
|---|---|
| Part Number | 779706-01 |
| Model Name | PCIe-1427 |
| Part Type | Camera Link Image Acquisition Device |
| Number of Data Bits | 24 data bits |
| Connector Types | MDR 26-Pin and 15-Pin D-SUB |
| DMA Controllers | Scatter-gather DMA |
| Serial Interface Baud Rates | 115200, 56000, 38400, 19200, 9600, 7200, 4800, etc. |
| Trigger Lines | 4 external TTL, 2 optically isolated, 2 RS-422 |
| Operating Temperature Range | 0 to 55 °C |
| Storage Temperature Range | -20 to 70 °C |
