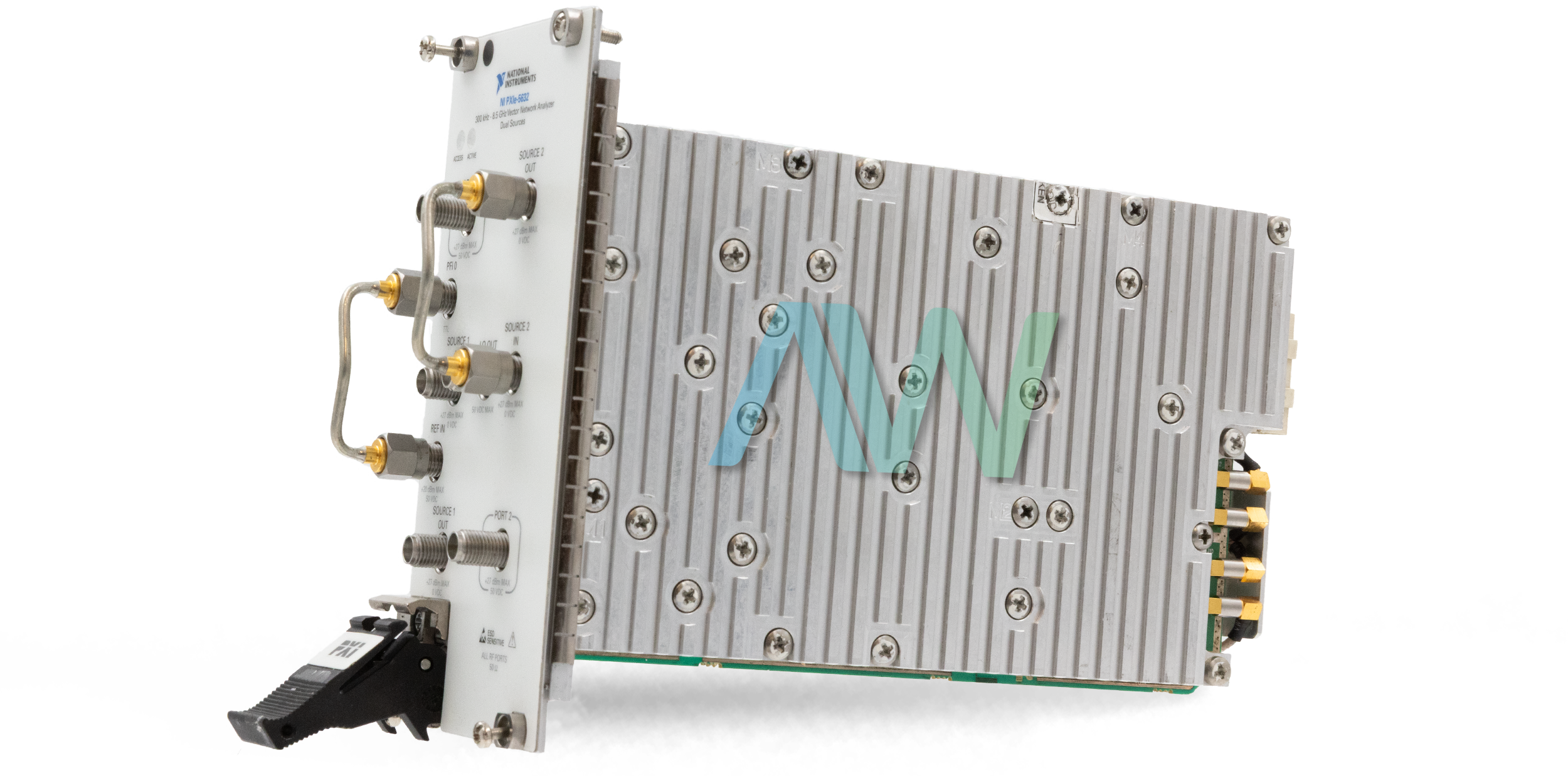

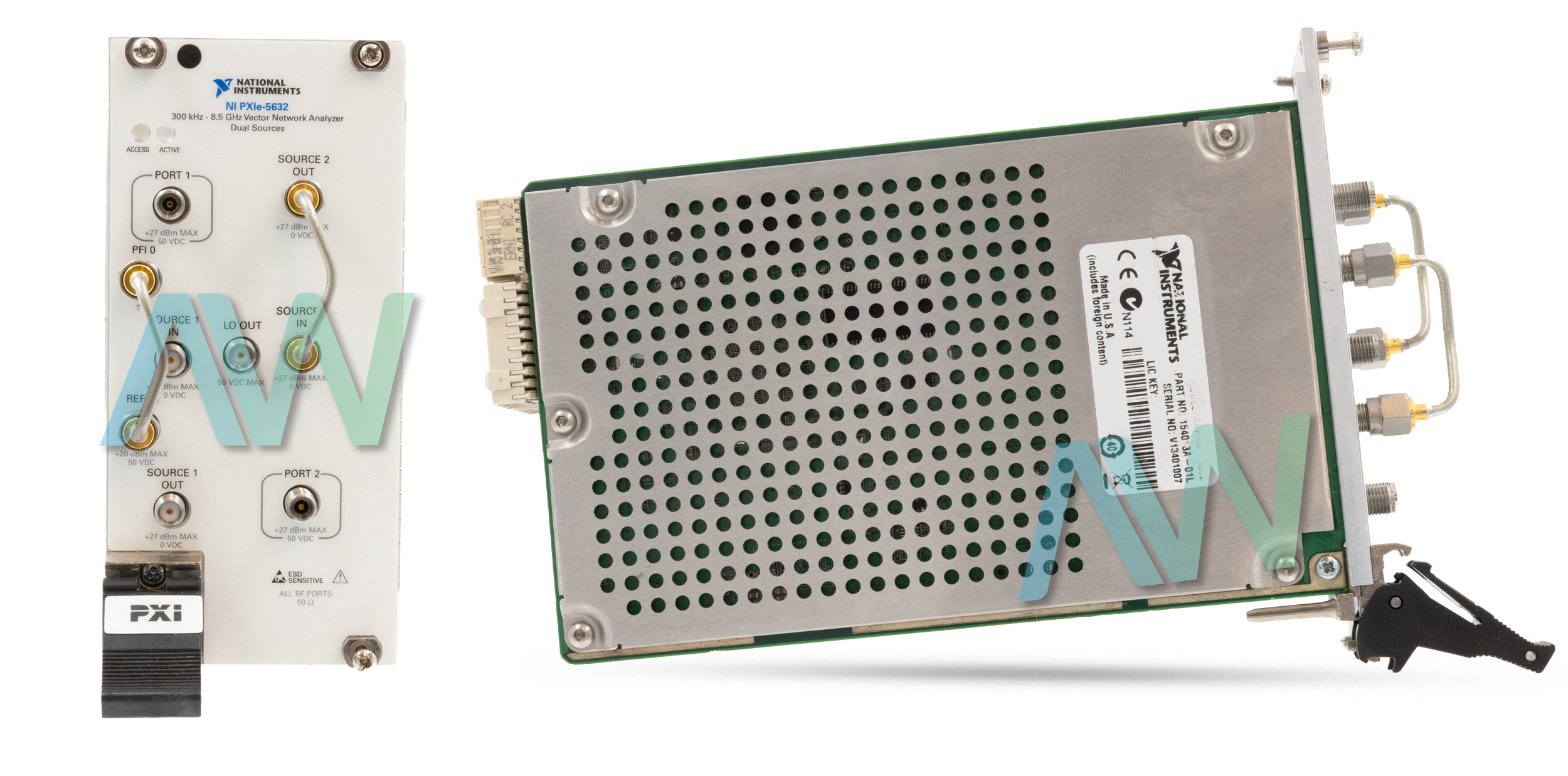

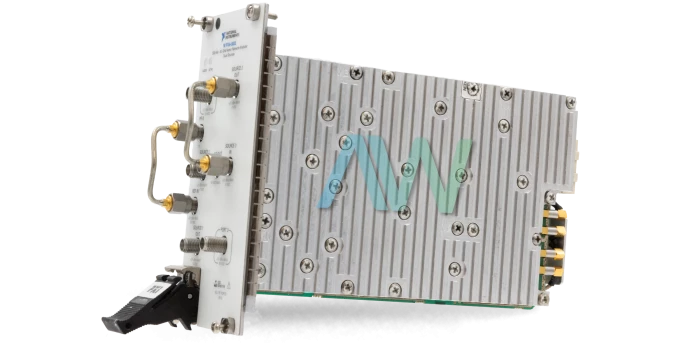

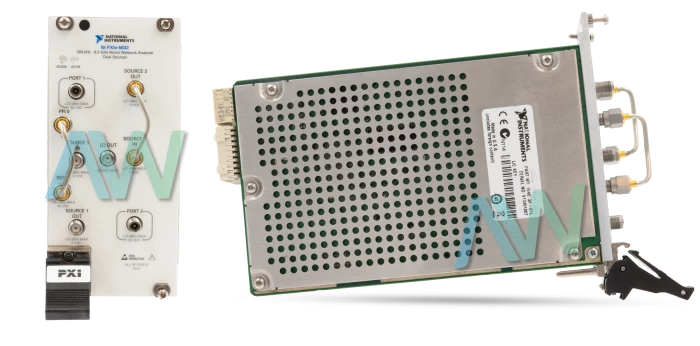

National Instruments 782299-01 Vector Network Analyzer
The National Instruments 782299-01 (PXIe-5632) is a high performance, 2 port vector network analyzer (VNA) designed for PXI Express platforms. It is capable of performing full S-parameter measurements across a wide frequency range of 300 kHz to 8.5 GHz. The module features a flexible dual source architecture with frequency offset capability that allows precise measurements of frequency translation devices and S-parameters. This architecture is enhanced by source access loops and low latency triggers that enable the execution of pulsed S-parameter measurements and measurements that require an extended power range.
The 782299-01 supports automatic precision calibration which ensures accurate and reliable measurements. This VNA offers various calibration methods that include automatic and manual options along with several calibration types like 1-port SOL, 2-port SOLT, LRL (TRL) and LRM. These calibration capabilities extend the reference plane and provide full vector analysis. The VNA's IF bandwidth ranges from 10 Hz to 500 kHz that provides flexibility in adjusting measurement speed and sensitivity depending on the application.
This vector network analyzer is equipped with comprehensive sweep capabilities supporting linear, segmented and power sweeps. It offers a frequency resolution of 1 Hz along with a maximum frequency sweep of up to 8.5 GHz. The device can handle up to 20,001 measurement points per sweep that allows for highly detailed frequency analysis. The sweep modes include single sweep, continuous sweep and continuous wave (CW) modes that give users control over how data is collected and analyzed. This 782299-01 VNA supports a variety of data formats, such as magnitude (logarithmic and linear), phase, group delay, VSWR, impedance and reflection/transmission coefficients which are essential for in depth analysis of RF components.
The source characteristics of the 782299-01 vector network analyzer include a leveled power range from -30 dBm to +15 dBm along with a power step resolution of 0.01 dB. The system dynamic range varies with frequency offering a maximum of 115 dB in the 1.5 GHz to 6 GHz range. The device also features low trace noise and a fast measurement speed along with typical measurement times ranging from 15 ms to 7,302 ms depending on the span and number of points.
| Model | 782299-01 |
|---|---|
| Model Name | PXIe-5632 |
| Part Type | Vector Network Analyzer |
| IF Bandwidth | 10 Hz to 500 kHz |
| Frequency Range | 300 kHz to 8.5 GHz |
| Frequency Resolution | 1 Hz |
| Power Range | -30 dBm to +10 dBm |
| Dimensions | 21.6 cm × 6.0 cm × 13.0 cm (8.5 in. × 2.4 in. × 5.1 in.) |
| Weight | 1,290 g (45.0 oz) |
