777707-02 In Stock | Ships Today

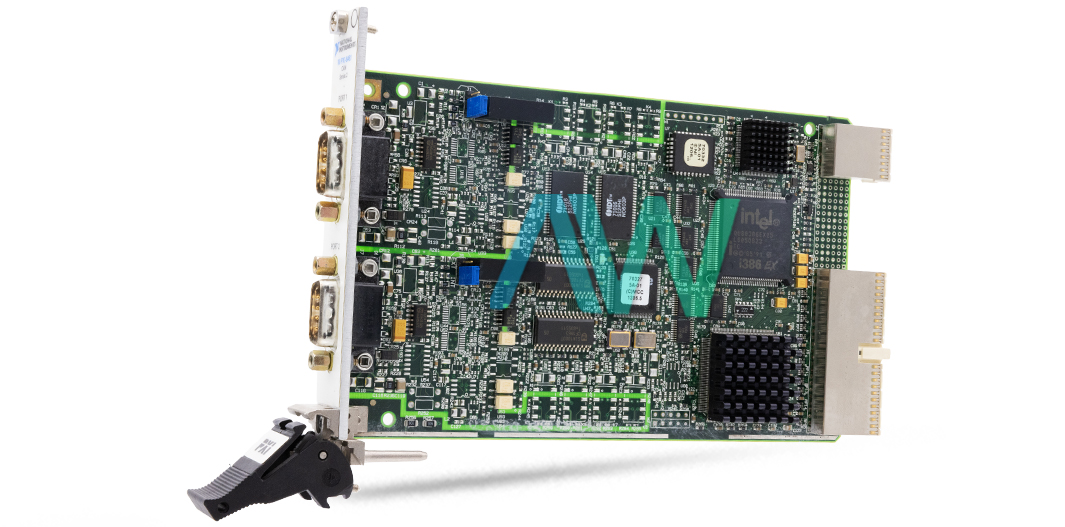

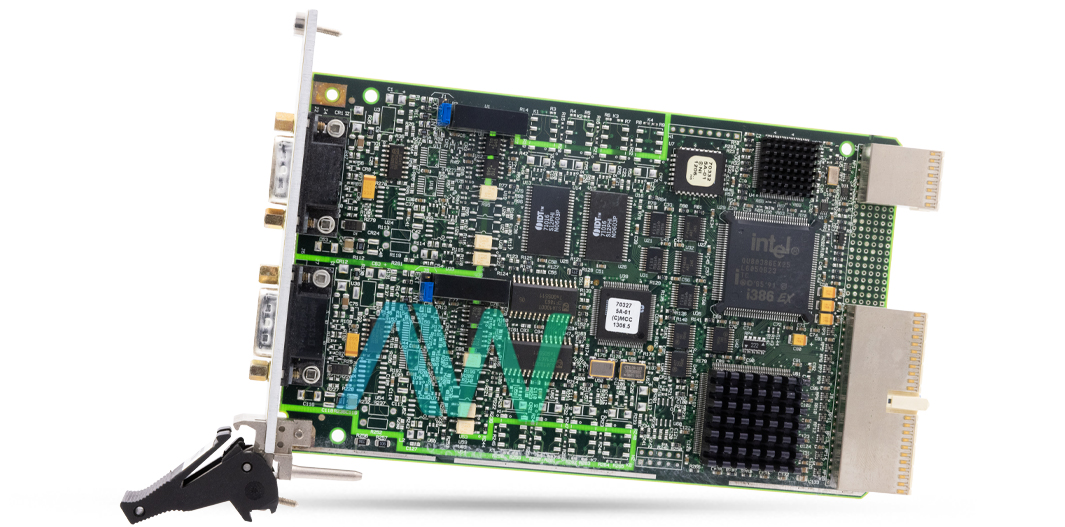

National Instruments 777707-02 PXI CAN Interface Module.

The part number 777707-02 from National Instruments is the identifying part number for the PXI-8461-2 PXI CAN Interface Module. This module features a high-performance Intel 80386EX microprocessor, a 32 bit microprocessor that ensures enhanced performance and reliability in demanding applications. With this processor, it is possible to have high speed CAN communication, increasing the efficiency of data processing and handling. It is equipped with a Philips SJA1000 CAN controller, that maintains safety, noise immunity, and ground loop prevention, thus maintaining data integrity, accuracy, and reliability of data transmission. This module supports a maximum data transfer rate of 1 Mb/s making it the right choice for applications in automotive testing and so on.

The PXI CAN Interface Module is designed to operate at a typical current of 750 mA and a maximum current of 950 mA and is installed in the PXI chassis that ensures power management and a correct supply of voltage to the module. This module is also equipped with Combicon-style pluggable screw terminals for its I/O connection, which allows it to easily integrate into power lines associated with the PXI CAN Interface.

The 777707-02 module is designed to operate at an ambient temperature of 0 degrees Celsius to 55 degrees Celsius and a storage temperature of -20 degrees Celsius to 70 degrees Celsius. It has a operating relative humidity of 10% to 90%, noncondensing, and a storage relative humidity of 5% to 95%, noncondensing. It has physical dimensions of 16.0 cm by 10.0 cm (6.3 by 3.9 in.) and weighs 160 grams thus making it lightweight. It does not feature IP (ingress protection), which means it cannot be used in environments where dust and moisture are common.

This module also features FCC Class A verified noise level emissions, which ensures that this module can be used in environments that can tolerate a specific amount of RF interference. This module is supported on the Windows 2000/NT/XP/Me/9x operating systems as well as LabVIEW Lab Windows/CVI and Lookout with the driver software of NI-DNET.
