PXI-6508 National Instruments PXI Digital I/O Module | Apex Waves | Image PXI-6508 National Instruments PXI Digital I/O Module | Apex Waves | ImagePXI-6508
PXI-6508 National Instruments PXI Digital I/O Module | Apex Waves | Image
PXI-6508 National Instruments PXI Digital I/O Module | Apex Waves | Image
PXI-6508 New

PXI-6508

4.6/5 | 13 ratings

Modular Systems > National Instruments > DIO Series

Part Number PXI-6508
Manufacturer/Brand National Instruments
Description: PXI-6508, 96-Channel, PXI Digital I/O Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

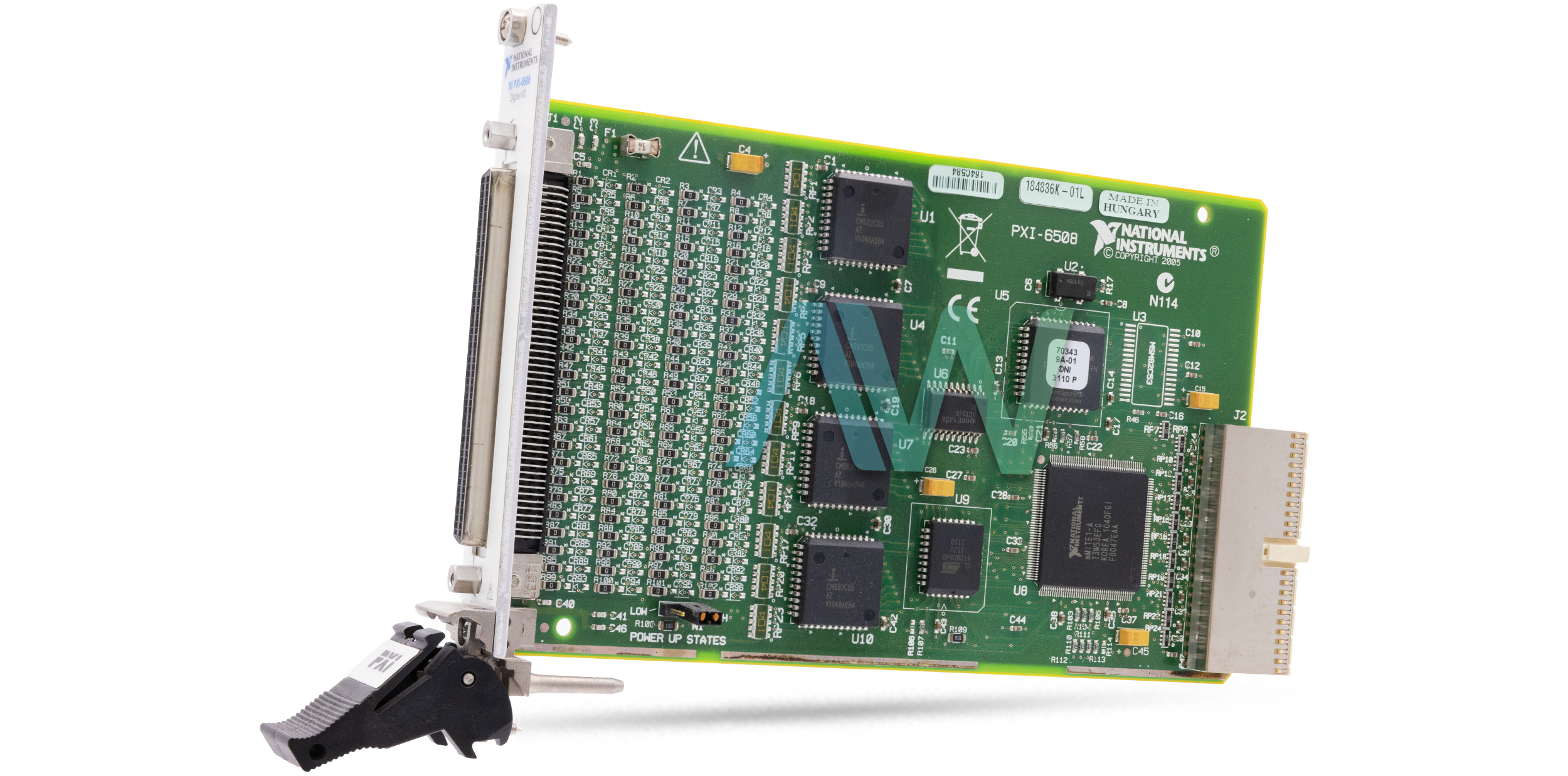

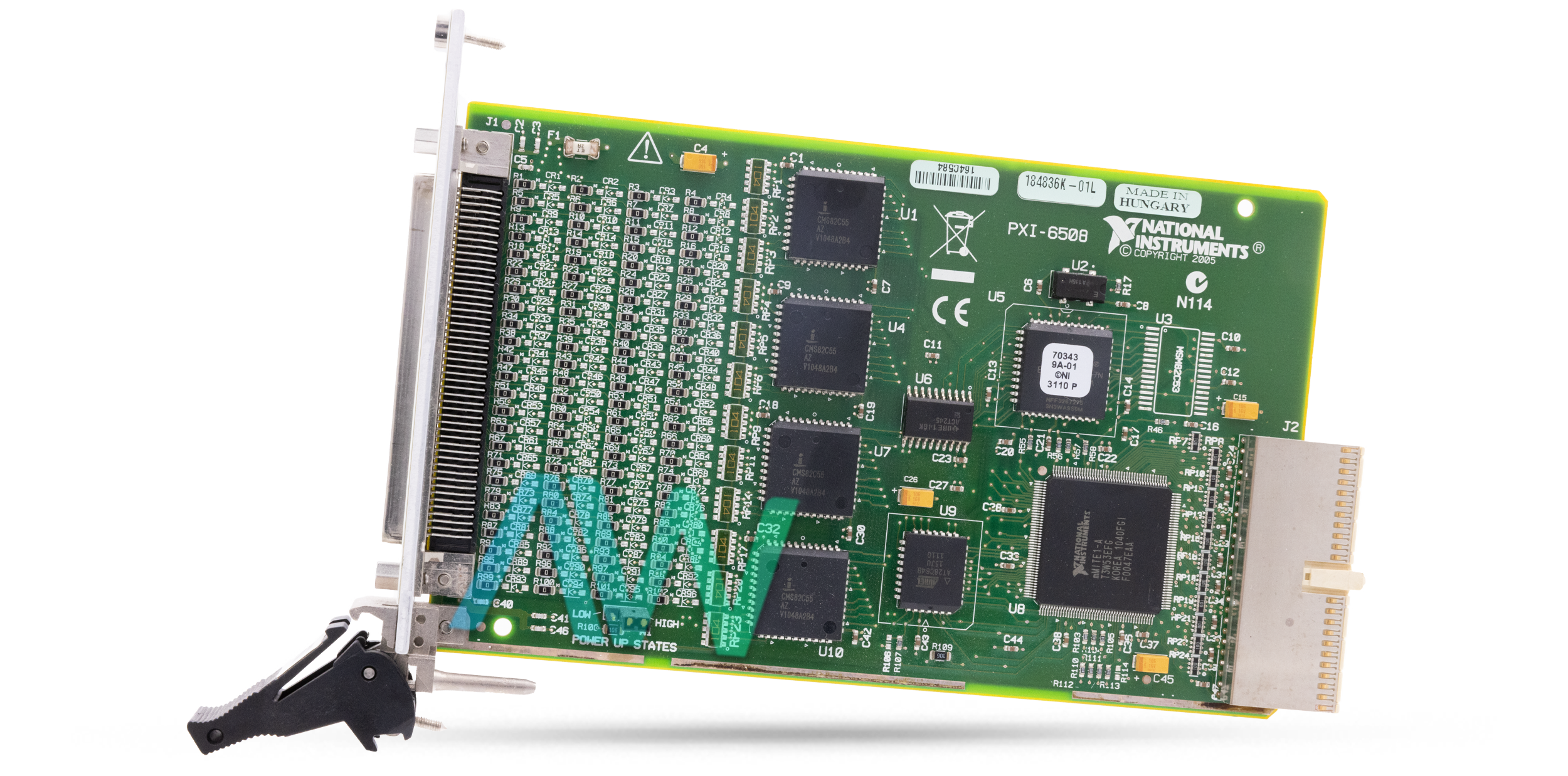

National Instruments PXI-6508 Digital I/O Module

The National Instruments PXI-6508 (Part Number: 777598-01) is a 2.5 mA, 5V TTL/CMOS, 96-Channel PXI Digital I/O Module.  By type, the PXI-6508 is a member of the NI PXI family of expansion boards for CompactPCI and PXI chassis. This module is created for high-performance, reliable data acquisition and utilizes four 24-bit PPIs. Each of these four programmable peripheral interfaces (PPIs) can further be divided into three 8-bit ports. The PXI-6508 comes equipped with a 0.050 series D-type, 100-pin female I/O connector. With this Digital I/O Module, the user can achieve 2-wire handshaking, interrupts, programmed I/O data transfers, and transfer rates up to 50 Kbytes/s with NI-DAQ Software. This module is entirely software configurable and compliant with the PXI Specification, Rev 1.0.

The NI PXI-6508 can interface to other computers and peripherals and can also operate in a bidirectional or unidirectional mode. This Digital I/O Module is considered a viable choice for applications that need onboard pull-up resistors. The National Instruments PXI-6508 Digital I/O Device contains one 82C55 Parallel Port Interface (PPI). The user can power up their PXI-6508 in a self-defined state- either low or high as each line on this device is connected to a 100 kΩ resistor. The user can utilize a jumper to choose whether the device lines power up in the low or high state. This module is designed for 5 V TTL/CMOS I/O signals and offers 96-bit parallel DIO interfaces for PXI, PCI, and ISA. Each of the PPI control 24-bits of DIO.

PXI-6508 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-6508 (777598-01)
ManufacturerNational Instruments
TypePXI Digital I/O Module
Bidirectional Digital Channels96
Digital Input Voltage Range-0.3 V to 5.3 V
Output Voltage Range0 V to 5 V
Dimensions6.9 x 4.2 in.
Weight5.2 oz.
WarrantyOne Year Warranty
PXI-6508 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6508 Frequently Asked Questions



Question: What type of I/O connector does the PXI-6508 have?



Answer: The PXI-6508 has a 100-pin female 0.050 series D-type I/O connector.



Question: What is the digital I/O logic level on the NI PXI-6508?



Answer: The NI PXI-6508 has a digital I/O logic level of 5V.



Question: What is the single-ended digital I/O channel current drive for the PXI-6508?



Answer: The PXI-6508 has a single-ended digital I/O channel current drive of 2.5 mA.



Question: What type of signaling does the NI PXI-6508 have?



Answer: The NI PXI-6508 has single-ended signaling.

PXI-6508 PDF Manuals & Diagrams

  PXI-6508 PDF Manuals

  PXI-6508 Diagrams


PXI-6508 Technical Specifications:

Manufacturer:National Instruments
Model:PXI-6508
Part Number:777598-01
Type:PXI Digital I/O Module
Repair Evaluation:$150

Why Buy From Apex Waves:




Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:
Common Typos: PCI-6508, PXU-6508, PXK-6508, PXI-Y508, PXI-650I

PXI-6508


PXI-6508

PXI-6508, 96-Channel, PXI Digital I/O Module

In Stock | Ships Today
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing













Call now for best pricing
1-800-915-6216

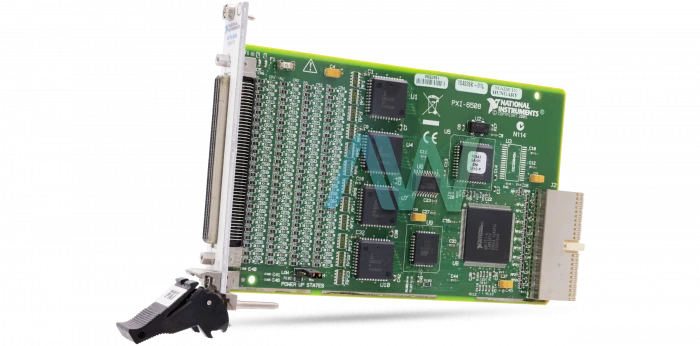

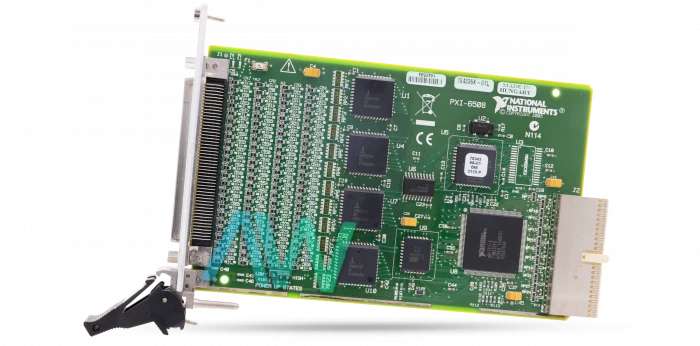

National Instruments PXI-6508 Digital I/O Module
