PXI-2529 In Stock | Ships Today
PXI-2529, 2-Wire, PXI Matrix Switch Module
Need an Official Quote?

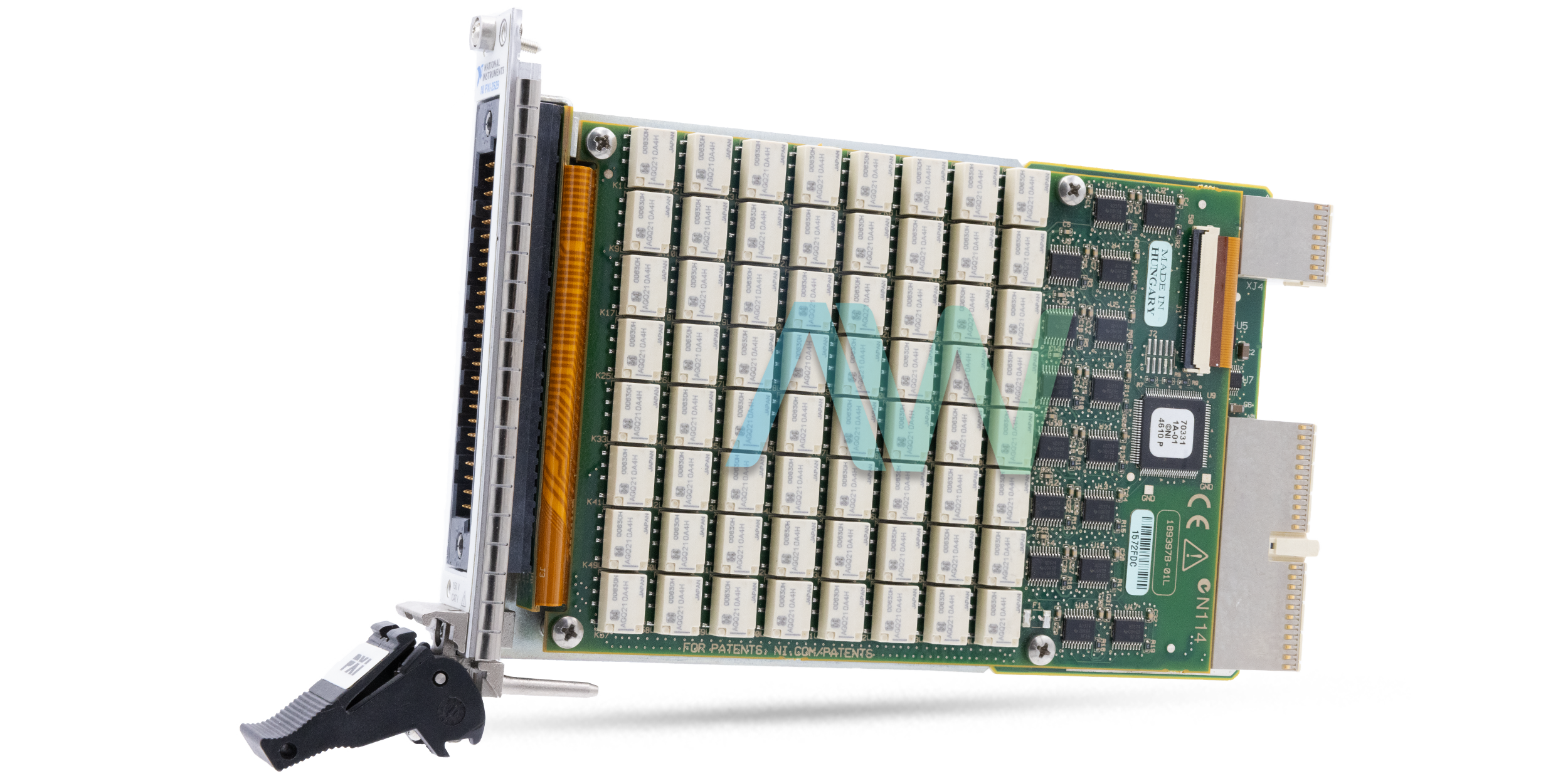

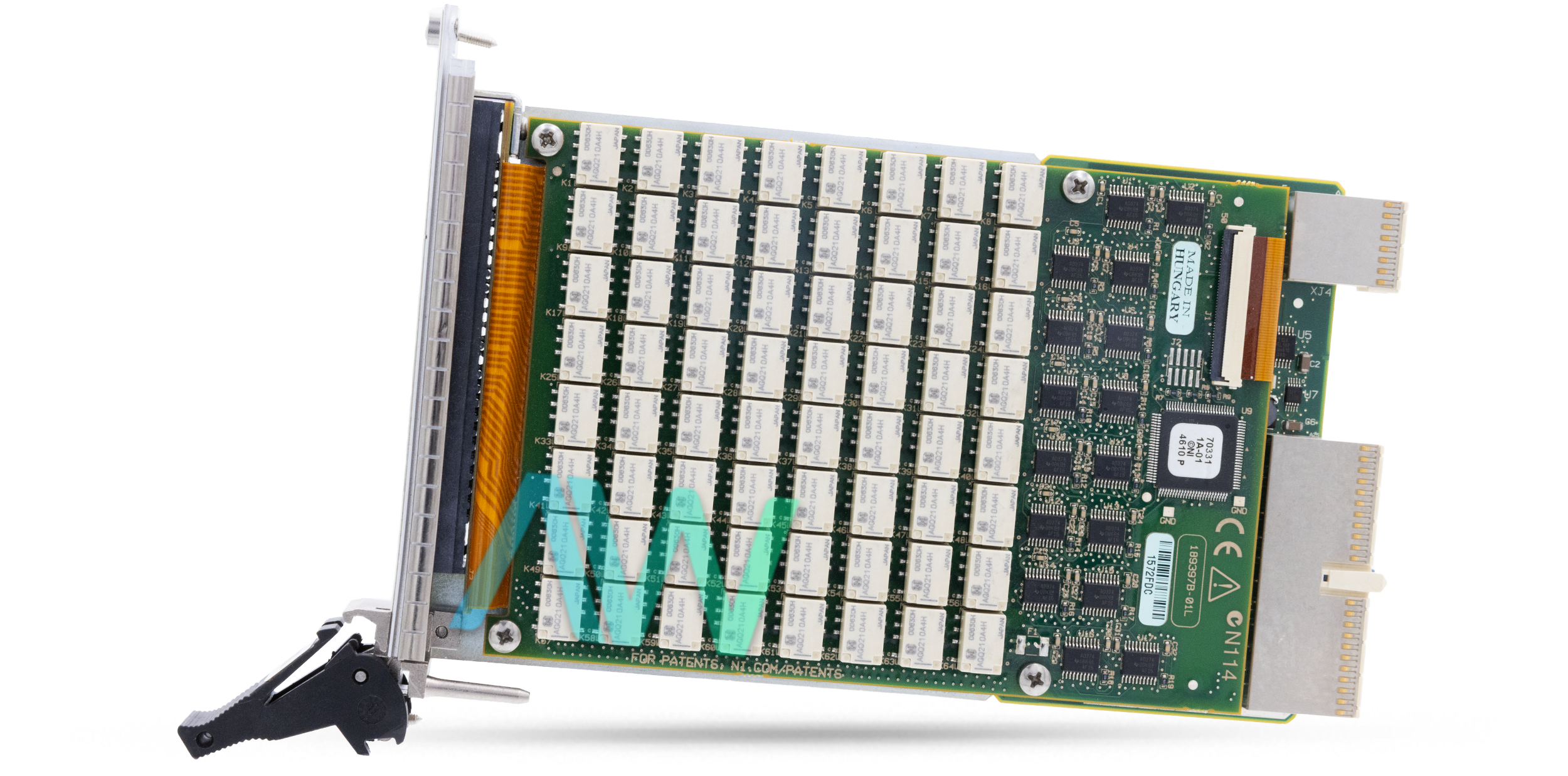

National Instruments PXI-2529 PXI Matrix Switch Module
The National Instruments PXI-2529 (Part Number: 778739-01, 189397A-01, 189688B-01) is a high-density, 1-Wire, 128-Crosspoint PXI Matrix Switch Module that users can configure as either an 8x16 2-wire, 4x32, or 4 × 16 2-wire dual matrix by utilizing different NI terminal block accessories. This module comes equipped with electromechanical relays that offer remarkable performance for low thermal offset and high power-signals for precise measurements at low-voltage levels. The NI PXI-2529 features relay counting for deterministic operation and relay monitoring with hardware triggers to enhance test throughput. The device is equipped with a 100-pin HDI front panel connector.
This switch module is Measurement Category I rated and is designed to carry signal voltages under 150 Volts. However, it can withstand voltage surges up to 800 V. With this model, the user can achieve 30 W, 37.5 VA maximum switching power, 1 A maximum switching current, 2 A maximum carry current per channel, and up to 8 A maximum current as well. The NI PXI-2529 offers 150 V channel-to-channel and 150 V, CAT I channel-to-ground switching voltage. The device has a release time of 4 ms maximum at 20 °C, an expected mechanical relay life of 5 x 107 cycles, an electrical relay life of 5 x 105 cycles at 30 V, 100 mA, and 1 x 105 cycles at 30 V, 1 A.
This module features a 100-pin high-density interconnect (HDI) front panel connector. The relays it incorporates are latching electromechanical relays. As far as its physical characteristics are concerned, the NI PXI-2529 weighs around 410 g. The PXI-2529 is a one slot, 3U PXI module with PXIe compatibility with 21.6 × 2.0 × 13.0 cm dimensions. When used in a PXI chassis, this module consumes 65 W at 5 V and 2.5 W at 3.3 V. This module consumes 7.5 W at 12 V and 2.5 W at 3.3 V when used in PXI Express-based configuration. The device weighs 15 oz., and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C.
Model | PXI-2529 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 778739-01, 189397A-01, 189688B-01 |
Type | PXI Matrix Switch Module |
Crosspoints | 128 |
Banks | 1, 2 |
Rows | 4, 8 |
Columns | 16, 32 |
Dimensions | 8.5 x 0.8 x 5.1 in. |
Weight | 15 oz. |
Warranty | Three Year Warranty |
PXI-2529 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-2529:
188821A-01, 189397A-01, 189397B-01L, 189688A-01, 189688B-01, 189688C-01, 189688D-01, 189688D-01L, 189688E-01L, 189688F-01L, 189688G-01L, 778739-01
Associated NSNs for the PXI-2529:
5998-01-565-3227 (5998015653227)
National Instruments PXI-2529 Frequently Asked Questions
Question: What type of I/O front-panel connector does the PXI-2529 have?
Answer: The PXI-2529 has a 100-pin high-density interconnect (HDI) I/O front-panel connector.
Question: What is the switch bandwidth of the PXI-2529?
Answer: The PXI-2529 has a switch bandwidth of 10 MHz.
Question: How fast is the scan rate of the NI PXI-2529?
Answer: The scan rate of the NI PXI-2529 is 120 cycles/s.
Question: What different topologies can the PXI-2529 be configured in?
Answer: The PXI-2529 can be configured as a 2-wire 4 x 32 matrix, 2-wire, 8 x 16 matrix, or a 2-wire dual 4 x 16 matrix.
PXI-2529 PDF Manuals
NI PXI PXIE 2529 SPECIFICATIONS.PDF
PXI PXIE 2529 LETTER OF VOLATILITY.PDF
PXI-2529 Diagrams
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-2529
Modular Systems > National Instruments > PXI Matrix Switch Modules
PXI-2529, 2-Wire, PXI Matrix Switch Module
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

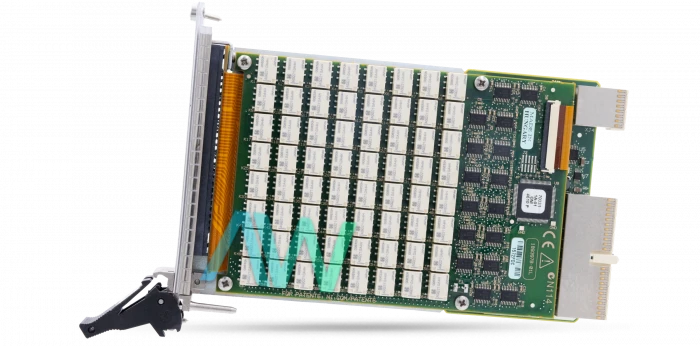

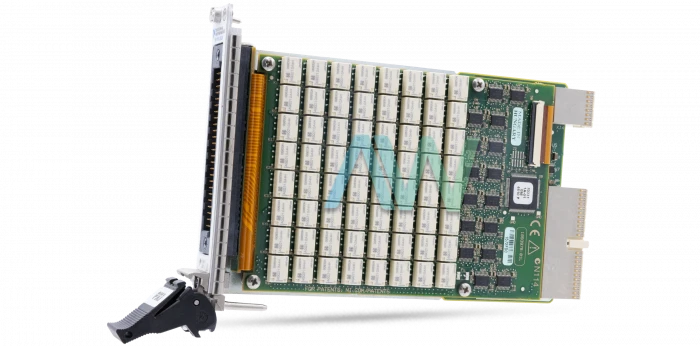

National Instruments PXI-2529 PXI Matrix Switch Module
