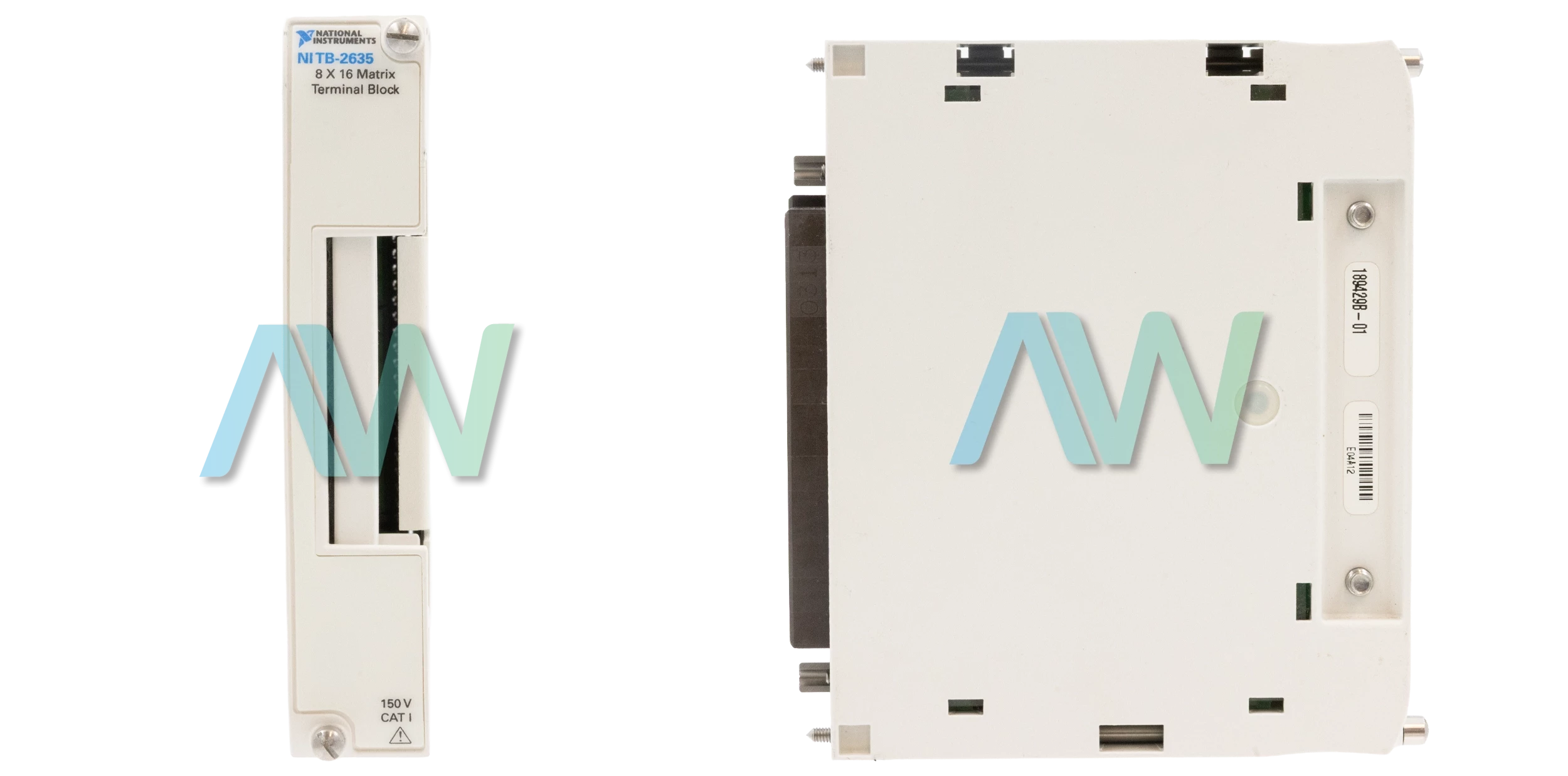

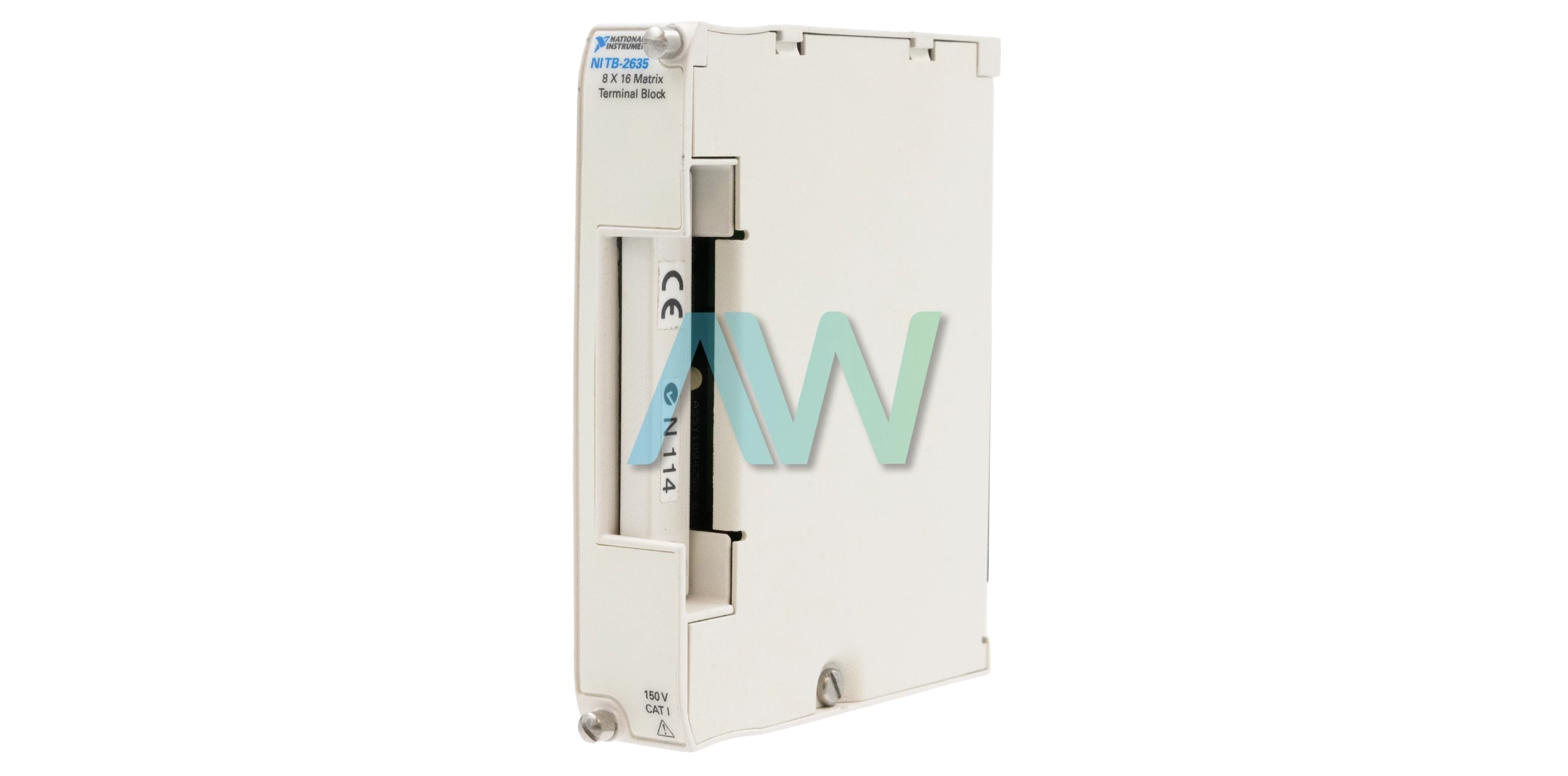

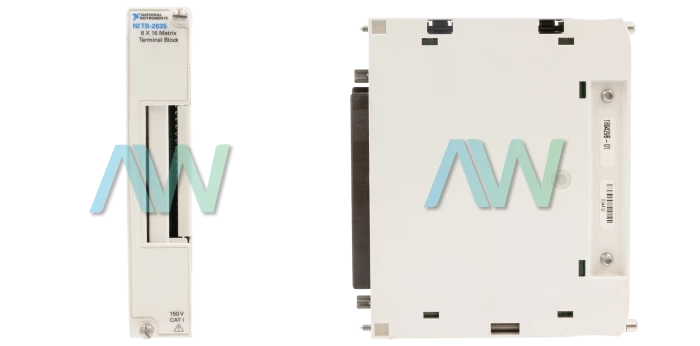

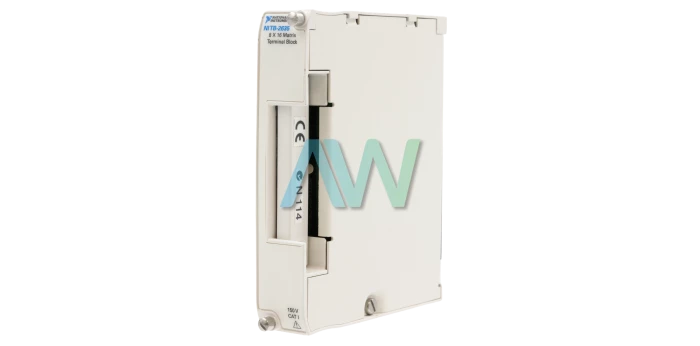

NI TB-2635 Terminal Block
The TB-2635 Terminal Block (Part Numbers: 189429-01L, 189429B-01, and 778839-01) is designed to be used with the PXI-2529 – a high-density Matrix Switch Module from National Instruments. This accessory allows the configuration of the matrix switch as a 2-wire, 8 x 16 matrix. A switching system consisting of this accessory and a matrix switch offers direct, hard-wired signal connectivity to the screw terminals residing inside the NI TB-2635.
This Terminal Block comes featured with an integrated strain-relief bar and safety ground lug. A pair of jackscrews is also provided for a firm connection between the Terminal Block and the Matrix Switch Module. The TB-2635 is designed for CAT I systems because it is intended to carry up to 150 V signals. However, it is tested to withstand as high as 800 V of surge or impulse voltage. The installation of this Terminal Block is a simple task and can be done without professional assistance.
| Model | TB-2635 |
|---|---|
| Manufacturer | NI |
| Part Numbers | 189429-01L, 189429B-01 and 778839-01 |
| Type | Terminal Block |
| Compatible Model | PXI-2529 |
| Connection | Screw terminals |
| Configuration | 2-Wire, 8 x 16 |
| Maximum Voltage | 150 V |
| Warranty | Three Year Warranty |
| TB-2635 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for TB-2635:
189429A-01, 189429B-01, 189429C-01L, 189429D-01L, 778839-01
NI TB-2635 Frequently Asked Questions
Question: How much impulse voltage can the TB-2635 withstand?
Answer: The TB-2635 can withstand up to 800 V of impulse voltage.
Question: How much signal voltage can the TB-2635 carry?
Answer: The TB-2635 is made to carry signal voltages that are no greater than 150 V.
Question: What are the dimensions of the TB-2635?
Answer: The TB-2635 measures roughly 0.77 in x 3.3 in x 4.1 in.
TB-2635 PDF Manuals
TB-2635 DIMENSIONAL DRAWING.PDF
TB-2635 PRODUCT CERTIFICATION.PDF
TB-2635 SWITCH TERMINAL BLOCKS LETTER OF CONFORMITY.PDF
