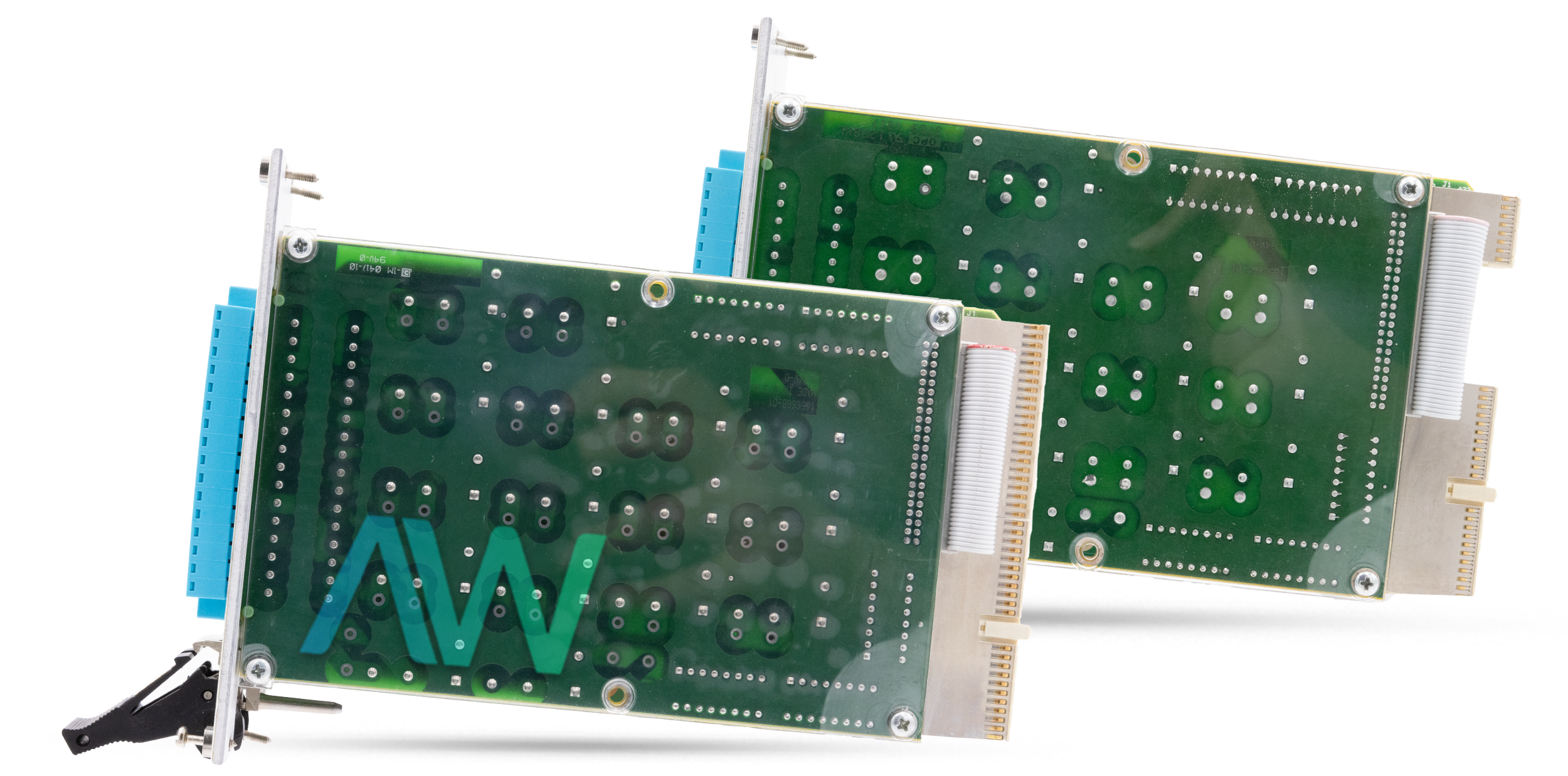

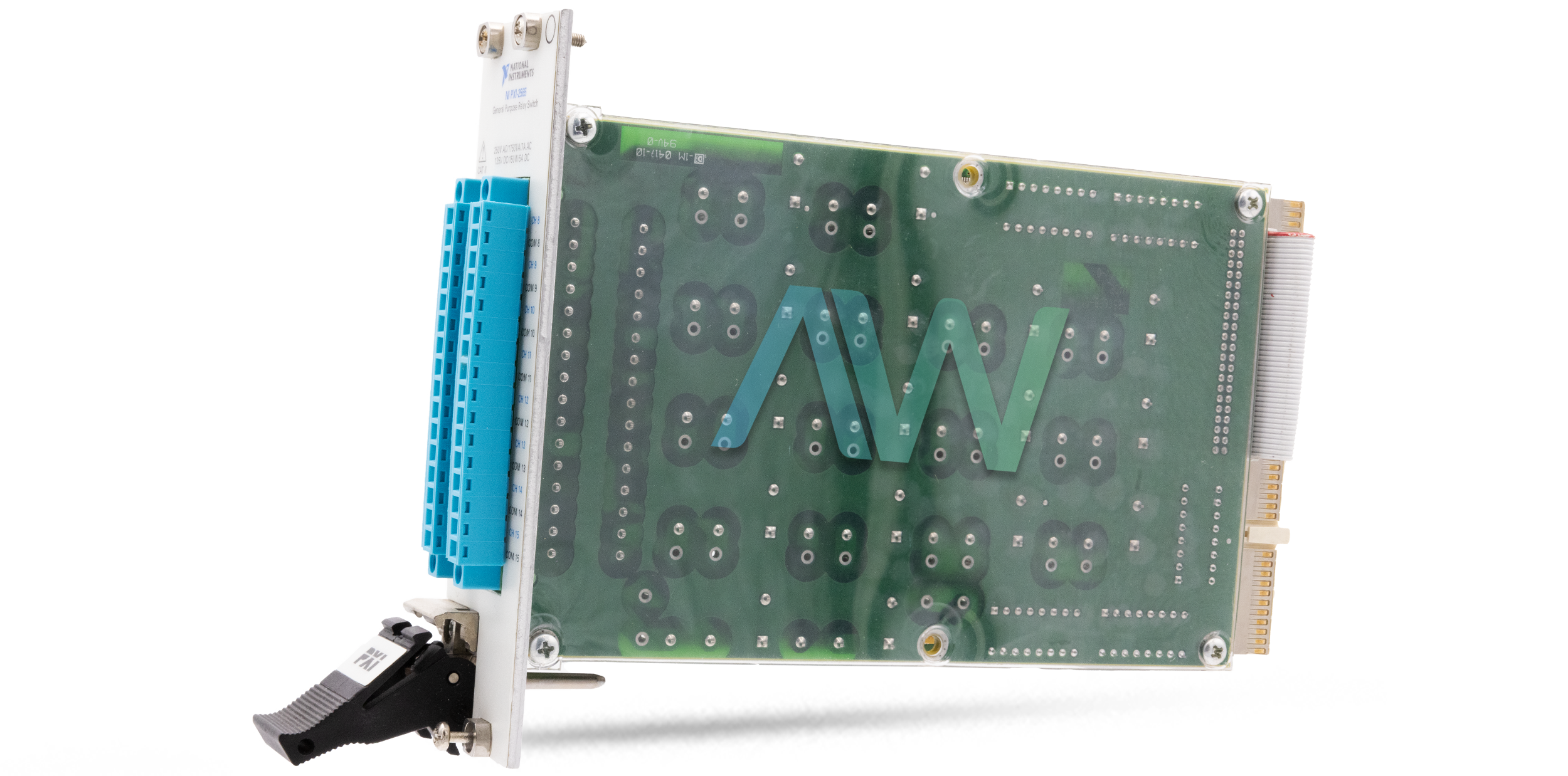

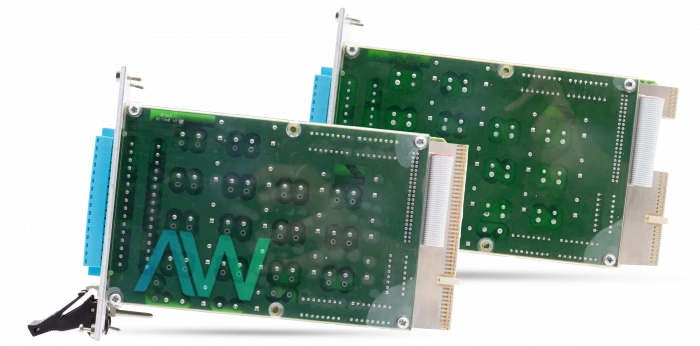

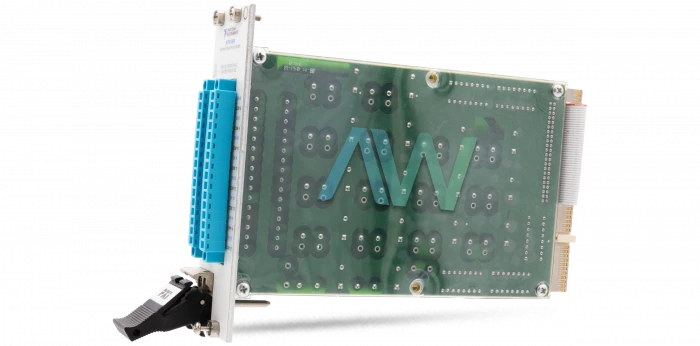

PXI-2565 National Instruments Relay Module | Apex Waves | Image PXI-2565 National Instruments Relay Module | Apex Waves | ImagePXI-2565PXI-2565 | Legacy, Refurbished and New Surplus
PXI-2565 National Instruments Relay Module | Apex Waves | Image
PXI-2565 National Instruments Relay Module | Apex Waves | Image
PXI-2565 New
PXI-2565 | Legacy, Refurbished and New Surplus

PXI-2565

4.8/5 | 12 ratings

Modular Systems > National Instruments > PXI Relay Modules

Part Number PXI-2565
Manufacturer/Brand National Instruments
Description: PXI-2565, 16-Channel, Relay Module
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-2565 Relay Module

The National Instruments PXI-2565 is a 7 A, 16-Channel SPST based PXI Relay Module. This module is designed for general applications and is considered ideal for high-current switching of AC/DC current sources, DC power supplies, and AC line power. The NI PXI-2565 is an entirely software programmable module and supports a broad range of instrument synchronization. With this module, the user can achieve a 16-channel SPST topology 125 V DC and 125 V DC, 250 V AC channel-to-channel maximum switching voltage.

This module is measurement category II rated; thus, it is intended to carry voltages under and up to 250 V AC/125 V DC. In addition, the NI PXI-2565 also features 1400 Vrms isolation between the backplane and the input signals. This Relay Module can provide 5 A at 30 V DC maximum switching current, 150 W, 1750 VA maximum switching power (per channel), 5 A DC, 7A AC maximum carry current (per channel), and 10 mA, 5 V DC maximum switch load.

The relays used in this module are non-latching electromechanical relays with gold-flash over silver alloy based contact materials. At 20 °C, these relays are tested to operate within 5 ms, (typical) and 10 ms, (maximum) and to release within 4 ms, (typical) and 5 ms, (maximum). Their mechanical relay life is 5 × 107 cycles and their electrical relay life is 1 × 105 cycles. The NI PXI-2565 can be triggered through PXI trigger lines <0...7> at 70 ns minimum pulse width.

ModelPXI-2565 (777754-01)
ManufacturerNational Instruments
TypePXI Relay Module
Relays16
Switch Bandwidth10 MHz
Scan Rate5 cycles/s
Dimensions8.5 x 1.6 x 5.1 in.
Weight14 oz.
WarrantyOne Year Warranty
PXI-2565 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2565 Frequently Asked Questions



Question: What type of I/O connectors does the NI PXI-2565 have?



Answer: The NI PXI-2565 has 16 x 2 minicombicon headers for I/O connectors.



Question: What is the maximum switching current DC for the PXI-2565?



Answer: The PXI-2565 has a maximum switching current DC of 7 A.



Question: What is the PXI-2565 Relay Module’s PXI power requirement?



Answer: The PXI-2565 Relay Module’s PXI power requirement is 5.5 W at 5 V.



Question: How much does the PXI-2565 module weigh?



Answer: The PXI-2565 module weighs 14 oz.
