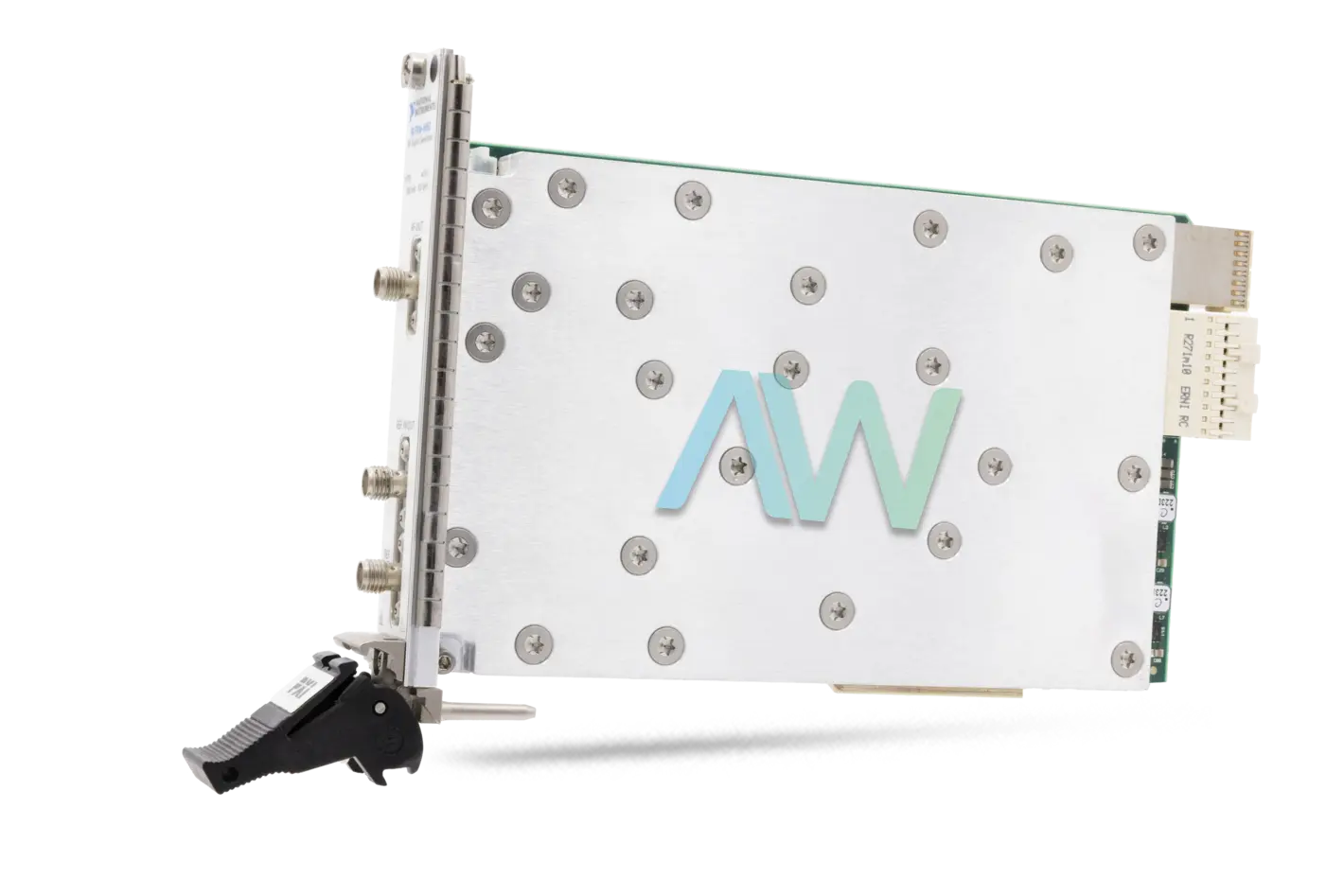

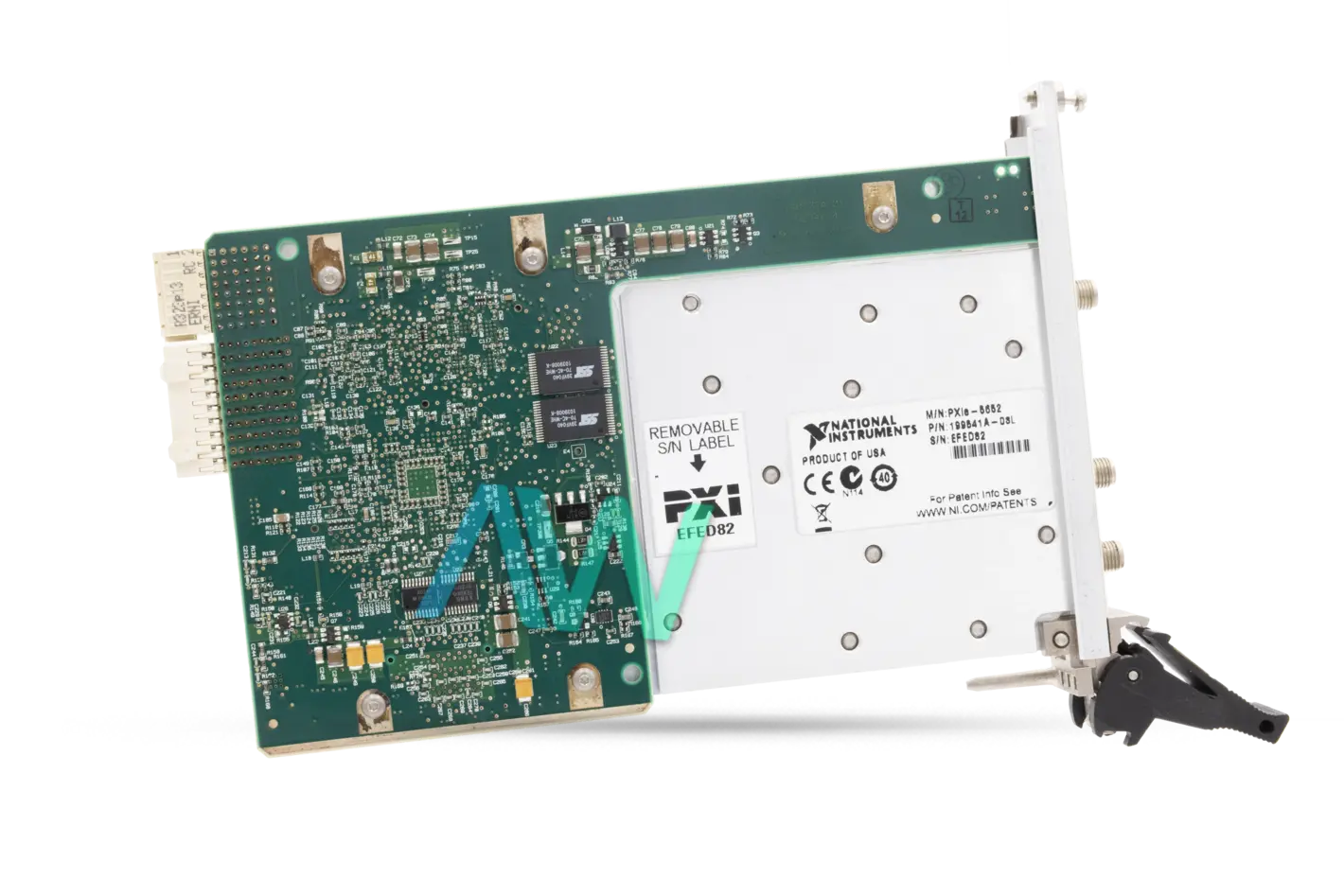

PXIe-5652 National Instruments PXI RF Analog Signal Generator | Apex Waves | Image PXIe-5652 National Instruments PXI RF Analog Signal Generator | Apex Waves | ImagePXIe-5652 NewPXIe-5652 | Legacy, Refurbished and New Surplus

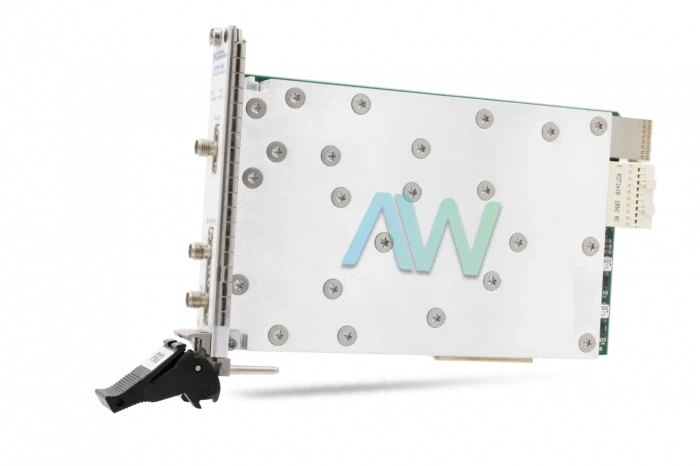

PXIe-5652 National Instruments PXI RF Analog Signal Generator | Apex Waves | Image

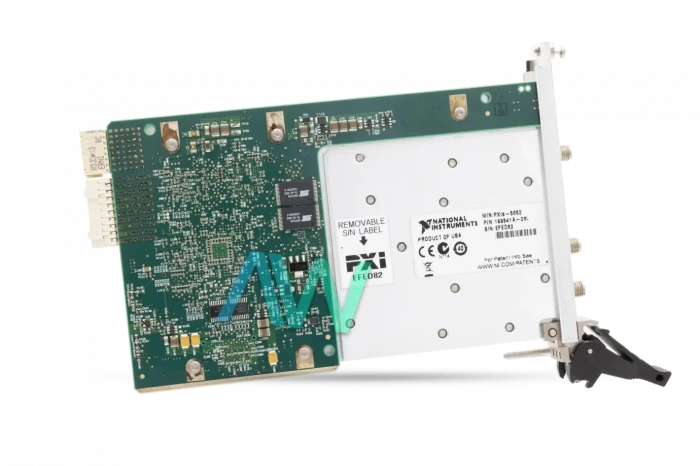

PXIe-5652 National Instruments PXI RF Analog Signal Generator | Apex Waves | Image
PXIe-5652 New
PXIe-5652 | Legacy, Refurbished and New Surplus

PXIe-5652

4.8/5 | 11 ratings

Modular Systems > National Instruments > PXI Signal Generator Modules

Part Number PXIe-5652
Manufacturer/Brand National Instruments
Description: PXIe-5652, 6.6 GHz, PXI RF Analog Signal Generator
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for pricing & lead time:


National Instruments PXIe-5652 PXI RF Analog Signal Generator

The National Instruments PXIe-5652 (Part Number: 781217-01) is an Analog Signal Generator with continuous-wave generation capabilities and FM, 2‑FSK, or OOK modulation. This model can generate AM, FM, PM, and pulse wave signals continuously. The NI PXIe-5652 supports a frequency range from 500 kHz - 6.6 GHz, and a frequency resolution range from <3 Hz to 6 Hz, with a module width of 1. This model has a maximum output power of 12 dBm and a typical tuning time of 1.5 ms. It can be combined with other PXI modules to design automated test systems for radar, RF integrated circuits (RFICs), and automotive test applications.

The PXIe‑5652 provides exceptional phase noise and signal jitter in a single 3U PXI slot. This model features <2 ms Frequency Sweep Tuning Speed Typical, < 1 ppb Frequency Resolution, and -110 dBc/Hz phase noise at 1 GHz, 10 kHz offset typical. The NI PXIe‑5652 features sine, triangle, and square frequency modulation waveform types. This model does not support an external modulation source. The modulation waveform frequency for this Analog Signal Generator ranges from 1 Hz to 100 kHz.

The PXIe-5652 RF Analog Signal Generator requires the installation Application Development Environment like LabVIEW or LabWindows/CVI. After that, the NI-RFSG driver software can be installed on the computer. The device has a RF OUT connector, RF IN/OUT connector, REF OUT2 connector. The REF OUT and REF OUT2 connector has a frequency of 10 MHz.

The PXIe-5652 PXI Analog Signal Generator features an Internal Reference Output frequency of 10 MHZ, an output impedance of 50 Ω, and an amplitude of 1 Vpk-pk into 50 Ω. The external Reference Input frequency is 10 MHz ±10 ppm, input impedance is 50 Ω, and amplitude is 0.2 Vpk-pk to 1.5 Vpk-pk into 50 Ω. The device has a warm-up time of 30 minutes, with an operational temperature range of 0 °C to 55 °C; and a relative humidity range of 10% to 90%. The NI PXIe-5652 is a 3U, one slot, PXI Express module with dimensions of 0.8 in. × 5.1 in. × 8.5 in., which weighs 14.6 oz.

The PXIe-5652 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXIe-5652 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXIe-5652 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXIe-5652!

ModelPXIe-5652
Part Number781217-01
ManufacturerNational Instruments
HTS Code8471804000
TypePXI RF Analog Signal Generator
Maximum Output Power12 dBm
Frequency Range500 kHz to 6.6 GHz
Module Width1
Dimensions8.5 x 0.8 x 5.1 in.
Weight14.6 oz.
WarrantyThree Year Warranty
PXIe-5652 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-5652 Frequently Asked Questions



Question: What are the DC power requirements for the PXIe-5652?



Answer: The PXIe-5652 requires 0.90 A typical current or 1.00 A maximum current at +3.3 VDC. At +12 VDC, this model requires 0.80 A typical current or 1.00 A maximum current.



Question: How long is the PXIe-5652 calibration interval?



Answer: The PXIe-5652 calibration interval is 1 year.



Question: What type of output coupling does the NI PXIe-5652 have?



Answer: The NI PXIe-5652 has AC output coupling.



Question: What is the amplitude resolution of the NI PXIe-5652?



Answer: The NI PXIe-5652 amplitude resolution is <0.1 dB.
