PXIe-6556
PXIe-6556, 200 MHz, 24 Channels, Digital Waveform Generator/Analyzer
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Domestic Ground Shipping
✔ NIST Calibration Available
Expert Insights for the PXIe-6556
"The PXIe-6556 is a versatile Digital Waveform Generator and Analyzer that can be configured as an external SMU for precise DC measurements. This device can sample digital waveforms up to 200 MHz and has user programmable voltage. It is equipped with features such as per pin advanced digital timing, DC voltage and current parametric measurement, and hardware comparison bit error testing."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the PXIe-6556
"The PXIe-6556 is a versatile Digital Waveform Generator and Analyzer that can be configured as an external SMU for precise DC measurements. This device can sample digital waveforms up to 200 MHz and has user programmable voltage. It is equipped with features such as per pin advanced digital timing, DC voltage and current parametric measurement, and hardware comparison bit error testing."
- Chris B.
LabVIEW Trained
In-House Technician

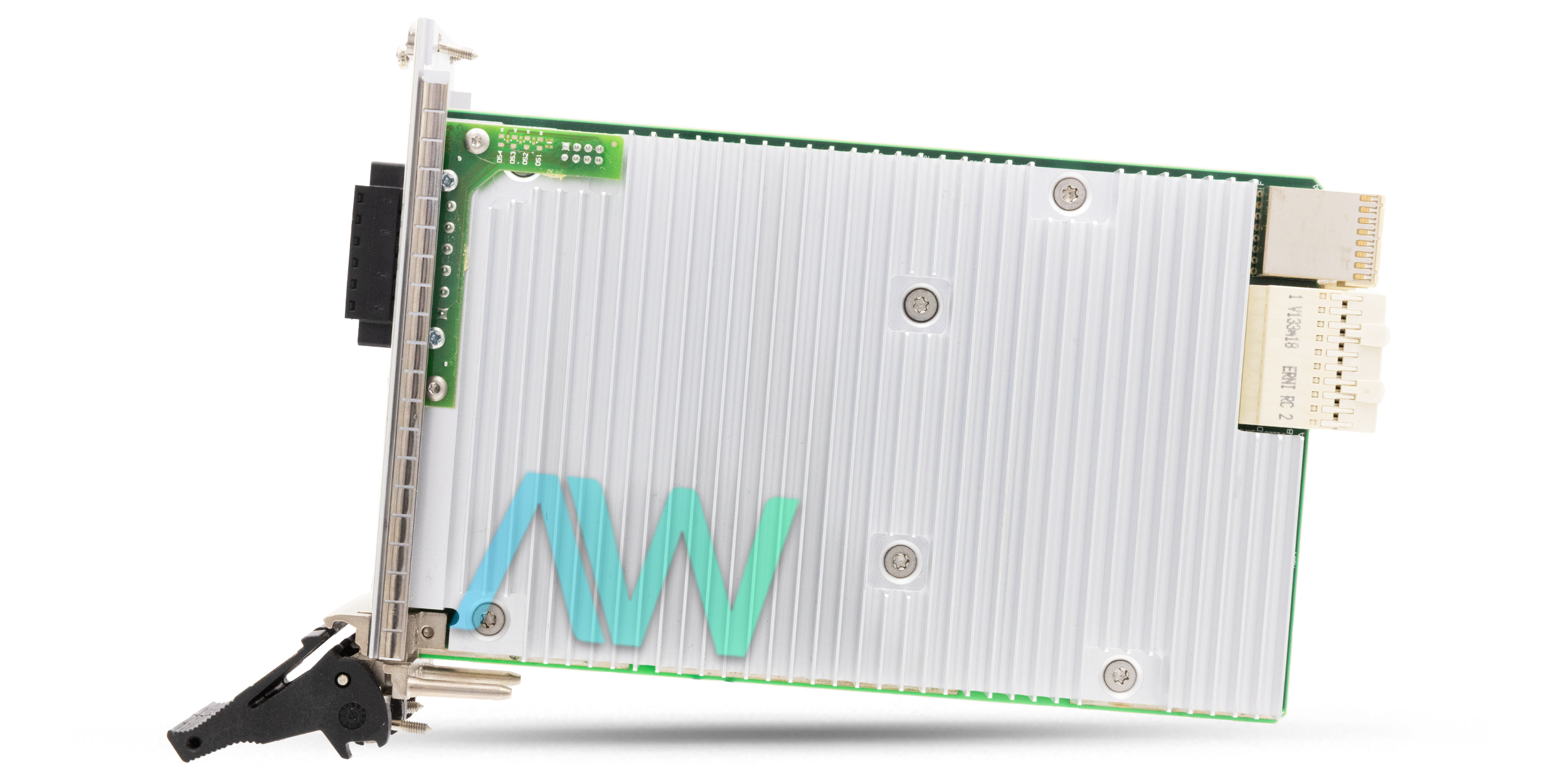

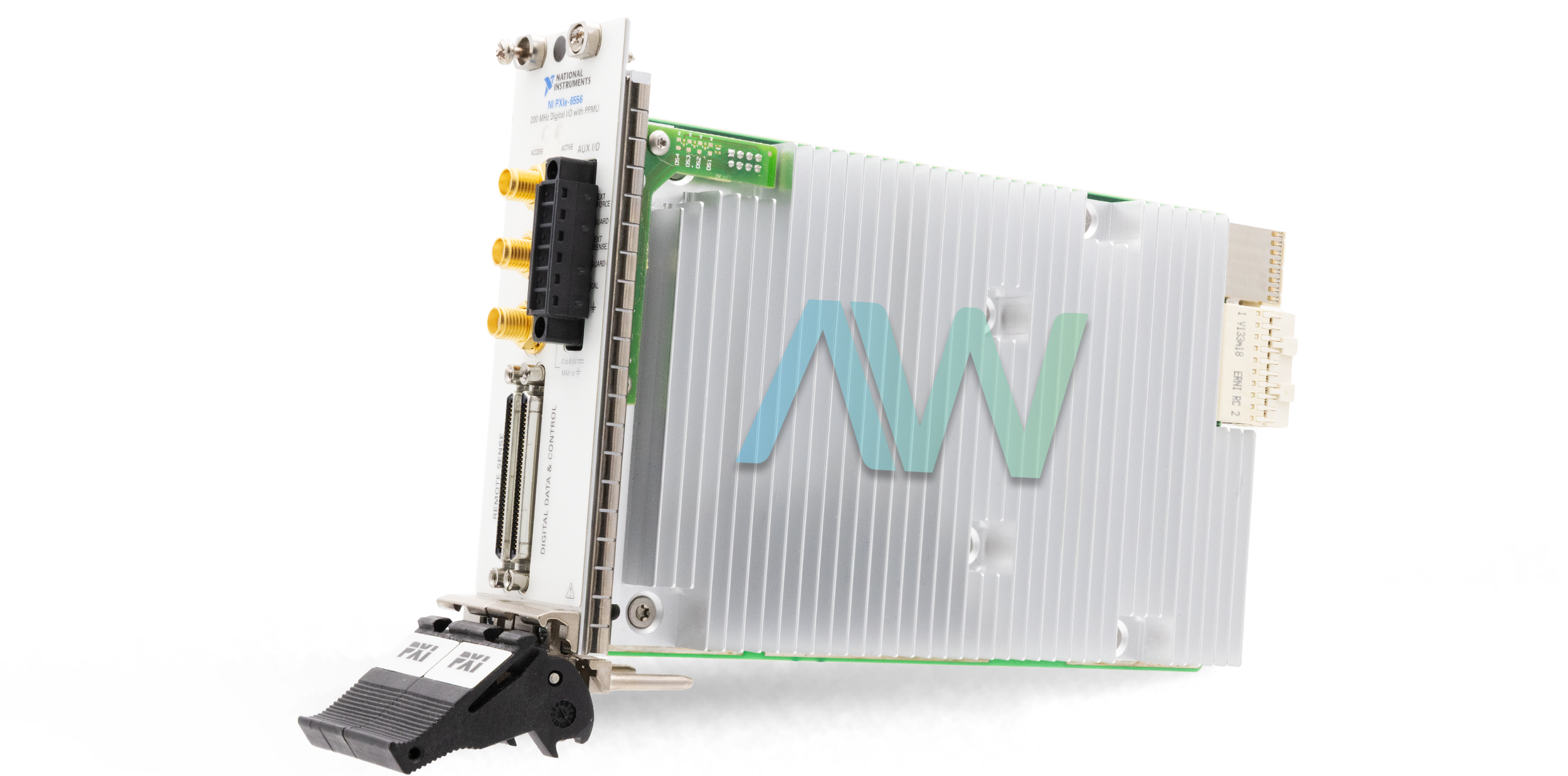

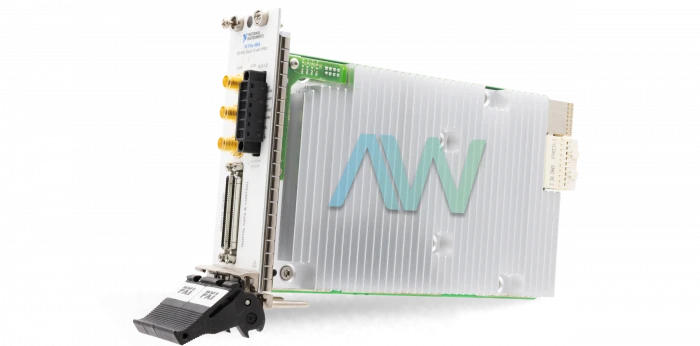

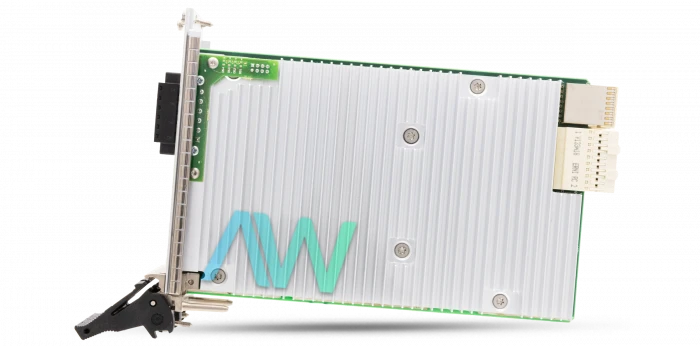

National Instruments PXIe-6556 Digital Waveform Generator/Analyzer
The PXIe-6556 (Part Numbers: 781949-02 and 781949-01) Digital Waveform Generator/Analyzer has 24 channels that are per pin parametric unit (PPMU) enabled, a 200 MHz maximum clock rate, and voltage levels from -2 V to 7 V or -1 V to 7V. The PPMU feature acts similarly to a force and measure unit, which can drive and measure currents and voltages. PPMU settings can be programmed separately for every channel. The difference between the two part numbers is that part number 781949-02 has 64 MB of memory for each channel, and part number 781949-01 has 8 MB of memory for each channel. The device (both part numbers) has a maximum data transfer rate of 200Mbit per second. All other specifications are the same. This model is well-suited for validation and production test. The NI PXIe-6556 can create or obtain digital information, as well as complete DC parametric measurements with ease.
Other beneficial features of the PXIe-6556 Digital Waveform Generator/Analyzer include: real-time hardware compare, data delay, scripting, and an onboard high-resolution clock. There are also more advanced features available on the NI PXIe-6556, such as timing and synchronization capabilities and the capability to complete advanced linking, information streaming, and looping with the 64 Mbits (for each channel) and scripting feature. Additionally, the PXIe-6556 can be integrated with other devices, including: power supplies, digitizers, and switches for a versatile, high-performing mixed-signal test system. The device weighs 28 oz, and has dimensions of 21.6 x 2.0 x 13.0 cm. Also, the device has an input and output protection range of -3 V to 8.5 V.
The device supports a variety of I/O connector types-SMA Jack, Combicon, and the 68-pin VHDCI. Also, it supports multiple software depending on the specification (Driver software, Application software, Test panel). These software are the NI-HSDIO driver software (version 1.8 and above), National Instruments Measurement and Automation Explorer (MAX) tool which is used in configuring the software.
The accessories that NI suggests for use with the NI PXIe-6556 include a shielded single-ended 1 m SHC68-C68-D4 Cable and an unshielded single-ended CB-2162 Digital I/O Accessory. These accessories will work with both versions of the PXIe-6556.
The PXIe-6556 is no longer available from National Instruments (NI), but the Digital Waveform Generator/Analyzer will remain available in perpetuity with Apex Waves!
| Model | PXIe-6556 |
|---|---|
| Part Numbers | 781949-02 and 781949-01 |
| Part Type | Digital Waveform Generator/Analyzer |
| Manufacturer | National Instruments |
| HTS Code | 8471804000 |
| Channels | 24 |
| Maximum Clock Rate | 200 MHz |
| Memory | 8 MB/ch or 64 MB/ch |
| Maximum Data Rate | 200 Mbit/s |
| Dimensions | 21.6 x 2.0 x 13.0 cm. |
| Weight | 28 oz. |
| PXIe-6556 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Today |
Associated part numbers for PXIe-6556:
National Instruments PXIe-6556 Frequently Asked Questions
Question: What are the programmable voltage levels for VOH, VOL, VTT, VIH, and VIL on the PXIe 6556?
Answer: The Digital Waveform Generator/Analyzer uses -2.0 to 7.0 V per pin programmable voltage levels.
Question: What advanced ATE capabilities are available on the NI PXIe-6556?
Answer: The advanced ATE capabilities include active load, tight CH-to-CH skew, and external SMU integration.
Question: Why am I getting an Error -1074118505 when performing the NI PXIe 6556 calibration procedure?
Answer: If you’re getting an error – 1074118505 when performing the calibration procedure, it usually means the DMM to AUX I/O connection is not properly connected or interchanged.
Question: Is external SMU integration available on the Generator/Analyzer?
Answer: Yes, the NI PXIe-6556 does have external SMU integration.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-C68-D4 (Shielded Recommended) |
781013-01 (0.55 m) |
| 196275-01 (1 m) | ||
| 781293-01 (2 m) | ||
| 132625-03 (3 m) | ||
| C68-C68-D4 Cable  (Unshielded) |
195949-01 | |
| SHC68-H1X38  (Shielded, Flying Lead) |
192681-1R5 | |
| Cable Adapter | 653x Cable Adapter | 195846-01 |
| Screw Terminal Block (Shielded) |
SCB-68 HSDIO | 782914-01 |
| SCB-68A | 782536-01 | |
| Screw Terminal Block (Unshielded, DIN Rail Mount) |
CB-2162 | 778592-01 |
| CB-68LP | 777145-01 | |
| CB-68LPR | 777145-02 | |
| Screw Terminal Block (Unshielded) |
TBX-68 | 777141-01 |
| Breakout Box | SMB-2163 | 778747-01 |
*The device is compatible with SCSI accessories when using the 653x Cable Adapter. Without this adapter, VHDCI accessories must be used.
*The SCB-68 / SCB-68A must use Direct Feedthrough Mode for configuration.
