Part Number SCC-DO01
Manufacturer/Brand National Instruments
Description: SCC-DO01, 1 Input Channel, Isolated Digital Output Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

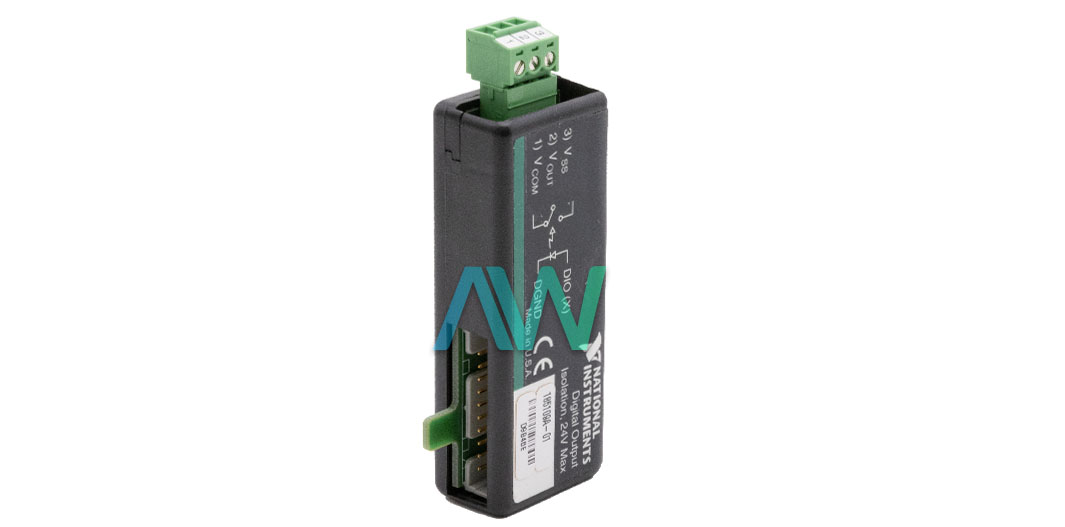

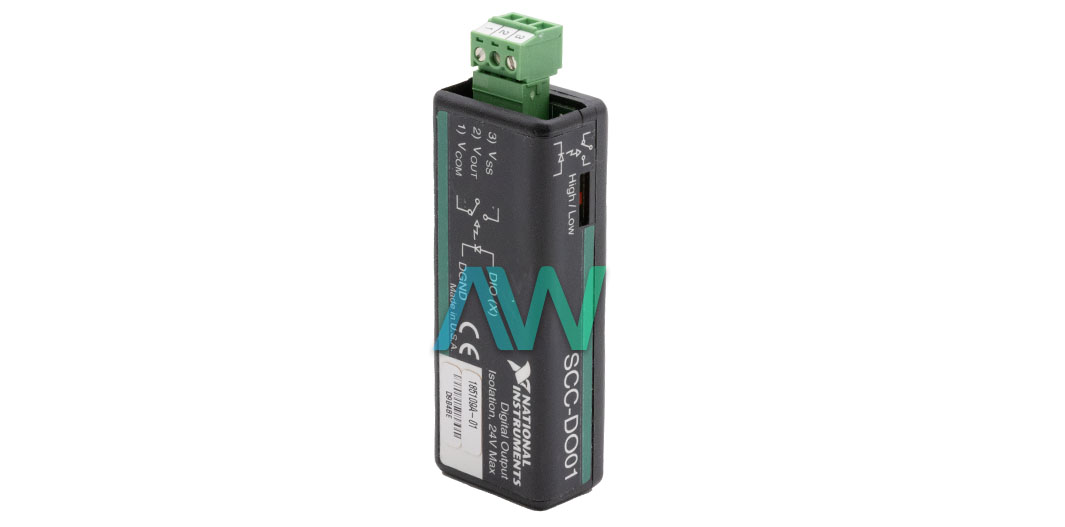

National Instruments SCC-DO01 Isolated Digital Output Module

The SCC-DO01 (Part Number: 777459-12) is a solitary channel, optically disconnected advanced output module. The output hardware is comprised of a photomask relay and a load resistor. The user can operate the NI SCC-DO01 with a 5– 24 VDC outside voltage supply to switch outer gadgets, such as transistors and strong state relays. This model contains its own segregated ground and output signal. Depending on which socket on the SC-2345 this user connects the SCC-DO01 to, it is possible to achieve a solitary DIO line 0 through 7. The VCOM, VSS, and VOUT signals of each channel are separated from outputs of different channels and furthermore confined from the SCC-DO01 inner power and ground signals. The user should not surpass the highest voltage of the VIN signals referenced to their VCOM signals. Connections that surpass any of the maximum ratings of input signals on the NI SCC-DO01 may harm the module, the E Series device, and the user’s PC.

The SCC-DO01 connects to any SC-2345 attachment between J9 and J16. When the module is linked to one of these attachments, the advanced signal is controlled by a DIO line of the multifunction DAQ gadget. For instance, attachment J9 interfaces with computerized line 0 of the DAQ gadget. Since the user can design DAQ gadgets for input or output on a line-by-line premise, the user can have from one to eight NI SCC-DO01 modules per carrier.

ModelSCC-DO01, 777459-12
ManufacturerNational Instruments
TypeIsolated Digital Input Module
Channels1
Supply Voltage Range5 to 24 VDC
I/O ConnectorsOne 20-pin right-angle male connector; one 2-pin screw terminal
Dimensions3.50 in. × 1.15 in. × 0.73 in.
Warranty2-3 Year Warranty
SCC-DO01 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-DO01 Frequently Asked Questions



Question: What type of external voltage supply can you use with the SCC-DO01?



Answer: You can use the SCC-DO01 with a 5–24 VDC external voltage supply.



Question: What types of devices can you connect to the SCC DO01?



Answer: You can connect the SCC DO01 to transistors and solid-state relays.



Question: What kind of DAQ device does the NI SCC-DO01 connect to?



Answer: The NI SCC-DO01 connects to a 68-pin E Series DAQ device.



Question: What type of cable is compatible with the NI SCC-DO01 for installation?



Answer: The NI SCC-DO01 can be connected with a 68-pin cable of less than 2 m length.
