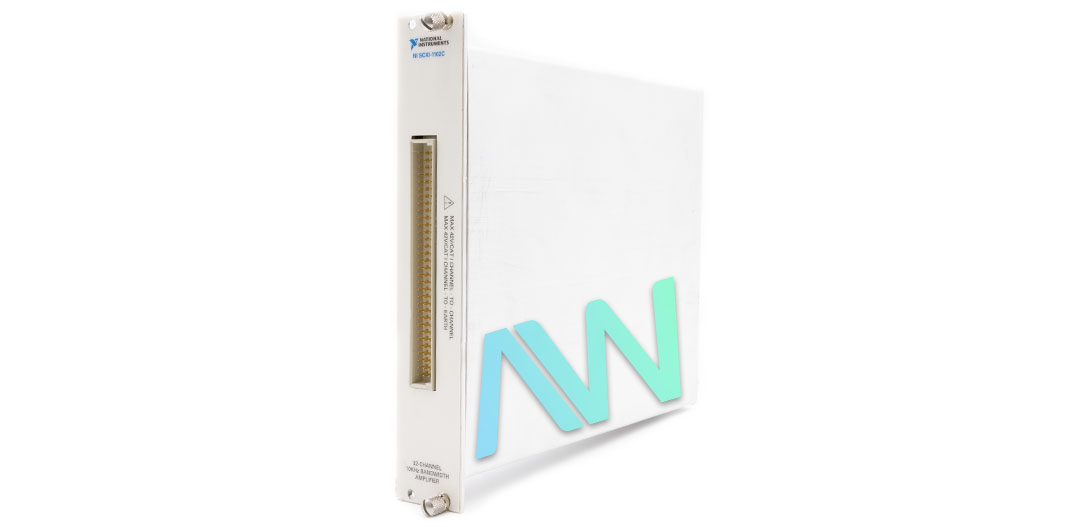

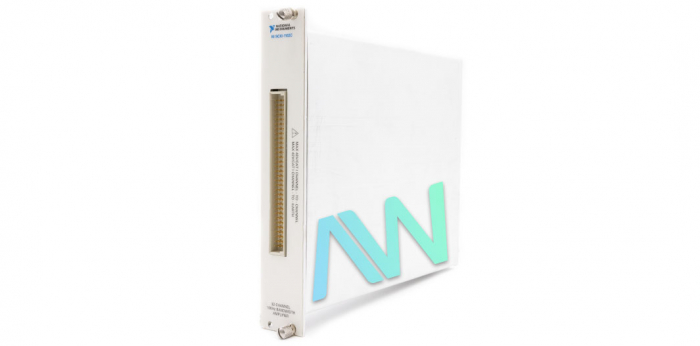

National Instruments 776572-02C Voltage Input Module
National Instruments part number 776572-02C is an identifying part number for the SCXI-1102C, a Voltage Input Module with 32 Input Channels, a Cutoff Frequency of 10 kHz, and a maximum working voltage of ±10 V. The NI 776572-02C is designed to condition signals from thermocouples, low-bandwidth volt, and millivolt sources, 4 to 20 mA current sources, and 0 to 20 mA process-current sources. It can measure current input, thermistors, voltage input, RTDs, and thermocouples.
The gain/input range is software-configurable, allowing users to select the correct amplification to fully utilize the range of the E/M Series DAQ instrument. For many applications, NI-DAQ automatically selects the gain based on the input range. If not, users can choose the correct gain by considering the input signal voltage range and the full-scale limits of the 776572-02C output. Users can select a gain of 1 or 100 per channel. It requires a maximum of 15 mA at 5 V and 150 mA at ±15 V.
When using NI-DAQmx, users can configure software settings like sensor type and gain/input signal range in multiple ways. These include functions in the user's application and through the Measurement & Automation Explorer (MAX) tool for task or global channels. However, not all software-configurable settings can be adjusted in both ways. It is recommended to calibrate the device annually. It weighs 24.6 oz and measures 1.2 x 6.8 x 8.0 inches. The recommended operating temperature range is 0 to 50 °C.
| Model | 776572-02C |
|---|---|
| Model Name | SCXI-1102C |
| Part Type | Voltage Input Module |
| Input Channels | 32 |
| Maximum Working Voltage | ±10 V |
| Cutoff Frequency | 10 kHz |
| Overvoltage Protection | ±42 V |
| Input Signal Bandwidth | 10 kHz |
| Front I/O Connector | 96-pin male DIN C front connector |
| Rear I/O Connector | 50-pin male ribbon cable rear connector |
