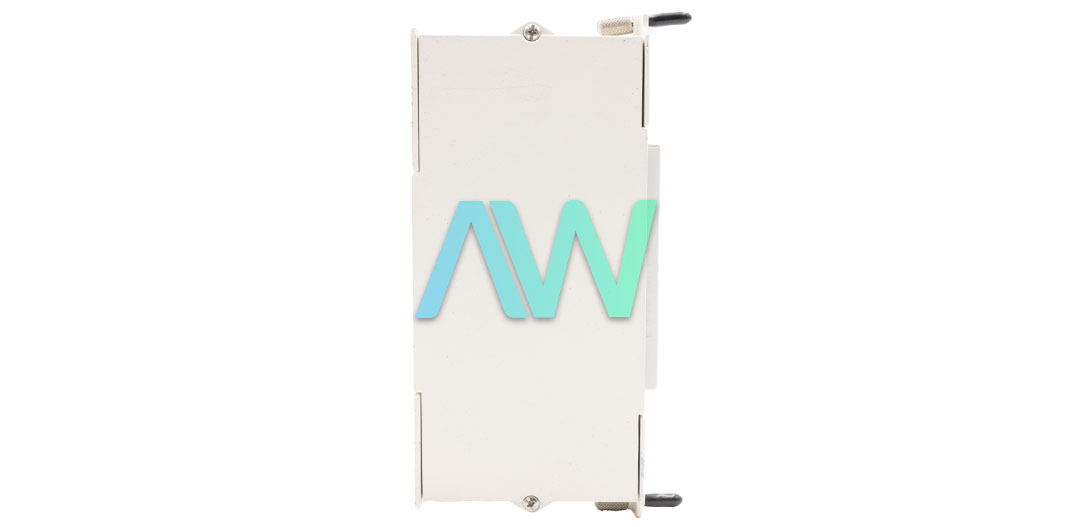

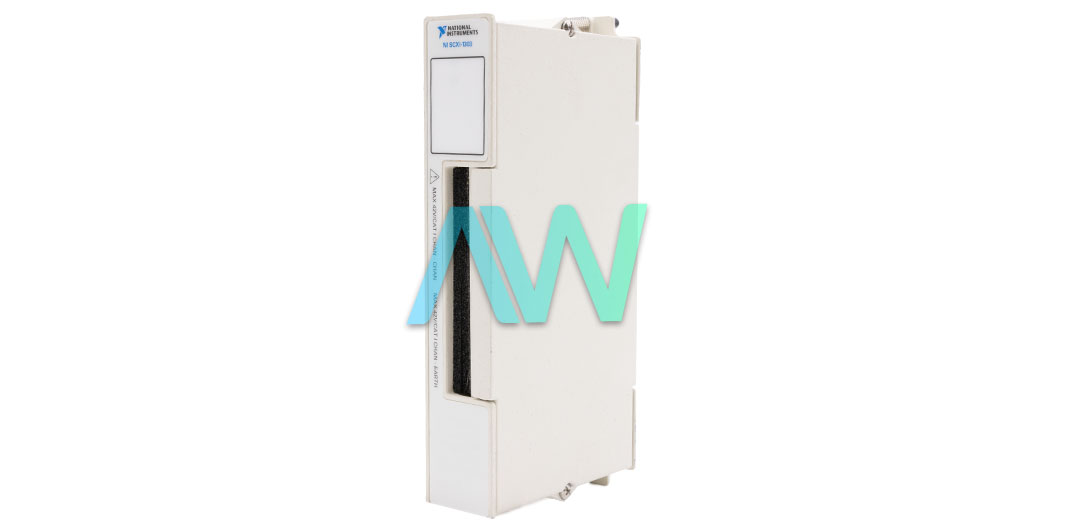

National Instruments SCXI-1303 Isothermal Terminal Block

The SCXI-1303 (Part Number: 777687-03) 32-Channel Terminal Block is recommended for use with the following SCXI modules: the SCXI- 1100/1102/1102B/1102C. This Terminal Block is suggested for high-precision thermocouple temperature measurement applications. The National Instruments NI SCXI-1303 has an extremely precise thermistor cold-junction temperature sensor, as well as an isothermal copper plane to reduce the temperature gradients across the screw terminals when the user completes measurements with thermocouples. The NI SCXI 1303 has special functions such as open thermocouple detection, signal ground referencing, and isothermal.

This Terminal Block has 78 screw terminals to ensure signal connection with ease. Thirty-two pairs of screw terminals join to the 32 differential inputs of the SCXI modules. A single pair of terminals attaches to the chassis ground pins on the module. In addition, three terminals link to the SCXI module OUTPUT and AOREF pins, along with to the SCXIbus GUARD. The remaining terminals are saved for the future.

The circuitry of the SCXI-1303 Terminal Block aids the user in perceiving an open thermocouple. To distinguish if any thermocouple is open, the user can determine if the matching SCXI module channel is saturated. The NI SCXI-1303 also has pullup and bias resistors that saturate the channel by applying +5 V at the open channel’s input. The outcome is saturation to the positive rail. The SCXI 1303 can be used with 10 Ω and 10 MΩ bias resistors. The 10 MΩ resistors are meant for use with the SCXI-1102/B/C modules, while the 10 Ω resistors are meant for use with the SCXI-1100 module. The bias resistors can be easily replaced by the user.

SCXI-1303 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1303
ManufacturerNational Instruments
Part Number777687-03
SeriesSCXI Series
TypeIsothermal Terminal Block
Channels32
Screw Terminals78
Cold-Junction Sensor TypeThermistor
Cold-Junction Accuracy0.5 °C from 15 to 35 °C,
0.9 °C from 0 to 15 °C,
and 35 to 55 °C
WarrantyOne Year Warranty
SCXI-1303 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1303 Frequently Asked Questions



Question: What is the cold-junction sensor repeatability of the SCXI-1303 Terminal Block?



Answer: The cold-junction sensor repeatability of the SCXI-1303 Terminal Block is 0.2 °C from 15 to 35 °C.



Question: Which items are necessary to use the National Instruments NI SCXI-1303?



Answer: To use the National Instruments NI SCXI-1303, the user needs long-nose pliers, 1/10 in. and 1/4 in. flathead screwdrivers, an SCXI chassis, Number 1 and 2 Phillips-head screwdrivers, a SCXI-1102/B/C or SCXI-1100 module, and a package of four 10 Ω resistor networks.



Question: Which types of thermocouples can the NI SCXI 1303 read measurements from?



Answer: The NI SCXI 1303 can read measurements from E, J, B, K, T, S, R, and N thermocouples.



Question: How often should the SCXI 1303 be calibrated?



Answer: The SCXI 1303 should be calibrated every year.
