PCI-8432-2

Modular Systems > National Instruments > Serial Interface Devices

Part Number PCI-8432-2
Manufacturer/Brand National Instruments
Description PCI-8432/2 2-Port, RS-232 Serial Instrument Control Device

Speak to a sales representative for pricing & lead time:


National Instruments PCI-8432/2 Serial Interface

The National Instruments PCI-8432/2 (Part Number: 779143-01) RS232, 2 Port, Isolated, PCI, is a Serial Interface. The isolated PCI board is intended for applications in critical situations. Non-isolated ports may not give solid communication in those circumstances. The seclusion among each port of communication and the principal PC ensures the protected activity of the PC and the devices related to different ports that are located on a board that is similar, if there should be an event of inadvertent big voltages or line floods on communication lines.

The RS-232 ports on the NI PCI-8432/2 are DTE. In the RS-232 determination, Data Terminal Equipment (DTE) and Data Communications Equipment (DCE) allude to the kinds of gear on either end of a serial association. As a rule, DTE and DCE allude to PC hardware and modems, separately. For more data about cabling a RS-232 port to different gadgets with a serial ENET interface, the user increases every one of the highlights innate in an arranged gadget: fewer cabling separation limitations, gadget sharing, and correspondence with gadgets all through the Internet.

In a serial application, the user is commonly confined to the separation constraints of the RS-232. Since the serial ENET interface utilizes Ethernet, the user can add a boundless separation to their application by exploiting the separations accessible by utilizing an arranged gadget. Gadget imparting to a serial ENET interface occurs on a per port premise. That is, although the serial ENET interface bolsters arrange associations from different hosts, every serial port is related with just a single host at any given moment.

PCI-8432/2 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-8432/2
ManufacturerNational Instruments
Part Number779143-01
TypeRS232 Serial Interface Device
Number of Ports2
StandardRS232
IsolatedYes
Maximum Baud Rate1000 kbits/s (1 Mbps)
Connector TypeDB-9 male
FIFO Size128 Bytes
Power Requirements+5 VDC -- 380 mA
Dimensions4.2 in.× 6.9 in.
Weight0.22 lb.
Software DriverNI-Serial
WarrantyOne Year Warranty
PCI-8432/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

PCI-8432-2 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-8432/2
Part Number:779143-01
Type:Serial Interface
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PCI-8432-2

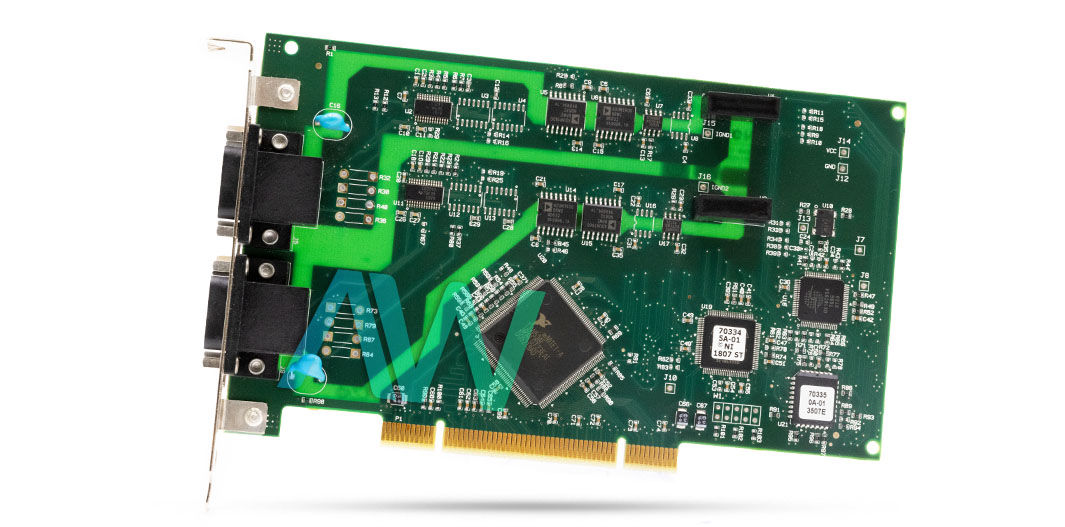

PCI-8432/2 National Instruments Serial Interface | Apex Waves | Image

Main Image

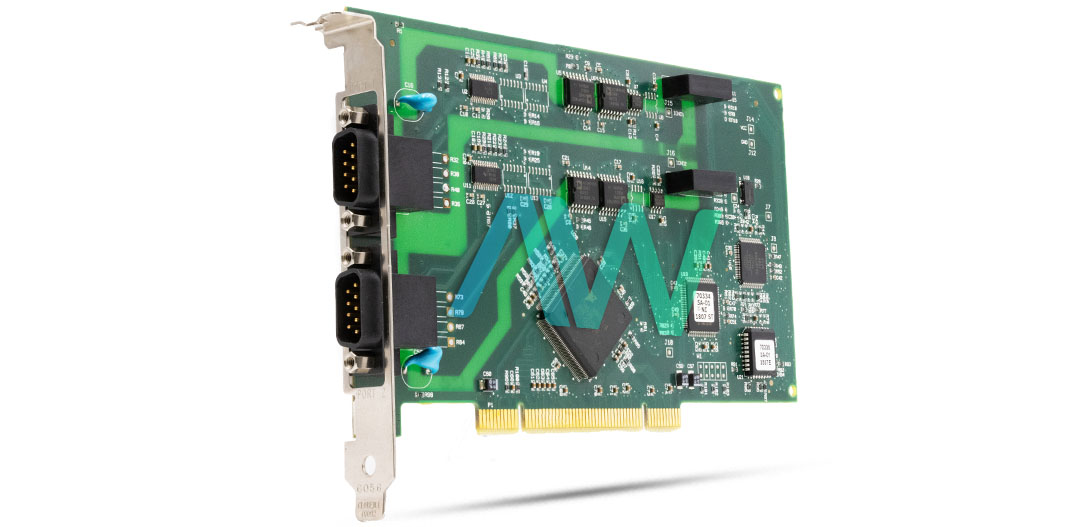

PCI-8432/2 National Instruments Serial Interface | Apex Waves | Image
