USB-6343

4.8/5 | 16 ratings

Modular Systems > National Instruments > USB Multifunction Devices

Part Number USB-6343
Manufacturer/Brand National Instruments
Description: USB-6343, NI‑STC3 Timing Technology, Analog and Digital I/O, 48 Digital I/O Channels, NI Multifunction I/O Device
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments USB-6343 Multifunction I/O Device

The National Instruments USB-6343 (Part Numbers: 781439-01, 782253-01, 782252-01, and 150199C-01L) is a Multifunction I/O Device from the X Series. This device has 16 differential (or 32 single-ended) analog input channels, featuring 16 bits of ADC resolution and a maximum sample rate of 500 kS/s. The flexible NI USB-6343 offers simultaneous update rates, which differ depending on the number of channels. The maximum update rate for one channel is 900 kS/s, two channels is 840 kS/s, three channels is 775 kS/s, and four channels is 719 kS/s.

The analog input channels of the NI USB-6343 multifunction I/O device are safeguarded against damage from overvoltage with protection of ±25 V when the device is powered on. When powered off, it is still protected with ±15 V. These values are sufficient for a maximum of two analog input pins. The USB-6343 from NI also features 4 analog output channels, which come equipped with 16 bits of DAC resolution. These output channels have a maximum sample rate of 500 kS/s, offering high resolution performance for a wide range of applications.

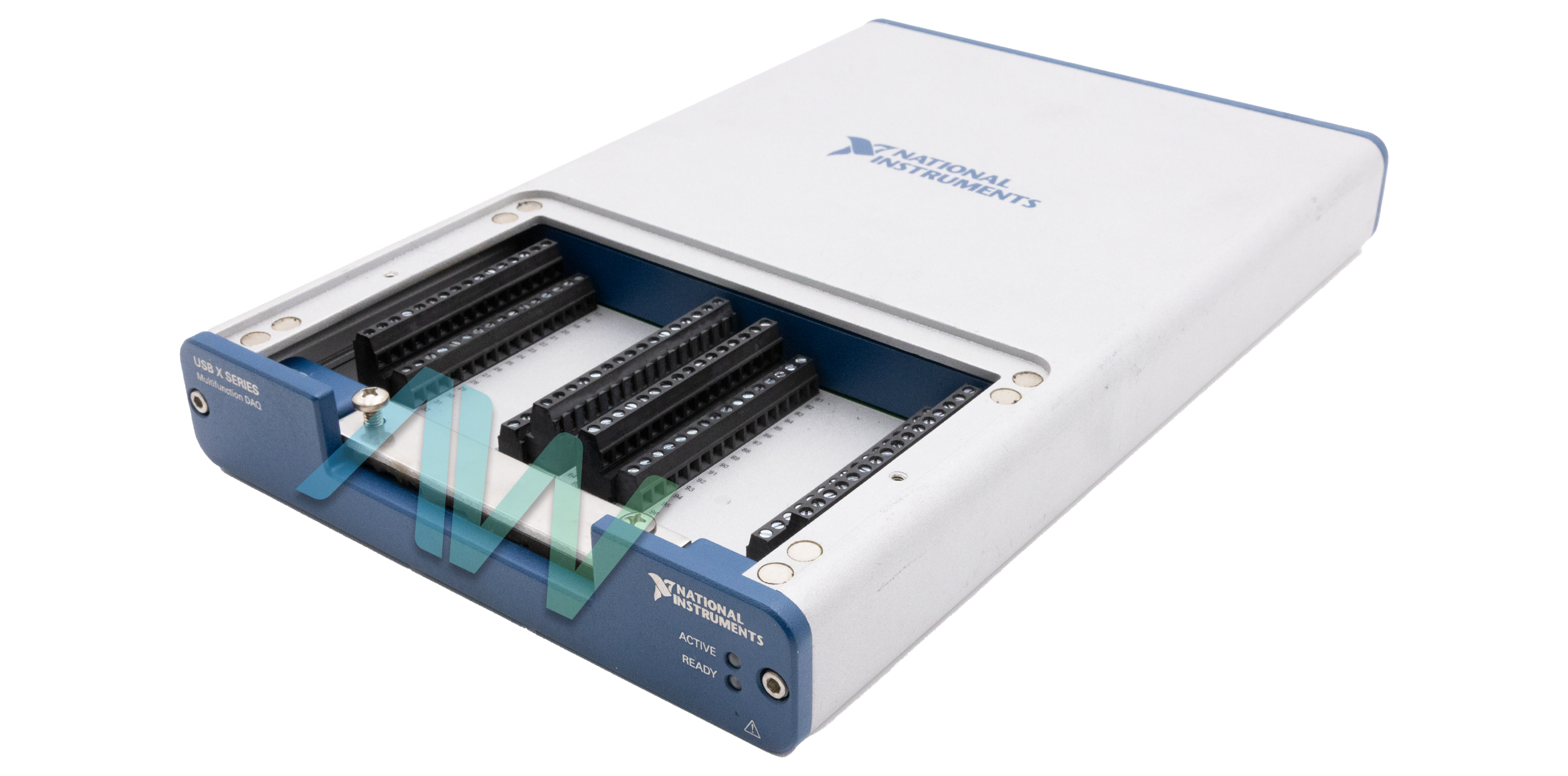

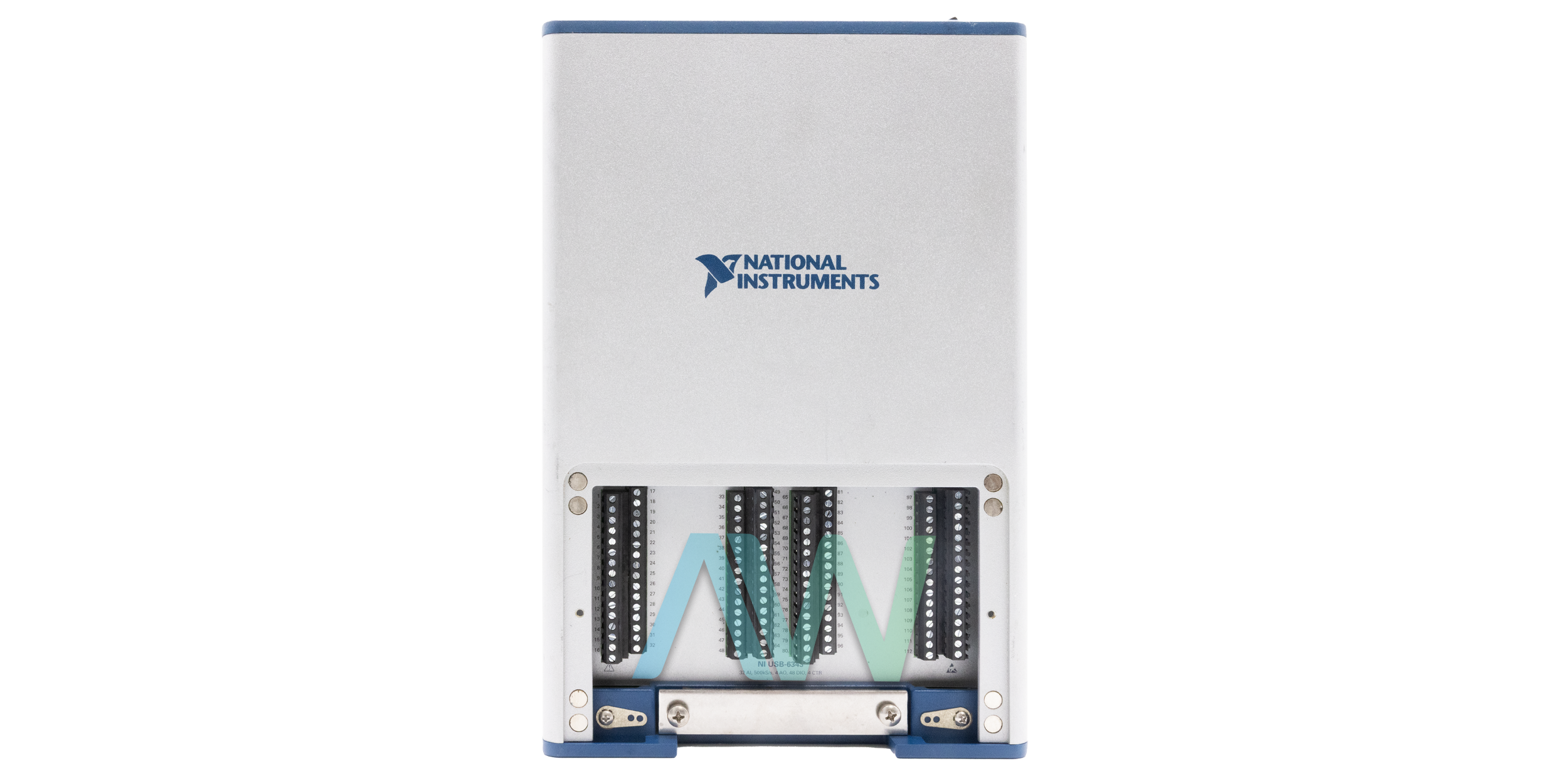

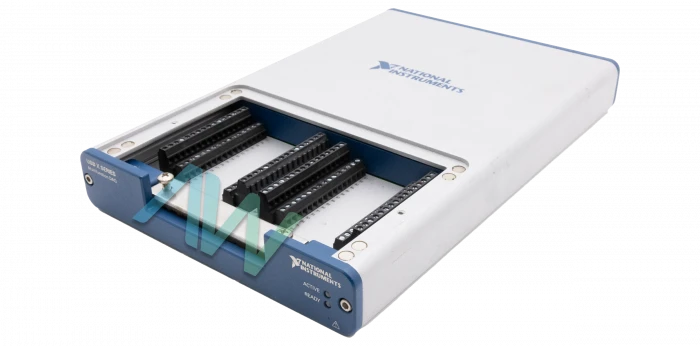

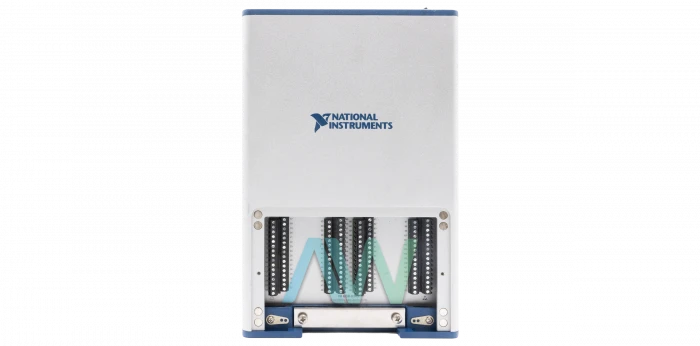

The various part numbers for the NI USB-6343 differ depending on their connector type. Part number 781439-01 is equipped with screw terminal front connectors, while part number 782253-01 features BNC front connectors. In addition, 782252-01 is the descriptive part number for the board only kit of the multifunction I/O device.

The X Series NI USB-6343 offers DC output coupling and a guaranteed 16 bits of resolution for monotonicity. This device provides 16-bits resolution measurements for monotonicity. The screw terminal I/O connector variation of the device features 128 screw terminals, while the BNC I/O connector version provides 30 BNCS and 60 screw terminals.

Designed only for use indoors, the NI USB-6343 I/O device should be operated in environments where the temperatures range from 0 °C to 45 °C. The device has a storage temperature range of -40 °C to 70 °C. The screw terminal variant of the USB-6343 has a weight of 1.445 kg (3 lb 3 oz) and dimensions measuring 26.4 cm × 17.3 cm × 3.6 cm (10.4 in. × 6.8 in. × 1.4 in.). In contrast, the BNC connector module weighs 1.803 kg (3 lb 15.6 oz) and is sized at 20.3 cm × 18.5 cm × 6.8 cm (8.0 in. × 7.3 in. × 2.7 in.).

ModelUSB-6343
ManufacturerNational Instruments
Part Numbers781439-01, 782253-01, 782252-01, 150199C-01L
TypeMultifunction I/O Device
Analog Input Channels32 single-ended or 16 differential
Analog Output Channels4
Maximum Sample Rate500 kS/s
DimensionsScrew Terminal: 10.4 × 6.8 × 1.4 in.
BNC: 8.0 × 7.3 × 2.7 in.
WeightScrew Terminal: 3 lb 3 oz.
BNC: 3 lb 15.6 oz.
WarrantyThree Year Warranty
USB-6343 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the USB-6343:

150199A-01L, 150199B-01L, 150199C-01L, 150199D-01L, 150199E-01L, 151931A-01L, 151931A-02L, 151931B-01L, 151931C-01L, 152440A-01L, 152806A-01L, 152806A-02L, 152806B-01L, 152806B-02L, 152806C-01L, 152806C-02L, 152806D-01L, 152808A-01L, 781439-01, 782252-01, 782253-01

National Instruments USB-6343 Frequently Asked Questions



Question: What is the difference between the part numbers for the NI USB-6343?

Answer: The differences is that part number 781439-01 has screw terminal front connectors, part number 782253-01 has BNC front connectors, and part number 782252-01 is the board only version of the USB-6343.



Question: How many bidirectional digital channels does the NI USB 6343 X Series DAQ have?

Answer: The NI USB 6343 X Series DAQ has 48 bidirectional digital channels.



Question: How many I/O connectors does the NI USB 6343 have?

Answer: The NI USB 6343 screw terminal version has 128 screw terminals, while the BNC version has 30 BNCs and 60 screw terminals.



Question: What are the power supply requirements for the USB X Series 6343?

Answer: The power supply requirements for the USB X Series 6343 are 11 to 30 VDC, 30 W, 2 positions 3.5 mm pitch pluggable screw terminal with screw locks.

  USB-6343 PDF Manuals
