NI TB-2676 Terminal Block

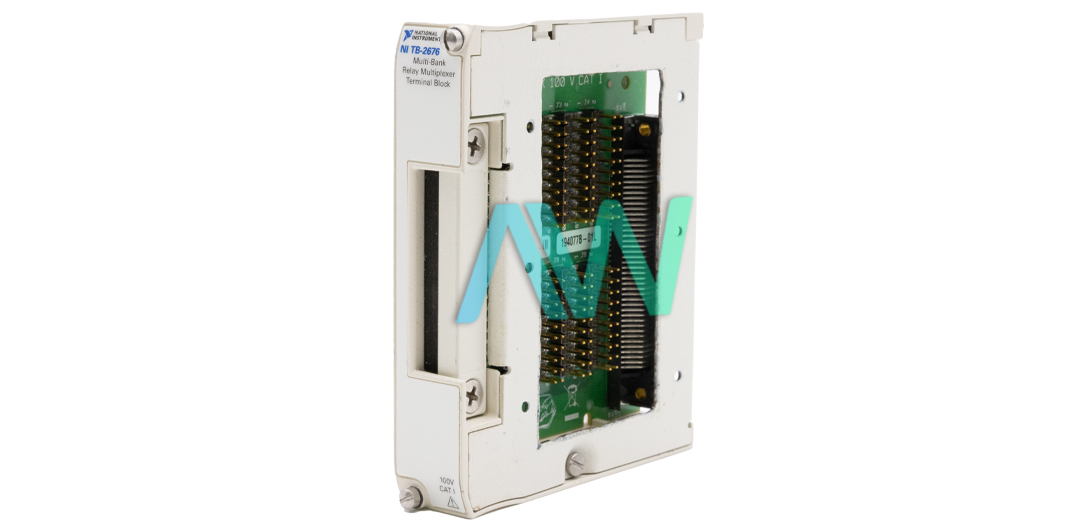

The TB-2676 (Part Numbers: 194077-01L and 779535-01) is a Terminal Block from National Instruments. This Terminal Block is designed to be deployed with the NI PXI-2576 Multiplexer. You can use this Terminal Block to operate your Multiplexer in all possible configurations. The NI TB-2676 comes with a 160-position rear connector. The front connector of the PXI-2576 Multiplexer and the rear connector of this Terminal Block are designed to connect. Thus, the connection between these two devices does not require a cable.

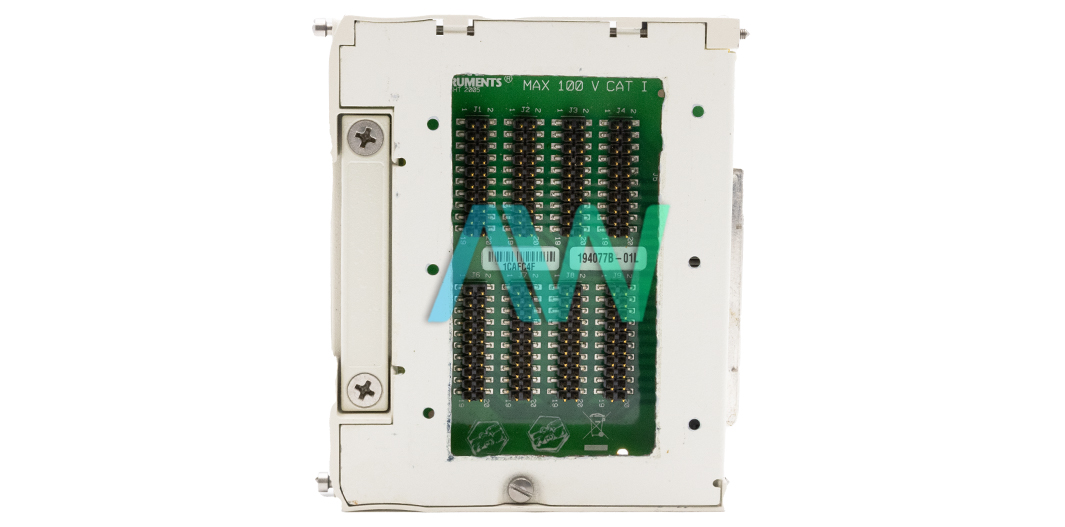

For signal connections, the NI TB-2676 comes with 8 ribbon cable headers. This Terminal Block is only designed for Measurement CAT I applications and can be deployed in systems where operating voltages do not exceed 100V. A set of eight ribbon cable assemblies with 0.100 inches pitch is required for the deployment of this Terminal Block. For signal connections, the ribbon cable headers can be accessed after the removal of the top cover.
| Model | TB-2676 |
|---|---|
| Manufacturer | NI |
| Part Numbers | 194077-01L and 779535-01 |
| Type | Terminal Block |
| Connection | Ribbon cable headers |
| Compatible Model | PXI-2576 |
| Maximum Switching Voltage | 100 V |
| Configurations | All available |
| Warranty | 2-3 Year Warranty |
| TB-2676 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the TB-2676:
194077A-01, 194077B-01L, 194077C-01L, 779535-01
