PXI-2576

4.8/5 | 6 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2576
Manufacturer/Brand National Instruments
Description: PXI-2576, 2-Wire, PXI Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

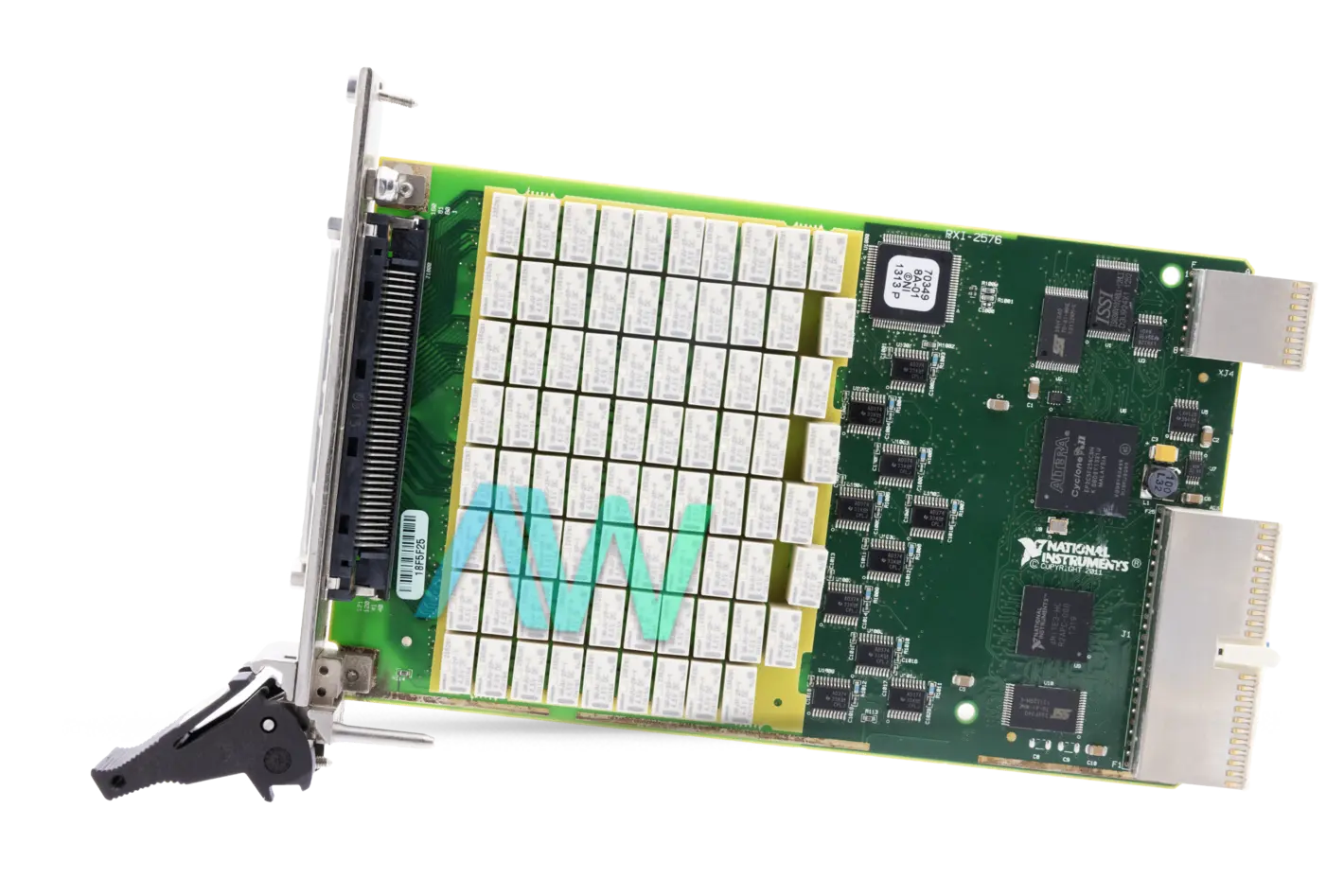

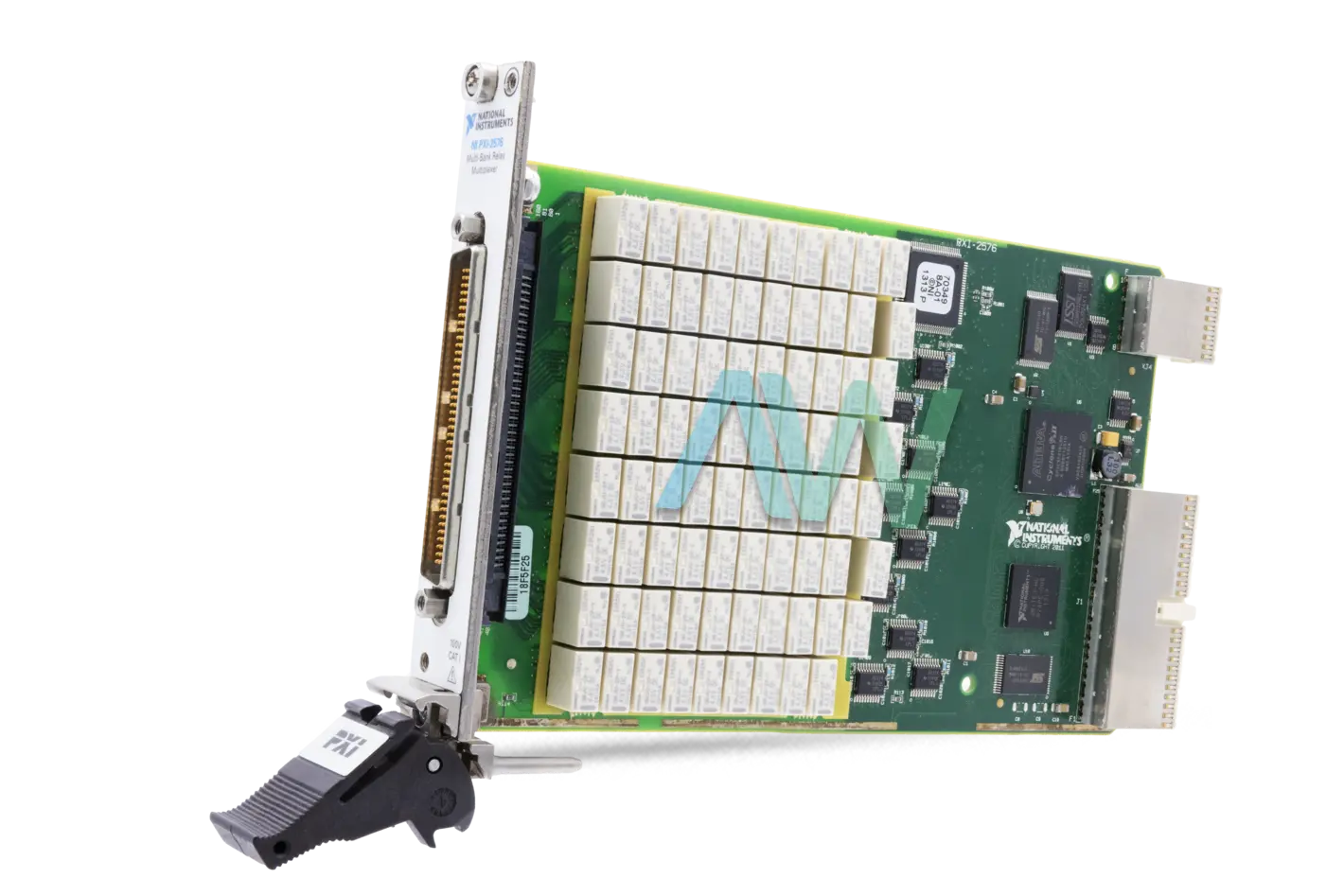

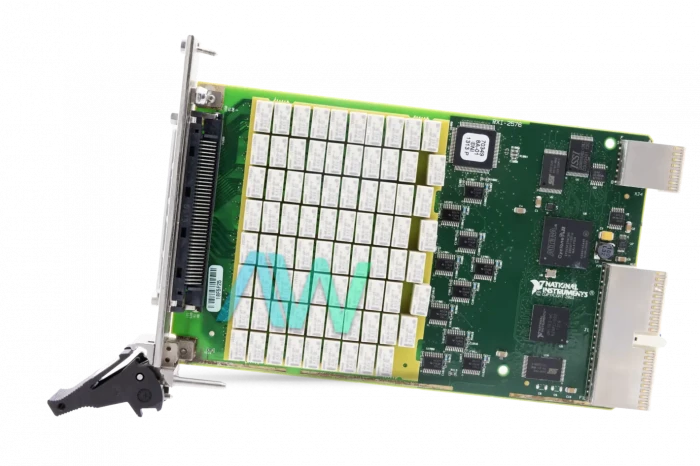

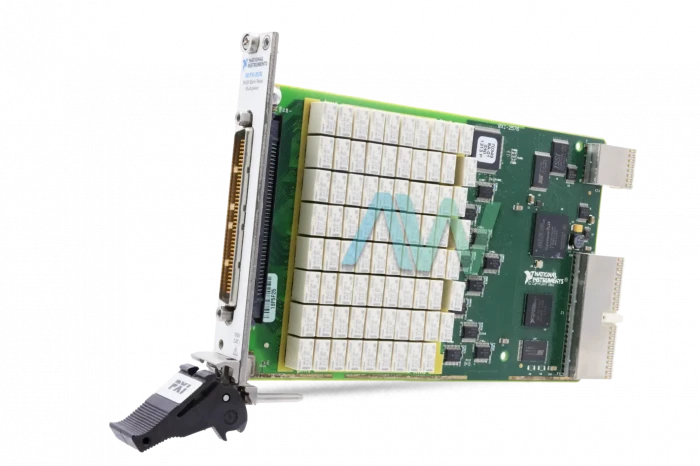

National Instruments PXI-2576 PXI Multiplexer Switch Module

The National Instruments PXI-2576 (Part Numbers: 778572-76, 193135D-01) is a PXI Multiplexer Switch Module twith 16 banks of 4x1 2-wire multiplexers. Because of the adaptable engineering of the PXI-2576, the user can arrange it with a few topologies that make it appropriate for parallel estimation activities that require few channels. Another option is for the user to join all the multiplexer banks to shape a solitary multiplexer with a huge number of channels that has 64 2-wire channels. It additionally has relay counting for relay monitoring and deterministic activity with equipment triggers to enhance test results.

The PXI-2576 counts relay closures on each relay. Relay counts are increased each time a relay is activated. The user can recover the counts stored on board the module automatically and utilize them for predictive maintenance to decrease unexpected framework downtime.

NI estimation hardware is calibrated to guarantee estimation precision and confirm that the gadget meets its published specifications. To guarantee the ongoing exactness of the user’s estimation hardware, NI offers basic or detailed recalibration benefits that gives continuous ISO 9001 audit compliance and confidence in estimations.

The NI PXI-2576 relays are single-side stable. When power is expelled from the relay coil, the relay returns to its de-energized state. The de-invigorated state opens all the relays, disengaging each channel signal from its corresponding common.



ModelPXI-2576
ManufacturerNational Instruments
Part Numbers778572-76, 193135D-01
TypePXI Multiplexer Switch Module
Banks1, 2, 4, 8, 16
Channels4, 8, 16, 32, 64
Switch Bandwidth30 MHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight12 oz.
WarrantyThree Year Warranty
PXI-2576 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2576:

193135A-01, 193135B-01, 193135C-01, 193135D-01, 193135E-01L, 193135F-01L, 193135G-01L, 778572-76

National Instruments PXI-2576 Frequently Asked Questions



Question: Which topologies are possible for the NI PXI-2576?



Answer: The NI PXI-2576 has the following independent topologies: a 2-wire sixteen 4 x 1 multiplexer, 2-wire octal 8 x 1 multiplexer, 2-wire quad 16 x 1 multiplexer, 2-wire dual 32 x 1 multiplexer, and a 2-wire 64 x 1 multiplexer arrangement.



Question: What is the minimum switching power for each channel on the PXI-2576?



Answer: Each channel on the PXI-2576 has a minimum switching power of 30 W, 37.5 VA.



Question: What is the scan rate of the PXI-2576 Multiplexer Switch Module?



Answer: The PXI-2576 Multiplexer Switch Module has a scan rate of 600 cycles/s.



Question: What type of relays does the PXI-2576 module utilize?



Answer: The PXI-2576 module utilizes electromechanical relays.

  PXI-2576 PDF Manuals

  PXI-2576 Diagrams

Driver Downloads for PXI-2576






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: PAI-2576, PSI-2576, PXI-E576, PXI-2T76, PXI-257T

PXI-2576



Modular Systems > National Instruments > PXI Multiplexer Modules

PXI-2576
4.8/5 | 6 ratings

PXI-2576, 2-Wire, PXI Multiplexer Switch Module

In Stock | Ships Today
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

National Instruments PXI-2576 PXI Multiplexer Switch Module

The National Instruments PXI-2576 (Part Numbers: 778572-76, 193135D-01) is a PXI Multiplexer Switch Module twith 16 banks of 4x1 2-wire multiplexers. Because of the adaptable engineering of the PXI-2576, the user can arrange it with a few topologies that make it appropriate for parallel estimation activities that require few channels. Another option is for the user to join all the multiplexer banks to shape a solitary multiplexer with a huge number of channels that has 64 2-wire channels. It additionally has relay counting for relay monitoring and deterministic activity with equipment triggers to enhance test results.

The PXI-2576 counts relay closures on each relay. Relay counts are increased each time a relay is activated. The user can recover the counts stored on board the module automatically and utilize them for predictive maintenance to decrease unexpected framework downtime.

NI estimation hardware is calibrated to guarantee estimation precision and confirm that the gadget meets its published specifications. To guarantee the ongoing exactness of the user’s estimation hardware, NI offers basic or detailed recalibration benefits that gives continuous ISO 9001 audit compliance and confidence in estimations.

The NI PXI-2576 relays are single-side stable. When power is expelled from the relay coil, the relay returns to its de-energized state. The de-invigorated state opens all the relays, disengaging each channel signal from its corresponding common.



ModelPXI-2576
ManufacturerNational Instruments
Part Numbers778572-76, 193135D-01
TypePXI Multiplexer Switch Module
Banks1, 2, 4, 8, 16
Channels4, 8, 16, 32, 64
Switch Bandwidth30 MHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight12 oz.
WarrantyThree Year Warranty
PXI-2576 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-2576 Frequently Asked Questions



Question: Which topologies are possible for the NI PXI-2576?



Answer: The NI PXI-2576 has the following independent topologies: a 2-wire sixteen 4 x 1 multiplexer, 2-wire octal 8 x 1 multiplexer, 2-wire quad 16 x 1 multiplexer, 2-wire dual 32 x 1 multiplexer, and a 2-wire 64 x 1 multiplexer arrangement.



Question: What is the minimum switching power for each channel on the PXI-2576?



Answer: Each channel on the PXI-2576 has a minimum switching power of 30 W, 37.5 VA.



Question: What is the scan rate of the PXI-2576 Multiplexer Switch Module?



Answer: The PXI-2576 Multiplexer Switch Module has a scan rate of 600 cycles/s.



Question: What type of relays does the PXI-2576 module utilize?



Answer: The PXI-2576 module utilizes electromechanical relays.
