USB-9162, 1-Slot, CompactDAQ Chassis for C Series Modules
Need an Official Quote?
National Instruments USB-9162 CompactDAQ Chassis

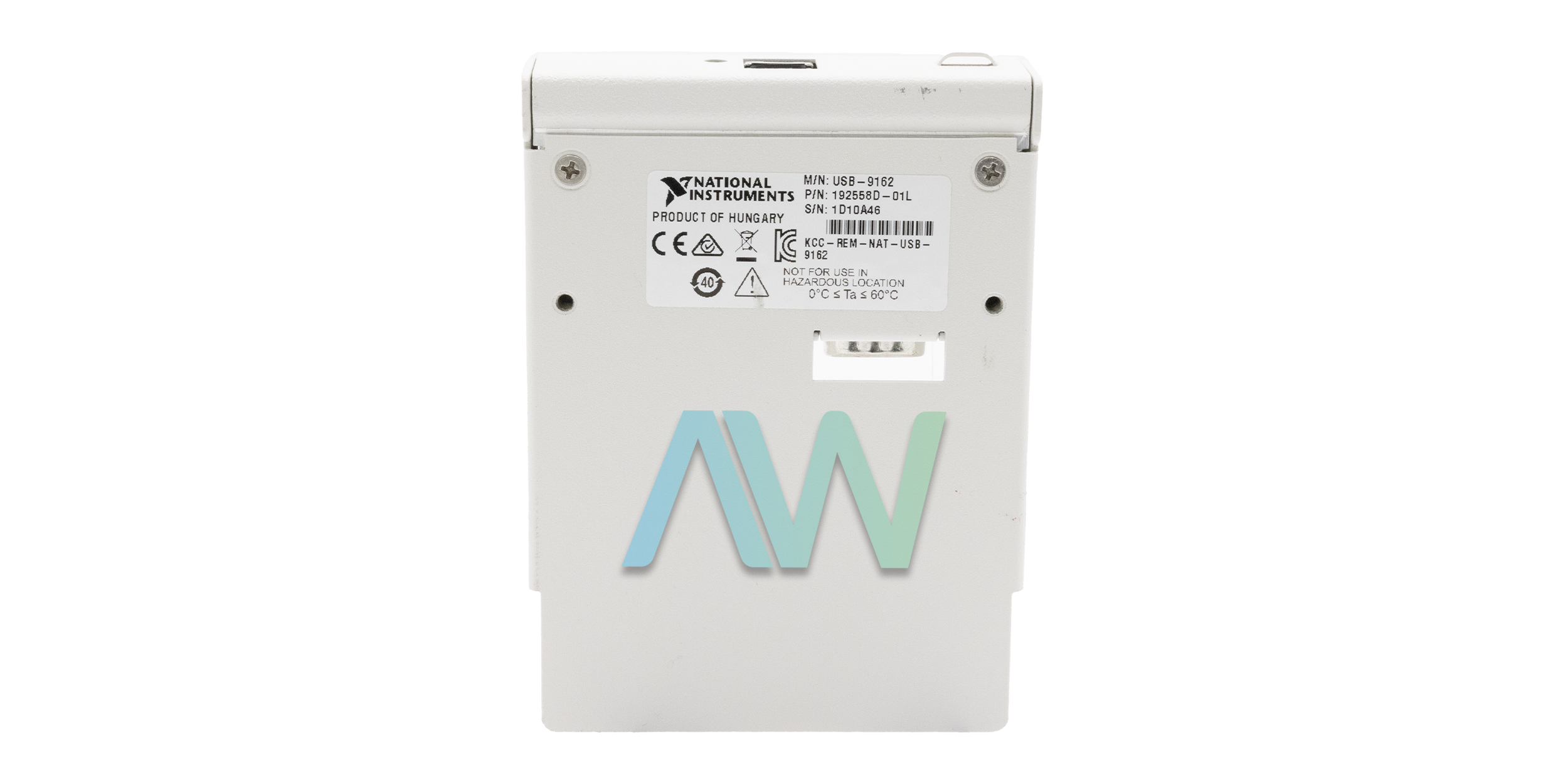

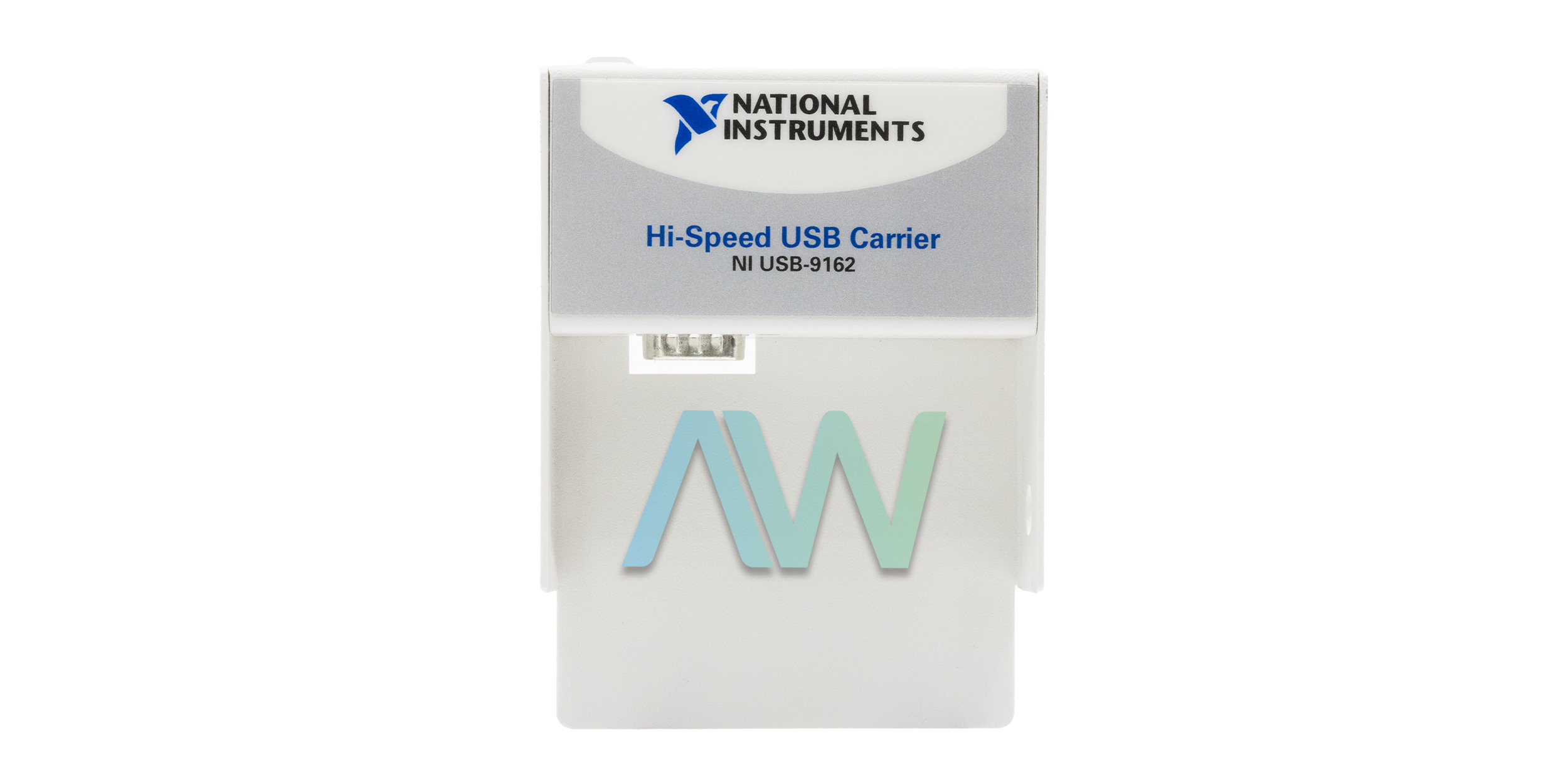

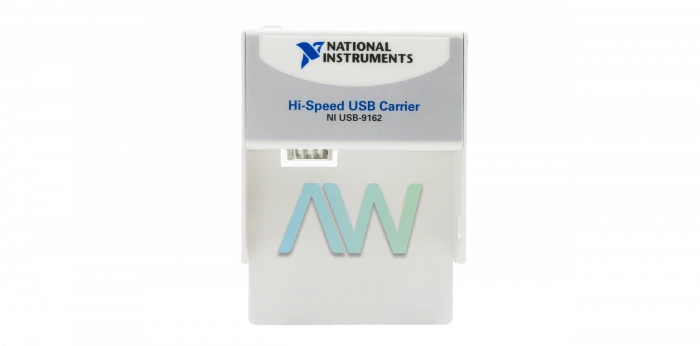

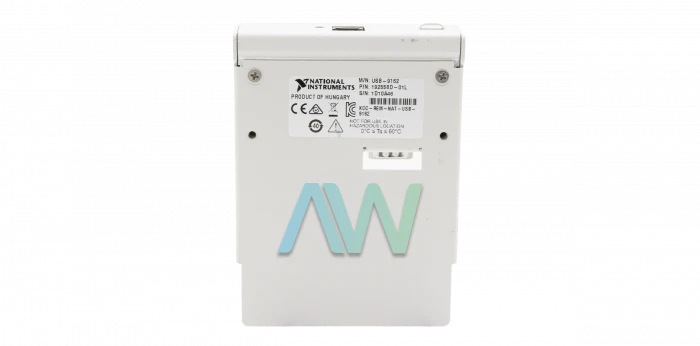

The National Instruments NI USB-9162 (Part Number: 779471-01) is a Single-Module Carrier CompactDAQ Chassis. The USB-9162 is considered an easily portable and cost-effective model for NI C Series modules. This one-slot carrier can be utilized to prototype sensor connections before the user integrates modules into a National Instruments CompactRIO system. The NI USB-9162 Carrier can also be deployed as a debugging instrument for large systems. In addition, the USB-9162 can be used for prototyping sensor links before the modules are introduced into an NI CompactRIO system.
This Chassis supports USB 2.0 Hi-Speed bus interface and consumes 500 mA maximum current from USB while operating and 2.5 mA maximum in suspend mode. The NI USB 9162 offers 250 VAC continuous channel-to-channel isolation and 1500 VAC channel-to-channel withstand isolation. This NI CompacDAQ Chassis is a Measurement Category II instruments, which is for measurements completed on circuits directly linked to the electrical distribution system.
The USB-9162 National Instruments comes with threaded inserts, so it can be mounted to a panel or wall. The USB 9162 features a green LED near the USB connector. The rate of this LEDs blinking indicates different device states. A single blink shows that the device is online and receiving power whereas a double-blink confirms that there is no error and the device is operating normally. This CompactDAQ Chassis does not require additional software installation since it is fully compatible with the NI-DAQmx for Windows and NI-DAQmx Base for Mac OS and Linux. The user can have their NI USB-9162 up and running by inserting the Chassis’ cable into any USB 2.0 port available on a PC or Mac if the required program is already installed. The NI device weighs 3.5 oz, and measures 4.51 x 3.37 x 0.99 in. in physical dimensions. It has a recommended operating temperature range of 0 to 60 °C, a storage temperature range of -40 to 85 °C, and a non-condensing operating and storage humidity range of 10 to 90% RH and 5 to 95% RH respectively.
USB-9162 Obsolete Status has been announced by National Instruments, but the Chassis will still be available for purchase and repairs by Apex Waves.
Model | USB-9162 |
---|---|
Manufacturer | National Instruments |
Part Number | 779471-01 |
Type | CompactDAQ Chassis |
Bus Interface | USB 2.0 Hi-Speed |
Current Consumption from USB | 500 mA, maximum |
Compatible Models | NI C Series Modules |
Dimensions | 4.51 in. × 3.37 in. × 0.99 in. |
Weight | 3.5 oz. |
Warranty | Three Year Warranty |
USB-9162 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the USB-9162:
192558A-01, 192558B-01, 192558C-01, 192558C-02, 192558D-01L, 192558D-02L, 192558D-03L, 192558D-04L, 779471-01
National Instruments USB-9162 Frequently Asked Questions
Question: What is the NI USB 9162 compatibility?
Answer: The NI USB 9162 compatibility is with the modules that function with the USB single module carrier in C Series chassis, including NI CompactDAQ, CompactRIO, or R Series expansion chassis.
Question: What is the channel-to-earth ground isolation for the NI USB-9162 Carrier?
Answer: The channel-to-earth ground isolation for the NI USB-9162 Carrier is 250 VAC, Measurement Category II continuous and 3000 VAC withstand.
Question: Which driver should be used with the USB-9162 National Instruments?
Answer: The NI USB 9162 driver is NI-DAQmx.
