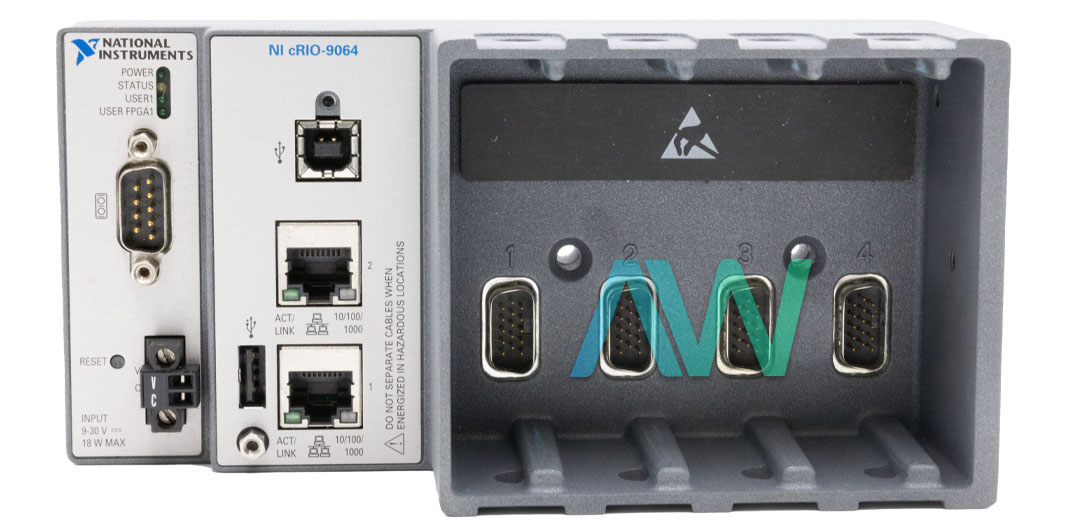

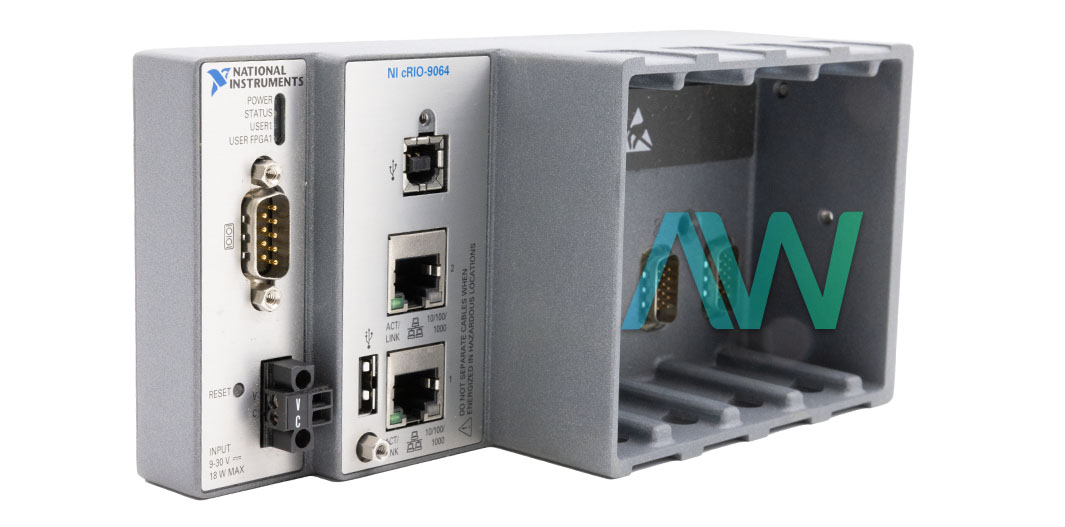

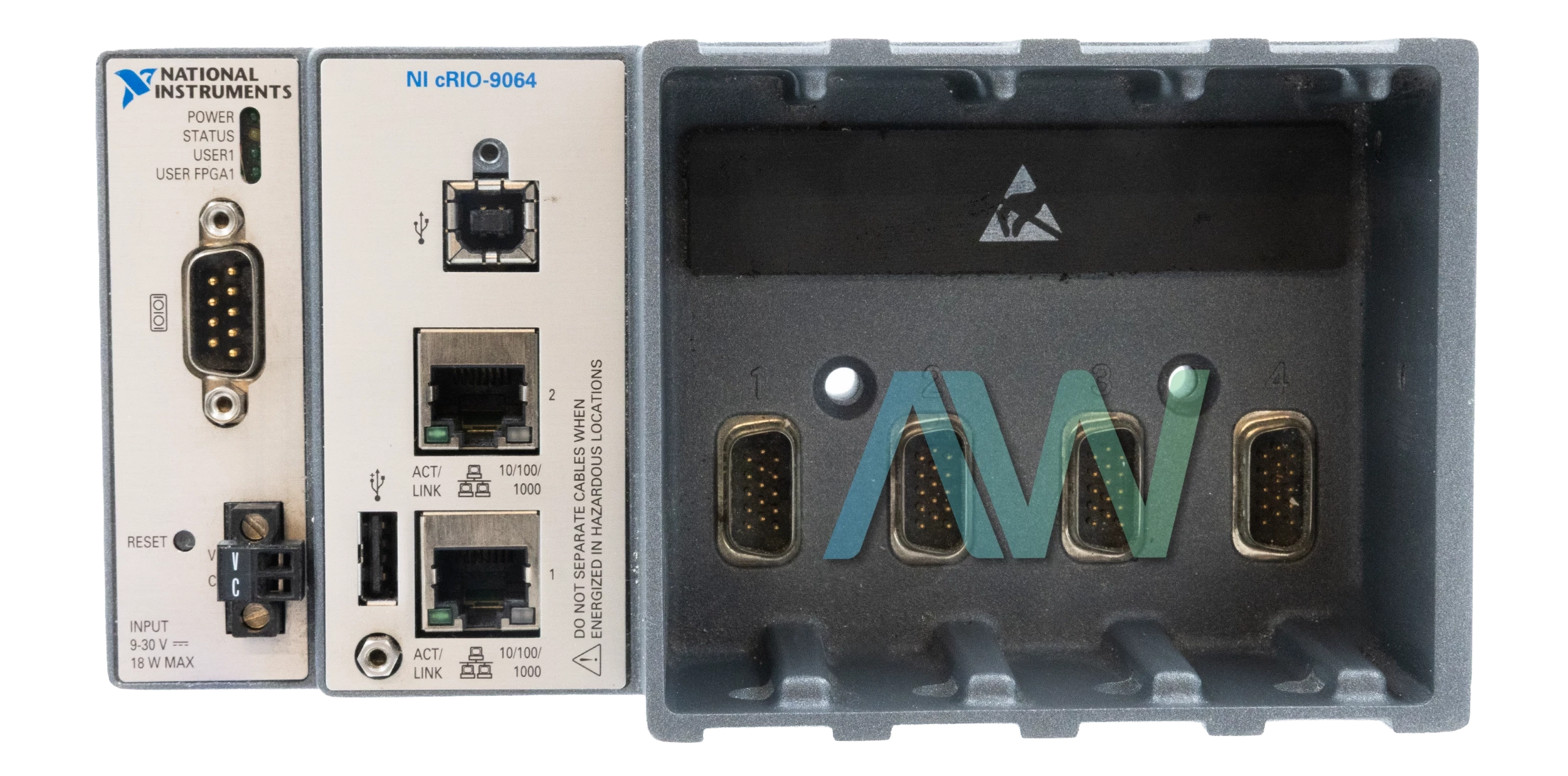

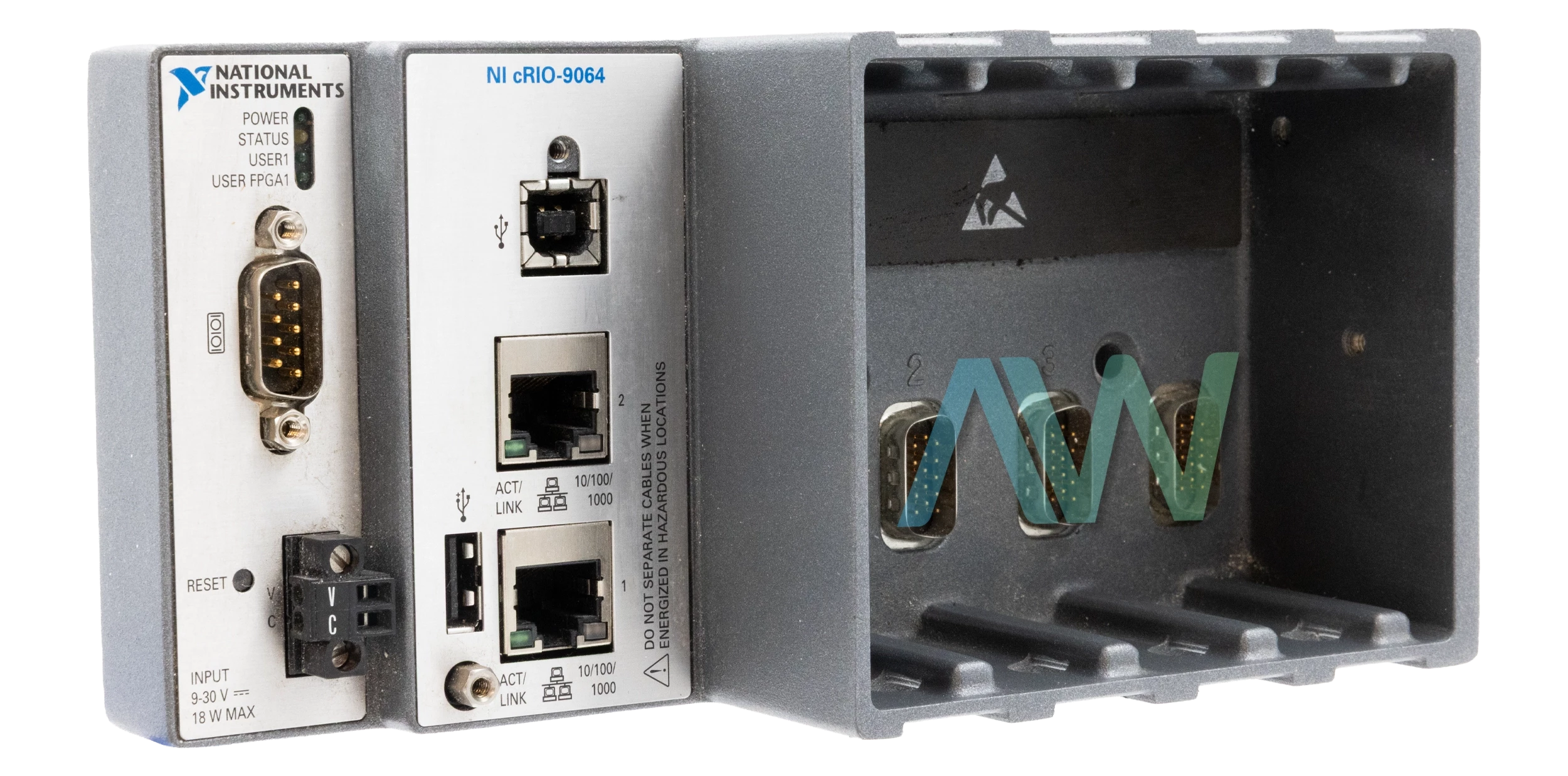

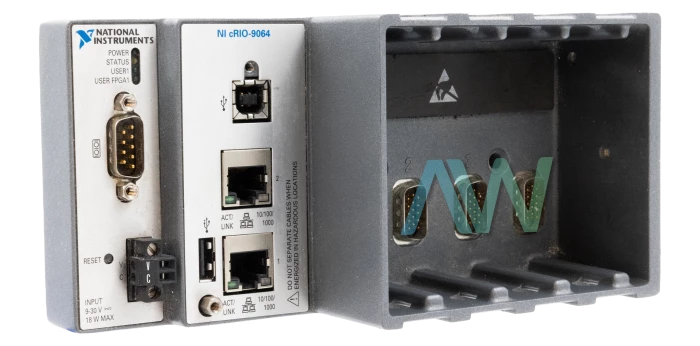

National Instruments cRIO-9064 CompactRIO Controller
The cRIO-9064 (Part Number: 783831-01) is a 4-slot CompactRIO controller from National Instruments that comes with a USB gadget port used for setup, application sending, troubleshooting, and upkeep. For instance, the user can utilize the USB gadget port to introduce programming or driver refreshes amid field support as opposed to intruding on correspondence on the RJ-45 Ethernet ports. The cRIO-9064 controller additionally has a protected mode.
In terms of memory, this CompactRIO Controller is equipped with 512 MB DRAM and 1 GB of nonvolatile storage. It also contains an internal ongoing clock that keeps up framework time when the cRIO-9064 is controlled. The framework clock of the device is synchronized with the interior constant time at startup. The user can set the constant clock utilizing MAX, or they can set the clock automatically utilizing LabVIEW.
The NI cRIO-9064 contains a lithium cell battery that stores the framework clock data when the controller is turned off. There is just a slight depletion on the battery when control is connected to the cRIO-9064 power connector. The rate at which the battery channels when control is separated relies upon the encompassing stockpiling temperature. For longer battery life, store the cRIO-9064 CompactRIO controller at a cooler temperature and apply capacity to the power connector. LabVIEW mounts USB gadgets to the media/sdx1 index and makes representative connections (/u, /v, /w, or /x) to the media mount point, beginning with /u if it is accessible. To keep any document defilement to outside-capacity devices, confirm that any record IO activities with the specific drive are complete.
| Model | cRIO-9064 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783831-01 |
| Type | CompactRIO Controller |
| Slots | 4 |
| CPU Frequency | 667 MHz |
| Storage | 1 GB |
| Network Interface | 10Base-T, 100Base-T, 1000Base-T Ethernet |
| DMA Channels | 16 |
| Voltage Input Range | 9 VDC to 30 VDC |
| Max Power Input | 18 W (w/ 4 C Series Modules), 14 W (w/o Modules) |
| Dimensions | 7.01 x 3.44 x 2.63 in. |
| Weight | 24.39 oz. |
| cRIO-9064 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cRIO-9064:
National Instruments cRIO-9064 Frequently Asked Questions
Question: What is the maximum cabling distance for the controller?
Answer: The maximum cabling distance is 100 m/segment.
Question: How much block RAM is available on the FPGA of the cRIO-9064?
Answer: The cRIO controller's FPGA has 4480 kbits of available block RAM.
Question: How much power is required by the device?
Answer: The cRIO-9064 has a voltage input range of 9 VDC to 30 VDC.
Question: What operating system is supported by the cRIO-9064?
Answer: The cRIO controller supports a 32-Bit NI Linux Real-Time OS
