PCI-6034E, 16 AI, 8 DIO, Multifunction DAQ
Need an Official Quote?

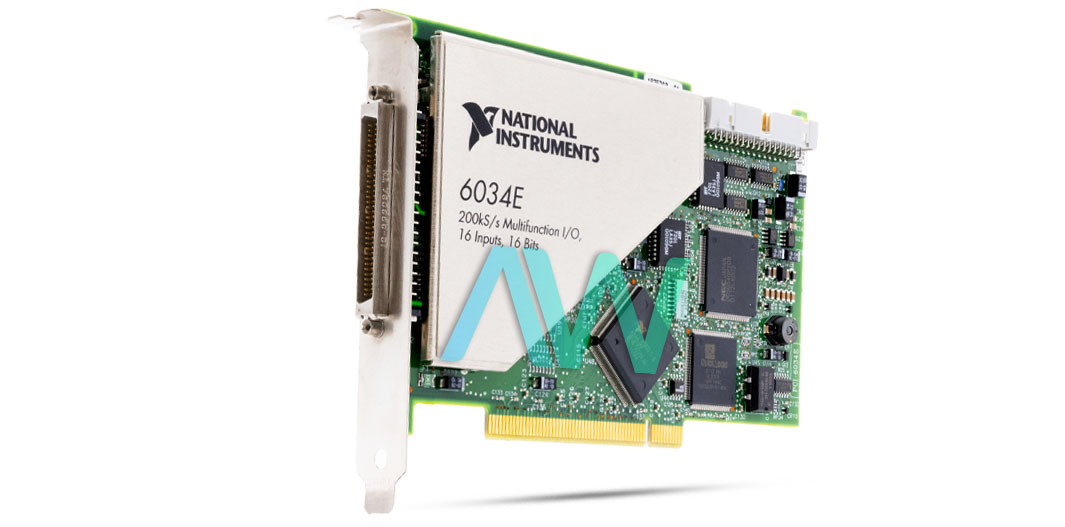

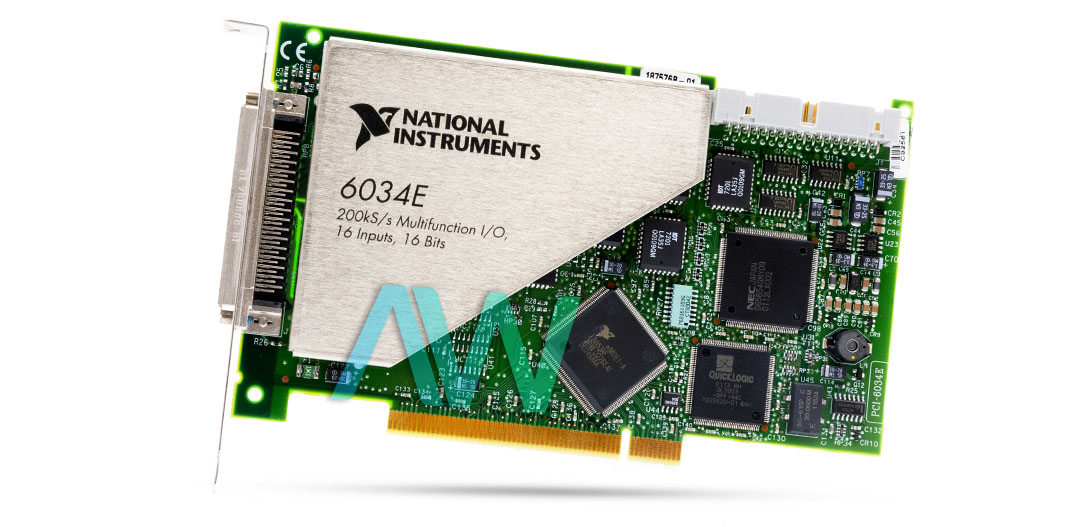

National Instruments PCI-6034E Multifunction DAQ
The NI PCI-6034E (Part number: 778075-01) is an affordable member of the E Series by National Instruments. This Multifunction DAQ is suited for ongoing high-speed information logging, control applications, or high-voltage signal or sensor measurements with the use of NI signal conditioning. The National Instruments PCI-6034E Multifunction DAQ has 16 single-ended or 8 differential analog input channels, which are software-selectable per channel. Each channel has 16 bits resolution and the DAQ has 200 kS/s maximum sampling rate. Every input should stay in the range of ±11 V of ground.
This model has analog input signals titled ACH<0..15>, ASENSE, and AIGND. The association of these simple input signal to the gadget relies upon the kind of information signal source and the design of the simple input channels being used. These boards contain eight lines of computerized I/O for universally useful use. The user can separately program each line for either input or output. At framework startup and reset, the computerized I/O ports are for the most part high impedance. The equipment up/down control for broadly useful counters 0 and 1 are associated locally available to DIO6 and DIO7, separately. Along these lines, the user can utilize DIO6 and DIO7 to control the broadly useful counters. The up/down control signals are input only and do not influence the activity of the DIO lines.
The DAQ-STC gives an exceptionally adaptable interface to associating timing signals to different boards or outer hardware. The PCI-6034E utilizes the RTSI bus to interconnect timing signals amongst the boards, while the Programmable Function Input (PFI) sticks on the I/O connector are used to interface the board to outer hardware. A coasting signal source is not associated in any capacity to the building ground framework. Instead, there is a disconnected ground-reference point. The device is equipped with a 68-pin male SCSI-II type I/O connector. It has a recommended warm-up time of 15 minutes and should be calibrated once a year.
The PCI 6034E weighs 5.3 oz, and measures 6.9 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, and a storage temperature range of –20 to 70 °C.
Model | PCI-6034E |
---|---|
Manufacturer | National Instruments |
Part Number | 778075-01 |
Series | E Series |
Type | Multifunction DAQ |
Analog Input Channels | 16 SE/8 DI |
Input Resolution | 16 bits |
Dimensions | 6.9 in. × 4.2 in. |
Weight | 5.3 oz. |
Warranty | Three Year Warranty |
PCI-6034E Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-6034E:
186169-02, 186169B-02, 186169C-02, 186169D-02, 18757.6, 187576A-01, 187576B-01, 187576C-01, 187576D-01, 187576F-01, 187576G-01, 187576H-01L, 191440A-01, 778075-01, 778075-02
National Instruments PCI-6034E Frequently Asked Questions
Question: What is the maximum working voltage of the PCI-6034E?
Answer: The maximum working voltage of the PCI-6034E is ±11 V, Installation Category I.
Question: How many digital I/O channels does the NI PCI-6034E have?
Answer: The NI PCI-6034E has 8 input/output digital I/O channels.
Question: Which operating systems are compatible with the PCI-6034E?
Answer: The PCI-6034E is compatible with Windows 2000/NT/Me/9x and Mac OS (not all hardware) operating systems.
Question: What is the PCI-6034E driver?
Answer: The PCI-6034E driver is NI-DAQ.
