FP-AO-200

In Stock | Ships in 2-4 Days

NI FP-AO-200, 8 Output Channels, 12-Bit Resolution, Analog Output Module

Rated 4.9/5  |  11 ratings

FP-AO-200 NI Analog Output Module | In Stock Ships Today | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

FP-AO-200 NI Analog Output Module | In Stock Ships Today | Image
FP-AO-200 NI Analog Output Module | In Stock Ships Today | Image
FP-AO-200 New
FP-AO-200 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the FP-AO-200

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships in 2-4 Days

National Instruments FP-AO-200 FieldPoint Analog Loop Output Module

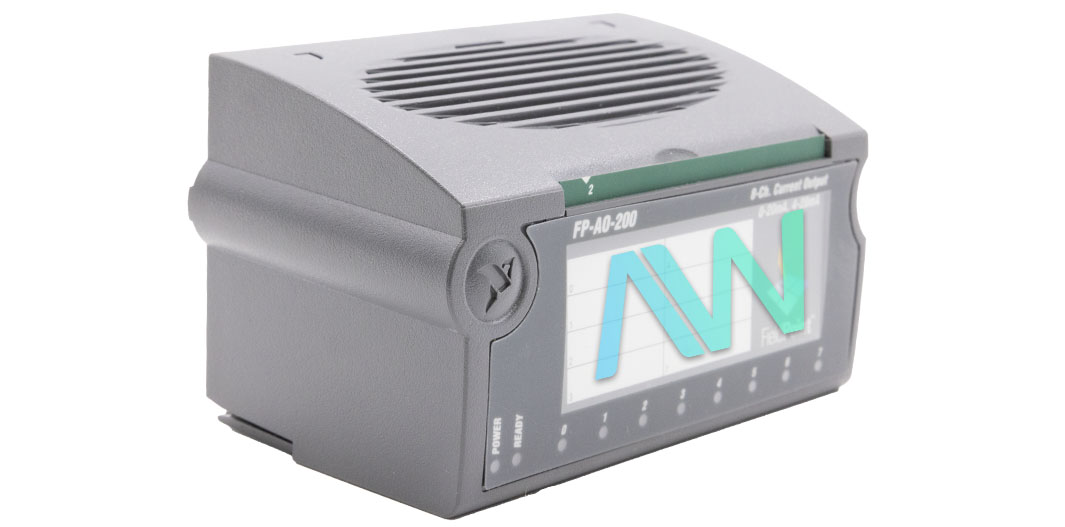

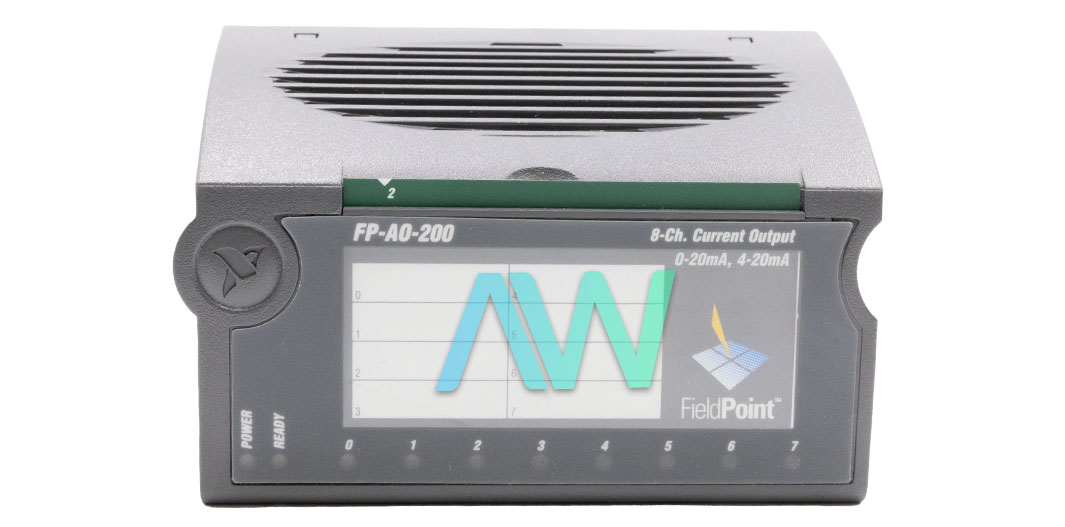

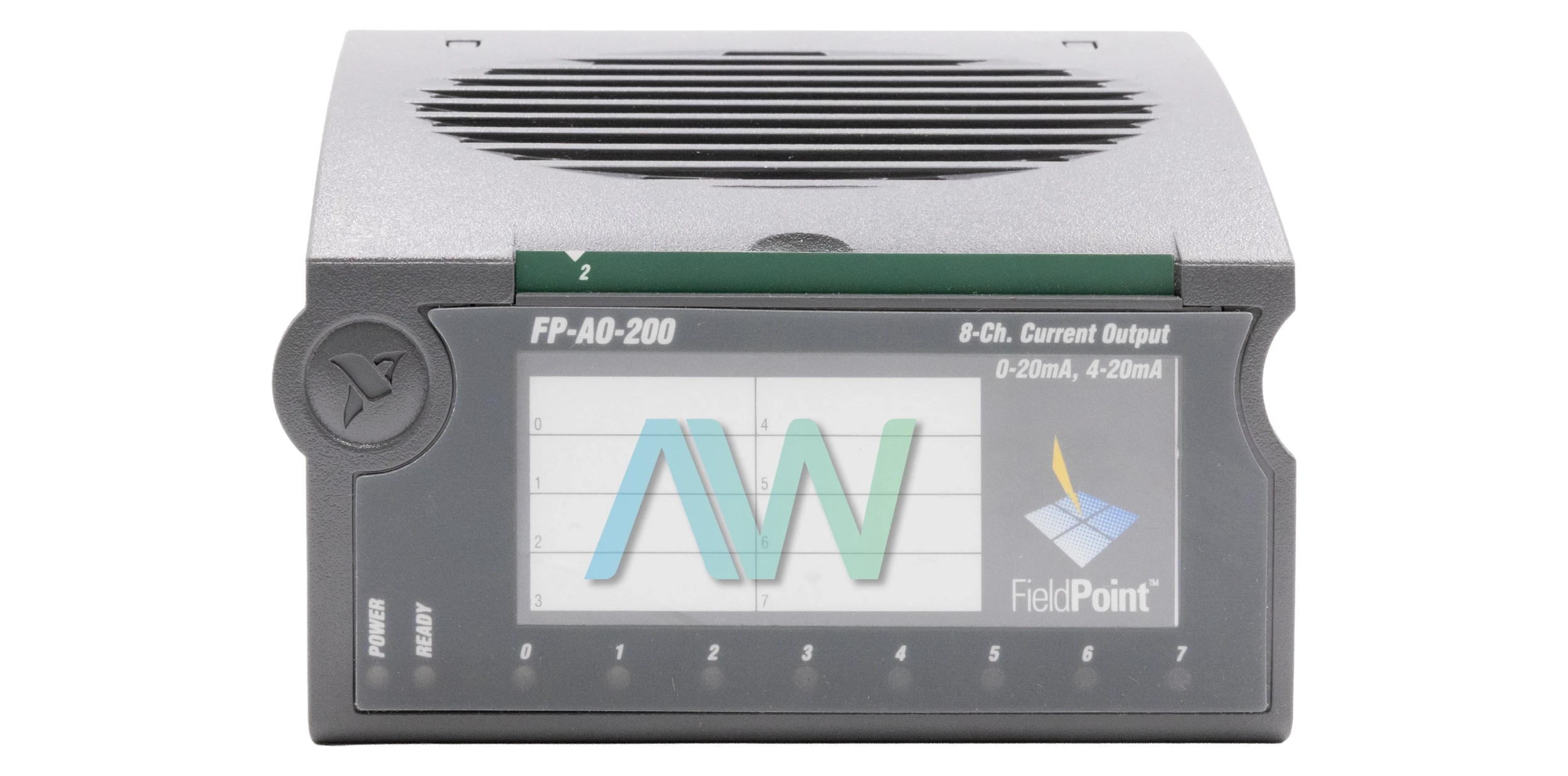

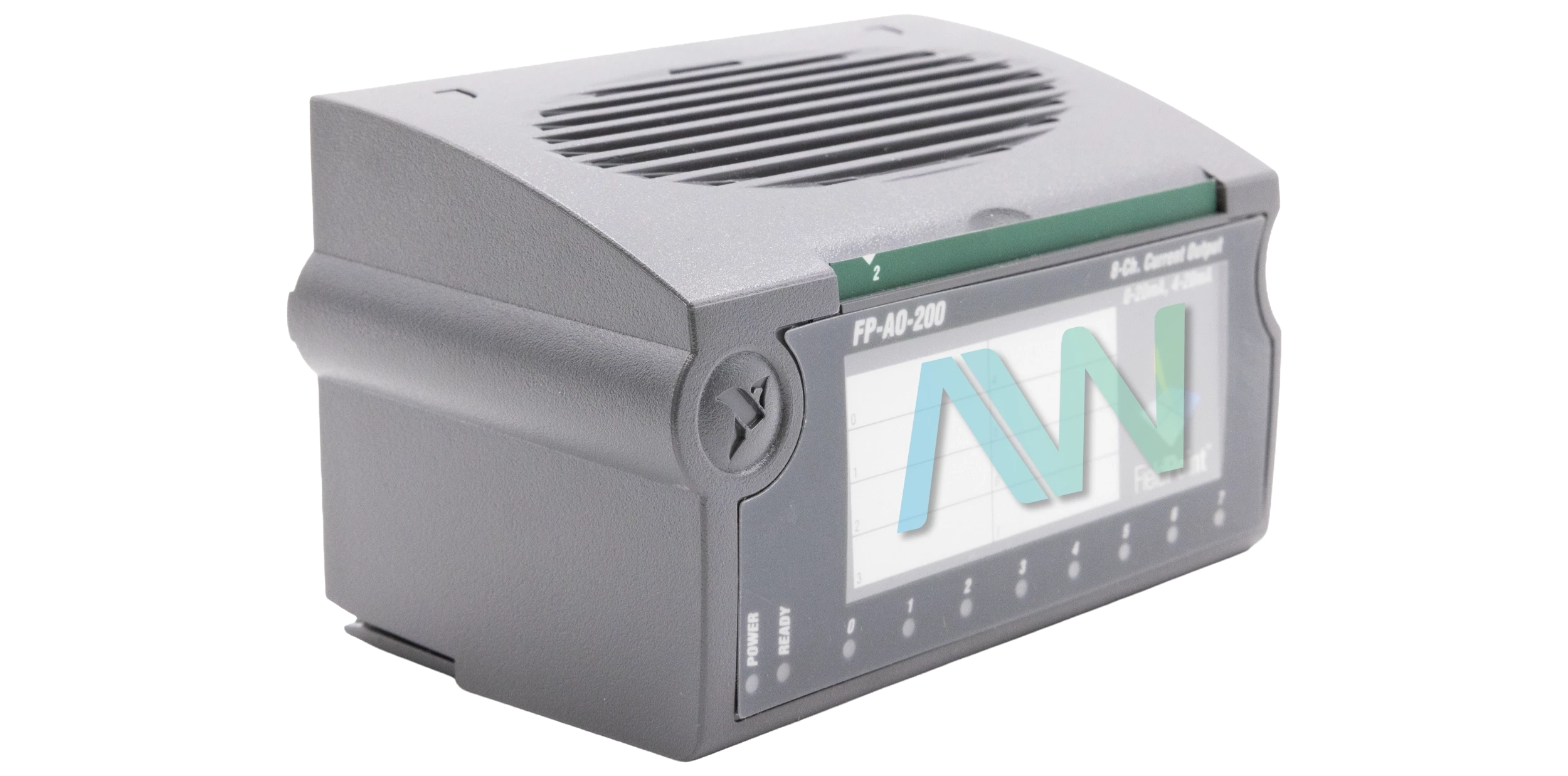

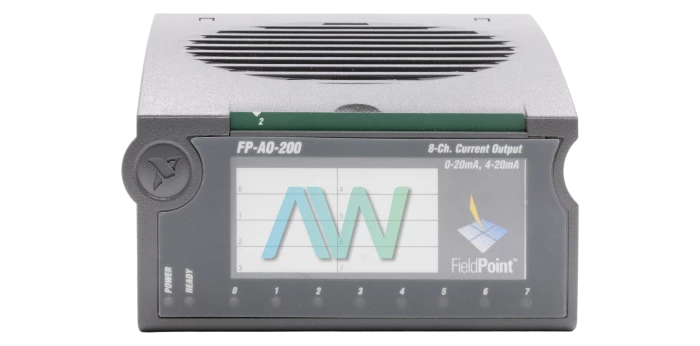

The FP-AO-200 (Part Number: 777518-200) is a FieldPoint analog output module with 8 channels. The module provides current outputs for industrial control loops and other current-driven devices. Because this is a current-output module, it must have external loop power. It does not fully power the loop by itself.

The FP-AO-200 provides channel-to-backplane safety isolation of 2300 Vrms and onboard diagnostics. This module is hot-swappable and can be plugged in without disturbing other modules. The operating power is supplied to the FieldPoint FP-AO-200 from the terminal base.

The eight output channels are single-ended with a resolution of 12 bits. The output channels of the FP-AO-200 are programmable. These channels can be configured to operate on two different output ranges. The FP-AO-200 has an output range of either 0-20 mA or 4-20 mA. The voltage drop in the module is 3 V. The FP-AO-200 includes open-loop detection and short-circuit protection. The maximum conversion rate of the NI FP-AO-200 is 200 updates per second. The module has a slew rate of 0.4 mA/µs.

The module supports external power in a range of 5-24 VDC. The power requirement from the network module is 350 mW. The FP-AO-200 features 10 LED lights. Two indicators display the POWER and READY states. The other eight lights are open-loop indicators. The FP-AO-200 also provides channel wiring through the compatible terminal base, with dedicated output and COM connections for each channel.

Model FP-AO-200
Manufacturer National Instruments
Part Number 777518-200
Type Analog Loop Output Module
Output Channels 8
Resolution 12 Bits
Output Range 0–20 or 4–20 mA, Programmable
Short Circuit Protection? Yes
Hot-swappable? Yes
FP-AO-200 Manual User Manual and Maintenance Manual Available for Download
Price Request a Quote

Associated part numbers for FP-AO-200:

National Instruments FP-AO-200 Frequently Asked Questions



Question: What is the external loop power for the current outputs on the FP-AO-200?

Answer: The external loop power for the current outputs is 5 to 24 VDC.



Question: Can the FP-AO-200 be used outside?

Answer: The module is intended solely for indoor use. However, the module can be used outside if it is mounted inside a sealed enclosure.



Question: What is the all-channel update rate for the NI FP-AO-200?

Answer: The all-channel update rate is 200 Hz. This means all 8 channels are updated together at 200 Hz.
