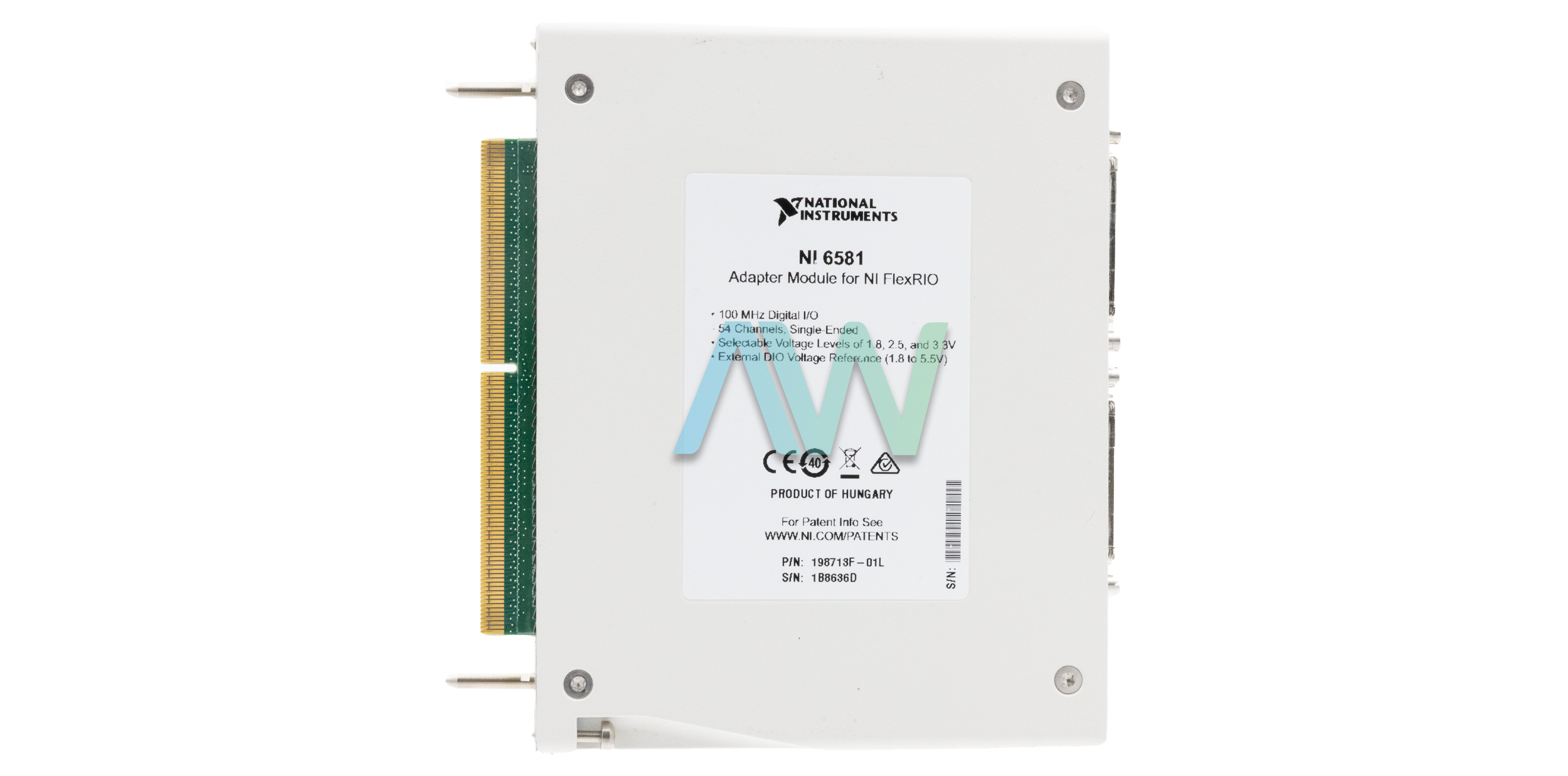

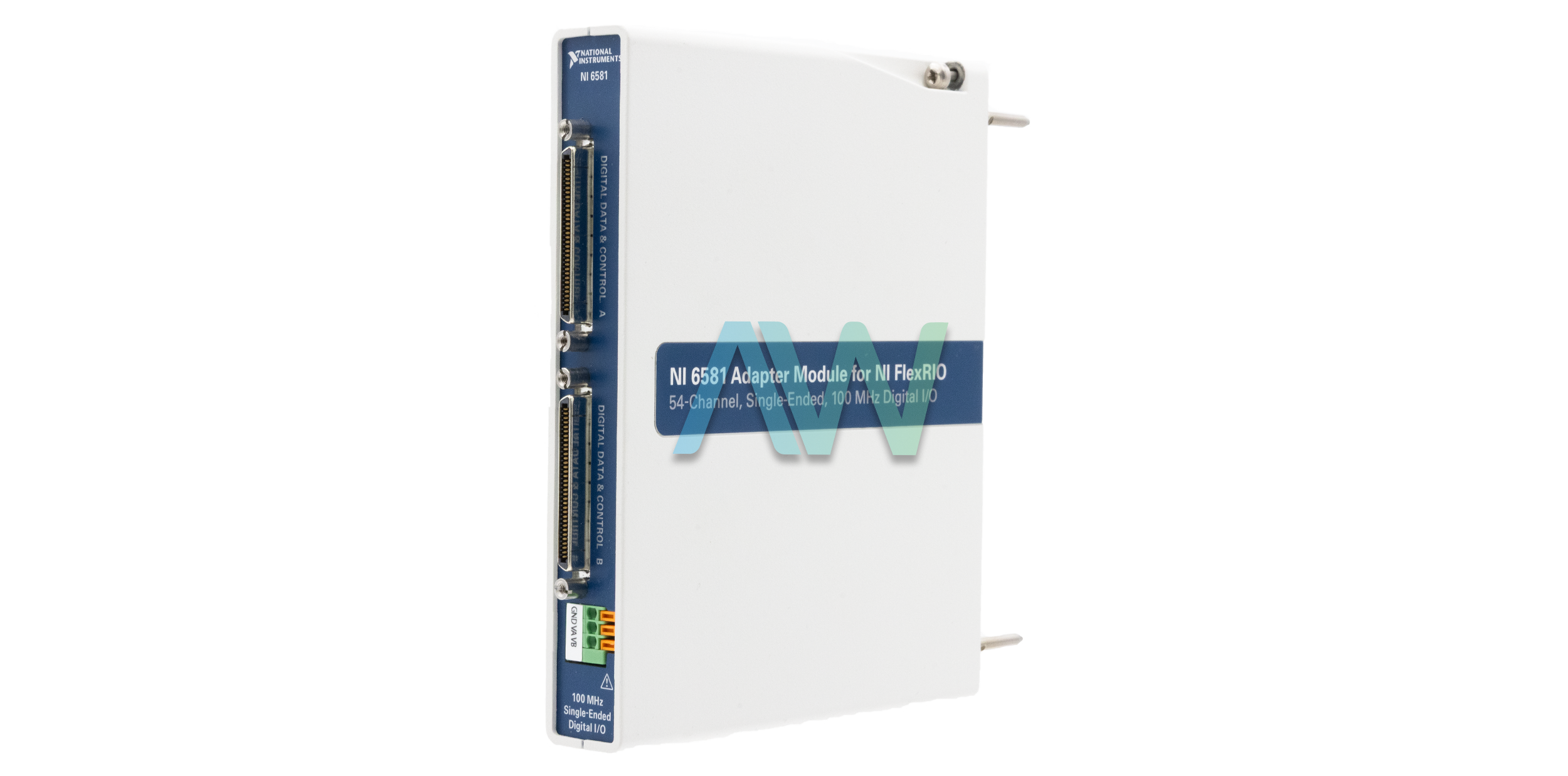

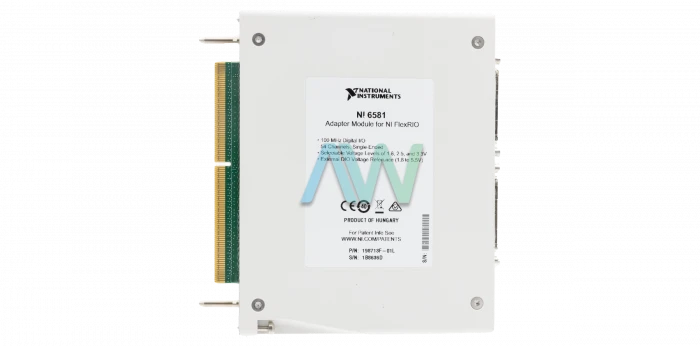

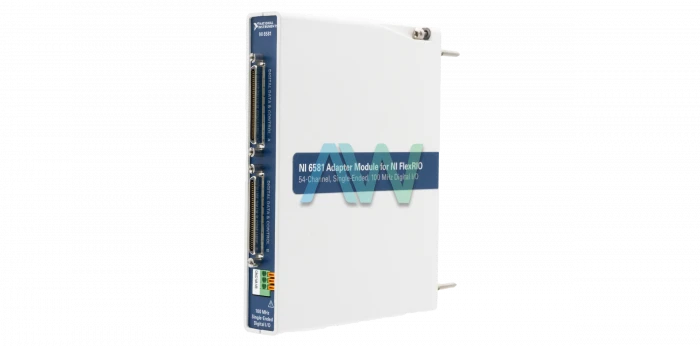

National Instruments NI-6581 Digital I/O Adapter Module for FlexRIO

The NI-6581 (Part number: 780565-01) is an advanced Digital I/O Adapter Module for FlexRIO. When joined with a PXI FPGA Module for FlexRIO, the result is a computerized instrument for interfacing with 54 single-finished computerized pins. The user can utilize the NI-6581 to perform continuous interfacing of standard conventions and execute altered conventions. The NI 6581 module can work computerized test waveforms at up to 100 MHz and incorporates bolster for normal transistor-to-transistor logic (TTL) voltage levels, or other voltage references can be sourced remotely utilizing a front board connector.

The NI 6581 Adapter Module can be used with a NI FlexRIO FPGA module for the accompanying customized semiconductor testing, electronics testing, implementation and testing of standard conventions, such as SPI and I2C, both as a master or a slave. In addition, users can arrange the computerized I/O lines as custom counter/clocks, pulse width modulation (PWM) channels, or communication buses for client characterized conventions or applications requiring serial triggering. Users can even alter the communications with the installed DRAM for streamlined storing tasks.

At examining rates of 100 MHz, users can program the banks of I/O lines freely to actualize, read, or compose activities or synchronize various banks. Users can arrange the NI 6581 module for 1.8, 2.5, 3.3, or 5 V (TTL) logic. Users can utilize an outer source, (for example, a PXI programmable power supply) as a voltage reference (1.8 to 5.5 V), for every connector autonomously, to make custom voltage references.

ModelNI-6581
ManufacturerNational Instruments
Part Number780565-01
TypeDigital I/O Adapter Module for FlexRIO
Bidirectional Digital Channels54
Maximum Clock Rate100 MHz
Maximum Data Rate100 Mbits/s
Dimensions5.1 x 0.8 x 4.7 in.
Weight10 oz.
WarrantyOne Year Warranty
NI-6581 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-6581 Frequently Asked Questions



Question: Which NI FlexRIO FPGA modules are compatible with the NI-6581?



Answer: The NI-6581 is compatible with the PXI-795xR and PXIe-796xR FPGA modules.



Question: What type of front panel connectors are on the NI 6581?



Answer: The NI 6581 has two 68-pin VHDCI front panel connectors.



Question: How many digital I/O connectors are on the NI-6581?



Answer: The NI-6581 has 48 data and 6 PFI connectors for a total of 54.



Question: Which driver is used with the NI 6581 module?



Answer: NI FlexRIO can be used with the NI 6581 module.
